Siemens 7ME6920-1AA30-1AA0 Migration-Ready MAG 6000 Transmitter for Legacy Control Systems

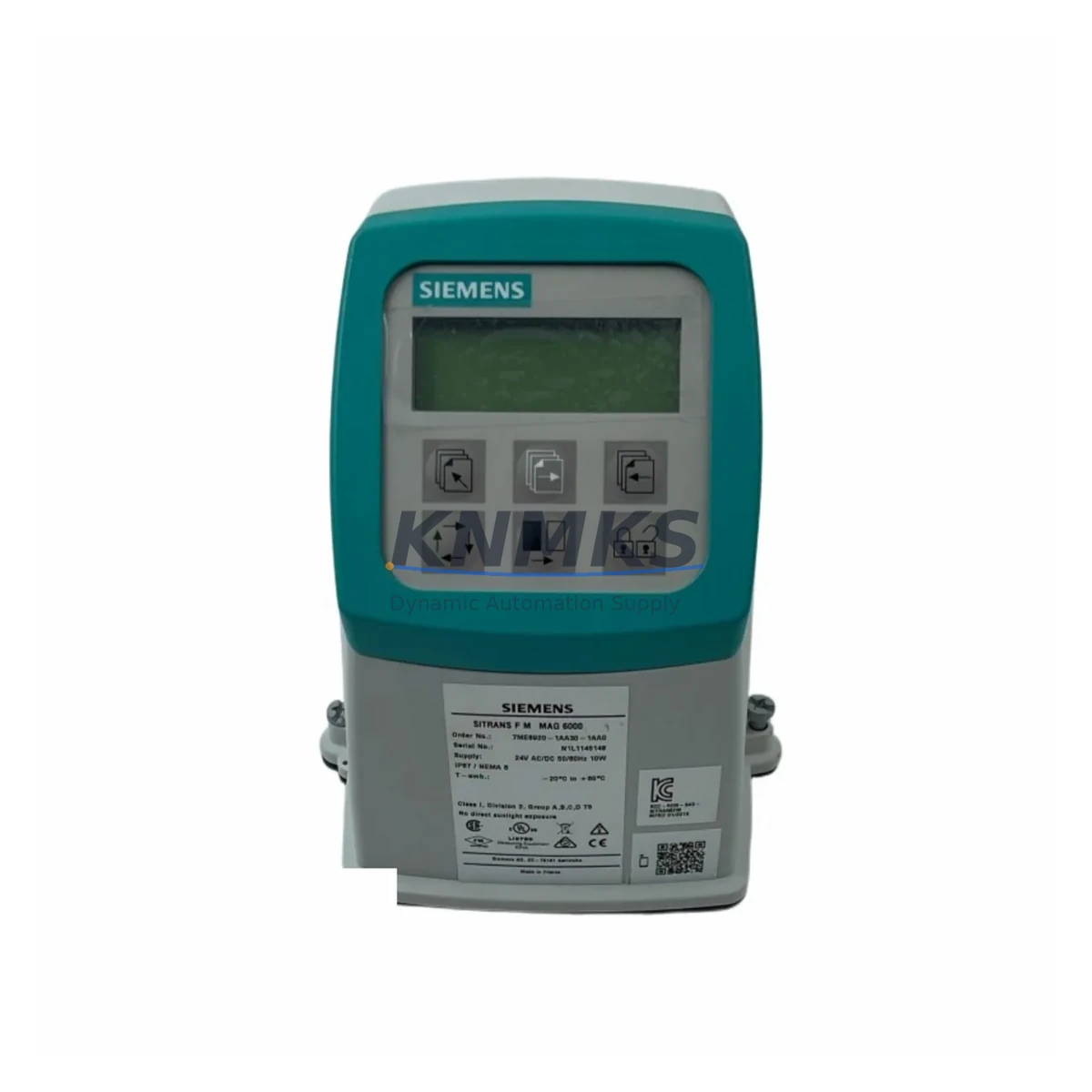

The Siemens 7ME6920-1AA30-1AA0 is a MAG 6000 electromagnetic flowmeter transmitter engineered for direct replacement of discontinued or end-of-life flow measurement units in legacy process automation environments. Designed for seamless integration into existing SITRANS F MAG sensor installations, this transmitter supports PROFIBUS PA and FOUNDATION Fieldbus (FF) communication protocols, making it a reliable upgrade path for plants still operating on older DCS or PLC architectures. Each unit is pre-tested prior to shipment, backed by a support terms confirmed by quotation, and available from multi-region stock for emergency replacement and scheduled outage windows.

For engineering teams managing aging flow measurement infrastructure, the 7ME6920-1AA30-1AA0 eliminates the need for full sensor replacement. The transmitter mounts directly onto existing MAG 5000 or MAG 6000 sensor bodies using the standard M20 conduit entry and DIN rail or wall-mount bracket, preserving original pipe connections and reducing installation time. Before commissioning, engineers should verify the sensor coil resistance, electrode insulation resistance, and confirm that the existing cable length and shielding meet MAG 6000 signal integrity requirements.

When integrating this transmitter into a PROFIBUS PA segment, confirm the segment coupler capacity and bus termination status. The 7ME6920-1AA30-1AA0 draws approximately 11 mA from the PA segment; segment load calculations should account for all connected field devices including pressure transmitters, temperature transmitters, and valve positioners sharing the same trunk. If the existing segment is already near capacity, a SIMATIC PDM or FieldCare device management tool can be used to audit current device addresses and reassign the GSD-based device profile for the new transmitter without disrupting adjacent instruments.

For plants migrating from a legacy SIMATIC S7-300 or S7-400 PLC platform to a newer S7-1500 or distributed I/O architecture using ET 200SP or ET 200M, the MAG 6000 transmitter’s PROFIBUS PA interface remains fully compatible through standard DP/PA couplers. The existing function block library for flow totalisation, batch control, and empty pipe detection can be retained in the migrated program with minor adaptation. Engineers should document the original scaling parameters — including low flow cutoff, damping time constant, and full-scale flow value — before replacing the transmitter to ensure continuity of process values in the HMI and historian.

In control cabinet upgrade projects, the 7ME6920-1AA30-1AA0 is typically installed alongside updated power supply modules and marshalling terminals. Confirm that the 24 VDC auxiliary power supply can sustain the transmitter’s 0.8 W power consumption under worst-case load conditions. If the cabinet also houses a SITRANS RD200 remote display or a SIMATIC HMI panel connected via RS 485, verify that the display wiring polarity and baud rate settings are preserved during the swap. The transmitter’s local display and keypad allow on-site parameter verification without a laptop, which is valuable during live plant commissioning.

For I/O expansion scenarios where the plant is adding new measurement points to an existing PROFIBUS PA network, the 7ME6920-1AA30-1AA0 can be added to the segment alongside existing MAG 5100 W sensors or SITRANS P DS III pressure transmitters without requiring a new segment. Address assignment is performed via the local operator interface or SIMATIC PDM, and the GSD file is available for import into TIA Portal or Step 7 for seamless integration into the existing hardware configuration. Signal isolation between the PA segment and the control system backplane is maintained through the DP/PA coupler, protecting the PLC from field-side transients.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 7ME6920-1AA30-1AA0 begins with a pre-outage audit of the existing flow measurement loop. Retrieve the original commissioning records for the MAG 6000 sensor, including the sensor serial number, calibration factor, and electrode material, as these parameters must be re-entered into the replacement transmitter during startup. If the plant uses a SIMATIC PCS 7 DCS, the existing CFC chart for the flow loop should be exported and archived before the transmitter is removed, preserving the control logic for post-retrofit verification.

In the control cabinet, inspect the terminal block wiring for the sensor cable — specifically the signal cable (cores 1 and 2), the coil excitation cable (cores 3 and 4), and the protective earth connection. The 7ME6920-1AA30-1AA0 uses the same terminal assignment as the previous MAG 6000 transmitter generation, so no rewiring is required if the original cable is intact and within the maximum permitted length of 50 m for the signal cable. If the cable has been extended or spliced, measure the total loop resistance and compare against the transmitter’s input impedance specification before proceeding.

For plants also upgrading their marshalling cabinets with new SIMATIC ET 200SP distributed I/O modules or replacing legacy SIPART PS2 valve positioners, coordinate the transmitter swap with the broader I/O migration schedule to minimise the number of separate outage windows. Where the plant operates a SITRANS FC430 Coriolis meter on the same process line, confirm that the flow totaliser in the PLC program correctly handles the transition period when one meter is offline during the MAG 6000 transmitter replacement.

Downtime Control During System Migration

Minimising process downtime during a MAG 6000 transmitter replacement requires careful pre-staging and a structured commissioning sequence. Before the outage window opens, pre-configure the replacement 7ME6920-1AA30-1AA0 offline using SIMATIC PDM with the original parameter set exported from the outgoing transmitter. This includes flow direction, empty pipe detection threshold, low flow cutoff, output damping, and PROFIBUS PA device address. Having the transmitter pre-configured reduces on-site commissioning time to a physical swap, wiring check, and live verification — typically achievable within a two-hour maintenance window.

During the swap, place the affected flow loop in manual mode at the DCS or PLC level to prevent false alarms and unintended control actions. If the plant uses a SIMATIC WinCC or PCS 7 OS historian, suppress the affected tag to avoid gap entries in the process data record. After the transmitter is installed and powered, perform a zero-point calibration with the pipe full and flow stopped before returning the loop to automatic control. Confirm that the PROFIBUS PA device is recognised by the segment master and that the process value displayed on the local operator panel matches the DCS reading before closing the maintenance work order.

For plants with no redundant flow measurement path, consider installing a temporary clamp-on ultrasonic flowmeter on the pipe exterior during the outage to maintain a reference flow reading for process monitoring. This approach is particularly valuable in continuous process industries where flow data is required for regulatory reporting or custody transfer. Once the 7ME6920-1AA30-1AA0 is commissioned and verified, the temporary meter can be removed and the permanent flow loop restored to full automatic operation.

Retrofit Support FAQ

Q: Is the 7ME6920-1AA30-1AA0 a direct replacement for all MAG 6000 transmitter variants?
A: The 7ME6920-1AA30-1AA0 is compatible with MAG 6000 sensor bodies using the standard M20 conduit entry and the PROFIBUS PA or FOUNDATION Fieldbus communication option. Plants using the 4–20 mA/HART output variant should confirm the order code suffix before ordering. Contact our team with your existing transmitter order code for a compatibility confirmation prior to purchase.

Q: What commissioning steps are required after installation?
A: After physical installation and wiring verification, connect to the transmitter via SIMATIC PDM or the local keypad to enter the sensor calibration factor, flow direction, and PROFIBUS PA device address. Perform an empty pipe calibration and a zero-point calibration with the pipe full and flow stopped. Verify the process value against a reference instrument before returning the loop to automatic control.

Q: Does the unit ship pre-tested?
A: Yes. Every 7ME6920-1AA30-1AA0 unit undergoes a functional test and communication verification before dispatch. A test report is available upon request. Units are shipped in original or equivalent protective packaging to prevent transit damage.

Q: What is the support terms coverage and stock availability?
A: All units are covered by a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. We maintain multi-region stock to support both emergency replacement orders and planned outage schedules. Same-day dispatch is available for in-stock units. Contact [email protected] or +86 18359268345 for lead time confirmation and volume pricing.
