Bently Nevada 3300/5/1 Maintenance-Proven Spare Part for Factory Uptime

Overview

Bently Nevada 3300/5/1 Maintenance-Proven Spare Part for Factory Uptime

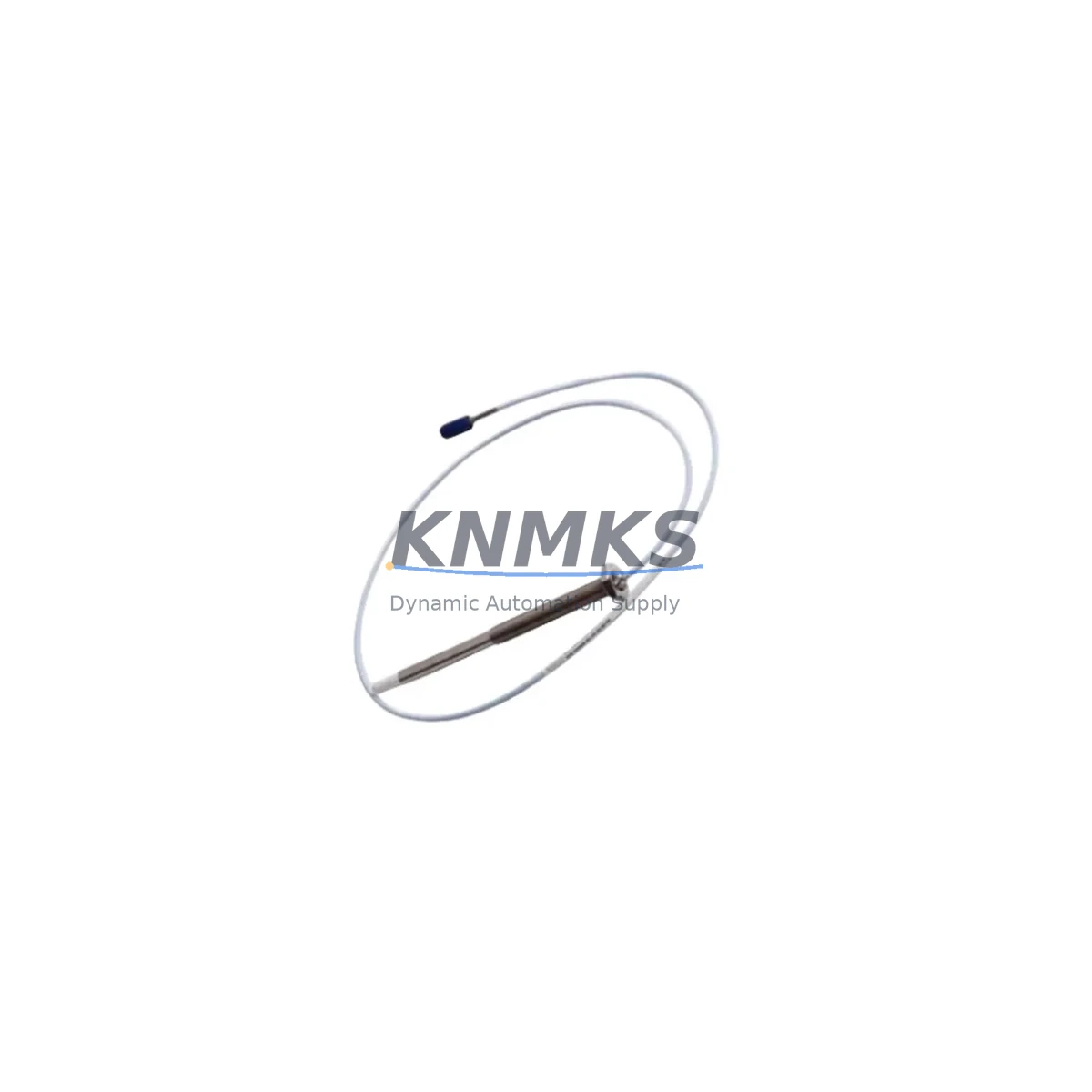

The Bently Nevada 3300/5/1 is an original proximity probe designed for continuous vibration and position monitoring in rotating machinery protection systems. As a core sensing element within the 3300 NSv Series architecture, this probe delivers the signal integrity and dimensional precision that maintenance engineers depend on during both scheduled inspections and emergency fault-isolation events. Sourced as an original spare, each unit is pre-shipment tested and backed by a support terms confirmed by quotation, ensuring your replacement stock is ready to perform the moment it is needed on the plant floor.

For maintenance and procurement engineers managing aging turbomachinery, compressor trains, or pump protection panels, the 3300/5/1 represents a critical line item in any spare parts strategy. Its 5 mm tip diameter and 1-metre integral cable are matched to the standard 3300 NSv driver and extension cable assemblies, making it a direct drop-in replacement without recalibration of the full loop — provided the driver and extension cable are verified as part of the same replacement workflow.

Downtime recovery begins with having the right probe on the shelf. A single unplanned shutdown on a critical rotating asset can cost far more than a well-managed spare parts inventory. Stocking the 3300/5/1 alongside its companion components is a proven strategy for reducing mean time to repair (MTTR) and maintaining compliance with API 670 machinery protection requirements.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 3300/5/1 proximity probe during a planned outage or emergency shutdown, a disciplined maintenance engineer will not stop at the probe itself. The full eddy-current measurement loop must be evaluated as a system. Begin by inspecting the 3300/05 or 3300/10 extension cable for jacket damage, connector corrosion, or continuity loss — a degraded extension cable is a common source of false gap voltage readings that can mask a healthy probe or condemn a good one.

Next, verify the 3300/16 NSv or 3300/20 NSv driver module seated in the monitor rack. Driver modules accumulate hours alongside the probe and should be treated as a paired replacement item during major overhauls. Check the driver’s output voltage at the OK relay terminal and confirm the gap voltage is within the –10 V to –18 V window before declaring the loop healthy.

Within the monitor rack itself, inspect the 3300/46 or 3300/55 monitor card for alarm setpoint drift, relay contact wear, and firmware revision. If the site runs a 3500 Series rack in parallel for redundancy, confirm that the 3500/42M or 3500/45 proximity monitor cards are also within calibration. Cross-referencing both racks during a single maintenance window eliminates repeat entries.

At the cabinet level, audit the 24 VDC power supply rail feeding the monitor rack — ripple voltage above 50 mV peak-to-peak can introduce noise into the proximity loop and generate nuisance alarms. Check terminal block torque values on the signal wiring, particularly on TB-series DIN rail terminal strips that may have loosened under vibration. Inspect any signal isolators or Zener barriers in the intrinsically safe circuit if the probe is installed in a classified hazardous area.

For sites running a System 1 Evolution or Orbit 60 condition monitoring platform, verify that the channel configuration in the software matches the new probe’s sensitivity constant after replacement. A mismatch between the configured 200 mV/mil sensitivity and the actual probe output will produce incorrect vibration amplitude readings without triggering a hardware fault — a silent error that can persist through multiple shift handovers.

Finally, confirm that the keyphasor probe and driver on the same shaft are functioning correctly. The 3300/5/1 vibration probe data is only meaningful when the keyphasor reference signal is clean and phase-locked. A worn keyphasor target or a drifting keyphasor driver will corrupt the 1X and 2X vector data that maintenance engineers rely on for balancing and alignment decisions.

Site Replacement Workflow

Step 1 — Isolation and Permit: Issue a work permit and isolate the monitor channel at the rack. Do not de-energise the full rack if other channels are protecting live machinery. Use the channel inhibit function on the 3300 or 3500 monitor to suppress alarms during the replacement window.

Step 2 — Gap Voltage Baseline: Before removing the old probe, record the existing gap voltage at the driver output. This baseline confirms the probe-to-target distance and provides a reference for reinstallation of the new 3300/5/1.

Step 3 — Probe Removal: Loosen the locknut and back the probe out of the bracket. Inspect the probe tip for impact damage or target material transfer. Inspect the bracket bore for wear or misalignment that could affect the new probe’s gap setting.

Step 4 — New Probe Installation: Thread the 3300/5/1 into the bracket and set the gap to the manufacturer’s recommended value (typically 1.0–1.5 mm for steel targets). Tighten the locknut to the specified torque. Reconnect the extension cable and verify connector seating.

Step 5 — Loop Verification: Re-energise the channel and confirm gap voltage is within the –10 V to –18 V window. Check the OK relay status on the driver. Confirm the monitor card is displaying a valid vibration reading before releasing the channel inhibit.

Step 6 — Documentation: Record the replacement in the maintenance management system (CMMS) with the new probe serial number, gap voltage as-left value, and technician sign-off. Update the spare parts inventory to trigger a replenishment order for the consumed 3300/5/1 unit.

Spare Parts Support FAQ

Q1: Is the 3300/5/1 a direct replacement for older 3300 Series proximity probes?
Yes. The 3300/5/1 is dimensionally and electrically compatible with earlier 3300 Series probes of the same tip diameter and cable length. However, always verify the driver model and extension cable part number before installation, as mixing NSv and non-NSv components can affect loop calibration and OK relay thresholds.

Q2: What pre-shipment testing is performed on each unit?
Each 3300/5/1 supplied by KNMKS undergoes electrical continuity verification, insulation resistance testing, and gap voltage output confirmation against a reference steel target prior to dispatch. A test record is available upon request. All units are shipped with a support terms confirmed by quotation covering manufacturing defects and performance deviations from the published specification.

Q3: Can KNMKS support long-term supply agreements for the 3300/5/1?
Yes. KNMKS offers 12–36 month supply agreements for critical spare parts including the 3300/5/1, with reserved stock allocation and priority dispatch for emergency orders. Long-term agreements are available for single-site and multi-site customers. Contact [email protected] to discuss volume, lead time, and pricing terms.

Q4: How should the 3300/5/1 be stored as a shelf spare?
Store in the original packaging in a dry, temperature-controlled environment (0°C to +40°C) away from strong magnetic fields and mechanical shock. Inspect connector pins and cable jacket annually. Rotate stock on a first-in, first-out basis and replace any unit that has been in storage for more than 36 months or shows signs of connector oxidation or cable jacket cracking.
