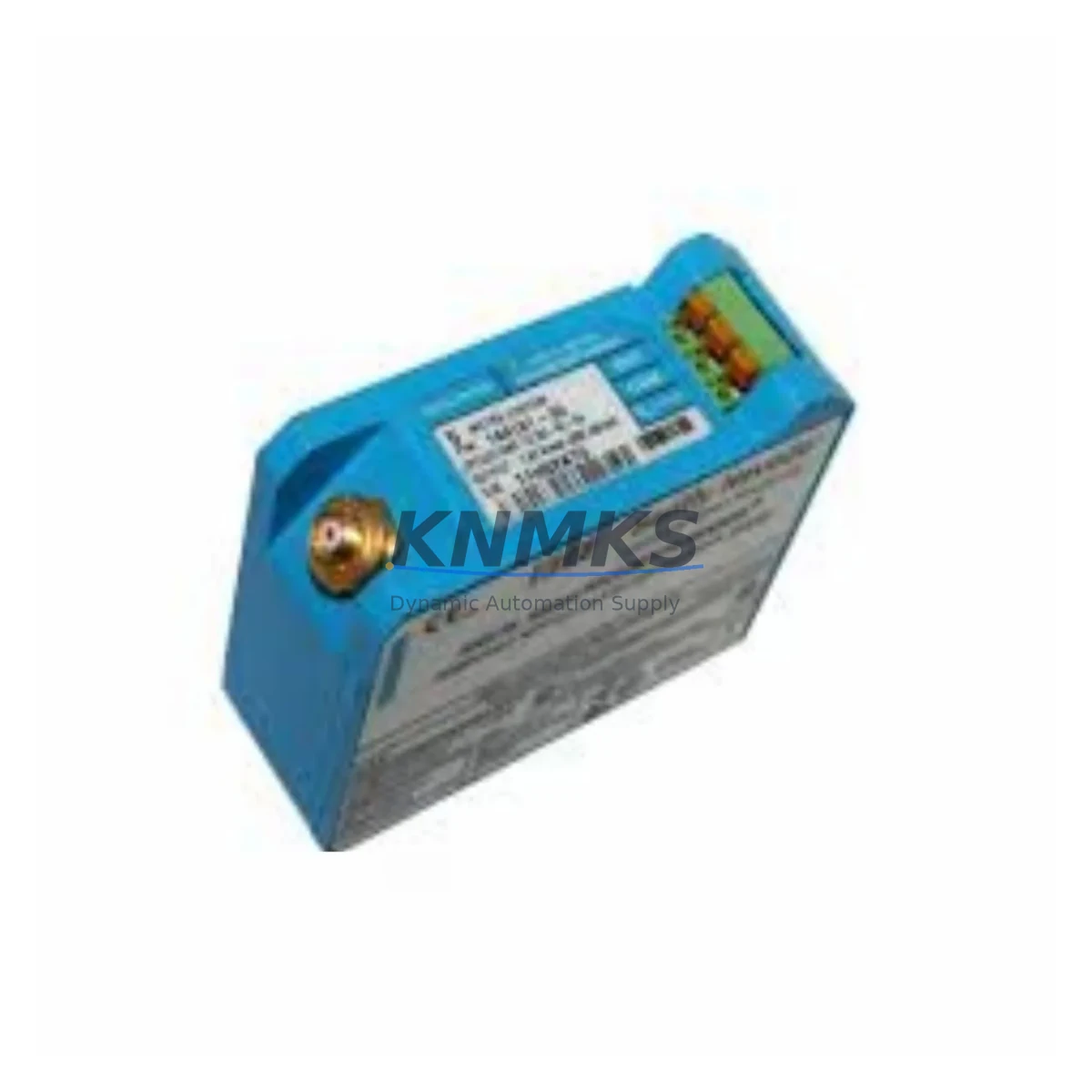

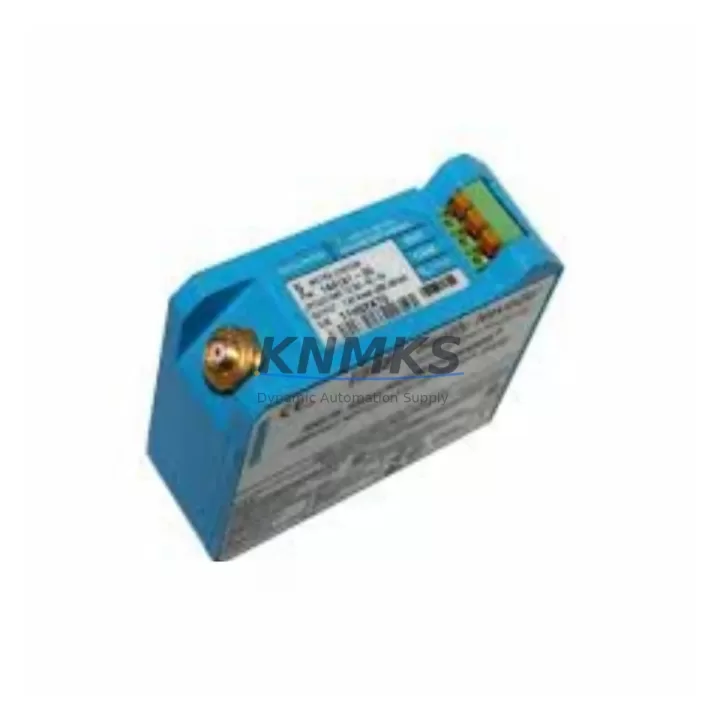

Bently Nevada 144181-50 Proximity Transducer 3300 XL: Migration-Ready Upgrade for Legacy Vibration Monitoring Systems

The Bently Nevada 144181-50 is an eddy-current proximity transducer engineered for the 3300 XL Series condition monitoring platform. Designed as a direct migration-ready replacement for discontinued and aging proximity transducer assemblies, the 144181-50 delivers verified signal compatibility, consistent gap voltage output, and mechanical interchangeability with legacy 3300 Series installations — making it the preferred choice for engineers managing turbomachinery protection system upgrades, control cabinet retrofits, and long-term spare parts lifecycle extension.

Whether you are replacing a failed transducer on a critical compressor train, upgrading a steam turbine monitoring rack, or restoring a mothballed production line, the 144181-50 provides a reliable, specification-matched solution that minimizes engineering rework and reduces unplanned downtime risk.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the Bently Nevada 144181-50 into an existing machinery protection system requires a structured retrofit plan that accounts for both mechanical and electrical compatibility across the full signal chain. The transducer does not operate in isolation — it functions as part of a complete measurement loop that typically includes an extension cable (such as the 330130 series), a proximitor / oscillator-demodulator (such as the 3300 XL 8mm proximitor), and a 3300 XL monitor module installed in a standard 19-inch rack or dedicated monitoring enclosure.

Before installation, engineers should confirm that the existing 3300 XL rack power supply provides adequate capacity to support the transducer loop, particularly in multi-channel monitoring cabinets where additional I/O expansion or communication modules have been added over time. Power budget verification is a frequently overlooked step that can cause intermittent signal faults after retrofit.

Terminal wiring at the proximitor and monitor input must be inspected and re-terminated if insulation degradation is present — a common finding in systems that have been in service for 10 or more years. Where the existing installation uses a junction box or field terminal assembly, confirm that the wiring color code and shield grounding practice match the 3300 XL system documentation to avoid ground loop interference on the proximity signal.

For facilities that have integrated their Bently Nevada monitoring system with a DCS platform (such as Emerson DeltaV or Honeywell Experion) via analog 4–20 mA retransmission or Modbus RTU, verify that the analog output scaling on the monitor module remains correctly configured after the transducer swap. In some legacy installations, the monitor’s output scaling was customized to match a non-standard transducer sensitivity — replacing the transducer with a standard 144181-50 may require reconfiguring the monitor’s scale factor to restore accurate DCS readings.

Where the retrofit is part of a broader control cabinet upgrade — for example, migrating from a legacy relay-based trip system to a modern Safety Instrumented System (SIS) — the 144181-50 signal can be routed to a signal isolator or signal conditioner to provide galvanic isolation between the monitoring loop and the SIS input module. This is particularly important in installations where the SIS uses a different ground reference than the Bently Nevada monitoring rack.

Finally, if the retrofit involves replacing multiple transducers across a turbine or compressor train simultaneously, coordinate the installation sequence with the control room to ensure that the HMI display and historian tags are updated to reflect any channel reassignments, and that alarm inhibit functions are properly managed during the commissioning window to prevent spurious trip events.

Downtime Control During System Migration

Minimizing production downtime during a proximity transducer replacement is a primary concern for maintenance teams operating critical rotating equipment. The Bently Nevada 144181-50 is designed to support rapid swap-out procedures, but effective downtime control depends on preparation that begins well before the maintenance window opens.

The most effective approach is to pre-stage the replacement transducer, extension cable, and any required hand tools at the work site before the equipment is taken offline. Confirm the gap setting target voltage from the existing system documentation or the 3300 XL monitor configuration — this allows the technician to set the mechanical gap quickly and accurately without extended trial-and-error adjustment during the outage.

Preserve the original program logic and alarm setpoints in the monitor by documenting or exporting the configuration before the swap. For monitors that support configuration backup via a System 1 software connection or local keypad, capture the full configuration file so that it can be restored immediately if the monitor requires a reset during installation. This step protects against accidental setpoint loss and eliminates the need for a full recommissioning cycle.

Once the 144181-50 is installed and the gap voltage is verified, perform a signal path check from the transducer through the proximitor to the monitor display and the DCS historian before returning the equipment to service. Confirm that the vibration reading is stable and within the expected baseline range for the machine at rest. A brief bump test or slow-roll check, where operationally feasible, provides additional confidence that the replacement transducer is performing correctly before full-speed operation resumes.

All units supplied by KNMKS are pre-tested prior to shipment. Each 144181-50 is verified for signal output and physical integrity before dispatch, reducing the risk of receiving a non-functional unit and eliminating the need for incoming inspection delays at the customer site.

Retrofit Support FAQ

Q1: Is the Bently Nevada 144181-50 a direct replacement for older 3300 Series proximity transducers?
In most applications, yes. The 144181-50 is designed for the 3300 XL platform and is mechanically and electrically compatible with standard 3300 XL extension cables and proximitor modules. However, confirm the thread size, cable length, and sensitivity specification of the original transducer before ordering to ensure a direct fit. If the legacy transducer used a non-standard sensitivity (e.g., 7.87 V/mm vs. the standard 7.87 V/mm nominal), the monitor scale factor may require adjustment after replacement.

Q2: What commissioning steps are required after installing the 144181-50?
After mechanical installation, set the transducer gap to achieve the target gap voltage specified in the 3300 XL system documentation (typically -10 VDC at the nominal gap). Verify the signal at the monitor front panel or via System 1 software. Confirm that vibration and position readings are stable, check alarm and trip setpoints against the original configuration, and perform a functional trip test if the safety plan permits. Document the as-left gap voltage for future reference.

Q3: Can the 144181-50 be used with DCS analog input modules from other manufacturers?
The 144181-50 outputs a standard proximity voltage signal via the 3300 XL monitor’s analog retransmission output. This signal is compatible with standard 4–20 mA or voltage analog input modules used in DCS and PLC systems from major manufacturers. If direct integration is required (bypassing the Bently Nevada monitor), a signal conditioner should be used to convert and isolate the proximitor output for compatibility with third-party analog input cards.

Q4: What support terms and supply terms does KNMKS offer for the 144181-50?
KNMKS supplies the Bently Nevada 144181-50 with a support terms confirmed by quotation covering manufacturing defects and signal performance. Units are sourced from verified supply channels, pre-tested before shipment, and supported by documentation on request. Stock availability is maintained for fast dispatch. Contact our sales team for lead time confirmation, volume pricing, and export documentation requirements.
