Bently Nevada 21000-16-05-00-103-03-02 Migration-Ready Proximity Probe

Overview

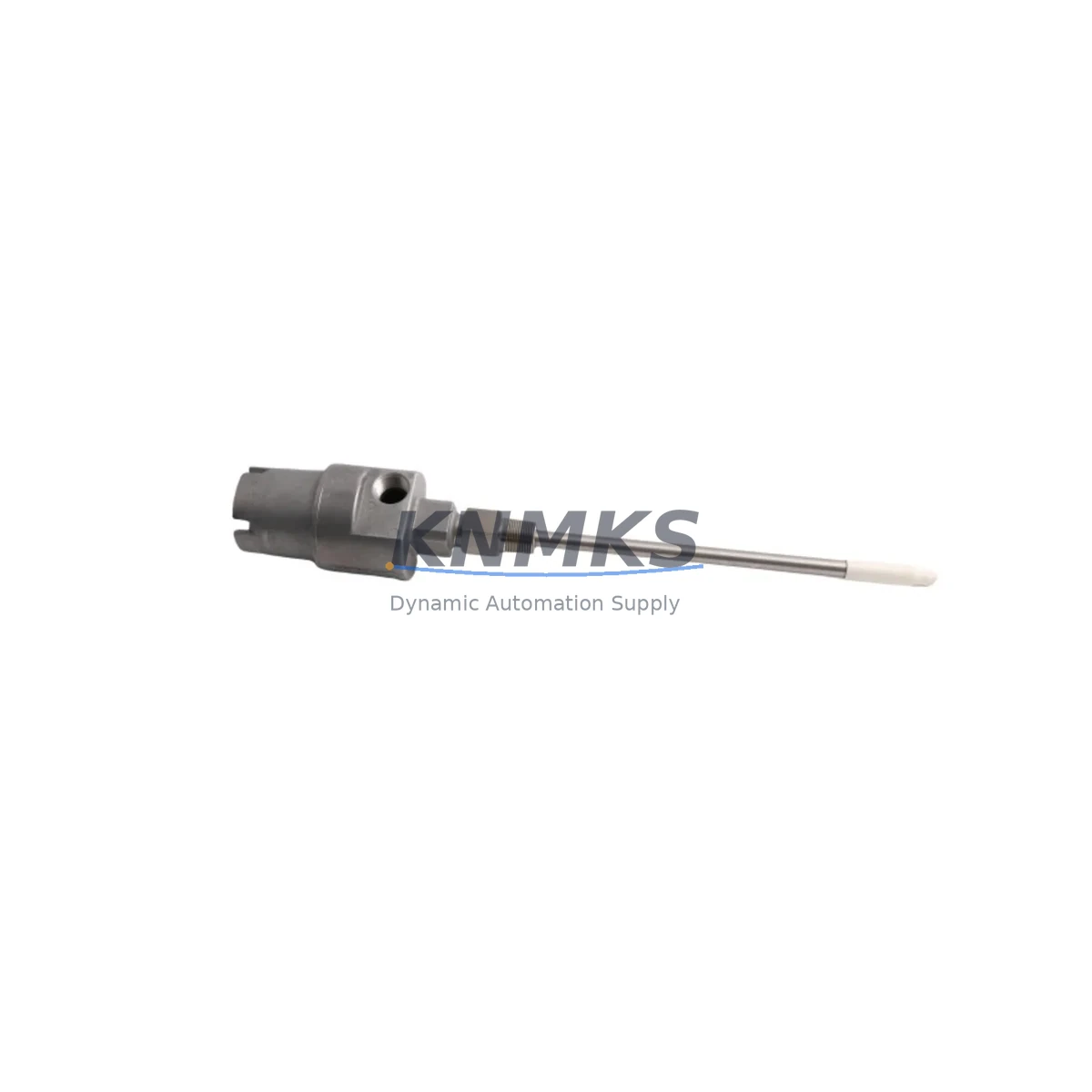

Bently Nevada 21000-16-05-00-103-03-02 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 21000-16-05-00-103-03-02 is a migration-ready proximity probe housing assembly engineered for direct integration into legacy vibration monitoring and machinery protection systems. As industrial facilities face increasing pressure to replace discontinued components and modernize aging control infrastructure, this unit provides a verified, drop-in compatible solution for 3300 XL series monitor racks and associated field wiring architectures. Whether you are executing a planned turnaround, responding to an unplanned failure, or proactively building out your critical spare inventory, the 21000-16-05-00-103-03-02 is a field-proven choice that minimizes engineering risk and reduces total retrofit cost.

This proximity probe is designed to interface directly with the Bently Nevada 3300 XL monitor series, including the 3300/16 and 3300/20 proximity transducer systems. The probe operates on the standard Bently Nevada eddy-current sensing principle, delivering a linear output voltage proportional to the gap between the probe tip and the observed rotating shaft. Output sensitivity, frequency response, and cable length specifications are fully compatible with existing 3300 XL signal conditioning modules, meaning no recalibration of the monitor rack is required when performing a like-for-like swap.

Before installation, engineers should confirm the following parameters against the existing system documentation: supply voltage at the proximitor (typically –24 VDC), cable extension length and type (RG-58 or equivalent), probe tip-to-shaft gap (standard 1.0 mm / 40 mil for most steel shaft applications), and the thread engagement depth on the probe holder. The 21000-16-05-00-103-03-02 uses a standard M8 thread configuration compatible with most OEM probe holders already installed in the field, eliminating the need to modify the machinery casing or bearing housing during replacement.

For facilities migrating from older 7200 series or 3000 series Bently Nevada systems, the 21000-16-05-00-103-03-02 can serve as a bridge component when paired with appropriate signal conditioning adapters. In these scenarios, it is common to also replace the proximitor extension cable assembly and verify that the 3300 XL I/O module rack—such as the 3300/55 or 3300/65 barrier isolator cards—is configured for the correct probe type. Firmware settings within the System 1 condition monitoring software should also be reviewed to ensure the transducer type mapping reflects the updated probe model, preventing false alarms or missed trip conditions during the commissioning phase.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 21000-16-05-00-103-03-02 into an operating plant environment requires careful coordination across multiple system layers. The probe itself is only one element of a broader measurement chain that includes the proximitor (signal conditioner), the extension cable, the monitor rack I/O card, and the condition monitoring software. When planning the replacement, maintenance engineers should begin by pulling the existing loop drawing and confirming the proximitor model currently in service. In most 3300 XL installations, the proximitor will be a 3300 XL 8mm proximitor or a 330180 series unit. If the existing proximitor is also at end-of-life, it is advisable to replace both the probe and proximitor simultaneously to avoid a second outage.

The 3300 XL monitor rack typically houses multiple I/O cards, including the 3300/16 proximity transducer monitor and the 3300/46 or 3300/55 barrier isolator modules. During the retrofit, each card’s channel assignment and alert/danger setpoints should be documented before the outage begins. If the facility is also upgrading from a legacy DCS or safety system, the 4–20 mA output signals from the 3300 XL rack may need to be re-terminated at the new I/O marshalling panel. In parallel, any Modbus or hardwired trip relay outputs connected to the turbine control system or emergency shutdown system should be verified for continuity after the probe swap.

For facilities that are simultaneously upgrading their HMI or historian platform, the System 1 condition monitoring software configuration file should be exported and backed up before any hardware changes are made. The transducer database within System 1 will need to be updated to reflect the new probe model number, and any custom alarm logic or trend displays referencing the old probe tag should be reviewed. If the plant is migrating to a newer version of System 1 or to a third-party condition monitoring platform, the raw vibration data format and engineering unit scaling must be confirmed to match the output characteristics of the 21000-16-05-00-103-03-02.

In addition to the probe and proximitor, the retrofit plan should account for the following commonly replaced components in the same maintenance window: the 330130-080-00-00 extension cable (to ensure matched system length), the 3300 XL rack power supply module (if the existing unit is showing signs of voltage ripple or thermal stress), and any 3300/65 or 3300/55 barrier isolator cards that are approaching their recommended service interval. Replacing these components together reduces the risk of a secondary failure shortly after the primary retrofit is completed and helps extend the overall service life of the machinery protection system.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any maintenance team executing a proximity probe replacement on a critical rotating machine. The 21000-16-05-00-103-03-02 is supplied pre-tested and gap-verified, which eliminates the most common source of commissioning delay: out-of-tolerance probe output at initial power-up. Each unit undergoes bench testing against a reference shaft target before shipment, and the test report is available upon request.

To further reduce outage duration, the replacement procedure should be pre-staged with all required tools, torque specifications, and gap-setting fixtures prepared in advance. The probe gap should be set to the OEM-specified value (typically 1.0 mm for steel shafts) using a calibrated gap gauge before the machine is returned to service. The proximitor output voltage should be verified at the monitor rack terminal strip before the rack is returned to automatic trip mode. This two-point verification—at the probe and at the rack—ensures that the measurement chain is intact and that the monitor will respond correctly to actual shaft vibration.

For facilities operating under a safety instrumented system (SIS) or with API 670 machinery protection requirements, the bypass and inhibit procedures for the affected measurement point should be coordinated with the control room operator before the probe is disconnected. The original program logic in the turbine control system or compressor control panel should not be modified during the probe replacement; only the physical measurement chain is being restored. After the new probe is installed and verified, the bypass should be removed and the system allowed to stabilize for a minimum of 15 minutes before the machine is returned to full load, allowing the vibration baseline to be confirmed against historical trend data.

Retrofit Support FAQ

Q: Is the 21000-16-05-00-103-03-02 a direct replacement for discontinued Bently Nevada 7200 series probes?
A: The 21000-16-05-00-103-03-02 is designed for 3300 XL system applications. For 7200 series replacements, the probe can be used with appropriate signal conditioning adapters, but the proximitor model and extension cable must be matched to the 21000 series specifications. Confirm the full measurement chain before ordering.

Q: What wiring changes are required when replacing the probe in an existing installation?
A: In most cases, no wiring changes are required. The probe uses a standard coaxial cable interface compatible with existing RG-58 extension cables and BNC connectors. Terminal connections at the monitor rack barrier isolator card remain unchanged. Always verify the cable shield grounding point against the original loop drawing.

Q: Has this unit been tested before shipment, and what support terms is provided?
A: Yes. Every 21000-16-05-00-103-03-02 unit is bench-tested and gap-verified before shipment. A support terms confirmed by quotation is provided from the date of shipment, covering manufacturing defects and output performance within published specifications. Test documentation is available upon request.

Q: What is the typical lead time, and do you maintain stock?
A: We maintain ready stock of the 21000-16-05-00-103-03-02 to support emergency replacement and planned turnaround requirements. Standard orders ship within 1–3 business days. For large-quantity or project-based orders, contact our sales team to confirm availability and delivery schedule.
