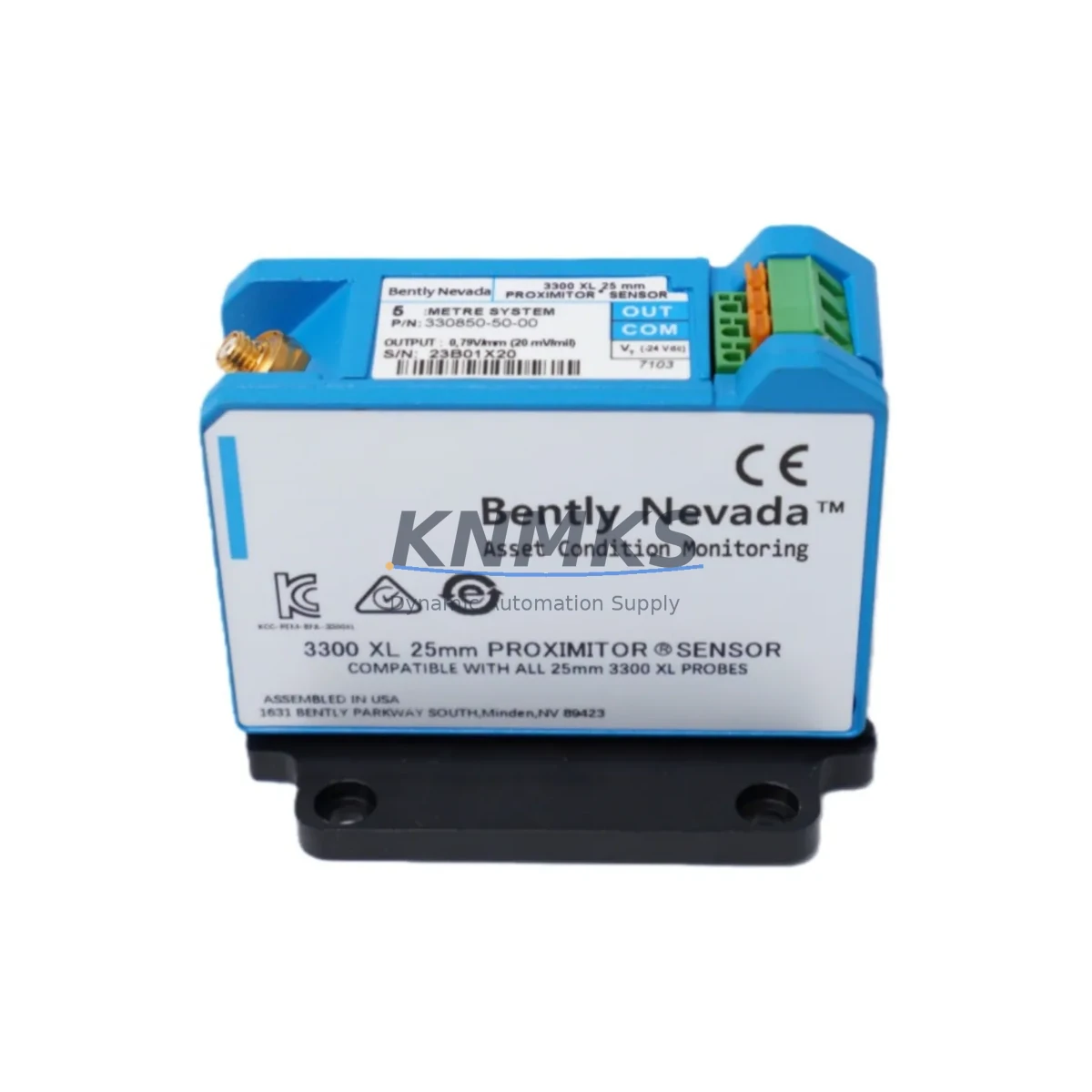

Bently Nevada 330850-50-CN Fail-Safe Proximitor Sensor

Overview

Bently Nevada 330850-50-CN Fail-Safe Proximitor Sensor: Fault-Tolerant Vibration Monitoring for Critical Industrial Control Reliability

The Bently Nevada 330850-50-CN is a precision eddy-current proximity sensor engineered for the most demanding continuous-process environments. As a core component of the Bently Nevada 3300 XL Series, this 5mm Proximitor® Sensor delivers fail-safe, real-time shaft vibration and position monitoring across petrochemical, power generation, mining, water treatment, metallurgical, port, and marine propulsion facilities. Its robust signal conditioning architecture ensures that even under severe electromagnetic interference, high-temperature gradients, mechanical vibration, and moisture ingress, the measurement chain remains stable — protecting rotating machinery from undetected fault escalation and unplanned shutdown.

In critical interlock loops and safety instrumented systems (SIS), signal drift or sensor dropout can trigger spurious trips or, worse, allow a genuine fault to go undetected. The 330850-50-CN addresses both failure modes through its tightly controlled output linearity and built-in self-monitoring circuitry. When integrated with a Bently Nevada 3300/16-24-01-01-00-00-00 rack and paired with a compatible 3300 XL 8mm extension cable assembly, the system maintains measurement integrity across cable runs up to 9 metres, making it suitable for large turbine pedestals and compressor trains where sensor-to-monitor distances are significant.

Control cabinet designers specifying this sensor for a new or retrofit installation should consider the full protection chain. Upstream, a Phoenix Contact TRABTECH surge protection module on the signal lines guards against transient overvoltage from nearby VFD switching or lightning coupling. Downstream, the conditioned -18 VDC to 0 VDC output feeds directly into the monitor card’s differential input, where it is compared against user-configured alert and danger setpoints. For installations where the monitor rack shares a cabinet with a Siemens S7-300 or S7-400 PLC, proper grounding of the Proximitor® power supply return to the cabinet’s single-point earth bar is essential to prevent ground-loop noise from corrupting the vibration signal. A Bently Nevada 3500/42M Proximitor®/Seismic Monitor in the same rack can provide redundant channel voting, further reducing the probability of dangerous failure on demand (PFD) in SIL-rated loops.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the 330850-50-CN within a well-engineered protection architecture dramatically reduces the risk of nuisance trips and undetected machinery faults. In a typical turbine or compressor control cabinet, the sensor’s coaxial cable is routed in a dedicated, shielded conduit separated from power conductors to minimise capacitive coupling. The Proximitor® driver electronics, mounted externally near the bearing housing, convert the probe’s impedance change into a low-impedance voltage signal before transmission to the monitor rack — a topology that inherently rejects common-mode noise picked up along the cable run.

For cabinets housing both the vibration monitoring system and the machine’s primary control logic — for example, a Rockwell Automation ControlLogix L7x PLC with a 1756-IB16 digital input module receiving the monitor’s relay outputs — the relay contact wiring should be treated as a safety-critical circuit. Dedicated cable trays, ferrite cores on signal cables, and transient voltage suppressors on relay coil circuits all contribute to a robust, low-nuisance-trip installation. Where the cabinet also contains a Schneider Electric Altivar 71 variable frequency drive, the VFD’s switching frequency harmonics represent the most significant EMI threat to the proximity measurement; physical separation of at least 300 mm between the VFD and the Proximitor® signal wiring is the minimum recommended practice.

Power supply quality is equally critical. The -24 VDC rail feeding the 330850-50-CN should be sourced from a dedicated, regulated DC power supply — such as a Phoenix Contact QUINT-PS/1AC/24DC/10 — rather than shared with solenoid valves or relay coils that generate back-EMF transients on switch-off. A bulk capacitor or active hold-up module on the 24 VDC bus ensures that momentary AC supply dips do not interrupt the vibration measurement during grid disturbances, which are common in heavy industrial facilities near large motor start events.

Critical Industrial Safety Applications

Petrochemical & Refinery: In fluid catalytic cracking (FCC) units and ethylene compressor trains, continuous shaft vibration monitoring is a mandatory element of the safety instrumented system. The 330850-50-CN provides the real-time radial displacement data that the SIS uses to initiate an emergency shutdown before bearing failure progresses to seal breach or fire. Its high-temperature tolerance and IP67 rating make it suitable for installation near hot process lines where ambient temperatures routinely exceed 60°C.

Power Generation: Steam turbine-generators in coal, gas, and nuclear power plants rely on eddy-current proximity sensors for both protection and condition monitoring. The 330850-50-CN’s wide frequency response (DC to 10 kHz) captures both slow thermal bow during startup and high-frequency sub-synchronous instability events, giving the plant’s distributed control system (DCS) the data needed to make informed load-shedding or trip decisions.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps operate in environments with extreme dust loading, water spray, and structural vibration. The sensor’s robust coaxial construction and IP67-rated Proximitor® housing resist ingress of conductive mineral dust that would degrade capacitive or optical sensing technologies. Reliable shaft position data from the 330850-50-CN enables predictive maintenance scheduling, reducing unplanned downtime in continuous ore processing circuits.

Water & Wastewater Treatment: High-service pumping stations and blower buildings present a combination of high humidity, chemical vapour, and variable load that accelerates bearing wear. Early detection of increasing shaft eccentricity through the 330850-50-CN allows maintenance teams to schedule bearing replacement during planned outages rather than responding to catastrophic failures that can contaminate distribution networks.

Metallurgy & Steel: Rolling mill main drives and continuous caster pinch rolls operate under extreme radial loads and thermal cycling. The 330850-50-CN’s Inconel-compatible target material specification and wide operating temperature range make it the preferred sensor for these applications, where conventional contact-type sensors would be destroyed within hours by heat and mechanical shock.

Port & Marine: Ship propulsion shaft monitoring and port crane slewing ring condition assessment both benefit from the sensor’s ability to operate in salt-laden, high-humidity atmospheres. The non-contact measurement principle eliminates wear-related drift that would affect mechanical proximity switches over the multi-year service intervals typical of marine installations.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 330850-50-CN?
The support terms covers all manufacturing defects, component failures, and out-of-specification performance identified within 12 months of the shipment date. Each unit undergoes functional testing — including output linearity verification across the full gap range and insulation resistance measurement — before dispatch. If a unit fails in service within the confirmed support period, we provide a replacement or documented resolution support after fault confirmation. Support requests are processed within 5 business days of receipt of the returned unit.

Q2: How is the 330850-50-CN tested before shipment?
Every unit is subjected to a pre-shipment inspection protocol that includes: visual inspection for physical damage, connector integrity check, DC supply current draw verification, output voltage linearity test at three gap positions (near, mid, and far end of linear range), and insulation resistance test between signal conductors and housing. Units that do not meet Bently Nevada’s published specifications are quarantined and not dispatched. A test report is available on request for critical-application orders.

Q3: Is the 330850-50-CN compatible with existing 3300 XL system installations?
Yes. The 330850-50-CN is a direct replacement for all standard 3300 XL 5mm Proximitor® assemblies. It is electrically and mechanically compatible with existing 3300 XL extension cables, monitor cards, and rack assemblies without any firmware or hardware modification. For installations using the 3500 Series monitor rack, a 3500-series compatible Proximitor® variant should be specified — contact our technical team to confirm the correct part number for your rack revision.

Q4: Can long-term supply commitments be arranged for this part?
Yes. For OEM integrators, EPC contractors, and plant maintenance programmes requiring guaranteed supply over 12–36 month horizons, we offer blanket purchase order arrangements with reserved stock allocation. This eliminates the lead-time risk associated with spot-market procurement of obsolescence-sensitive instrumentation. Contact [email protected] with your annual volume forecast to discuss pricing and stock reservation terms.
