Siemens 6GK5101-1BB00-2AA3 Fail-Safe Media Converter

Overview

Siemens 6GK5101-1BB00-2AA3 Fail-Safe Media Converter: Industrial Control Reliability Under Harsh Conditions

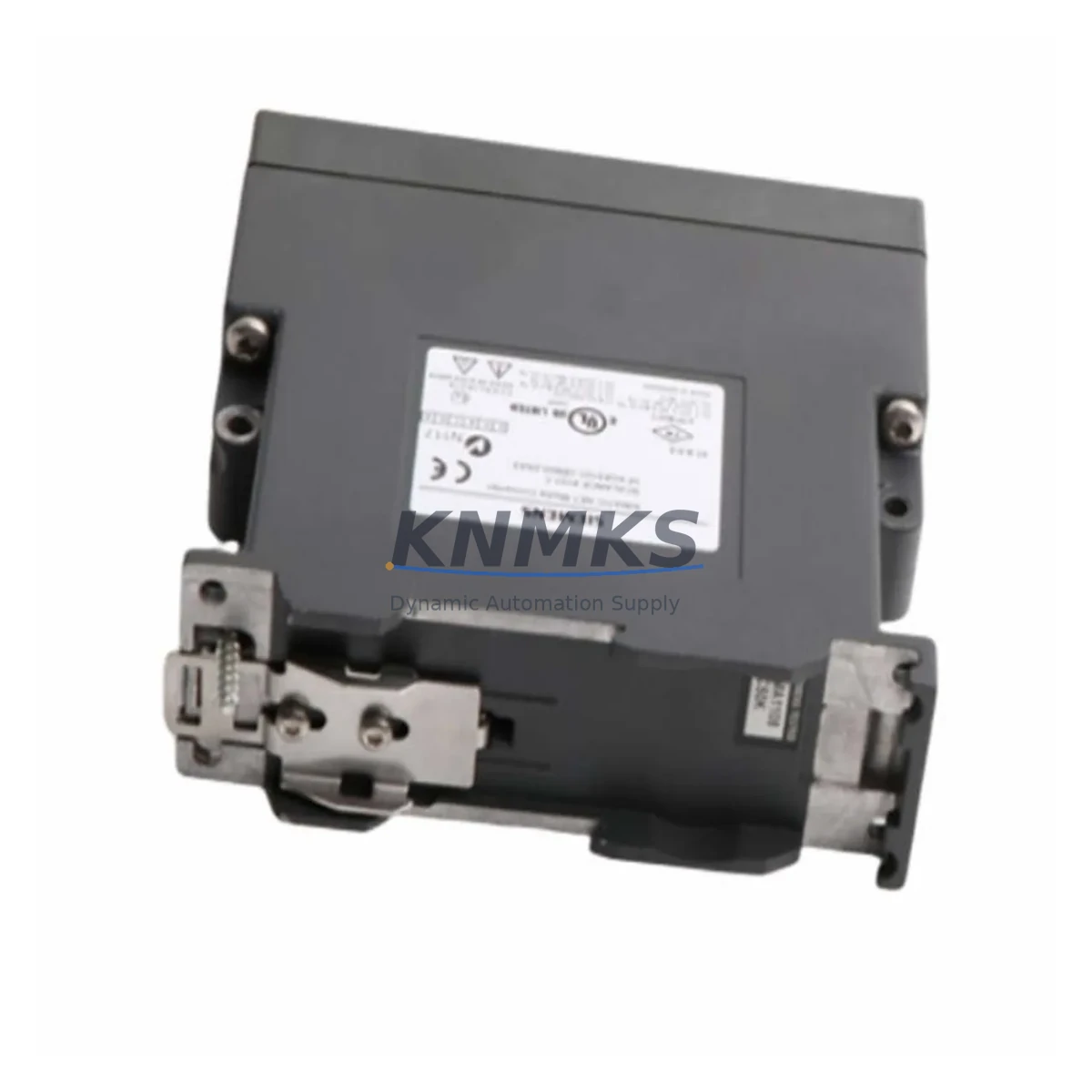

The Siemens 6GK5101-1BB00-2AA3, part of the SCALANCE X101-1 series, is a ruggedized industrial media converter engineered for fail-safe signal transmission in mission-critical automation environments. Designed to bridge 100BASE-TX copper and 100BASE-FX fiber segments, this unit delivers uninterrupted communication integrity across control cabinets, field panels, and distributed I/O architectures where signal loss, electromagnetic interference, or power fluctuation cannot be tolerated.

In continuous production facilities — including petrochemical plants, power generation stations, metallurgical lines, and port logistics systems — communication interruptions between PLCs, SCADA systems, and field devices can trigger cascading shutdowns, safety interlock failures, or unplanned downtime events. The 6GK5101-1BB00-2AA3 addresses these risks directly by providing a hardened, electrically isolated media conversion path that eliminates ground loop interference, suppresses conducted EMI, and maintains link integrity even under severe voltage transients and surge conditions.

Its compact DIN-rail form factor integrates seamlessly into standard control cabinet layouts alongside Siemens SIMATIC S7-300/S7-400 PLCs, SITOP power supply modules, and ET 200 distributed I/O stations. When deployed within the same communication ring or star topology as SCALANCE X208 or SCALANCE XB208 managed switches, the 6GK5101-1BB00-2AA3 extends copper-to-fiber reach without introducing latency or protocol overhead — a critical requirement for time-sensitive PROFINET and Industrial Ethernet applications.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Effective control cabinet design for high-availability industrial systems requires layered protection across power, communication, and signal domains. The 6GK5101-1BB00-2AA3 serves as the communication isolation backbone within this strategy. When paired with a SITOP PSU100S 24 V DC power supply, the cabinet’s power rail remains stable against input voltage fluctuations and short-circuit events, ensuring the media converter and connected PROFINET devices receive clean, regulated power at all times.

For cabinets housing Siemens SIMATIC S7-1500 CPUs or S7-300 racks with CP 343-1 communication processors, the 6GK5101-1BB00-2AA3 provides the copper-to-fiber transition that physically separates the cabinet’s internal copper Ethernet segment from the plant-wide fiber backbone — eliminating the risk of ground potential differences inducing data corruption or hardware damage across long cable runs in electrically noisy environments such as variable frequency drive (VFD) rooms, arc furnace control stations, or high-voltage switchgear buildings.

In safety-instrumented systems (SIS) and emergency shutdown (ESD) architectures, the fiber isolation provided by this unit prevents conducted transients from propagating between safety PLCs and process control networks. When deployed alongside SIMATIC ET 200SP distributed I/O modules and SCALANCE XB005 unmanaged switches at remote field junction boxes, the 6GK5101-1BB00-2AA3 maintains communication continuity even during nearby switching events, motor starts, or lightning-induced surge conditions — scenarios where copper-only networks routinely experience link drops or CRC errors.

For cabinet thermal management, the unit’s low power dissipation (≤ 3.5 W) minimizes heat contribution in densely populated enclosures, reducing the load on cabinet cooling systems and extending the service life of adjacent components including relay modules, terminal blocks, and surge protection devices.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In ATEX Zone 2 classified areas, the 6GK5101-1BB00-2AA3 enables fiber-based communication between explosion-proof field panels and the central DCS or safety PLC, maintaining process data integrity for critical interlock loops controlling pressure relief, emergency isolation valves, and flare system activation.

Power Generation and Substation Automation: In 110 kV and 220 kV substation control buildings, where electromagnetic fields from bus bars and transformers create extreme EMI conditions, this media converter’s industrial immunity rating ensures reliable SCADA communication between protection relays, bay controllers, and the station HMI — preventing false trip signals or communication timeouts that could compromise grid stability.

Mining and Mineral Processing: In underground mining operations and open-pit crushing stations, where vibration, dust ingress, and humidity are constant challenges, the DIN-rail mounted 6GK5101-1BB00-2AA3 provides a robust fiber uplink from conveyor control panels to the surface SCADA system, supporting continuous monitoring of belt load, motor current, and emergency stop status.

Water and Wastewater Treatment: In pump station control panels and WWTP aeration basin automation, where corrosive atmospheres and high-humidity conditions degrade copper connections over time, fiber-based media conversion via the 6GK5101-1BB00-2AA3 eliminates corrosion-related communication failures and supports long-distance links between remote lift stations and the central SCADA server.

Metallurgy and Steel Production: In electric arc furnace (EAF) and continuous casting control systems, where high-frequency electromagnetic interference from furnace thyristor drives routinely disrupts copper Ethernet links, the 6GK5101-1BB00-2AA3 provides the galvanic isolation necessary to maintain stable PROFINET communication between the furnace PLC and the level-2 process optimization system.

Port and Maritime Logistics: In ship-to-shore crane control systems and automated container terminal networks, where cable runs between quayside control cabinets and crane operator cabins exceed copper Ethernet distance limits, the 6GK5101-1BB00-2AA3 extends the network reach via multi-mode fiber while maintaining the real-time communication performance required for safe crane positioning and anti-collision interlock functions.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 6GK5101-1BB00-2AA3?
Every unit is covered by a support terms confirmed by quotation from the date of shipment. Prior to dispatch, each 6GK5101-1BB00-2AA3 undergoes full functional pre-shipment testing including power-on verification, port link establishment, and signal integrity checks. Units that do not pass testing are not shipped. Support terms coverage includes replacement or repair for confirmed manufacturing defects under normal operating conditions.

Q2: Is this unit compatible with existing Siemens SCALANCE X and PROFINET infrastructure?
Yes. The 6GK5101-1BB00-2AA3 is fully compatible with Siemens SCALANCE X-series managed and unmanaged switches, SIMATIC S7 PLCs with PROFINET interfaces, and any standard 100BASE-TX/FX Fast Ethernet infrastructure. It operates transparently at Layer 1 and requires no configuration, making it a drop-in replacement for existing media converters in PROFINET, Modbus TCP, and EtherNet/IP topologies.

Q3: Can this unit be used in safety-instrumented system (SIS) communication networks?
The 6GK5101-1BB00-2AA3 provides the physical layer fiber isolation required in many SIS communication architectures. Its compliance with IEC 61000-4-5 surge immunity and EN 61000-6-2 industrial EMC standards makes it suitable for use in communication paths between safety PLCs and process control networks, subject to the overall SIS design and functional safety assessment performed by the system integrator.

Q4: What is the long-term supply availability for this SKU?
We maintain dedicated stock of the 6GK5101-1BB00-2AA3 to support maintenance, MRO, and emergency replacement requirements. Long-term supply commitments are available for customers with planned maintenance schedules or multi-year spare parts programs. Contact our team to discuss volume availability, lead times, and consignment stock arrangements for critical site applications.
