Siemens 6ES7390-1AF30-0AA0 Fail-Safe DIN Rail for S7-300

Overview

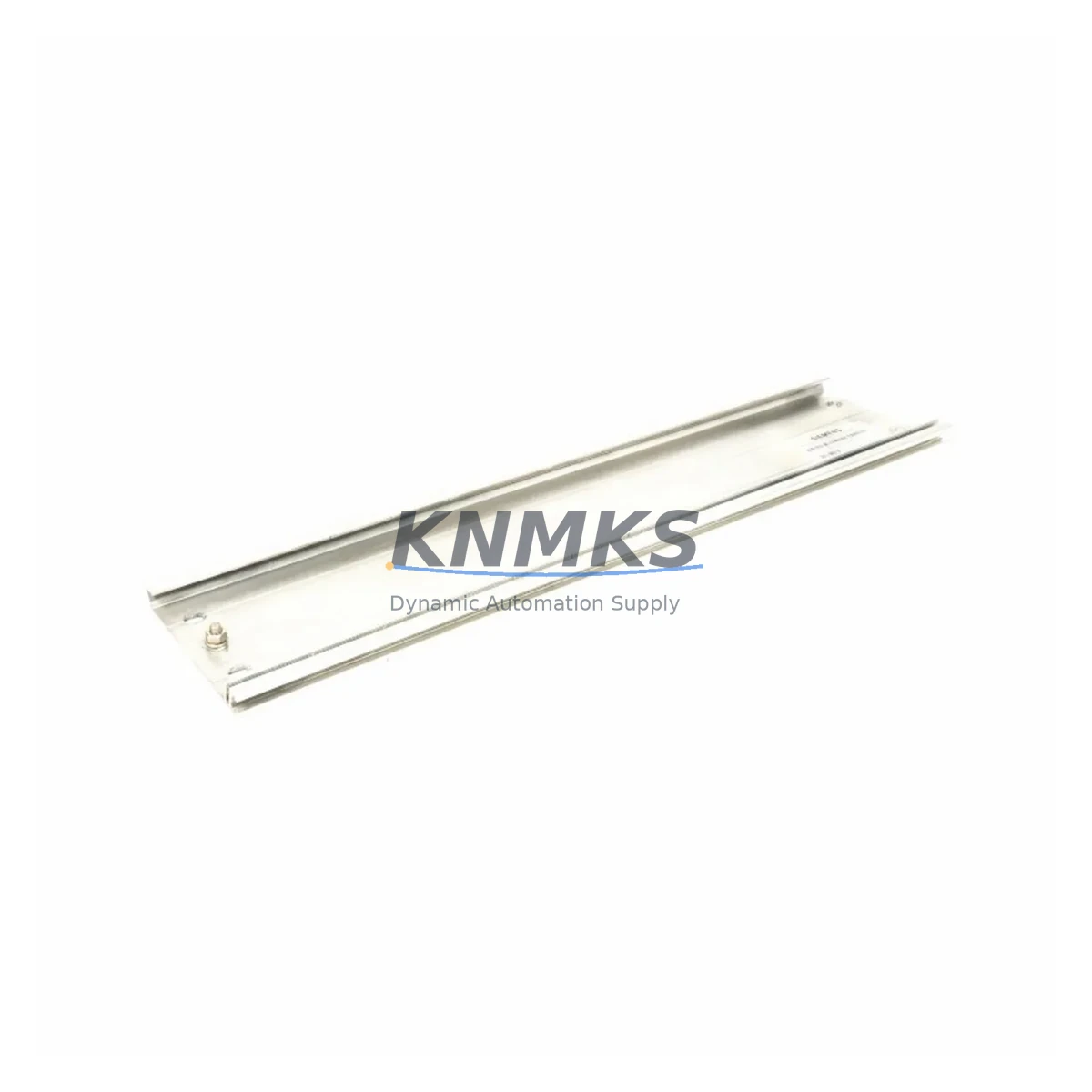

Siemens 6ES7390-1AF30-0AA0 Fail-Safe DIN Rail for S7-300: Fault-Protected Mounting for Critical Industrial Control Reliability

In continuous production environments where unplanned downtime carries real operational and safety consequences, the structural integrity of your control cabinet mounting system is not a secondary concern — it is a foundational element of your entire automation architecture. The Siemens 6ES7390-1AF30-0AA0 is a 480mm top-hat DIN rail engineered specifically for the SIMATIC S7-300 platform, delivering the mechanical stability, vibration resistance, and fail-safe mounting performance that demanding industrial sites require.

Whether your application involves petrochemical processing, power generation switchgear, mining conveyor control, water treatment automation, metallurgical furnace management, or port logistics systems, the 6ES7390-1AF30-0AA0 provides the structural backbone that keeps your S7-300 CPU modules, SM signal modules, IM interface modules, and PS power supply units locked in precise alignment — even under sustained mechanical shock, high-frequency vibration, and thermal cycling stress.

Control cabinet reliability begins at the rail. A compromised or incorrectly specified DIN rail introduces micro-movement into module seating, which over time degrades backplane connector contact integrity, increases the risk of intermittent signal faults, and can cause communication anomalies between the CPU and distributed I/O racks. The 6ES7390-1AF30-0AA0 eliminates this failure mode through its precision-formed steel profile, which maintains dimensional tolerance across the full operating temperature range and resists the creep deformation that affects lower-grade mounting hardware in high-temperature cabinet environments.

In high electromagnetic interference environments — common in variable frequency drive cabinets, arc furnace control rooms, and heavy motor starter panels — proper grounding continuity through the DIN rail is essential for suppressing conducted interference that can corrupt PROFIBUS DP or MPI communication signals. The 6ES7390-1AF30-0AA0’s conductive steel construction supports low-impedance cabinet grounding schemes, complementing the EMC shielding strategies used alongside Siemens 6ES7390-5AA00-0AA0 shield connection terminals and 6ES7390-6BA00-0AA0 bus connectors in fully integrated S7-300 rack assemblies.

For applications in dusty, humid, or chemically aggressive environments — including cement plant control rooms, offshore platform automation cabinets, and food processing facilities — the rail’s robust surface finish resists corrosion and particulate accumulation that could otherwise compromise the grounding path or mechanically bind module locking clips. When paired with appropriately rated enclosures and Siemens 6ES7390-1BC00-0AA0 end brackets, the complete mounting assembly maintains its protective function across the full service life of the installation.

Spare parts availability and rapid replacement capability are critical factors in any maintenance strategy for safety-instrumented systems and critical interlock loops. The 6ES7390-1AF30-0AA0 is a standard, widely stocked component within the SIMATIC S7-300 accessories catalog, enabling maintenance teams to execute planned replacements or emergency cabinet rebuilds without extended lead times. All units supplied by KNMKS are sourced from verified supply channels, subjected to pre-shipment dimensional and continuity inspection, and covered by a support terms confirmed by quotation against manufacturing defects.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable S7-300 control cabinet is the product of carefully coordinated components, each contributing to the overall fault tolerance of the automation system. The 6ES7390-1AF30-0AA0 DIN rail serves as the structural anchor for this assembly. Mounted alongside it, the Siemens 6ES7307-1EA01-0AA0 PS 307 power supply unit provides regulated 24VDC to the S7-300 rack, with built-in short-circuit and overload protection that prevents power faults from propagating to connected CPU and I/O modules.

For multi-rack configurations common in large process control panels, the Siemens 6ES7390-1AE80-0AA0 830mm DIN rail extends the mounting capacity while maintaining the same mechanical and grounding standards. Interface between racks is managed through Siemens 6ES7368-3BB01-0AA0 IM 368 interface modules, which maintain deterministic communication between the central rack and expansion racks even under high bus load conditions.

Signal integrity in high-EMI environments is further protected by the Siemens 6ES7390-5AA00-0AA0 shield connection terminals, which provide systematic cable shield grounding at the cabinet entry point — a critical measure in variable speed drive environments where conducted interference can induce false signals on analog input channels. For cabinets operating in environments with significant surge risk, coordinating the DIN rail assembly with appropriately rated surge protection devices on incoming power and signal lines is standard practice in safety-compliant installations.

Thermal management within the control cabinet is equally important. Proper module spacing on the 6ES7390-1AF30-0AA0 rail, combined with adequate ventilation clearances as specified in the S7-300 installation guidelines, prevents localized overheating that can accelerate component aging and trigger thermal protection shutdowns in the PS 307 power supply. End brackets such as the Siemens 6ES7390-1BC00-0AA0 secure the module assembly against axial movement, completing a mechanically stable, thermally managed, and EMC-compliant cabinet build.

Critical Industrial Safety Applications

The 6ES7390-1AF30-0AA0 is deployed across a broad range of critical industrial environments where control system availability directly impacts process safety and production continuity.

In petrochemical and refinery applications, S7-300 systems mounted on this rail manage burner management sequences, emergency shutdown interlock logic, and compressor protection circuits. The rail’s dimensional stability ensures that CPU and FM function modules remain correctly seated in environments subject to continuous low-frequency vibration from rotating machinery.

In power generation and substation control rooms, S7-300 racks assembled on 6ES7390-1AF30-0AA0 rails handle protection relay coordination, transformer tap changer control, and auxiliary system monitoring. The rail’s grounding continuity is essential in these high-voltage proximity environments where induced EMI can be severe.

In mining and mineral processing facilities, control cabinets housing S7-300 systems on this rail manage conveyor drive sequencing, crusher interlock logic, and slurry pump protection — applications where cabinet vibration from heavy machinery is constant and module retention integrity is non-negotiable.

In water and wastewater treatment plants, the rail supports S7-300 systems controlling pump station automation, chemical dosing sequences, and SCADA interface modules in environments with elevated humidity and chemical vapor exposure.

In metallurgical and steel production environments, the rail’s thermal stability supports S7-300 installations in high-temperature areas adjacent to furnace control panels, where ambient cabinet temperatures can approach the upper limits of the operating specification.

Safety and Quality FAQ

Q: What support terms coverage applies to the 6ES7390-1AF30-0AA0 supplied by KNMKS?
A: All units are covered by a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects in materials and workmanship. Each unit undergoes pre-shipment dimensional inspection and electrical continuity verification before dispatch.

Q: Is the 6ES7390-1AF30-0AA0 compatible with all S7-300 module types?
A: Yes. The 480mm TH35 profile rail is the standard mounting substrate for the full SIMATIC S7-300 module range, including CPU 31x series, SM 321/322/331/332/334 signal modules, IM 360/361/365/368 interface modules, and PS 307 power supply units. It is also compatible with third-party modules designed to the EN 60715 DIN rail standard.

Q: How does KNMKS ensure the safety and authenticity of supplied components?
A: Components are sourced through verified supply channels with full traceability documentation available on request. Pre-shipment inspection includes dimensional conformance checks, surface finish assessment, and grounding continuity testing. Counterfeit risk mitigation is a core element of our procurement and quality assurance process.

Q: Can KNMKS support long-term supply requirements for ongoing maintenance programs?
A: Yes. KNMKS maintains stock of the 6ES7390-1AF30-0AA0 and related S7-300 accessories to support both immediate replacement needs and scheduled maintenance procurement programs. Contact our sales team to discuss volume pricing, reserved stock arrangements, and lead time commitments for critical spare parts programs.
