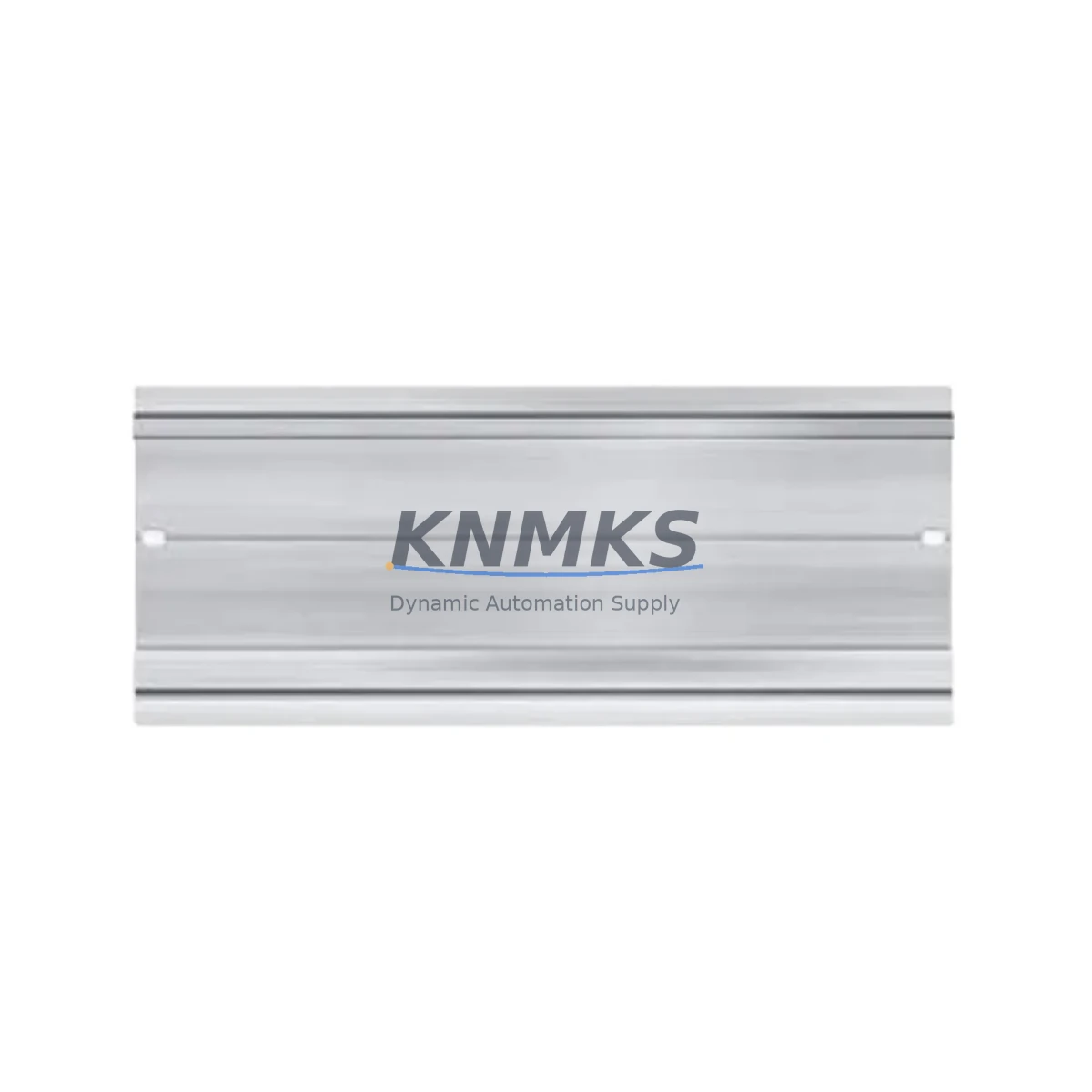

Siemens 6ES7590-1AB60-0AA0 Fail-Safe Mounting Rail for S7-1500

Overview

Siemens 6ES7590-1AB60-0AA0 Fail-Safe Mounting Rail for S7-1500: Fault-Tolerant Structural Foundation for Critical Industrial Control

In continuous-process industries where unplanned downtime carries six-figure hourly costs, the structural integrity of a control cabinet begins at the mounting rail. The Siemens 6ES7590-1AB60-0AA0 is a 160 mm DIN mounting rail engineered specifically for the SIMATIC S7-1500 controller family, providing a mechanically stable, electrically grounded, and vibration-resistant foundation for safety-critical automation assemblies. Far from a passive component, this rail is a precision-manufactured element of the S7-1500 system architecture — designed to maintain module alignment, preserve backplane bus contact integrity, and support reliable grounding continuity across the full service life of the control system.

In petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical lines, and port logistics systems, control cabinets are exposed to sustained mechanical vibration, thermal cycling, high electromagnetic interference (EMI), condensation, and corrosive particulates. Under these conditions, a substandard mounting rail can introduce micro-movement at module connectors, degrade grounding paths, and ultimately cause intermittent faults that are difficult to diagnose and costly to resolve. The 6ES7590-1AB60-0AA0 eliminates this risk category by providing a rigid, dimensionally stable platform that keeps every S7-1500 CPU, interface module, and I/O module precisely seated and electrically bonded throughout the harshest operating cycles.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 6ES7590-1AB60-0AA0 mounting rail is the structural anchor of a well-engineered S7-1500 control cabinet, and its reliability is multiplied when paired with the correct complementary components. In a typical safety-rated cabinet build, the S7-1500 CPU — such as the 6ES7516-3AN02-0AB0 CPU 1516-3 PN/DP — is mounted directly onto this rail, with its backplane bus connectors engaging the rail’s precision-formed profile to ensure zero-play mechanical contact. Adjacent to the CPU, the 6ES7590-1AE80-0AA0 480 mm mounting rail may be used in larger cabinet configurations where additional I/O expansion modules, such as the 6ES7521-1BL00-0AB0 DI 32×24VDC HF digital input module, require extended rail real estate.

Power integrity is equally critical in safety-relevant cabinets. The 6EP1333-3BA00 SITOP PSU100S 24V/5A power supply provides regulated 24 VDC to the S7-1500 system, and its stable output — free from voltage sag and surge — protects the CPU and I/O modules from the power-quality events that most commonly trigger nuisance trips and watchdog resets in continuous-process environments. For communication-intensive architectures, the 6GK7543-1AX00-0XE0 CP 1543-1 communications processor handles Industrial Ethernet and PROFINET traffic isolation, preventing network-borne transients from propagating into the controller backplane. In safety interlock circuits, the 6ES7326-1BK02-0AB0 SM 326 F-DI 24×24VDC fail-safe digital input module works in conjunction with the mounting rail’s grounded structure to maintain the low-impedance reference required for SIL 2/3 safety function integrity.

Together, these components form a layered cabinet protection strategy: the 6ES7590-1AB60-0AA0 provides the mechanical and grounding foundation; the CPU and I/O modules deliver control logic; the power supply ensures clean energy delivery; and the communications processor and fail-safe I/O modules maintain signal integrity and safety loop continuity — even under high EMI, load switching transients, and thermal stress.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In hydrocarbon processing, S7-1500 controllers mounted on the 6ES7590-1AB60-0AA0 rail manage emergency shutdown (ESD) sequences, burner management systems (BMS), and compressor anti-surge control. The rail’s rigid structure and grounded profile prevent the micro-vibration-induced connector loosening that can cause spurious trips in SIL-rated safety instrumented systems (SIS), where a false shutdown of a process unit can cost hundreds of thousands of dollars per hour.

Power Generation and Substation Automation: Turbine control panels and substation RTU cabinets operate in environments with extreme electromagnetic interference from high-voltage switching events. The galvanized steel rail provides a continuous low-impedance ground path that suppresses common-mode noise coupling into the S7-1500 backplane, protecting protection relay coordination logic and SCADA communication integrity.

Mining and Mineral Processing: Underground and surface mining control systems face constant vibration from blasting, conveyor drives, and crusher operations. The 6ES7590-1AB60-0AA0’s compliance with IEC 60068-2-6 vibration standards ensures that S7-1500 modules remain mechanically secured and electrically connected through continuous mechanical stress cycles, preventing the intermittent faults that are particularly dangerous in hoist control and ventilation safety systems.

Water and Wastewater Treatment: Pump station and dosing control panels in water treatment facilities operate in high-humidity, chemically aggressive environments. The corrosion-resistant galvanized finish of the mounting rail maintains structural integrity and grounding continuity over multi-year service intervals without requiring replacement, supporting the long mean-time-between-maintenance (MTBM) targets of utility operators.

Metallurgy and Heavy Industry: Rolling mill and furnace control cabinets experience thermal cycling between cold startups and sustained high-temperature operation. The rail’s dimensional stability across the full operating temperature range prevents thermal-expansion-induced module misalignment that could compromise backplane bus contact resistance and introduce signal errors in precision drive control loops.

Port Logistics and Ship-to-Shore Crane Control: Crane PLC cabinets are subject to constant motion, salt-air corrosion, and wide ambient temperature swings. The 6ES7590-1AB60-0AA0 provides the mechanical robustness required for reliable crane motion control, anti-sway logic, and overload protection system operation in these demanding outdoor and semi-outdoor environments.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 6ES7590-1AB60-0AA0?
All units are covered by a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects, dimensional non-conformance, and surface finish failures. Support requests are processed with priority response to minimize control system downtime for our industrial customers.

Q2: What pre-shipment testing is performed before dispatch?
Each 6ES7590-1AB60-0AA0 unit undergoes dimensional inspection to verify rail length, profile geometry, and mounting hole positioning against Siemens OEM specifications. Surface integrity is checked for burrs, deformation, or coating defects that could affect module snap-on engagement or grounding continuity. Units that do not pass inspection are quarantined and not shipped.

Q3: Is this rail compatible with all S7-1500 CPU and module variants?
Yes. The 6ES7590-1AB60-0AA0 is compatible with the full SIMATIC S7-1500 module range, including standard CPUs, fail-safe F-CPUs, interface modules (IMs), digital and analog I/O modules, and technology modules. It is also compatible with ET 200MP distributed I/O modules that share the S7-1500 mechanical form factor. For cabinet configurations requiring longer rail lengths, the 480 mm (6ES7590-1AE80-0AA0) and 830 mm (6ES7590-1AF30-0AA0) variants are available.

Q4: Can long-term supply agreements be arranged for this part?
Yes. We support blanket purchase orders and scheduled delivery agreements for the 6ES7590-1AB60-0AA0 with lead times of 12 to 36 months. This is particularly valuable for plant operators managing multi-site S7-1500 installations who require guaranteed spare parts availability for planned maintenance shutdowns and emergency replacement scenarios. Contact our sales team to discuss volume pricing and supply commitment terms.
