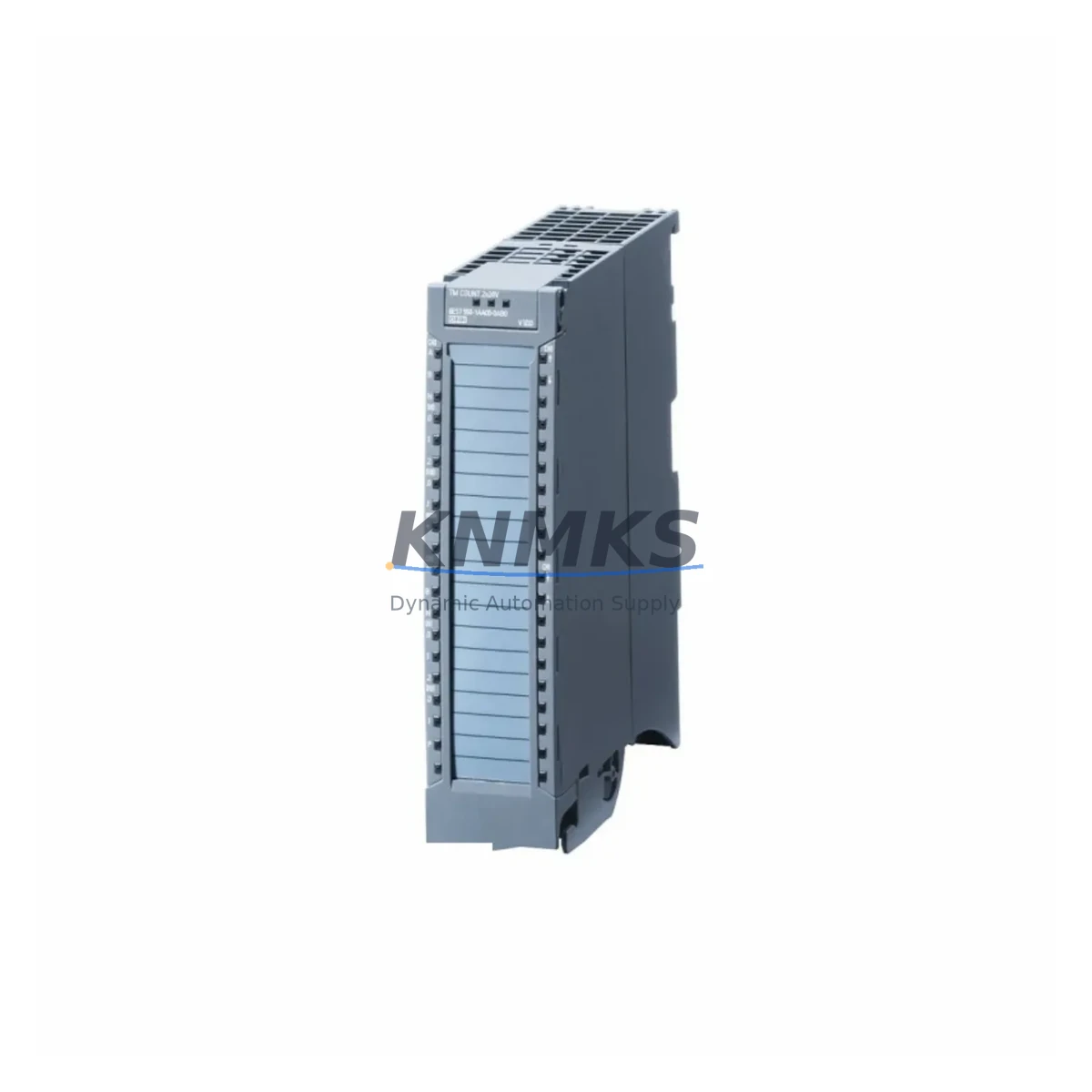

Siemens 6ES7551-1AB01-0AB0 Migration-Ready TM MFP IO

Overview

Siemens 6ES7551-1AB01-0AB0 Migration-Ready TM MFP IO: Legacy System Retrofit and Control Upgrade

The Siemens 6ES7551-1AB01-0AB0 TM MFP IO is a Technology Module designed for the ET 200SP distributed I/O system, engineered to address the growing demand for legacy control system modernization. As older SIMATIC S7-300 and S7-400 installations approach end-of-life and spare part availability narrows, the 6ES7551-1AB01-0AB0 provides a validated migration path for engineers managing aging production lines, control cabinet upgrades, and communication protocol transitions. This module supports multi-function processing I/O operations within the ET 200SP rack architecture, making it a reliable replacement candidate for discontinued or hard-to-source technology modules in existing automation infrastructure.

For facilities running legacy PROFIBUS-based control networks, the 6ES7551-1AB01-0AB0 integrates within PROFINET-capable ET 200SP stations, enabling a phased protocol migration without requiring a full system overhaul. Engineers can retain existing field wiring and terminal block assignments while upgrading the backplane communication layer, significantly reducing retrofit risk and commissioning time. The module slots directly into the ET 200SP base unit, and its compact form factor is compatible with standard DIN rail control cabinet layouts, minimizing installation space concerns during panel upgrades.

Before deploying the 6ES7551-1AB01-0AB0 as a replacement, engineers should verify the following: power supply capacity of the ET 200SP station (the IM 155-6 PN interface module must support the additional module load), terminal block wiring compatibility with existing field devices, backplane slot addressing and module sequence within the rack, program block assignments in the TIA Portal project (particularly any technology object configurations referencing the original module), HMI screen tag mappings that reference I/O addresses from the replaced module, PROFINET device name and IP address assignments, available installation space in the control cabinet for the base unit and adjacent modules, firmware version compatibility between the 6ES7551-1AB01-0AB0 and the CPU or interface module, and on-site commissioning procedures including function testing and signal verification.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 6ES7551-1AB01-0AB0 into an existing ET 200SP station requires a structured retrofit plan that accounts for the full scope of the control system architecture. The ET 200SP IM 155-6 PN ST interface module serves as the communication gateway between the PROFINET network and the I/O modules in the station; engineers must confirm that the interface module firmware is current and that the station’s total current consumption remains within the IM’s rated output capacity after adding the TM MFP IO module.

Adjacent modules in the ET 200SP rack — such as digital input modules (e.g., 6ES7131-6BF01-0BA0 DI 8x24VDC ST), digital output modules (e.g., 6ES7132-6BF01-0BA0 DQ 8x24VDC/0.5A ST), and analog input modules — must be reviewed for slot sequence changes that could affect module addressing in the TIA Portal hardware configuration. Any modification to the rack layout requires a hardware re-configuration, download, and restart cycle, which should be planned during a scheduled maintenance window.

For control systems that also include an ET 200SP CPU (such as the CPU 1512SP-1 PN), the technology object configuration within the TIA Portal project must be updated to reference the new module’s I/O addresses. If the system uses a SIMATIC S7-1500 CPU communicating with the ET 200SP station over PROFINET, the GSD file for the station must be updated to reflect the new module configuration before the project is compiled and downloaded.

Power distribution within the control cabinet should also be assessed. If the ET 200SP station is powered by a SITOP PSU8200 or equivalent 24 VDC power supply module, verify that the supply’s output current rating accommodates the additional load introduced by the 6ES7551-1AB01-0AB0. Signal isolation requirements between the TM MFP IO and field devices should be evaluated; in applications with long cable runs or mixed signal environments, a signal isolator or barrier may be required to maintain signal integrity.

For systems that include an ET 200SP CM PTP communication module for serial point-to-point communication, engineers should confirm that the communication module’s configuration is unaffected by the addition of the TM MFP IO module and that the serial communication parameters (baud rate, parity, stop bits) remain correctly mapped in the TIA Portal program. Programming cables and STEP 7 or TIA Portal licenses should be confirmed available on-site before commissioning begins.

Downtime Control During System Migration

Minimizing production downtime during a technology module replacement is a primary concern for maintenance engineers and plant managers. The 6ES7551-1AB01-0AB0 supports a structured hot-swap preparation process within the ET 200SP architecture: the replacement module can be pre-configured in TIA Portal offline, with the hardware configuration compiled and validated before the physical swap takes place. This approach allows the engineering team to identify and resolve any configuration conflicts — such as mismatched module types, incorrect base unit assignments, or firmware version incompatibilities — before the system is taken offline.

To protect existing program logic during the migration, engineers should perform a full project backup in TIA Portal, including the hardware configuration, program blocks, HMI screens, and network topology. The backup should be stored on a secure engineering workstation and verified before the retrofit begins. During the physical module replacement, the ET 200SP station should be powered down in a controlled sequence: first isolating field devices, then de-energizing the station power supply, and finally removing the module from the base unit.

After installing the 6ES7551-1AB01-0AB0, the station should be powered up and the PROFINET connection verified before downloading the updated hardware configuration from TIA Portal. Engineers should use the online diagnostics function in TIA Portal to confirm that the module is recognized correctly, that no fault codes are present, and that I/O signals are responding as expected. HMI screens should be tested to confirm that tag mappings are correct and that operator displays reflect accurate process values. A structured commissioning checklist — covering power-up sequence, PROFINET device name assignment, program download, signal verification, and HMI validation — reduces the risk of extended downtime and ensures that the control system is returned to full operation in the shortest possible time.

All units supplied are pre-shipment tested and verified functional prior to dispatch, supporting a predictable commissioning timeline and reducing the risk of field failures during the retrofit window.

Retrofit Support FAQ

Q1: Is the 6ES7551-1AB01-0AB0 a direct replacement for discontinued ET 200SP technology modules?
The 6ES7551-1AB01-0AB0 TM MFP IO is designed for the ET 200SP platform and can serve as a replacement for compatible technology modules within the same system family. Engineers should verify the base unit type, slot position, and TIA Portal hardware configuration to confirm compatibility before installation. Where the original module type differs, a hardware re-configuration and program update may be required.

Q2: What commissioning steps are required after installing the 6ES7551-1AB01-0AB0?
After physical installation, the updated hardware configuration must be downloaded to the CPU or interface module via TIA Portal. Engineers should verify the PROFINET device name, confirm module recognition in online diagnostics, test I/O signal mapping, validate HMI tag assignments, and perform a functional test of all connected field devices. A commissioning record should be completed and retained for maintenance documentation.

Q3: What are the wiring and terminal compatibility requirements?
The 6ES7551-1AB01-0AB0 installs on an ET 200SP base unit. Terminal block type (push-in or screw) is determined by the base unit selected, not the module itself. Existing field wiring can typically be retained if the base unit type is unchanged. Engineers should verify terminal assignments against the module’s I/O channel configuration in TIA Portal to ensure correct signal mapping.

Q4: What support terms and stock availability does KNMKS provide for this module?
All 6ES7551-1AB01-0AB0 units supplied by KNMKS carry a support terms confirmed by quotation and are pre-shipment tested before dispatch. Stock is maintained to support urgent retrofit and breakdown replacement requirements. Contact the sales team to confirm current availability and lead time for your project schedule.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6ES7551-1AB01-0AB0
SIMATIC Series

Product Family

Other Components

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Component range

Breakers, terminals and cabinet accessories

Common needs

Model, photo and installation requirement

Project support

Maintenance and mixed spare-part inquiry

Inquiry Support

• Mixed automation spare parts inquiry
• Cabinet component and accessory support
• Model identification from photos or labels

What to Send Us

• Brand and exact model number: Siemens 6ES7551-1AB01-0AB0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
