Siemens 6GK1901-1BB10-2AE0 Fail-Safe IE FC RJ45 Plug

Overview

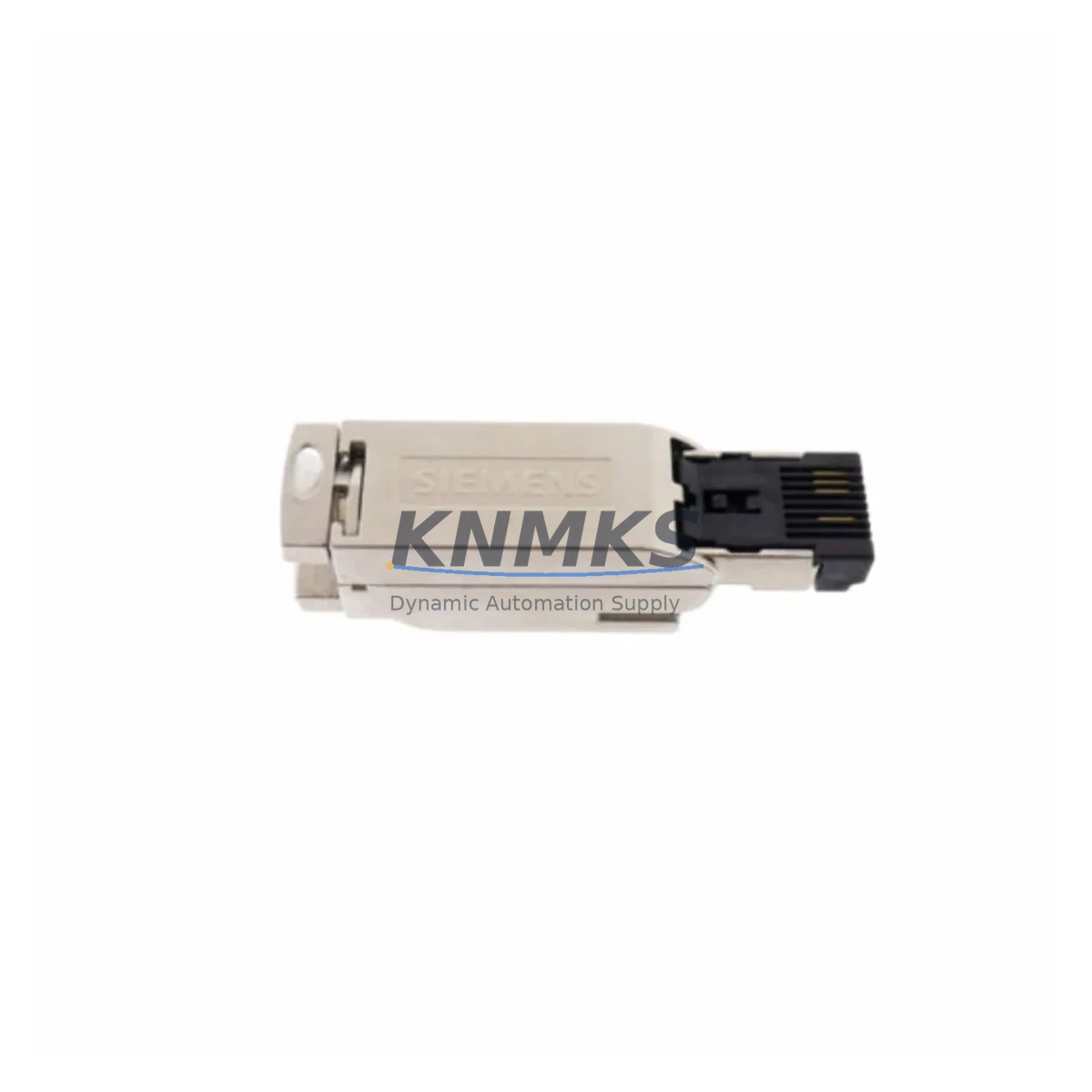

Siemens 6GK1901-1BB10-2AE0 Fail-Safe IE FC RJ45 Plug: Industrial Control Reliability Under Harsh Field Conditions

In continuous production environments where network interruptions translate directly into unplanned downtime, the Siemens 6GK1901-1BB10-2AE0 IE FC RJ45 Plug 180° delivers the fail-safe PROFINET connectivity that critical industrial control systems demand. Engineered for demanding field conditions — including high electromagnetic interference, heavy vibration, dust ingress, humidity, and elevated cabinet temperatures — this ruggedized RJ45 connector is a cornerstone component in any serious control cabinet protection strategy.

The 6GK1901-1BB10-2AE0 is purpose-built for PROFINET Industrial Ethernet Fast Connect (IE FC) cabling systems. Its 180° cable exit angle optimizes cable routing within densely populated control enclosures, reducing mechanical stress on conductors and minimizing the risk of signal degradation caused by tight bends. In high-cycle automation cells, petrochemical DCS panels, and power distribution substations, this connector maintains stable data transmission where generic RJ45 assemblies routinely fail.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable PROFINET network begins at the physical layer. The 6GK1901-1BB10-2AE0 is designed to integrate seamlessly into Siemens-based control architectures, where it terminates IE FC structured cabling between SCALANCE X208 or SCALANCE XC208 managed switches and field devices such as SIMATIC ET 200SP distributed I/O stations. In high-density panels, it pairs with Siemens IE FC TP Standard Cable GP 2×2 (6XV1840-2AH10) to form a fully validated, EMC-compliant PROFINET segment.

For control cabinets operating in environments with significant electrical noise — such as those adjacent to variable frequency drives, large motor starters, or high-current bus bars — the 360° shield termination of the 6GK1901-1BB10-2AE0 is critical. Signal drift and communication timeouts caused by capacitive or inductive coupling are effectively suppressed, protecting the integrity of cyclic PROFINET data exchange between the SIMATIC S7-1500 PLC and remote I/O nodes.

In power-sensitive installations, this connector is frequently deployed alongside SITOP PSU100S 24V DC power supplies and SIMATIC S7-300 or S7-400 CPU modules, forming a complete, fail-safe communication backbone. Where surge protection is required at cabinet entry points, pairing with Siemens SIMATIC NET surge protection devices further reduces the risk of transient-induced connector damage or network segment failure during lightning events or switching surges.

Critical Industrial Safety Applications

The Siemens 6GK1901-1BB10-2AE0 is deployed across the most demanding continuous-process and safety-critical industries:

Petrochemical & Refinery: In hazardous-area control rooms and marshalling cabinets, PROFINET connectivity must remain stable despite high ambient temperatures, chemical vapors, and aggressive EMI from large rotating equipment. The IE FC RJ45 Plug 180° maintains signal integrity across long cable runs connecting DCS controllers to remote valve actuator panels and safety instrumented system (SIS) I/O modules.

Electric Power Generation & Substation Automation: Substation control panels require connectors that withstand high-frequency switching transients and ground potential differences. The shielded construction of the 6GK1901-1BB10-2AE0 ensures that PROFINET communication between protection relays, bay controllers, and SCADA gateways remains uninterrupted during switching operations.

Mining & Mineral Processing: Underground and surface mining operations expose control hardware to extreme vibration, coal dust, and moisture. The robust mechanical locking of the IE FC RJ45 Plug prevents accidental disconnection in high-vibration conveyor drive panels and crusher control stations, where a dropped network connection can trigger emergency shutdowns and costly production losses.

Water & Wastewater Treatment: Pump station control panels in humid, corrosive environments demand connectors with reliable shield termination to prevent ground loops and communication errors in PROFINET-based SCADA systems managing dosing pumps, flow meters, and level sensors.

Metallurgy & Steel Production: Rolling mill and furnace control systems operate under extreme thermal cycling and heavy electromagnetic interference from induction heating equipment. The 6GK1901-1BB10-2AE0 maintains stable PROFINET links between drive controllers and process automation systems, preventing the signal dropouts that can cause costly material defects or equipment damage.

Port & Marine Automation: Crane control systems and shipboard automation panels require connectors that resist salt-laden air, vibration, and wide temperature swings. The IE FC RJ45 Plug 180° provides the mechanical and electrical robustness needed for reliable PROFINET communication in these mobile, high-cycle applications.

Safety and Quality FAQ

Q1: What support terms coverage applies to the Siemens 6GK1901-1BB10-2AE0?
All units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failure under normal industrial operating conditions. Support requests are processed promptly with replacement or refund options to minimize your downtime exposure.

Q2: How is each unit tested before shipment?
Every 6GK1901-1BB10-2AE0 undergoes a full pre-shipment functional inspection, including continuity testing and visual quality verification, before dispatch. This ensures that connectors arrive ready for immediate installation without requiring additional incoming inspection at your facility.

Q3: Is this connector compatible with all Siemens PROFINET IE FC cabling systems?
Yes. The 6GK1901-1BB10-2AE0 is designed for use with the full range of Siemens IE FC TP cables, including Standard Cable GP 2×2, Trailing Cable, and Flexible Cable variants. It is fully compliant with PROFINET cabling standards and compatible with all Siemens SCALANCE switches, SIMATIC controllers, and ET 200 distributed I/O families that use standard RJ45 PROFINET ports.

Q4: Can KNMKS support long-term supply and emergency replacement requirements?
KNMKS maintains stock of the 6GK1901-1BB10-2AE0 to support both planned maintenance programs and urgent field replacement needs. For critical infrastructure operators requiring guaranteed supply continuity, we recommend establishing a standing order or consignment stock arrangement. Contact our team at [email protected] or +86 18359268345 to discuss supply agreements tailored to your maintenance schedule.
