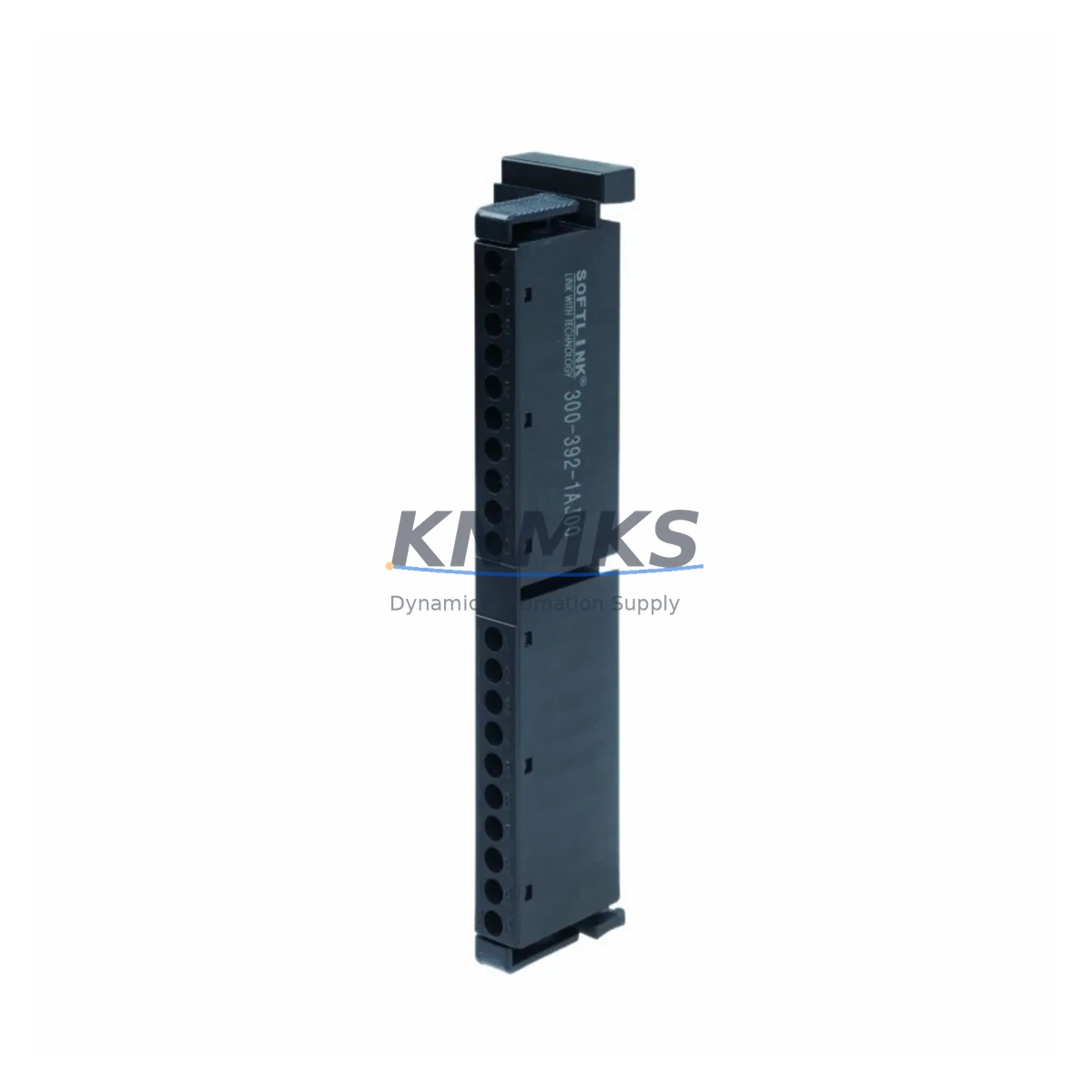

Siemens 6ES7392-1AJ00-0XA0 Fail-Safe Front Connector S7-300

Overview

Siemens 6ES7392-1AJ00-0XA0 Fail-Safe Front Connector S7-300: Fault Protection and Critical Industrial Field Reliability

The Siemens 6ES7392-1AJ00-0XA0 is a 20-pin screw-type front connector engineered for the SIMATIC S7-300 programmable logic controller series. In continuous production environments where unplanned downtime carries severe operational and safety consequences, the integrity of every field-wiring termination point is non-negotiable. This connector provides a mechanically robust, electrically stable interface between field I/O wiring and S7-300 signal modules — including digital input modules such as the SM 321, digital output modules such as the SM 322, and analog I/O modules such as the SM 331 and SM 332 — ensuring that control loop continuity is maintained even under demanding industrial conditions.

Designed to withstand the rigors of heavy-duty control cabinet installations, the 6ES7392-1AJ00-0XA0 addresses the most common causes of field-level control interruptions: loose terminations, signal drift from vibration, contact oxidation in humid environments, and wiring errors during maintenance. Its screw-clamp terminal design delivers consistent clamping force across all 20 poles, eliminating the micro-arcing and intermittent contact failures that can trigger spurious output activations or missed interlock signals in safety-critical circuits.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered S7-300 control cabinet, the 6ES7392-1AJ00-0XA0 front connector is one element of a layered protection architecture. The S7-300 CPU modules — such as the CPU 314C-2 DP or CPU 315-2 PN/DP — rely on stable, noise-free signal paths from every connected I/O module. When field wiring is terminated through a properly torqued screw-clamp connector, the risk of signal drift caused by thermal cycling or mechanical vibration is substantially reduced, protecting the integrity of analog measurement loops and discrete interlock chains alike.

Power supply stability is equally critical. The SITOP PSU100S 24 V DC power supply, commonly paired with S7-300 systems, provides regulated, filtered DC power to the backplane and I/O modules. However, even a stable power supply cannot compensate for a degraded wiring termination at the module front connector. The 6ES7392-1AJ00-0XA0 ensures that the last meter of the signal path — from terminal block to module pin — does not become the weakest link in the control loop.

In cabinets operating near variable-frequency drives, high-current contactors, or transformer banks, electromagnetic interference is a persistent threat to signal integrity. The shielded housing of the 6ES7392-1AJ00-0XA0, combined with proper cable shielding practices and the use of PROFIBUS DP communication modules such as the CP 342-5, creates a coherent EMI mitigation strategy across the entire control system. For installations requiring additional surge protection on field signal lines, pairing this connector with Siemens SIPROTEC surge protection devices further reduces the risk of transient-induced module damage or spurious trip events.

Maintenance teams working on live or recently de-energized cabinets benefit from the connector’s tool-assisted wiring design, which allows field wiring to remain attached to the front connector while the signal module is swapped — a critical feature for minimizing mean time to repair (MTTR) in continuous process plants where even brief control interruptions carry significant cost.

Critical Industrial Safety Applications

The 6ES7392-1AJ00-0XA0 is deployed across a broad range of safety-sensitive industrial sectors where control system reliability directly affects personnel safety, environmental compliance, and production continuity.

In petrochemical and refinery environments, S7-300-based emergency shutdown (ESD) panels and burner management systems depend on reliable discrete I/O terminations to execute interlock logic without false trips or missed shutdowns. A degraded front connector in this context can mean the difference between a controlled shutdown and an uncontrolled process excursion.

In electric power generation and substation automation, S7-300 PLCs manage protection relay interfaces, transformer tap-changer controls, and auxiliary system monitoring. The screw-clamp termination of the 6ES7392-1AJ00-0XA0 maintains contact integrity across the wide temperature swings and vibration levels typical of generator halls and outdoor switchgear enclosures.

In mining and mineral processing, conveyor interlock systems, crusher controls, and ventilation safety circuits operate in environments with extreme dust loading, humidity, and vibration. The robust mechanical design of this connector ensures that field wiring remains securely terminated even when cabinets are subject to continuous low-frequency vibration from nearby heavy machinery.

In water and wastewater treatment facilities, pump station PLCs and SCADA-connected remote I/O panels require long-term termination stability in humid, chemically aggressive atmospheres. The oxidation-resistant contact design of the 6ES7392-1AJ00-0XA0 supports multi-year service intervals without re-termination.

In metallurgical and steel plant applications, high-temperature furnace controls, rolling mill interlocks, and ladle handling systems place extreme thermal and electrical demands on every cabinet component. This connector’s rated operating temperature range and vibration-tested design make it suitable for installation in close proximity to heat-generating equipment.

In port, marine, and shipboard automation, where salt-laden air and constant motion create accelerated corrosion and mechanical fatigue, the 6ES7392-1AJ00-0XA0 provides the termination reliability required for cargo handling controls, ballast system PLCs, and engine room automation panels.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 6ES7392-1AJ00-0XA0?
All units carry a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Support requests are supported with direct technical assistance and replacement dispatch.

Q2: What pre-shipment testing is performed on each unit?
Every 6ES7392-1AJ00-0XA0 undergoes outgoing quality inspection including contact continuity verification, mechanical fit check against S7-300 module form factor, and visual inspection for terminal and housing integrity before dispatch.

Q3: Is this connector compatible with all S7-300 signal modules?
The 6ES7392-1AJ00-0XA0 is compatible with all standard 20-pin S7-300 signal modules, including SM 321, SM 322, SM 331, and SM 332 series. It is not intended for use with 40-pin modules, which require the 6ES7392-1BM01-0AA0 or equivalent 40-pin variant.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
Yes. We maintain dedicated stock of the 6ES7392-1AJ00-0XA0 to support planned maintenance schedules, emergency spare requirements, and multi-unit project procurement. Bulk pricing and reserved stock arrangements are available for qualified industrial customers.
