Siemens 6ES7972-0BB52-0XA0 Migration-Ready PROFIBUS Connector

Overview

Siemens 6ES7972-0BB52-0XA0 Migration-Ready PROFIBUS Connector for Legacy Control Systems

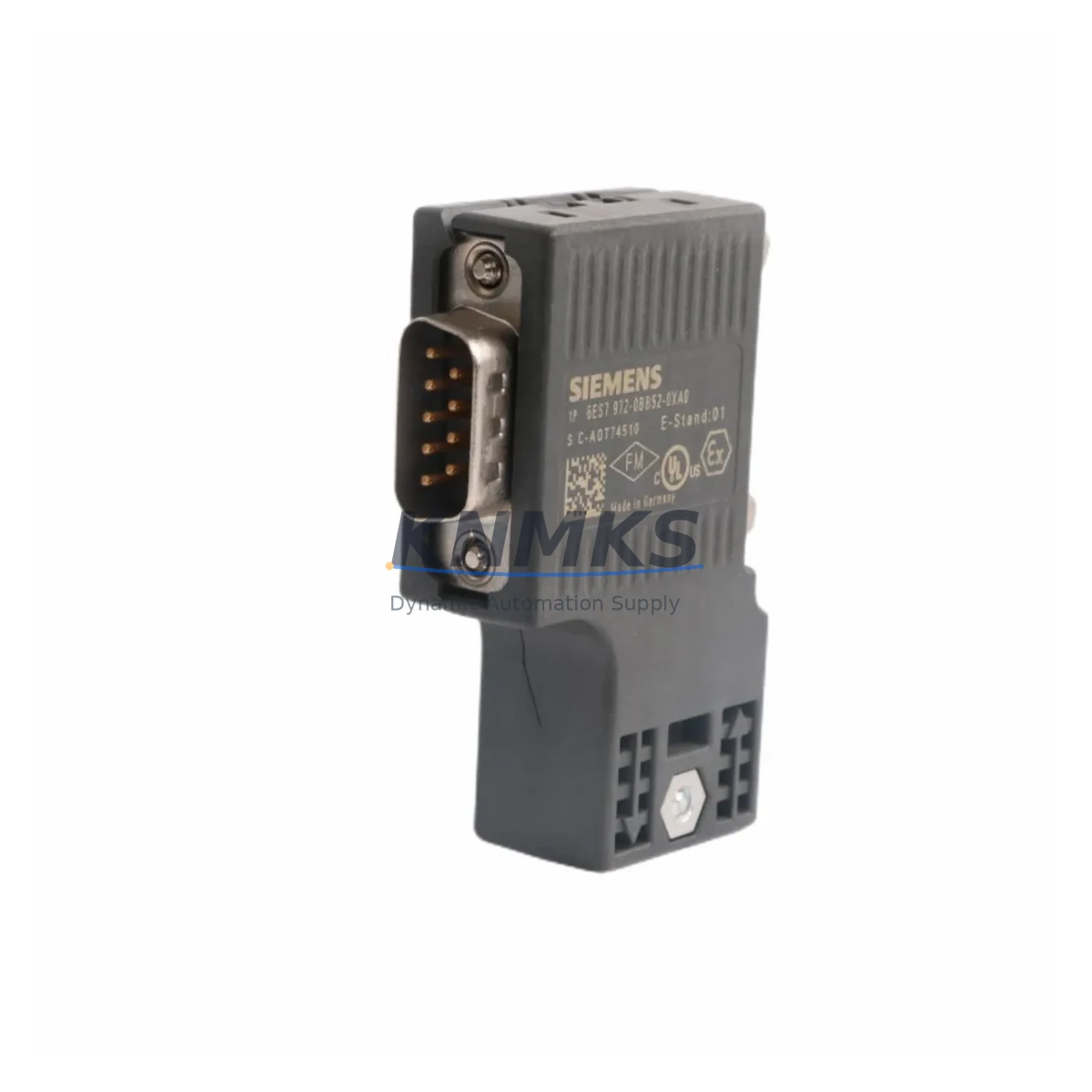

The Siemens 6ES7972-0BB52-0XA0 is a 90° PROFIBUS DP bus connector designed for reliable fieldbus communication in legacy and active SIMATIC automation environments. As a verified retrofit replacement for discontinued models including the 6ES7972-0BB41-0XA0 and 6ES7972-0BB50-0XA0, this connector supports direct integration into existing S7-300, S7-400, and ET 200M/S distributed I/O architectures without requiring cable re-routing or panel redesign.

For maintenance engineers managing aging control infrastructure, the 6ES7972-0BB52-0XA0 provides a low-risk, high-compatibility upgrade path. Its integrated termination resistor switch, PG socket for programming access, and 90° cable exit angle make it suitable for space-constrained control cabinets where straight-exit connectors create cable management issues. The connector supports PROFIBUS DP transmission rates up to 12 Mbit/s, ensuring compatibility with both legacy CP 342-5 communication processors and current DP master configurations.

When planning a retrofit involving this connector, engineers should verify the existing cable shielding continuity, confirm the bus termination status at both ends of the PROFIBUS segment, and check that the DP address assignment on the connected slave device — such as an ET 200S or ET 200M I/O station — remains consistent with the original hardware configuration. Incorrect termination at intermediate nodes is a common source of communication faults during panel upgrades and should be validated before commissioning.

This unit ships pre-tested and is available from verified in-stock inventory with a support terms confirmed by quotation covering manufacturing defects and functional performance under rated operating conditions.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

In a typical S7-300 or S7-400 retrofit scenario, the 6ES7972-0BB52-0XA0 is installed at the PROFIBUS DP port of the CPU module — such as a CPU 315-2 DP or CPU 416-2 DP — or at the DP interface of a distributed I/O rack. When the existing panel includes an ET 200M rack with multiple SM 321/SM 322 digital I/O modules or SM 331/SM 332 analog I/O modules, the connector must be seated firmly and the termination switch set correctly based on its position in the bus segment.

For systems using a CP 342-5 or CP 443-5 Extended communication processor to manage PROFIBUS DP master functions, the connector’s PG socket allows a programming device or laptop running STEP 7 or TIA Portal to be connected directly to the bus for live diagnostics without interrupting production. This is particularly valuable during phased migrations where part of the line remains operational while adjacent stations are being upgraded.

Where the retrofit involves replacing a legacy IM 153-1 or IM 153-2 interface module in an ET 200M station, engineers should confirm that the new interface module firmware version is compatible with the DP master’s GSD file. The 6ES7972-0BB52-0XA0 connector itself is firmware-independent, but the surrounding hardware stack — including the PS 307 power supply module feeding the rack — must be verified for adequate current capacity after any I/O expansion. A 24 VDC rail check and load calculation should be completed before final commissioning.

In control cabinets with limited depth, the 90° cable exit of this connector prevents cable stress and allows the cabinet door to close without interference — a practical advantage over straight-exit alternatives when working within existing enclosure dimensions.

Downtime Control During System Migration

Minimizing unplanned downtime during a PROFIBUS segment upgrade requires a structured swap procedure. Before removing the existing connector, document the current bus termination switch position and note whether the node is at the physical end of the segment. If the node is a segment terminator, the replacement connector must have its termination resistor enabled immediately upon installation to prevent bus signal reflection errors that would fault all downstream slaves.

Where possible, pre-configure and bench-test the replacement connector assembly — including cable stripping, shield clamp tightening, and termination switch setting — before the maintenance window begins. This reduces on-site installation time to a simple swap and reconnect, typically achievable in under 15 minutes per node.

For systems running continuous process control, coordinate the connector swap with a planned CPU STOP/RUN cycle. The S7-300 or S7-400 CPU will detect the brief DP communication interruption and log a diagnostic event; confirm that the OB 86 (rack failure) and OB 82 (diagnostic interrupt) organization blocks in the existing program are configured to handle transient DP faults without triggering an uncontrolled process shutdown. After reconnection, verify that all DP slaves return to RUN state and that the HMI — whether a TP 177B, MP 277, or SCADA-connected system — reflects correct process values before releasing the line.

Retrofit Support FAQ

Q: Is the 6ES7972-0BB52-0XA0 a direct replacement for the 6ES7972-0BB41-0XA0?
A: Yes. The 0BB52 is the current production successor to the 0BB41 and 0BB50 variants. It shares the same 90° cable exit, integrated PG socket, and switchable bus termination. No rewiring or configuration changes are required for a direct swap in S7-300, S7-400, or ET 200 applications.

Q: Does this connector require any firmware or GSD file update?
A: No. The 6ES7972-0BB52-0XA0 is a passive connector with no embedded firmware. GSD file compatibility is determined by the connected DP slave device, not the connector. Verify the slave device’s GSD file version in your STEP 7 or TIA Portal hardware configuration if you are also replacing the interface module.

Q: What pre-shipment testing is performed on this unit?
A: Each unit undergoes functional verification including contact integrity, termination resistor switching, and PG socket continuity checks before dispatch. Units are supplied with a support terms confirmed by quotation covering manufacturing defects and performance under rated operating conditions (9.6 kBit/s to 12 Mbit/s, –15 °C to +55 °C).

Q: Is in-stock inventory available for urgent maintenance requirements?
A: Yes. This SKU is maintained in verified in-stock inventory to support unplanned outage scenarios and scheduled maintenance windows. Lead time for standard orders is confirmed at the time of inquiry. Contact [email protected] or +86 18359268345 for availability and expedited dispatch options.
