Siemens 6ES7972-0BB12-0XA0 Fail-Safe PROFIBUS DP Connector

Overview

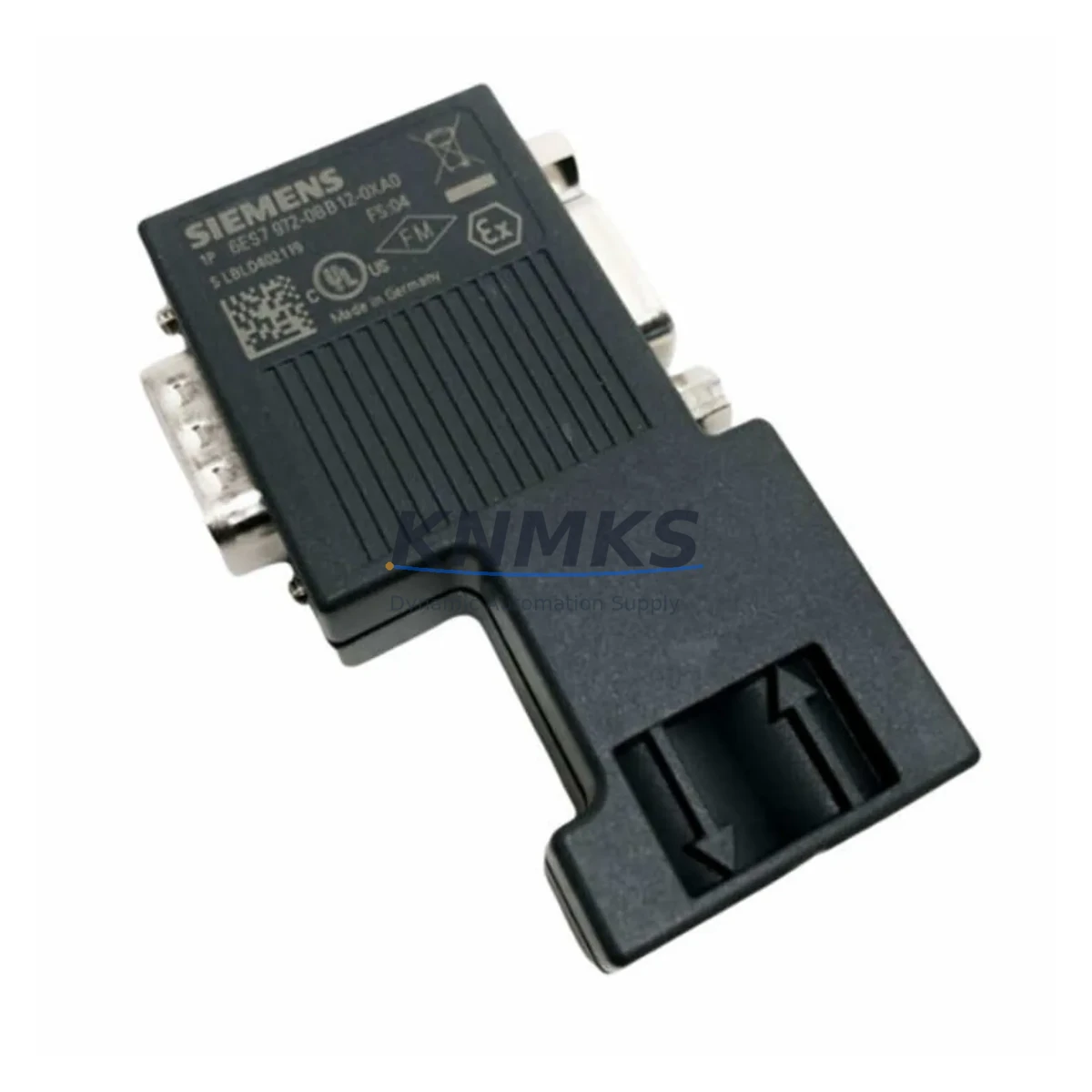

Siemens 6ES7972-0BB12-0XA0 Fail-Safe PROFIBUS DP Connector for Critical Industrial Control Reliability

The Siemens 6ES7972-0BB12-0XA0 is a 90° RS-485 PROFIBUS DP connector engineered for fail-safe fieldbus communication in demanding industrial environments. As a core component of the SIMATIC NET communication infrastructure, this connector is designed to maintain uninterrupted signal integrity across continuous production lines, critical interlock circuits, and high-load control cabinets where communication failure is not an option.

In industrial facilities where electromagnetic interference, voltage surges, mechanical vibration, dust ingress, and high ambient temperatures are daily realities — the 6ES7972-0BB12-0XA0 delivers the physical-layer protection that keeps your PROFIBUS DP network stable. Its integrated termination resistor and surge protection circuitry actively suppress signal drift and transient spikes that would otherwise cause intermittent faults, false triggers, or unplanned shutdowns in safety-critical control loops.

Whether deployed in petrochemical distributed control systems, power plant protection circuits, mining conveyor interlocks, water treatment SCADA networks, metallurgical process lines, or port automation cabinets, this connector provides the mechanical and electrical robustness required for long-term, maintenance-free fieldbus operation.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered industrial control cabinet, the 6ES7972-0BB12-0XA0 PROFIBUS DP connector serves as the critical physical interface between the fieldbus cable and the PLC or remote I/O station. Its 90° angled design is particularly valuable in compact cabinets where straight connectors would create cable stress or obstruct adjacent modules.

For a complete and reliable PROFIBUS DP network, this connector is typically deployed alongside the Siemens SIMATIC S7-300 CPU (such as the 6ES7315-2EH14-0AB0) as the master controller, and ET 200M or ET 200S distributed I/O stations as field-level slaves. The fieldbus cable itself — typically Siemens PROFIBUS DP Bus Cable 6XV1830-0EH10 — must be correctly terminated at both ends of the segment, a function the integrated termination resistor in the 6ES7972-0BB12-0XA0 directly supports.

In cabinets with variable frequency drives such as the Siemens SINAMICS G120 or S120 series, PROFIBUS DP communication is the standard protocol for speed reference and status feedback. The shielded housing and surge suppression of this connector protect the communication line from the high-frequency switching noise generated by drive inverters — a common source of signal corruption in mixed-load cabinets.

Power supply stability is equally critical. Pairing this connector with a Siemens SITOP PSU100S 24V DC power supply ensures that the PLC backplane and communication modules receive clean, regulated power, eliminating the voltage fluctuations that can cause PROFIBUS DP bus errors or slave dropouts. For cabinets in high-surge environments, an additional Siemens SIMATIC Lightning Arrester on the incoming supply further reduces the risk of transient damage to the entire communication chain.

Together, these components form a layered protection strategy: stable power, clean fieldbus signal, surge-suppressed connectors, and properly terminated cable segments — all working in concert to eliminate unplanned downtime in critical process control applications.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process environments where a single communication fault can trigger emergency shutdowns or safety system activations, the 6ES7972-0BB12-0XA0 provides the fieldbus connection reliability required for DCS-to-field device communication. Its operating temperature range of -40°C to +85°C covers both cold-climate outdoor installations and hot process areas near furnaces or heat exchangers.

Power Generation & Substation Control: Electrical substations and power plant auxiliary systems rely on PROFIBUS DP for motor control center (MCC) communication, protection relay integration, and transformer monitoring. The surge protection built into this connector guards against the high-energy transients common in switchgear environments, preventing communication loss during switching operations.

Mining & Mineral Processing: Underground and surface mining operations expose control equipment to extreme dust, vibration, and humidity. The robust mechanical construction of the 6ES7972-0BB12-0XA0 maintains secure cable termination under continuous vibration, preventing the intermittent contact faults that cause conveyor belt trips or crusher interlock failures.

Water & Wastewater Treatment: SCADA-controlled pump stations, dosing systems, and filtration plants require reliable fieldbus communication across geographically distributed sites. This connector supports stable PROFIBUS DP operation in humid, chemically aggressive environments typical of water treatment facilities.

Metallurgy & Steel Production: Rolling mills, arc furnaces, and continuous casting lines generate intense electromagnetic interference. The shielded housing of this connector, combined with proper cable shield grounding, maintains signal integrity in these high-EMI environments, preventing the signal drift and bus errors that cause production interruptions.

Port Automation & Marine Applications: Ship-to-shore cranes, automated stacking cranes, and vessel control systems require connectors that withstand salt air, vibration, and wide temperature swings. The 6ES7972-0BB12-0XA0 meets these demands while maintaining the communication reliability required for safe load handling operations.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 6ES7972-0BB12-0XA0?
All units are covered by a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects, electrical failure under normal operating conditions, and connector integrity. Support requests are processed with priority to minimize your site downtime.

Q2: What pre-shipment testing is performed before dispatch?
Every 6ES7972-0BB12-0XA0 unit undergoes full pre-shipment inspection including electrical continuity verification across all 9 pins, insulation resistance testing, mechanical connector integrity check, and visual inspection for housing damage or pin deformation. Units that do not pass all tests are not dispatched.

Q3: Is this connector compatible with all SIMATIC S7 and ET 200 series devices?
Yes. The 6ES7972-0BB12-0XA0 is fully compatible with the complete SIMATIC S7-300, S7-400, and ET 200 distributed I/O family, as well as SINAMICS drives and other Siemens PROFIBUS DP-capable devices. It is also interoperable with third-party PROFIBUS DP masters and slaves that comply with the IEC 61158 standard.

Q4: Can long-term supply be guaranteed for maintenance and spare parts planning?
Yes. We maintain dedicated stock of the 6ES7972-0BB12-0XA0 to support ongoing maintenance programs, planned shutdowns, and emergency spare parts requirements. Long-term supply agreements are available for customers with multi-year maintenance contracts or large installed base requirements. Contact our team to discuss scheduled delivery and reserved stock arrangements.
