Siemens 6ES7972-0BA52-0XA0 Fail-Safe PROFIBUS Connector

Overview

Siemens 6ES7972-0BA52-0XA0 Fail-Safe PROFIBUS Connector: Control Cabinet Protection for Critical Industrial Reliability

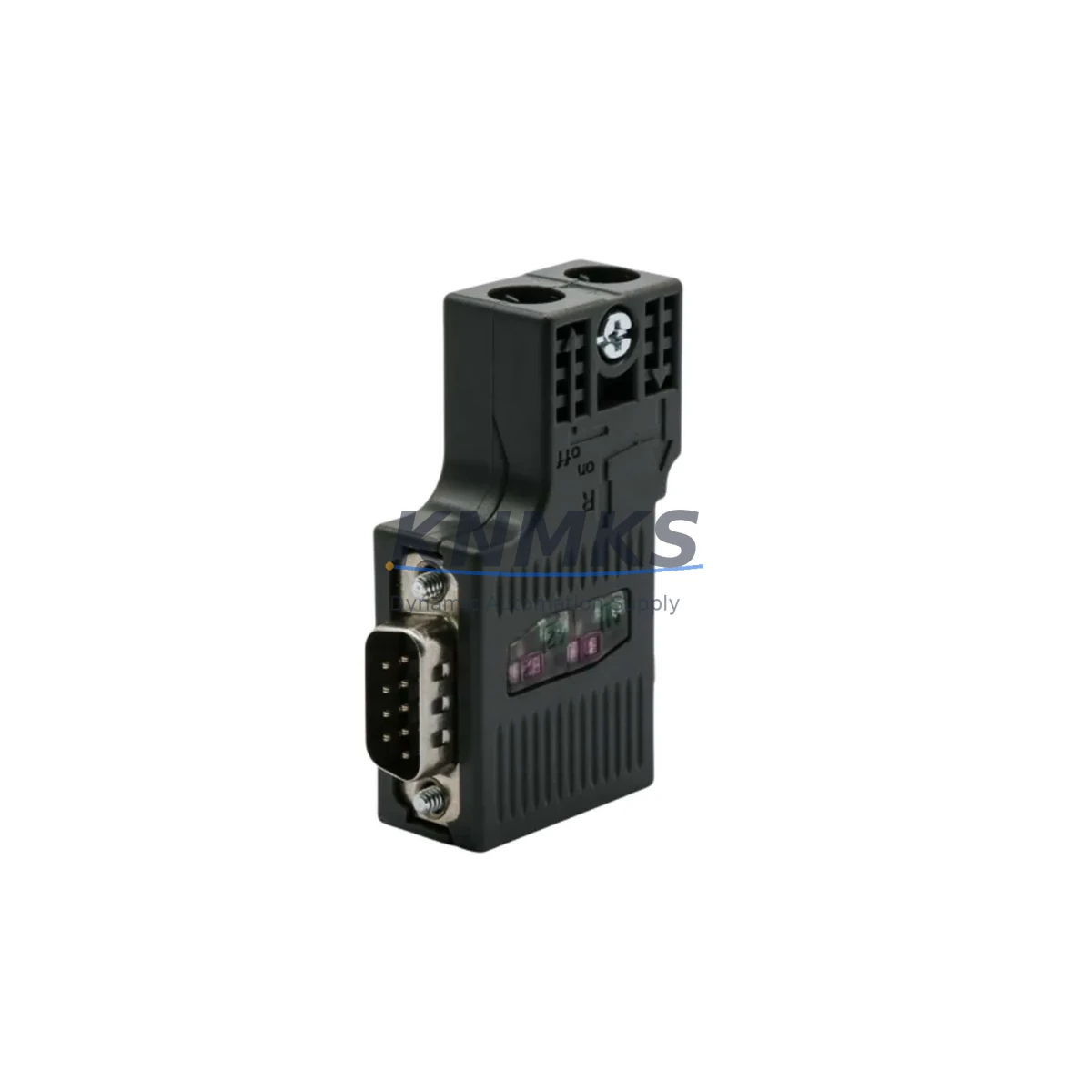

The Siemens 6ES7972-0BA52-0XA0 is a 90° PROFIBUS DP connector rated for 12Mbit/s communication, engineered to sustain uninterrupted data integrity across the most demanding industrial control environments. Designed for direct integration with Siemens S7-300 and S7-400 PLC platforms, this connector delivers the physical-layer reliability that safety-critical automation systems depend on — from continuous process lines to high-stakes interlock circuits.

In industrial facilities where control interruption carries real operational and safety consequences — petrochemical reactors, power distribution switchgear, mining conveyor drives, water treatment SCADA nodes, metallurgical furnace controls, and port crane automation — the integrity of every PROFIBUS segment is non-negotiable. The 6ES7972-0BA52-0XA0 addresses this requirement with a robust, shielded housing, integrated termination resistors, and a 90° cable exit geometry that minimizes mechanical stress on the cable jacket inside congested control cabinets.

Signal drift, communication timeouts, and bus segment failures are among the leading causes of unplanned shutdowns in PROFIBUS-based architectures. This connector’s built-in bus termination capability — activatable without tools — ensures correct line impedance at segment endpoints, directly reducing the risk of reflection-induced data corruption that can trigger spurious fault states in safety PLCs or distributed I/O nodes such as the Siemens ET 200S and ET 200M remote I/O stations. When paired with a properly shielded PROFIBUS cable and a Siemens SITOP PSU100S power supply module, the entire communication backbone gains a measurable layer of surge and EMI protection.

High electromagnetic interference environments — variable frequency drive (VFD) panels, arc furnace control rooms, heavy motor starter cabinets — are where connector quality separates reliable systems from chronic fault sources. The 6ES7972-0BA52-0XA0’s shielded metal housing provides continuous EMI containment along the bus segment, complementing the filtering capabilities of upstream components such as the Siemens 6EP1333-3BA10 SITOP power supply and downstream safety modules including the Siemens 3SK1 safety relay series used in emergency stop and protective door interlock circuits.

For control cabinets operating in dusty, humid, high-temperature, or high-vibration environments — common in cement plants, offshore platforms, and continuous casting lines — the connector’s compact 90° form factor reduces cable routing complexity and lowers the probability of accidental disconnection during maintenance cycles. When used alongside Siemens SIMATIC S7-300 CPU modules and SM 321/SM 322 digital I/O modules, the 6ES7972-0BA52-0XA0 maintains bus continuity even under thermal cycling and mechanical vibration loads typical of heavy industrial service.

Every unit shipped from KNMKS stock undergoes pre-shipment functional verification. Inventory is maintained to support both planned maintenance schedules and emergency spare part requirements, minimizing procurement lead time for critical replacement scenarios. All units carry a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable PROFIBUS segment is only as strong as its weakest physical connection. In a typical S7-300-based safety control cabinet, the 6ES7972-0BA52-0XA0 serves as the terminating or intermediate connector on the DP bus, linking the CPU — such as a Siemens CPU 315-2 DP (6ES7315-2AH14-0AB0) — to distributed I/O racks and field devices. Upstream, a Siemens SITOP PSU100S 24V/10A power supply provides regulated, surge-protected DC power to the PLC rack, while a Siemens 6EP1961-2BA00 SITOP UPS module buffers against momentary mains interruptions that could otherwise cause bus resets and safety function timeouts.

On the safety interlock side, Siemens 3SK1 safety relays monitor emergency stop loops and protective door contacts. These relays depend on continuous, error-free PROFIBUS communication to report status to the safety CPU — making the physical connector layer a direct contributor to functional safety performance. In high-vibration environments, supplementary cable strain relief clamps and proper shield grounding at the connector body are recommended to maintain the signal integrity that these safety functions require.

For installations involving SINAMICS G120 or MICROMASTER 440 variable frequency drives on the same PROFIBUS segment, correct bus termination at the segment endpoint — provided by the switchable termination resistors in the 6ES7972-0BA52-0XA0 — is essential to prevent reflection-induced communication errors that can cause nuisance drive trips or, in worst cases, uncontrolled motor behavior in safety-relevant applications.

Critical Industrial Safety Applications

Petrochemical & Refinery: PROFIBUS DP segments connecting S7-400H redundant CPUs to remote valve positioners and pressure transmitters in hazardous areas require zero-tolerance connector reliability. The 6ES7972-0BA52-0XA0 supports high-speed polling cycles without signal degradation, sustaining the real-time interlock response times mandated by process safety management standards.

Power Generation & Distribution: In turbine control and switchgear automation panels, PROFIBUS bus integrity directly affects protection relay coordination. Connector failures in these environments can delay fault isolation, increasing equipment damage risk. The shielded housing of the 6ES7972-0BA52-0XA0 resists the high EMI levels generated by high-voltage switching events.

Mining & Mineral Processing: Conveyor drive control systems operating in dusty, high-vibration underground or surface environments demand connectors that maintain contact integrity through continuous mechanical stress. The 90° exit geometry reduces cable fatigue at the connector entry point, extending service intervals in hard-to-access installations.

Water & Wastewater Treatment: SCADA-linked pump and valve control systems in humid, chemically aggressive environments benefit from the connector’s robust housing and reliable termination, reducing the risk of communication dropouts that could compromise dosing accuracy or overflow protection logic.

Metallurgy & Continuous Casting: High-temperature, high-vibration casting line control cabinets place extreme demands on every component. The 6ES7972-0BA52-0XA0’s rated operating temperature range and mechanical robustness make it a dependable choice for furnace control and rolling mill automation where unplanned stops carry significant production cost.

Port & Marine Automation: Crane PLC systems and shipboard automation panels operating in salt-air, high-humidity environments require connectors with consistent shielding performance. The 6ES7972-0BA52-0XA0 maintains bus integrity in these corrosive conditions, supporting safe load handling and positioning control.

Safety and Quality FAQ

Q1: What support terms coverage applies to the 6ES7972-0BA52-0XA0?
All units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Support requests are processed with priority to minimize control system downtime.

Q2: Is pre-shipment testing performed on every unit?
Yes. Every 6ES7972-0BA52-0XA0 connector undergoes functional verification before dispatch. This includes inspection of the bus termination switch, shield contact continuity, and connector body integrity, ensuring the unit is field-ready on arrival.

Q3: Is this connector compatible with third-party PROFIBUS DP devices and non-Siemens PLCs?
The 6ES7972-0BA52-0XA0 conforms to the PROFIBUS DP standard (IEC 61158) and is physically compatible with any device using the standard 9-pin Sub-D PROFIBUS connector interface. It is optimized for Siemens S7-300/400 platforms but functions correctly with compliant third-party masters and slaves.

Q4: Can KNMKS support long-term and emergency spare part supply for this SKU?
Yes. KNMKS maintains standing inventory of the 6ES7972-0BA52-0XA0 to support both scheduled maintenance programs and urgent replacement requirements. For critical spares planning or volume procurement, contact the sales team directly to confirm availability and lead times.
