Siemens 6ES7901-3DB30-0XA0 Fail-Safe PC/PPI Cable

Overview

Siemens 6ES7901-3DB30-0XA0 Fail-Safe PC/PPI Cable: Fault Protection and Critical Industrial Field Reliability

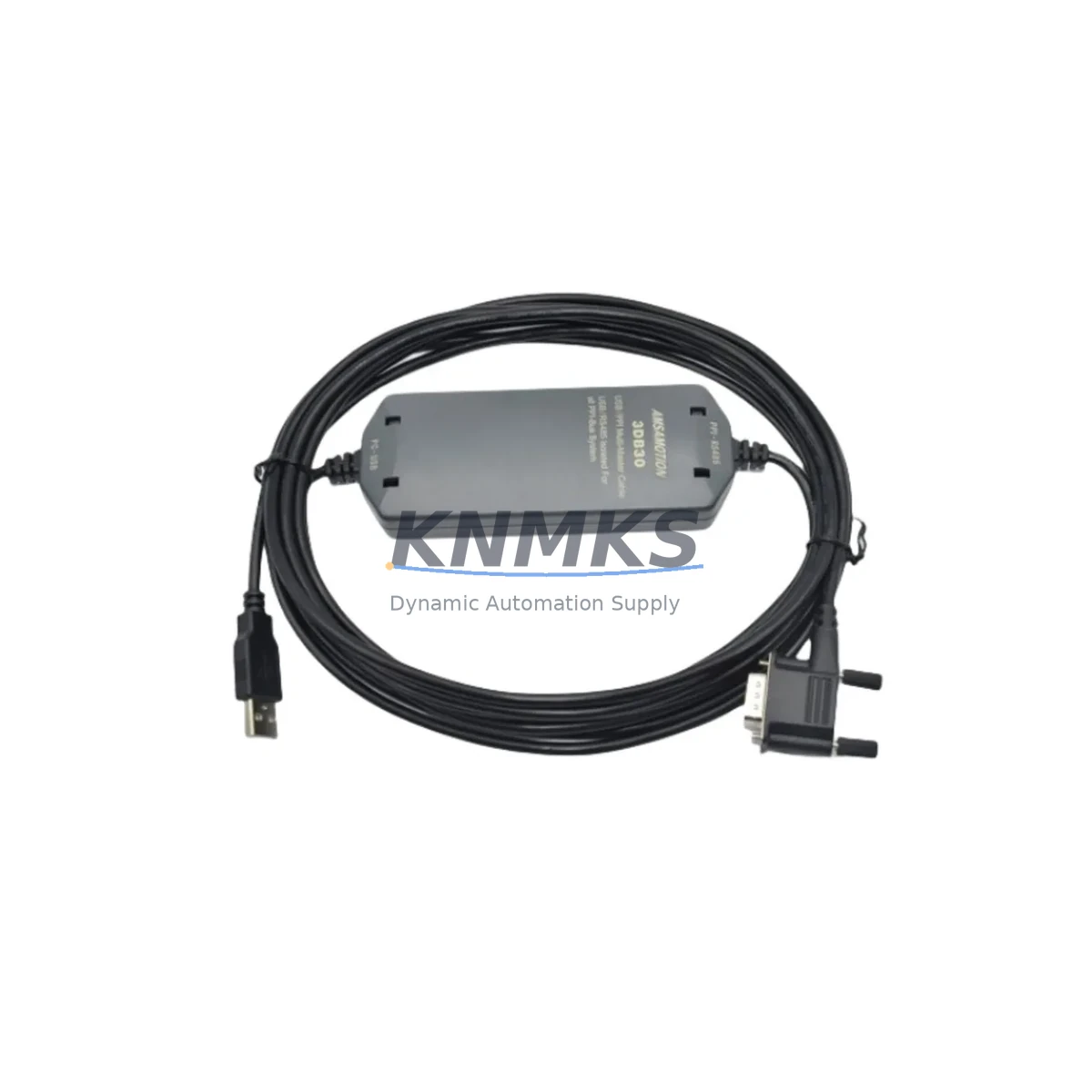

The Siemens 6ES7901-3DB30-0XA0 PC/PPI Multi-Master Cable is an essential communication interface for SIMATIC S7-200 series programmable logic controllers, engineered to deliver uninterrupted, fail-safe RS-485 serial communication between a PC and field-deployed PLCs. In continuous production environments — from petrochemical processing lines to municipal water treatment facilities — any disruption to the programming and monitoring link can cascade into unplanned downtime, process deviation, or safety interlock failure. The 6ES7901-3DB30-0XA0 is purpose-built to eliminate these risks through robust electrical isolation, surge suppression, and multi-master bus arbitration.

Industrial control cabinets operating in high electromagnetic interference (EMI) environments — adjacent to variable frequency drives, large motor starters, or high-current bus bars — generate conducted and radiated noise that can corrupt RS-485 communication frames, trigger spurious PLC faults, or cause signal drift on the data lines. The 6ES7901-3DB30-0XA0 addresses this with full optical isolation between the PC-side USB/RS-232 interface and the RS-485 field bus, ensuring that ground loops, common-mode voltage transients, and surge impulses from the field side cannot propagate back to the engineering workstation or corrupt the communication stack. This isolation is critical when the cable is used alongside devices such as the Siemens 6ES7972-0BB52-0XA0 PROFIBUS connector or 6ES7901-3CB30-0XA0 RS-485 repeater in the same cabinet segment.

In dusty, humid, or high-vibration environments — common in mining, port logistics, and metallurgical plants — connector integrity and cable shielding are primary failure modes for communication links. The 6ES7901-3DB30-0XA0 features a ruggedized housing with secure locking connectors and a fully shielded cable assembly, maintaining signal integrity even under continuous mechanical stress. When deployed alongside Siemens SIMATIC S7-200 CPU 224XP or CPU 226 controllers, the cable supports multi-master PPI protocol, allowing simultaneous access from HMI panels and SCADA workstations without bus contention or communication collision — a key requirement for safety-critical interlock monitoring in continuous process industries.

Power supply stability within the control cabinet directly affects PLC communication reliability. Voltage sags, micro-interruptions, or switching transients from adjacent Siemens SITOP PSU100S 24V DC power supplies can momentarily destabilize the RS-485 bus if the communication interface lacks adequate transient suppression. The 6ES7901-3DB30-0XA0 incorporates TVS diode protection on the RS-485 lines, clamping surge voltages before they can damage the PLC communication port or corrupt in-flight data frames — reducing the risk of non-scheduled maintenance interventions and preserving the integrity of safety-relevant program uploads and downloads.

For facilities managing legacy SIMATIC S7-200 installations with long operational lifecycles, maintaining a verified spare of the 6ES7901-3DB30-0XA0 is a standard spare parts governance practice. Loss of the programming cable during a critical maintenance window — when a CPU fault requires immediate program reload or parameter adjustment — can extend unplanned downtime from minutes to hours. Stocking this cable alongside compatible components such as the Siemens 6ES7291-8GH23-0XA0 memory card and 6ES7901-3BF20-0XA0 PC adapter ensures that the full diagnostic and recovery toolkit is available on-site, regardless of OEM lead times.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust S7-200 control cabinet communication architecture requires more than a single cable. The 6ES7901-3DB30-0XA0 functions as the primary PC-to-PLC programming and diagnostic link, but its reliability is amplified when the surrounding cabinet infrastructure is equally hardened. Pairing this cable with a Siemens SITOP PSU100S 24V/10A power supply ensures that the PLC and communication bus receive clean, regulated DC power free from ripple and transient spikes. For multi-node RS-485 networks, the Siemens 6ES7901-3CB30-0XA0 RS-485 repeater extends bus reach and regenerates signal levels, preventing communication degradation over long cable runs in large plant layouts.

In cabinets where HMI panels such as the Siemens SIMATIC HMI TP177B share the PPI bus with the engineering PC, the multi-master capability of the 6ES7901-3DB30-0XA0 prevents bus arbitration conflicts, allowing simultaneous operator visualization and remote programming without communication lockout. For safety interlock circuits, integrating the Siemens 3SK1 safety relay within the same cabinet provides hardware-level emergency stop and safety loop monitoring, complementing the software-based fault detection enabled by continuous PLC communication through the 6ES7901-3DB30-0XA0.

Critical Industrial Safety Applications

The 6ES7901-3DB30-0XA0 is deployed across a wide range of safety-critical and continuous-process industrial environments. In petrochemical and refinery facilities, it enables real-time parameter monitoring and emergency program updates on S7-200 PLCs controlling pump interlock sequences and valve actuator logic, where communication loss during a process upset could delay emergency shutdown response. In electric power generation and substation automation, the cable supports diagnostic access to PLCs managing auxiliary equipment control, allowing maintenance engineers to upload fault logs and adjust setpoints without interrupting live protection circuits.

In mining and mineral processing operations, where conveyor belt PLCs and crusher control systems operate in high-dust, high-vibration environments, the optical isolation of the 6ES7901-3DB30-0XA0 protects the engineering workstation from ground potential differences between remote field panels and the central control room. Water and wastewater treatment plants rely on S7-200 PLCs for dosing pump sequencing and level control; the 6ES7901-3DB30-0XA0 provides the reliable communication link needed for remote parameter adjustment and alarm acknowledgment without on-site PC replacement risk. In metallurgical and port logistics applications, where crane and hoist PLCs require periodic program updates during scheduled maintenance windows, this cable ensures that the programming interface remains available and electrically safe throughout the maintenance cycle.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 6ES7901-3DB30-0XA0?
All units are covered by a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects, communication interface failures, and isolation breakdown under normal operating conditions. Support requests are supported with direct technical assistance and replacement dispatch.

Q2: What outgoing quality inspection is performed before shipment?
Every 6ES7901-3DB30-0XA0 unit undergoes a 100% functional communication test prior to shipment, verifying USB enumeration, RS-485 signal integrity, optical isolation continuity, and PPI protocol handshake with a reference S7-200 CPU. Units that do not pass all test criteria are quarantined and not shipped.

Q3: Is this cable compatible with STEP 7-Micro/WIN and third-party SCADA software?
Yes. The 6ES7901-3DB30-0XA0 is fully compatible with Siemens STEP 7-Micro/WIN (V4.0 SP9 and later) and supports standard PPI/MPI protocol stacks used by third-party SCADA and HMI software with RS-485 serial communication drivers. Driver installation is supported on Windows 7, 10, and 11 (32/64-bit).

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
Yes. KNMKS maintains dedicated stock buffers for the 6ES7901-3DB30-0XA0 to support ongoing spare parts programs for facilities with long-lifecycle S7-200 installations. Customers with recurring procurement requirements can arrange framework supply agreements to ensure priority allocation and guaranteed lead times, reducing exposure to OEM discontinuation risk.
