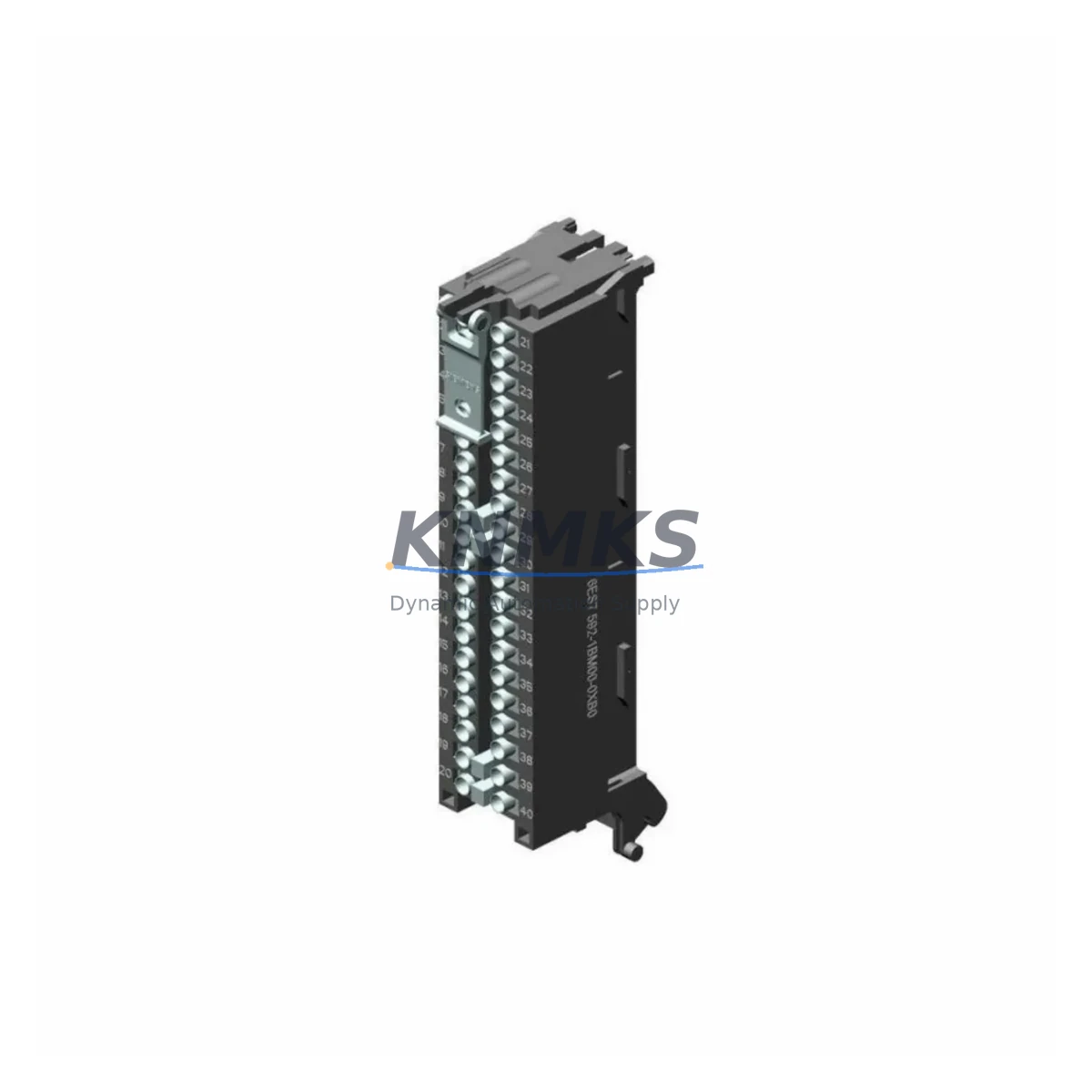

Siemens 6ES7592-1BM00-0XB0 Migration-Ready Shield Connector

Overview

Siemens 6ES7592-1BM00-0XB0 Migration-Ready Shield Connector: Legacy Control System Retrofit & Upgrade

The Siemens 6ES7592-1BM00-0XB0 is a shield connector module designed for the SIMATIC S7-1500 series, engineered to support structured cable shielding directly at the signal module terminal. In retrofit and modernization projects — particularly those migrating from legacy SIMATIC S7-300 or S7-400 control architectures — this component plays a critical role in maintaining EMC compliance, signal integrity, and wiring discipline within upgraded control cabinets. Its compact form factor and tool-free installation make it a preferred choice for system integrators managing tight installation schedules and minimal downtime windows.

When replacing aging S7-300 analog or digital I/O modules with current-generation S7-1500 equivalents such as the SM 521, SM 522, SM 531, or SM 532 signal modules, the 6ES7592-1BM00-0XB0 shield connector ensures that existing shielded cable runs can be terminated correctly without re-pulling field wiring. This is especially valuable in process industries where cable trays are congested and re-routing is cost-prohibitive. Engineers should verify that the shield connector is matched to the correct terminal width and module slot position during pre-installation planning.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful migration from S7-300 or S7-400 infrastructure to the S7-1500 platform requires careful coordination across multiple hardware layers. The 6ES7592-1BM00-0XB0 shield connector is typically installed alongside the S7-1500 front connector (such as the 6ES7592-1AM00-0XB0 or 6ES7592-1BM00-0XA0 variants) to complete the terminal assembly for each signal module. During cabinet redesign, engineers must account for the increased depth profile of S7-1500 modules compared to their S7-300 predecessors, and confirm that the control cabinet door clearance and DIN rail spacing are adequate.

Power supply sizing is a common oversight in retrofit projects. The S7-1500 CPU and its associated I/O modules draw power from a dedicated PS 60W or PS 25W load current supply (e.g., 6EP1333-4BA00 or similar), and the total current budget must be recalculated when adding new signal modules. The shield connector itself draws no current, but its installation position affects the overall module footprint on the rack.

For projects involving PROFIBUS-to-PROFINET protocol migration, the addition of a CM 1542-5 communication module or a CP 1543-1 Ethernet module to the S7-1500 rack may be required. These modules occupy additional rack slots and must be factored into the backplane address assignment and TIA Portal hardware configuration. The 6ES7592-1BM00-0XB0 shield connector does not interfere with communication module addressing, but its physical placement must be confirmed in the rack layout before ordering.

HMI screen updates are another critical step. When replacing S7-300 CPUs with S7-1500 CPUs, existing WinCC or TP/KP panel projects linked via MPI or PROFIBUS must be re-engineered for PROFINET connectivity. Tag mappings, alarm configurations, and screen navigation logic should be validated in simulation before live commissioning. The shield connector installation can proceed in parallel with HMI re-engineering, allowing mechanical and software workstreams to run concurrently and compress the overall project timeline.

Downtime Control During System Migration

Minimizing production downtime is the primary constraint in any brownfield retrofit. For installations using the 6ES7592-1BM00-0XB0, the recommended approach is to pre-assemble the S7-1500 rack — including signal modules, front connectors, and shield connectors — on a staging bench before the cutover window. All terminal wiring should be labeled, photographed, and mapped against the existing S7-300 I/O list prior to disconnection.

During the cutover, the original PLC program should be exported from the S7-300 CPU using STEP 7 Classic and converted to TIA Portal format using the migration tool. While full automatic conversion is rarely 100% complete, the majority of standard function blocks, data blocks, and organization blocks can be migrated with minimal manual rework. Retaining the original program logic reduces commissioning risk and preserves the control philosophy that field operators are familiar with.

Once the new S7-1500 rack is installed and wired, a cold restart with forced I/O monitoring is recommended before enabling automatic control. Shield continuity should be verified at each terminal using a continuity tester before energizing analog signal loops. This step, combined with pre-shipment testing of the 6ES7592-1BM00-0XB0 and associated modules, significantly reduces the risk of signal noise or ground loop issues during initial startup. Typical cutover windows for a single S7-300 rack replacement range from 4 to 8 hours when pre-staging is completed thoroughly.

Retrofit Support FAQ

Q1: Is the 6ES7592-1BM00-0XB0 a direct replacement for shield connectors used with S7-300 signal modules?
The 6ES7592-1BM00-0XB0 is designed specifically for the S7-1500 signal module series and is not mechanically interchangeable with S7-300 shield terminal blocks. However, it serves the same functional purpose — providing a low-impedance shield termination point at the module terminal — and is the correct replacement component when upgrading to S7-1500 I/O modules.

Q2: What wiring and terminal checks are required before installation?
Verify that the cable outer diameter falls within the clamp range of the shield connector. Confirm that the shield braid is trimmed and folded back cleanly before insertion. Check that the front connector terminal screws are torqued to the specified value (typically 0.5–0.6 Nm for S7-1500 terminals). Inspect for any insulation damage on signal cables that may have occurred during the original S7-300 installation.

Q3: Has this unit been tested before shipment, and what support terms is provided?
Yes. Each 6ES7592-1BM00-0XB0 unit undergoes pre-shipment dimensional and functional inspection before dispatch. A support terms confirmed by quotation is provided from the date of shipment, covering manufacturing defects and component integrity. Units are sourced from verified supply channels and stored under controlled conditions to maintain long-term reliability.

Q4: What is the typical lead time and stock availability?
Stock is maintained in our warehouse to support urgent retrofit and breakdown replacement requirements. Standard orders are dispatched within 1–3 business days. For bulk retrofit projects requiring multiple units of the 6ES7592-1BM00-0XB0 and associated S7-1500 components, please contact our sales team to confirm availability and arrange consolidated shipment.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6ES7592-1BM00-0XB0
SIMATIC Series

Product Family

Cables & Connectors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Cable range

Sensor, servo, network and circular connectors

Common needs

Length, pin count, shielding and plug type

Project support

Machine wiring and installation kits

Inquiry Support

• Cable length and connector type confirmation
• Servo, sensor and network cable inquiry
• Accessory kits for installation teams

What to Send Us

• Brand and exact model number: Siemens 6ES7592-1BM00-0XB0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
