Siemens 6ES7180-0AA00-0XA0 Maintenance-Proven Spare Part for Factory Uptime

Overview

Siemens 6ES7180-0AA00-0XA0 Maintenance-Proven Spare Part for Factory Uptime

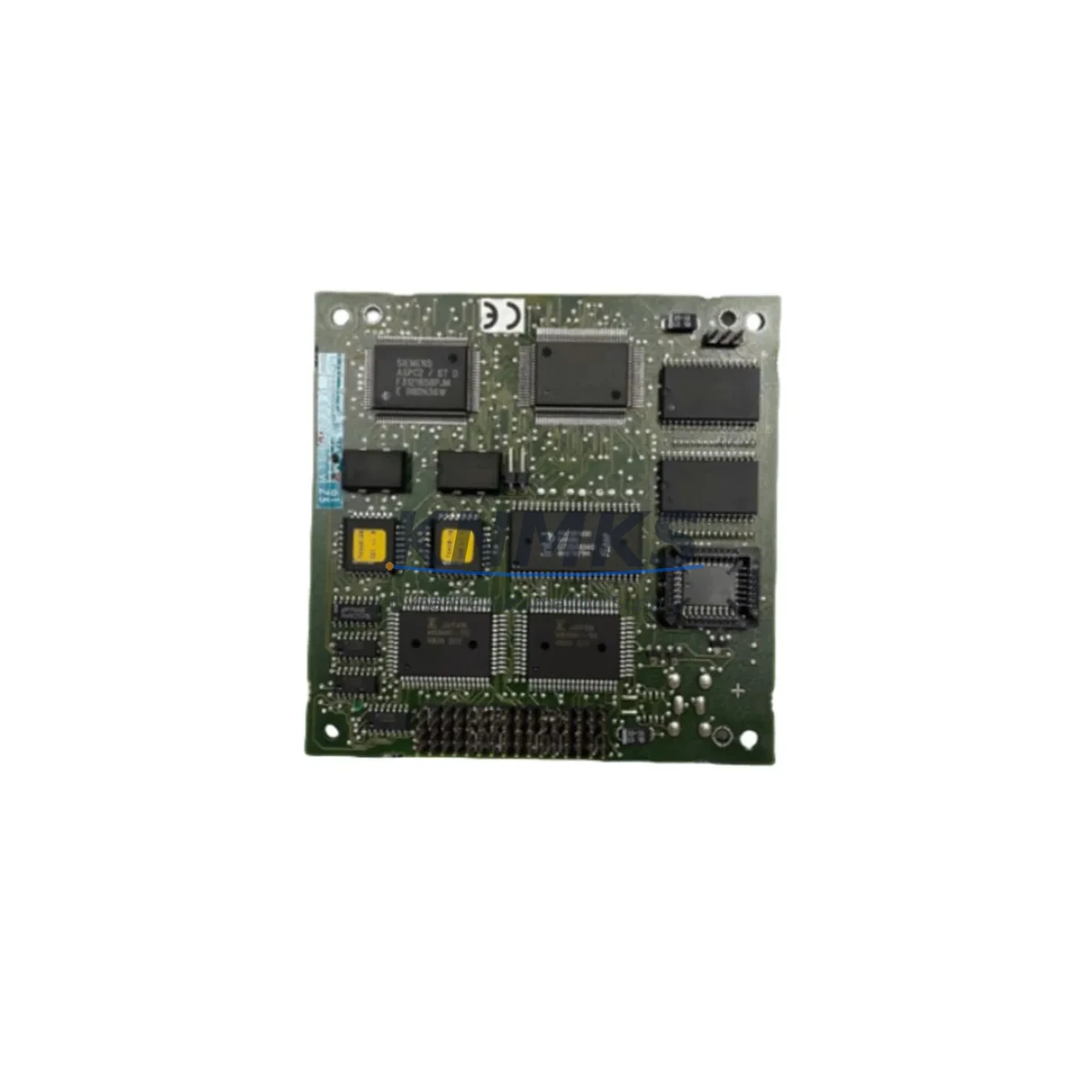

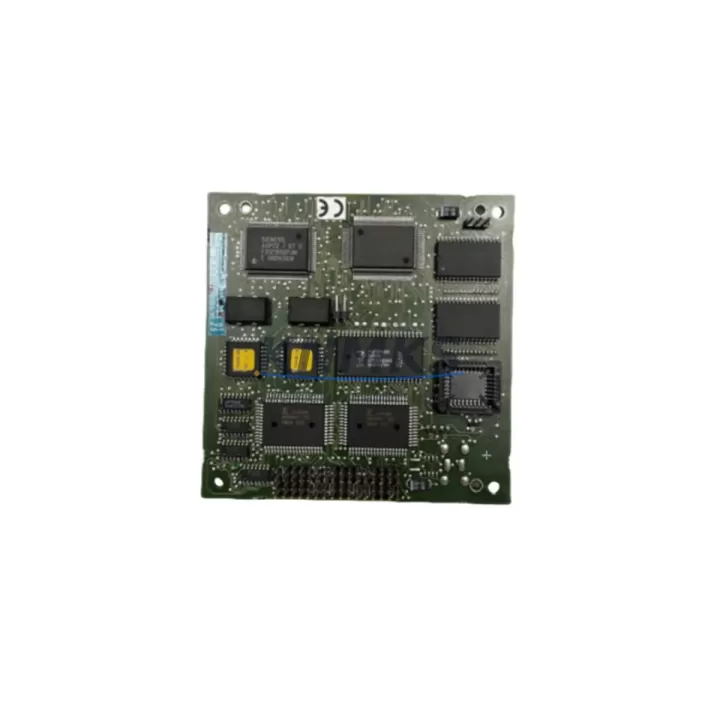

The Siemens 6ES7180-0AA00-0XA0 is the IM 153-1 Interface Module designed for the ET 200M distributed I/O station, operating within Siemens SIMATIC S7-300 automation architectures. As a PROFIBUS DP slave interface, this module serves as the communication backbone between the central S7-300 CPU and the field-level ET 200M I/O assemblies. In maintenance-critical environments — including automotive body shops, chemical processing lines, food and beverage packaging, and heavy machinery control cabinets — the 6ES7180-0AA00-0XA0 is a high-priority spare that directly determines whether a production line can recover from an unplanned shutdown within minutes or hours.

Maintenance engineers and spare parts procurement teams managing aging S7-300 and ET 200M installations rely on verified, original-specification replacements to avoid compatibility failures during emergency swaps. The 6ES7180-0AA00-0XA0 supports up to 8 signal modules per ET 200M station, operates on a 24 VDC supply, and communicates at PROFIBUS DP baud rates up to 12 Mbit/s. Its compact DIN-rail form factor and tool-free module replacement design make it a practical choice for rapid field substitution without requiring system reconfiguration when the station address is preserved.

Every unit shipped by KNMKS undergoes pre-shipment functional verification, is packaged in anti-static protective materials, and is backed by a support terms confirmed by quotation covering manufacturing defects and operational failures under normal industrial use conditions. Long-term supply continuity is maintained through multi-region stock, ensuring availability for both emergency single-unit orders and planned annual maintenance bulk purchases.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 6ES7180-0AA00-0XA0 in an ET 200M station, a thorough maintenance inspection of the surrounding components is essential to prevent repeat failures and ensure the restored station operates reliably through the next planned maintenance cycle. Maintenance engineers should treat this replacement as an opportunity to audit the full ET 200M assembly and its associated control cabinet infrastructure.

Begin by verifying the 24 VDC power supply module (such as the Siemens SITOP PSU100S or equivalent) feeding the ET 200M rack. A degraded or undersized power supply is a common root cause of interface module failures, particularly in stations with a full complement of 8 signal modules drawing peak current simultaneously. Check output voltage stability under load and inspect terminal connections for oxidation or loose crimps.

Next, inspect the PROFIBUS DP cable and bus connectors at both ends of the segment. The 6ES7180-0AA00-0XA0 is sensitive to bus termination errors and cable impedance mismatches, especially at baud rates above 1.5 Mbit/s. Confirm that the terminal resistors are correctly enabled only at the physical ends of the PROFIBUS segment, and that the cable shielding is properly grounded at the control cabinet entry point.

Signal module integrity should also be assessed. The SM 321 digital input modules and SM 322 digital output modules installed in the ET 200M station may have accumulated contact wear or blown output transistors, particularly in high-cycle applications. Similarly, SM 331 analog input modules used for temperature or pressure monitoring should be checked for drift or channel failures that may have been masked by the interface module fault.

For stations in environments with high electrical noise — such as those near variable frequency drives, welding equipment, or large motor starters — inspect the signal isolators and surge protection devices on analog I/O channels. Unprotected analog inputs are frequently damaged during power transients that also stress the interface module. Additionally, verify the condition of the backplane bus connector on the profile rail; a corroded or mechanically damaged bus connector can cause intermittent communication errors that mimic interface module failures.

Finally, review the fuse and circuit breaker protection for the 24 VDC supply circuit. A correctly rated miniature circuit breaker (MCB) or fuse protects both the power supply and the ET 200M station from downstream short-circuit events. Confirm that the protection rating matches the total current draw of the installed signal modules plus the interface module itself.

Site Replacement Workflow

The 6ES7180-0AA00-0XA0 is a direct plug-in replacement for the IM 153-1 position on any ET 200M profile rail. Before beginning the swap, record the current PROFIBUS station address set on the rotary address switches of the existing module — this address must be replicated exactly on the replacement unit to avoid reconfiguration of the S7-300 hardware configuration in STEP 7 or TIA Portal.

Power down the ET 200M station by switching off the 24 VDC supply. Disconnect the PROFIBUS DP bus connector from the interface module. Release the DIN rail locking mechanism and slide the module off the profile rail. Install the replacement 6ES7180-0AA00-0XA0, set the rotary address switches to the recorded station address, reconnect the PROFIBUS bus connector, and restore power. The S7-300 CPU should recognize the station within one PROFIBUS cycle time — typically under 100 ms at standard baud rates.

If the replacement is being performed as part of a planned upgrade from an older IM 153-1 variant, verify that the firmware revision of the replacement module is compatible with the GSD file version configured in the S7-300 hardware catalog. In most cases, the 6ES7180-0AA00-0XA0 is backward compatible with earlier IM 153-1 configurations, but a hardware configuration download may be required if the GSD file version differs. This workflow minimizes downtime to under 30 minutes for a trained maintenance technician performing a like-for-like swap.

Spare Parts Support FAQ

Q1: Is the 6ES7180-0AA00-0XA0 still available as a new original spare, or only as a refurbished unit?
KNMKS supplies the 6ES7180-0AA00-0XA0 as an original Siemens spare part. Each unit is sourced through verified supply channels, pre-shipment tested, and backed by a support terms confirmed by quotation. Refurbished or remanufactured units are not offered under this listing.

Q2: How do I confirm compatibility with my existing ET 200M station before ordering?
The 6ES7180-0AA00-0XA0 (IM 153-1) is compatible with all standard ET 200M profile rail assemblies using SM 300-series signal modules. Confirm the PROFIBUS DP station address range (1–125) and the number of installed signal modules (maximum 8 per station). If your station uses FM or CP modules, contact [email protected] with your current hardware configuration for compatibility verification before ordering.

Q3: What is the lead time for emergency orders, and do you support bulk procurement for annual maintenance planning?
In-stock units are dispatched within 1–2 business days for emergency orders. For annual maintenance planning and blanket purchase orders, KNMKS supports scheduled delivery agreements to ensure stock availability aligned with your planned shutdown windows. Contact +86 18359268345 to discuss volume pricing and delivery scheduling.

Q4: What does the support terms confirmed by quotation cover, and what is the return process if a unit fails in service?
The support terms confirmed by quotation cover manufacturing defects and operational failures under normal industrial operating conditions (0–60 °C, IP20 environment, correct supply voltage). It does not cover damage from incorrect installation, overvoltage events, or physical impact. To initiate a support terms claim, contact [email protected] with the order reference, failure description, and site conditions. Replacement units are dispatched upon fault confirmation to minimize production downtime.
