Siemens 6ES7151-1AA02-0AB0 Fail-Safe PROFIBUS DP Interface

Overview

Siemens 6ES7151-1AA02-0AB0 Fail-Safe PROFIBUS DP Interface for Critical Industrial Control Reliability

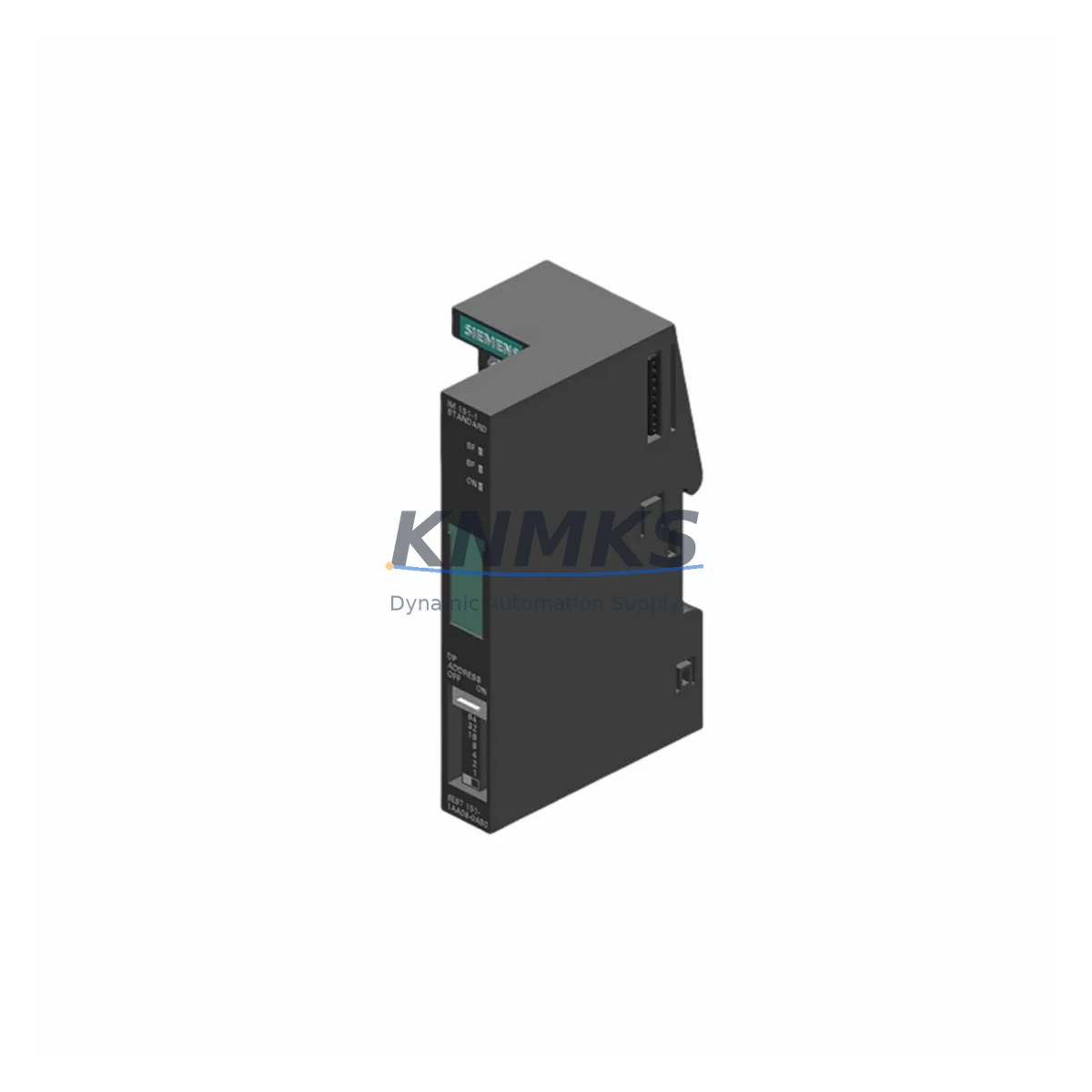

The Siemens 6ES7151-1AA02-0AB0 is the IM 151-1 Standard Interface Module for the ET 200S distributed I/O system, designed to operate as the PROFIBUS DP slave interface in safety-critical and continuous-process environments. Engineered to IEC 61131-2 standards and fully compatible with Siemens SIMATIC S7-300 and S7-400 controller architectures, this module delivers deterministic, fail-safe communication across demanding industrial fieldbus networks. Its robust design addresses the core risks of unplanned downtime, signal drift, communication faults, and control loop interruption that threaten productivity in high-stakes industrial operations.

In continuous manufacturing, petrochemical processing, power generation, and heavy metallurgical plants, the integrity of the PROFIBUS DP fieldbus backbone is non-negotiable. The 6ES7151-1AA02-0AB0 provides a hardened communication gateway between the ET 200S remote I/O station and the central PLC rack, maintaining cyclic data exchange with sub-millisecond response consistency even under high electromagnetic interference (EMI), voltage transients, and mechanical vibration. Its integrated surge protection circuitry guards against line-borne impulse events that commonly corrupt fieldbus telegrams in high-power switchgear environments.

The module supports PROFIBUS DP-V1 extended diagnostics, enabling predictive fault detection before a process upset occurs. When paired with the Siemens 6ES7138-4CA01-0AA0 PM-E power module and 6ES7193-4CA40-0AA0 terminal modules within the same ET 200S station, the 6ES7151-1AA02-0AB0 forms a tightly integrated, cabinet-level protection architecture. This combination ensures that power supply anomalies, ground faults, and module-level failures are isolated and reported to the S7 CPU without cascading into a full station shutdown — a critical requirement in interlock-protected safety loops.

For installations operating under SIL 2 or SIL 3 safety integrity requirements, the 6ES7151-1AA02-0AB0 is frequently deployed alongside the Siemens 6ES7138-4FB03-0AB0 F-DI safety digital input module and the 6ES7136-6RA00-0BF0 F-PM-E fail-safe power module to construct a complete ET 200S safety station. This architecture supports emergency shutdown (ESD) logic, fire and gas detection interlocks, and rotating machinery protection circuits where any communication failure must trigger a defined safe state rather than an undefined fault condition.

In environments characterized by heavy dust ingress, condensation, or thermal cycling — such as cement plants, offshore platforms, and water treatment facilities — the module’s IP20-rated housing and conformal-coated PCB construction provide baseline protection against environmental degradation. When installed within a properly sealed control cabinet alongside the Siemens 6ES7390-1AE80-0AA0 DIN rail mounting system and appropriate cable shielding terminations, the 6ES7151-1AA02-0AB0 maintains stable PROFIBUS DP communication across the full operating temperature range of 0°C to +60°C.

Surge events on the PROFIBUS cable — caused by nearby motor starts, transformer switching, or lightning-induced transients — represent one of the most common causes of fieldbus communication loss in industrial plants. The 6ES7151-1AA02-0AB0’s internal bus termination and signal conditioning circuitry, combined with external PROFIBUS surge protection devices such as the Phoenix Contact TRABTECH series, provides a layered defense against these events. This approach eliminates the nuisance trips and diagnostic alarms that erode operator confidence and trigger unnecessary maintenance interventions.

Replacement and spare parts planning for the 6ES7151-1AA02-0AB0 is straightforward due to its hot-swap-compatible design within the ET 200S station. Maintenance teams can substitute a failed interface module without powering down the entire remote I/O station, minimizing mean time to repair (MTTR) in live production environments. All units supplied by KNMKS undergo pre-shipment functional testing on a live PROFIBUS DP network, verifying cyclic data exchange, diagnostic response, and power consumption within factory specification before dispatch.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable ET 200S station built around the 6ES7151-1AA02-0AB0 interface module depends on a coordinated selection of companion components within the same control cabinet. The Siemens 6ES7138-4CA01-0AA0 PM-E 24VDC power module provides regulated, filtered DC supply to the I/O modules, isolating the station from upstream power rail disturbances. For digital input channels connected to field sensors in hazardous or high-noise zones, the 6ES7131-4BF00-0AA0 4DI digital input module offers high common-mode rejection, reducing the risk of spurious input signals caused by ground potential differences or capacitive coupling on long cable runs.

In safety-instrumented system (SIS) architectures, the 6ES7138-4FB03-0AB0 F-DI fail-safe digital input module is installed within the same ET 200S station to handle SIL-rated interlock inputs — emergency stop buttons, pressure switches, and flame detectors — while the 6ES7151-1AA02-0AB0 manages the standard process I/O communication on the same PROFIBUS DP segment. This mixed-station configuration reduces cabinet footprint and wiring complexity without compromising safety loop integrity.

For applications requiring analog process variable monitoring — flow, pressure, temperature, or level — the 6ES7134-4FB01-0AB0 2AI analog input module integrates directly into the ET 200S station, with all process data transmitted to the S7 CPU via the 6ES7151-1AA02-0AB0 interface. Cabinet thermal management is supported by proper DIN rail spacing and the use of Siemens 6ES7390-1AE80-0AA0 mounting rails, ensuring adequate airflow around the interface module and preventing thermal derating in high-ambient-temperature enclosures.

Critical Industrial Safety Applications

In petrochemical and refinery environments, the 6ES7151-1AA02-0AB0 is deployed in distributed control system (DCS) migration projects where legacy fieldbus infrastructure is being upgraded to modern PROFIBUS DP architectures. Its compatibility with S7-300 and S7-400 CPUs makes it a direct-fit replacement in existing ET 200S stations without requiring rewiring or software reconfiguration, significantly reducing the risk and cost of control system modernization.

Power generation facilities — including thermal, hydro, and wind farms — rely on the module’s deterministic communication latency to maintain synchronization between remote I/O stations and the central SCADA or DCS platform. In these applications, any communication delay or packet loss can result in incorrect turbine governor commands or protection relay misoperation, making the PROFIBUS DP interface module a safety-critical component in the control architecture.

In mining and mineral processing operations, where control cabinets are exposed to high vibration, dust, and humidity, the 6ES7151-1AA02-0AB0’s robust mechanical construction and conformal-coated PCB ensure long-term operational stability. Water treatment and wastewater management plants use the module in pump control and chemical dosing stations, where continuous, uninterrupted PROFIBUS DP communication is essential to maintain process compliance and prevent environmental incidents.

Port and maritime terminal automation systems deploy the 6ES7151-1AA02-0AB0 in crane control and conveyor management applications, where the module’s high baud rate support (up to 12 Mbit/s) enables fast, responsive control of variable-speed drives and positioning systems. In metallurgical plants — steel mills, aluminum smelters, and foundries — the module operates in high-temperature, high-EMI environments adjacent to arc furnaces and induction heating equipment, where its EMC compliance and surge-tolerant design are essential for sustained control loop integrity.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 6ES7151-1AA02-0AB0?
The support terms confirmed by quotation cover all functional failures arising from manufacturing defects or component failure under normal operating conditions. It includes free replacement or repair of the module. The confirmed support period begins from the date of shipment. Units that have been subjected to physical damage, incorrect installation voltage, or unauthorized modification are excluded from support terms coverage.

Q2: What pre-shipment testing is performed on each unit?
Every 6ES7151-1AA02-0AB0 unit is tested on a live PROFIBUS DP network prior to dispatch. Testing verifies successful slave address assignment, cyclic data exchange at multiple baud rates (up to 12 Mbit/s), DP-V1 diagnostic response, and power consumption within the Siemens factory specification. A test record is available upon request for quality-critical procurement processes.

Q3: Is the 6ES7151-1AA02-0AB0 compatible with S7-1500 controllers?
The 6ES7151-1AA02-0AB0 is natively compatible with S7-300 and S7-400 PROFIBUS DP masters. For S7-1500 systems, compatibility is achieved via a PROFIBUS DP communication module (e.g., CM 1542-5) acting as the DP master. The ET 200S station configuration and GSD file remain unchanged, making this a low-risk integration path for S7-1500 migration projects.

Q4: Can long-term supply be guaranteed for this module?
KNMKS maintains multi-region stock of the 6ES7151-1AA02-0AB0 to support both emergency replacement and planned maintenance procurement. For critical infrastructure operators requiring guaranteed availability, we recommend establishing a framework supply agreement. Contact our technical sales team to discuss lead time commitments, consignment stock arrangements, and volume pricing for annual maintenance programs.
