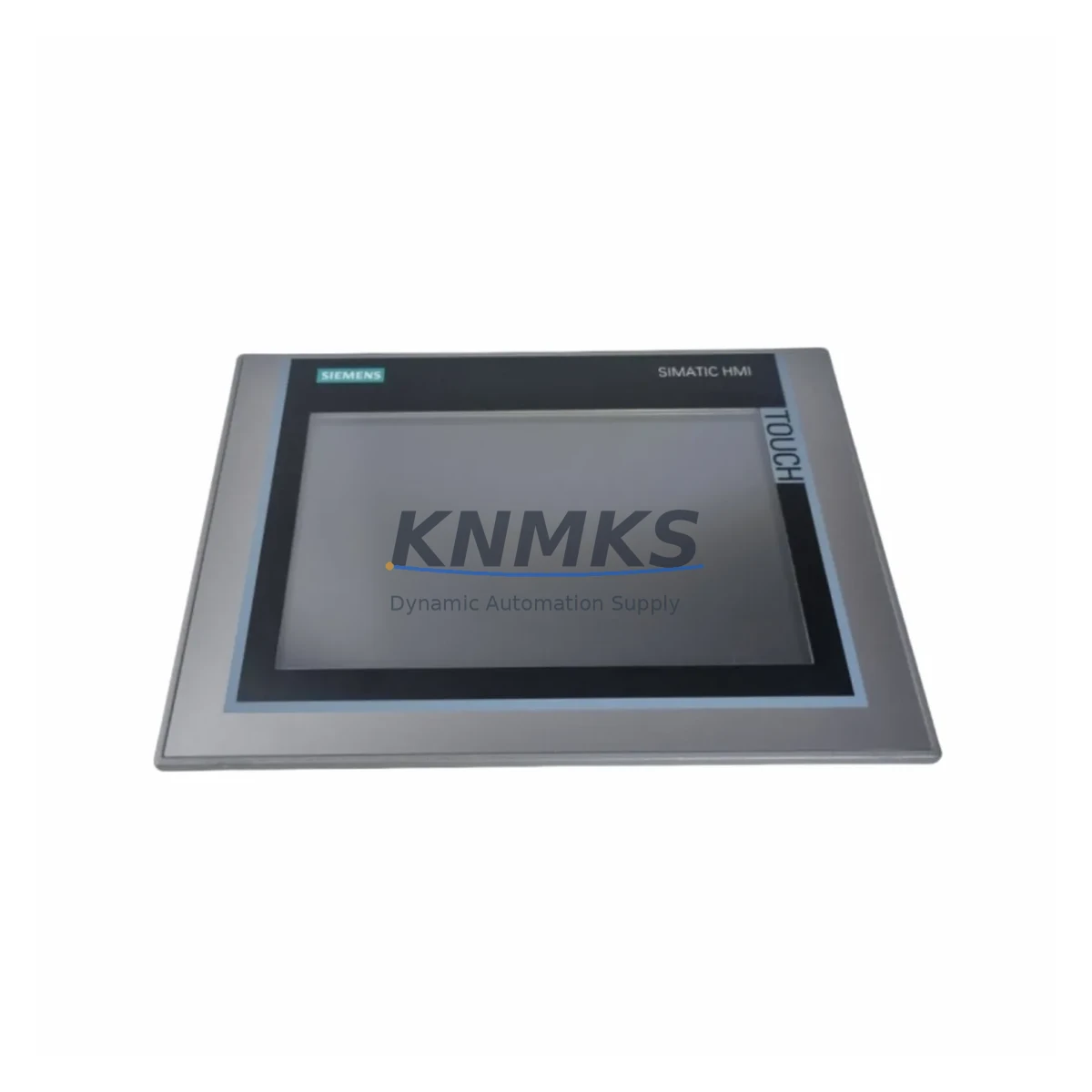

Siemens 6AV7721-1AA10-0AD0 Migration-Ready HMI Panel PC for Legacy Control Systems

The Siemens 6AV7721-1AA10-0AD0 is a SIMATIC Panel PC 670 series HMI designed for demanding industrial environments where legacy visualization platforms must be replaced without disrupting active production lines. As Siemens progressively phases out older SIMATIC PC 670 hardware, facilities running WinCC, STEP 7, or ProTool-based visualization on aging panel PCs face increasing pressure to source verified replacement units that maintain full software and hardware compatibility. The 6AV7721-1AA10-0AD0 addresses this need directly — offering a migration-ready, pre-tested solution for control rooms, machine tool cabinets, and process automation panels that cannot afford unplanned downtime.

This unit supports the SIMATIC PC 670 platform architecture, maintaining compatibility with existing backplane connections, front-panel cutout dimensions, and PROFIBUS or Industrial Ethernet communication links already established in the control cabinet. Engineers replacing a failed or end-of-life HMI can retain the original WinCC project files, operator screen layouts, and alarm configurations without requiring a full HMI software migration — a critical advantage when the original programming documentation is incomplete or the original integrator is no longer available.

Before installation, engineers should verify the power supply capacity within the control cabinet. The 6AV7721-1AA10-0AD0 requires a stable 24 VDC supply, and aging power supply modules in legacy cabinets — such as the SITOP PSU100S or equivalent — should be load-tested prior to commissioning the replacement HMI. Terminal wiring assignments for the front USB ports, serial COM interfaces, and DVI/VGA display outputs must be confirmed against the original cabinet wiring diagram to avoid signal conflicts during startup.

Backplane interface compatibility is a key consideration in SIMATIC PC 670 retrofit projects. The 6AV7721-1AA10-0AD0 uses a standard ISA/PCI slot configuration consistent with the PC 670 chassis, but engineers should confirm that any installed expansion cards — including PROFIBUS CP cards, serial communication modules, or additional I/O boards — are seated correctly and recognized by the replacement unit’s BIOS before loading the WinCC runtime environment. Module addressing and interrupt assignments may need to be re-verified in the hardware configuration if the original STEP 7 project is being reused.

Program compatibility is typically maintained when the replacement unit runs the same Windows Embedded Standard or Windows XP Embedded operating system image as the original. If the original OS image is unavailable, a clean installation with the correct WinCC version and hardware drivers must be performed. HMI screen layouts, tag connections, and communication driver configurations should be validated in offline simulation before the unit is brought online in the live control environment. Communication links to PLCs — whether via PROFIBUS DP, MPI, or Industrial Ethernet — must be re-established and tested under load conditions to confirm stable data exchange.

Installation space confirmation is essential in retrofit scenarios. The 6AV7721-1AA10-0AD0 fits the standard SIMATIC PC 670 panel cutout, but engineers working on older cabinets should verify that the mounting frame, sealing gasket, and front-panel locking mechanism are intact and compatible with the replacement unit’s housing dimensions. Firmware version alignment between the HMI unit and any connected SIMATIC S7-300 or S7-400 controllers should also be confirmed to prevent communication handshake failures during initial startup.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 6AV7721-1AA10-0AD0 retrofit begins with a structured audit of the existing control cabinet. Engineers should document the current wiring layout for all terminal connections, including the 24 VDC power input, front-panel I/O ports, and any serial or Ethernet cables routed to the HMI. In many legacy SIMATIC PC 670 installations, the cabinet also houses a SIMATIC S7-300 CPU with a CP 343-1 Ethernet module or a CP 342-5 PROFIBUS module — both of which must remain operational during the HMI swap to avoid interrupting the PLC scan cycle.

Signal isolation is a common requirement in older control cabinets where the HMI shares a ground reference with analog I/O modules or thermocouple input cards. Installing a signal isolator between the HMI’s serial port and any legacy RS-232 or RS-485 devices — such as barcode readers, weighing terminals, or third-party drives — prevents ground loop interference that can cause communication errors after the replacement unit is powered on.

For facilities where the original SIMATIC PC 670 was connected to a SIMATIC OP 270 or TP 270 operator panel via MPI, the replacement 6AV7721-1AA10-0AD0 must be configured with the same MPI station address and baud rate to maintain seamless communication with the operator panel. If the facility is also upgrading the operator panel as part of a broader modernization project, a SIMATIC HMI KTP700 Basic or KTP900 Basic panel may be considered as a forward-compatible replacement, though this requires a ProTool-to-TIA Portal project migration.

Programming cables used during commissioning — such as the PC Adapter USB or MPI/PROFIBUS programming cable — should be available on-site during the retrofit to allow direct connection to the S7-300 or S7-400 controller for hardware configuration updates and online diagnostics. A SIMATIC S7 memory card may also be required if the controller’s program needs to be reloaded after the HMI replacement triggers a CPU memory reset.

Downtime Control During System Migration

Minimizing downtime during a SIMATIC PC 670 HMI replacement requires careful pre-staging of the replacement unit before the maintenance window begins. The 6AV7721-1AA10-0AD0 should be pre-configured with the correct OS image, WinCC runtime version, and hardware drivers in a workshop environment, with the original WinCC project loaded and validated in offline mode before the unit is transported to the production floor.

During the physical swap, the original HMI’s front-panel wiring should be photographed and labeled before disconnection to ensure accurate reconnection on the replacement unit. The PLC program logic running on the connected S7-300 or S7-400 controller should not be interrupted during the HMI swap — the controller will continue executing its scan cycle independently, maintaining field control continuity while the HMI is offline. Analog output modules, digital I/O modules, and any safety-rated I/O connected to the controller will remain active throughout the HMI replacement process.

After physical installation, the WinCC runtime should be started in diagnostic mode first to verify all tag connections and communication links before switching to full operator mode. PROFIBUS or MPI communication diagnostics should be run from the STEP 7 hardware configuration tool to confirm that the replacement HMI is recognized on the network at the correct station address. Total planned downtime for a well-prepared 6AV7721-1AA10-0AD0 replacement is typically 2–4 hours, depending on cabinet access conditions and the complexity of the original wiring layout.

Retrofit Support FAQ

Q: Is the 6AV7721-1AA10-0AD0 a direct drop-in replacement for other SIMATIC PC 670 variants?
A: The 6AV7721-1AA10-0AD0 is designed for the SIMATIC PC 670 platform. Compatibility with specific sub-variants depends on the chassis generation, expansion card configuration, and OS image version. We recommend confirming the original unit’s order number and hardware revision before ordering to ensure a verified match.

Q: Can the original WinCC project be reused without modification?
A: In most cases, yes — provided the replacement unit runs the same WinCC version and OS image as the original. Tag connections, communication drivers, and screen layouts are stored in the WinCC project database and will function correctly on the replacement hardware. If the WinCC version differs, a project migration step may be required.

Q: What pre-shipment testing is performed on this unit?
A: Each 6AV7721-1AA10-0AD0 unit undergoes power-on functional testing, display verification, port integrity checks, and communication interface validation before shipment. Units are shipped with a support terms confirmed by quotation covering hardware defects identified under normal operating conditions.

Q: What is the typical lead time and stock availability?
A: We maintain multi-region stock of the 6AV7721-1AA10-0AD0 to support emergency replacement requirements. Standard orders are dispatched within 1–3 business days. For urgent requirements, contact our team directly to confirm current inventory levels and expedited shipping options.
