Siemens 6AV2123-2GA03-0AX0 Fail-Safe HMI for Industrial Control

Overview

Siemens 6AV2123-2GA03-0AX0 Fail-Safe HMI for Industrial Control Reliability

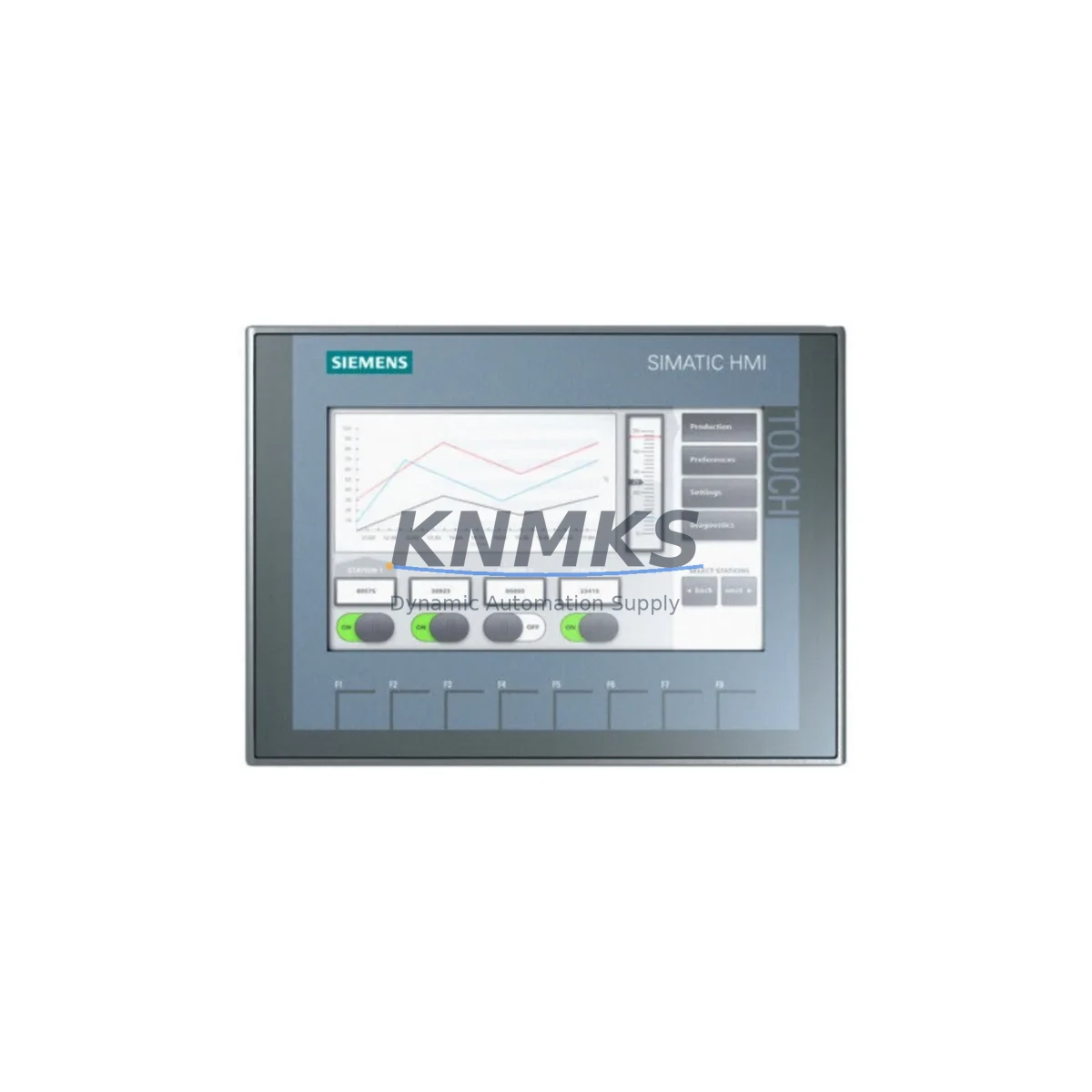

The Siemens 6AV2123-2GA03-0AX0 KTP700 Basic PN is a 7-inch PROFINET-enabled Human Machine Interface panel engineered for fail-safe, uninterrupted operation in demanding industrial environments. Designed to meet the rigorous requirements of continuous production lines, critical interlock systems, and high-load control cabinets, this HMI panel delivers consistent, reliable visualization and operator control even under conditions of high electromagnetic interference, dust ingress, humidity, elevated temperature, and mechanical vibration. For plant engineers and maintenance teams managing safety-critical processes, the 6AV2123-2GA03-0AX0 represents a proven, field-tested solution that minimizes the risk of unplanned downtime, operator error, and control loop interruption.

Built on Siemens’ SIMATIC HMI platform, the KTP700 Basic PN integrates seamlessly into PROFINET-based automation architectures, enabling real-time process visualization, alarm management, and operator input with minimal latency. Its resistive touch interface combined with function keys ensures reliable input even when operators are wearing protective gloves — a critical requirement in petrochemical, metallurgical, and mining environments where PPE compliance is mandatory. The panel’s compact 7-inch widescreen display provides clear readability across a wide viewing angle, reducing the risk of misread process values that could lead to unsafe manual interventions.

In high-EMI environments such as those found near variable frequency drives, large motor starters, or arc furnaces, signal integrity is paramount. The 6AV2123-2GA03-0AX0 is designed with robust EMI shielding and PROFINET communication stability to prevent signal drift, communication timeouts, and spurious alarm triggers that can cascade into process shutdowns. When paired with a Siemens SIMATIC S7-1200 or S7-1500 PLC controller, the HMI forms a tightly integrated control and visualization layer that supports safe state transitions and fail-safe logic execution. For power supply reliability, pairing this panel with a SITOP PSU100S 24V DC power supply unit ensures stable, filtered DC power delivery, protecting the HMI from voltage surges, brownouts, and transient spikes common in industrial switchgear environments.

Control cabinet thermal management is a frequently overlooked factor in HMI reliability. The 6AV2123-2GA03-0AX0 is rated for ambient operating temperatures up to 50°C, making it suitable for installation in cabinets where heat dissipation from drives, relays, and transformers elevates internal temperatures. For installations in particularly harsh enclosures, supplementing the cabinet with a Siemens SINAMICS or third-party cabinet cooling unit extends the operational life of all installed components, including this HMI panel. In wet or dusty environments — such as water treatment facilities, cement plants, or port logistics terminals — the panel’s IP65-rated front face provides effective protection against water jets and particulate ingress, ensuring the operator interface remains functional without requiring frequent cleaning or protective covers.

For safety interlock and emergency stop circuit monitoring, the 6AV2123-2GA03-0AX0 can display real-time status of safety relay outputs and safety PLC diagnostic data when integrated with Siemens SIRIUS safety relay modules or a SIMATIC ET 200SP distributed I/O station. This visibility into the safety layer allows operators to identify pre-fault conditions — such as a safety relay approaching its switching cycle limit or a guard door contact showing intermittent status — before they escalate into a safety-triggered shutdown. In continuous manufacturing processes where a single unplanned stop can result in significant material loss or equipment damage, this early warning capability is a direct contribution to operational safety and financial performance.

Communication redundancy is another dimension of reliability addressed by the PROFINET architecture supported by this HMI. In critical applications, the PROFINET Media Redundancy Protocol (MRP) can be configured to provide sub-200ms network recovery in the event of a cable fault or switch failure, ensuring the HMI maintains its connection to the control system without operator-visible interruption. This is particularly valuable in ship automation, offshore platform control, and large-scale chemical processing where network infrastructure spans long cable runs and multiple junction points.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable control cabinet is a system, not a collection of individual components. The 6AV2123-2GA03-0AX0 performs at its best when the surrounding cabinet infrastructure is equally robust. For stable 24V DC power delivery, the Siemens SITOP PSU100S power supply provides regulated, surge-protected output that shields the HMI and connected I/O from voltage transients generated by contactor switching and motor starts. On the communication side, a managed PROFINET switch — such as the Siemens SCALANCE X200 series — provides the network backbone for deterministic data exchange between the HMI, the SIMATIC S7-1500 PLC, and distributed I/O nodes such as the ET 200SP remote I/O station.

For safety circuit integrity, Siemens SIRIUS 3SK safety relay modules monitor emergency stop loops, light curtain outputs, and guard door interlocks, feeding status data to the PLC and ultimately to the HMI display for operator awareness. Surge protection on incoming signal cables — using Phoenix Contact or Siemens DEHN surge protection devices — prevents transient overvoltages from damaging the HMI’s communication ports or internal electronics. In cabinets with high heat loads from variable frequency drives or servo amplifiers, a cabinet thermostat and fan unit maintains internal temperatures within the HMI’s rated operating range, preventing thermal-induced display degradation or processor throttling that could cause slow screen response or communication delays.

Critical Industrial Safety Applications

The Siemens 6AV2123-2GA03-0AX0 is deployed across a broad spectrum of safety-critical industrial sectors. In petrochemical and refinery environments, it serves as the primary operator interface for pump station control, valve position monitoring, and emergency shutdown system status display, where clear, unambiguous visualization of process states is a regulatory and safety requirement. In electric power generation and substation automation, the KTP700 Basic PN provides real-time display of protection relay status, breaker positions, and alarm histories, enabling operators to respond rapidly to fault conditions without navigating complex SCADA screens.

In mining and mineral processing, where dust, vibration, and humidity are constant challenges, the IP65 front face and robust PROFINET communication make this HMI a dependable choice for conveyor control stations, crusher monitoring panels, and ventilation system interfaces. Water and wastewater treatment plants rely on the 6AV2123-2GA03-0AX0 for dosing pump control, filtration stage monitoring, and alarm acknowledgment in environments where chemical vapors and high humidity are present. In metallurgical and steel production facilities, the panel withstands the radiated heat and electromagnetic noise generated by induction furnaces and rolling mill drives, maintaining stable communication with the plant control system throughout continuous casting and rolling cycles. Port and maritime logistics operations deploy this HMI in crane control cabinets and ship-to-shore equipment, where salt air, vibration, and variable power quality demand a panel with proven environmental resilience.

Safety and Quality FAQ

Q: What support terms coverage is provided for the 6AV2123-2GA03-0AX0?
A: Every unit supplied by KNMKS carries a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. All units undergo pre-shipment functional testing to verify display operation, PROFINET communication, touch input response, and power supply integrity before dispatch.

Q: Is the 6AV2123-2GA03-0AX0 compatible with existing Siemens S7 PLC systems?
A: Yes. The KTP700 Basic PN is fully compatible with SIMATIC S7-1200, S7-1500, S7-300, and S7-400 controllers via PROFINET. Configuration is performed using Siemens TIA Portal, and existing WinCC Basic projects can be adapted for use with this panel with minimal engineering effort.

Q: Can this HMI be used in safety interlock and emergency stop monitoring applications?
A: The 6AV2123-2GA03-0AX0 is a standard HMI panel and is not itself a safety-rated device (SIL/PLe). However, it is widely used to display safety system status — including safety relay states, emergency stop circuit conditions, and safety PLC diagnostic outputs — providing operators with real-time visibility into the safety layer of the control system.

Q: What is the long-term supply availability for this model?
A: KNMKS maintains in-stock inventory of the 6AV2123-2GA03-0AX0 to support both immediate replacement requirements and planned maintenance schedules. Long-term supply agreements covering 12 to 36 months are available for customers with multi-site or high-volume spare parts programs, ensuring continuity of supply for critical installed base equipment.
