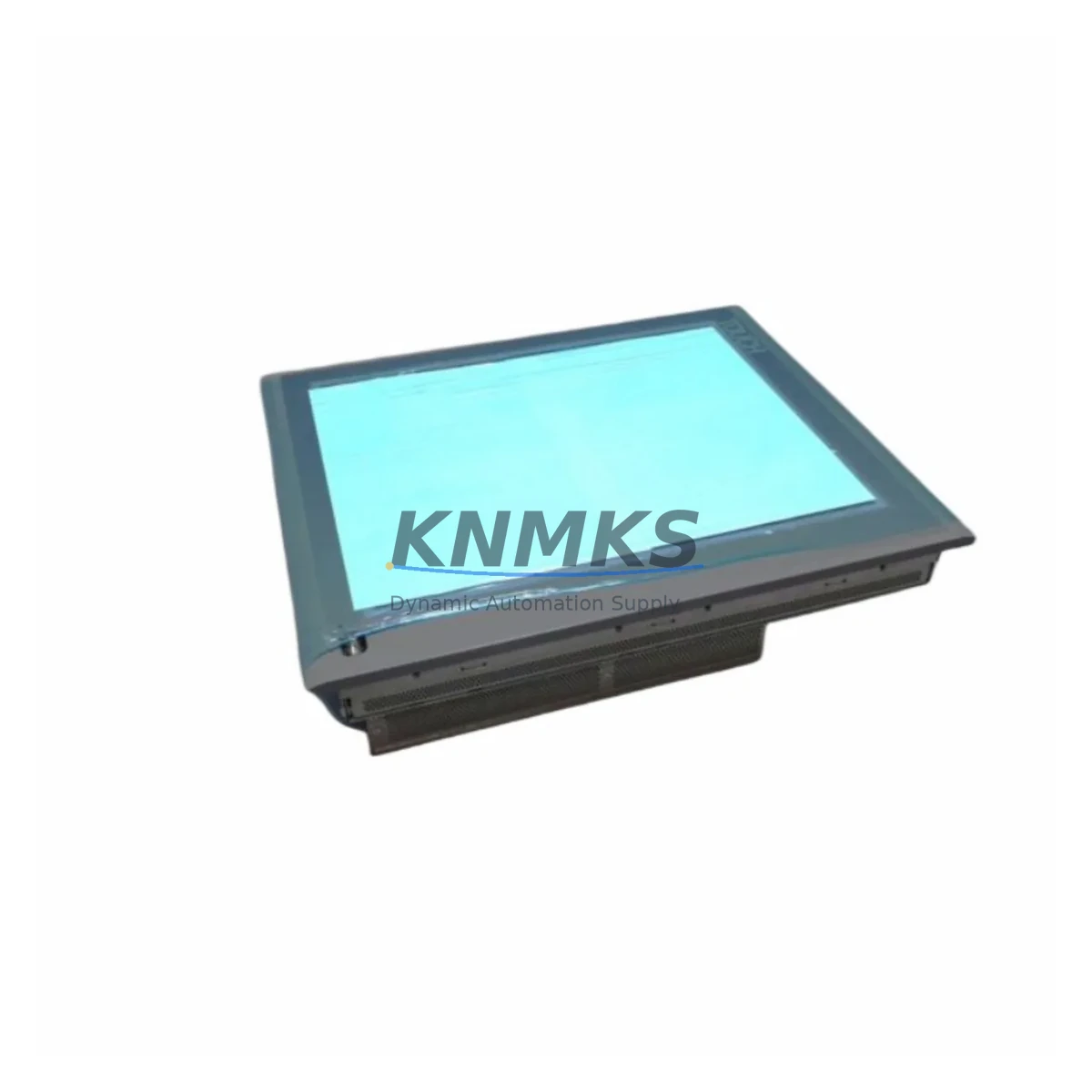

Siemens 6AV7422-2FD03-0AS0 Fail-Safe HMI Panel PC

Overview

Siemens 6AV7422-2FD03-0AS0 Fail-Safe HMI Panel PC: Fault-Protected Reliability for Critical Industrial Control

The Siemens 6AV7422-2FD03-0AS0 is a ruggedized SIMATIC Panel PC 677B featuring a 15-inch touch display, engineered for continuous operation in demanding industrial environments. Designed to serve as the human-machine interface backbone in safety-critical control architectures, this unit delivers fail-safe visualization and operator control across petrochemical, power generation, mining, water treatment, metallurgy, port logistics, marine, and continuous manufacturing facilities.

In high-stakes industrial sites where control interruption carries serious operational and safety consequences, the 6AV7422-2FD03-0AS0 provides the processing stability and environmental resilience required to maintain uninterrupted HMI function. Its ruggedized enclosure and industrial-grade components are selected to withstand elevated ambient temperatures, mechanical vibration, electromagnetic interference, and airborne contaminants — conditions that routinely degrade standard commercial hardware. For maintenance engineers managing aging control cabinets or executing planned replacements of end-of-life HMI units, this panel PC offers a direct, tested, and immediately deployable spare.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered industrial control cabinet, the HMI panel PC does not operate in isolation. The 6AV7422-2FD03-0AS0 is typically deployed alongside a coordinated set of protection, control, power, and communication components that together define the cabinet’s fault tolerance and operational continuity.

On the controller side, a Siemens SIMATIC S7-300 or S7-400 CPU — such as the CPU 315-2 DP or CPU 414-3 PN/DP — provides the underlying process logic that the Panel PC 677B visualizes and supervises. Signal integrity between the HMI and the PLC depends on a stable PROFIBUS DP or PROFINET communication backbone; any degradation in this link — caused by cable faults, connector corrosion, or network congestion — can produce display freezes, operator alarm loss, or false interlock states. Ensuring that the communication infrastructure is maintained to the same standard as the HMI itself is a prerequisite for reliable operation.

Power supply stability is equally critical. The Panel PC 677B draws regulated 24 VDC power, and voltage fluctuations or surge events at the cabinet power rail can cause unexpected reboots or data corruption. Pairing the HMI with a Siemens SITOP PSU100S or equivalent industrial power supply module — rated for the cabinet’s full load with appropriate derating — provides the clean, regulated supply the unit requires. For sites with unstable grid input, an upstream surge protection device (SPD) on the incoming AC feed and a UPS module on the 24 VDC rail further reduce the risk of power-related HMI faults.

In cabinets where thermal management is a concern — particularly in high-ambient or poorly ventilated enclosures — the Panel PC’s internal thermal protection may trigger throttling or shutdown before the process operator is aware of the condition. Integrating a cabinet thermostat and fan unit, such as those from the Siemens or Rittal range, maintains the internal cabinet temperature within the HMI’s rated operating window and prevents heat-induced failures during peak production periods.

For safety interlock circuits operating in parallel with the HMI visualization layer, Siemens SIRIUS safety relays (3SK series) or a SIMATIC S7-300F / ET 200S FC fail-safe I/O module provide the hardware-level safety function independent of the HMI software state. This separation ensures that a Panel PC fault — software hang, OS crash, or display failure — does not compromise the integrity of the safety shutdown or emergency stop circuit.

Critical Industrial Safety Applications

Petrochemical and Refinery Control Rooms: In continuous process plants, the 6AV7422-2FD03-0AS0 serves as the local operator interface for distillation column control, compressor management, and emergency shutdown visualization. Its IP65 front panel rating provides protection against process vapors and cleaning agents, while its industrial EMC compliance ensures stable display and data logging in environments with large variable-frequency drives and high-current switching equipment.

Power Generation and Substation Automation: In power plant auxiliary systems and substation control buildings, HMI panel PCs are required to maintain continuous availability across extended operating cycles. The Panel PC 677B’s ruggedized construction and compatibility with SIMATIC WinCC SCADA projects makes it a reliable replacement for aging HMI units in turbine control, transformer monitoring, and protection relay supervision applications.

Mining and Mineral Processing: Underground and surface mining operations subject control equipment to severe vibration, dust ingress, and wide temperature swings. The 6AV7422-2FD03-0AS0’s mechanical robustness and sealed front panel allow it to function reliably in conveyor control stations, crusher management panels, and ventilation control cabinets where standard commercial hardware would fail prematurely.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities require HMI systems that can operate continuously in high-humidity, chemically aggressive environments. The Panel PC 677B provides the visualization and operator control interface for pump station management, dosing control, and SCADA integration in these demanding conditions.

Metallurgy and Heavy Industry: In steel mills, aluminum smelters, and foundries, control cabinet HMIs are exposed to radiated heat, electromagnetic noise from large induction furnaces, and mechanical vibration from rolling mills and presses. The 6AV7422-2FD03-0AS0’s industrial-grade design addresses these challenges, supporting reliable operator interaction with process control systems in environments where unplanned HMI downtime directly impacts production throughput and safety.

Port Logistics and Marine Applications: Crane control systems, ship engine room automation, and port terminal management systems require HMI hardware rated for salt-air exposure, vibration, and wide ambient temperature ranges. The Panel PC 677B’s ruggedized enclosure and proven compatibility with Siemens automation platforms make it a suitable replacement component for these applications.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the Siemens 6AV7422-2FD03-0AS0?
The support terms confirmed by quotation cover hardware defects and functional failures arising under normal industrial operating conditions from the date of shipment. Units that fail to perform their specified functions within the confirmed support period are eligible for repair or replacement. The support terms applies to the complete unit as shipped and tested.

Q2: What pre-shipment testing is performed before dispatch?
Each 6AV7422-2FD03-0AS0 unit undergoes a full functional test prior to shipment. This includes power-on verification, display and touch interface testing, communication port checks, and confirmation of operating system boot integrity. Test results are retained and available upon request. This process is designed to reduce mean time to repair (MTTR) at the receiving site by ensuring the unit arrives in verified working condition.

Q3: Is the 6AV7422-2FD03-0AS0 compatible with existing SIMATIC WinCC and STEP 7 projects?
Yes. The Panel PC 677B platform is designed for compatibility with SIMATIC WinCC visualization projects and STEP 7 engineering environments. For TIA Portal-based projects, compatibility depends on the specific WinCC Runtime version installed. It is recommended to confirm the OS and software configuration against your project requirements before installation. Compatibility guidance is available from our technical team prior to purchase.

Q4: Can long-term supply of the 6AV7422-2FD03-0AS0 be arranged for ongoing maintenance programs?
Yes. For facilities managing multi-year maintenance programs or operating fleets of Siemens SIMATIC Panel PC 677B units, long-term supply arrangements can be discussed. We maintain stock of key spare HMI units and can coordinate scheduled supply to support planned maintenance cycles, reducing the risk of extended downtime caused by spare part unavailability for this end-of-life or phase-out product line.
