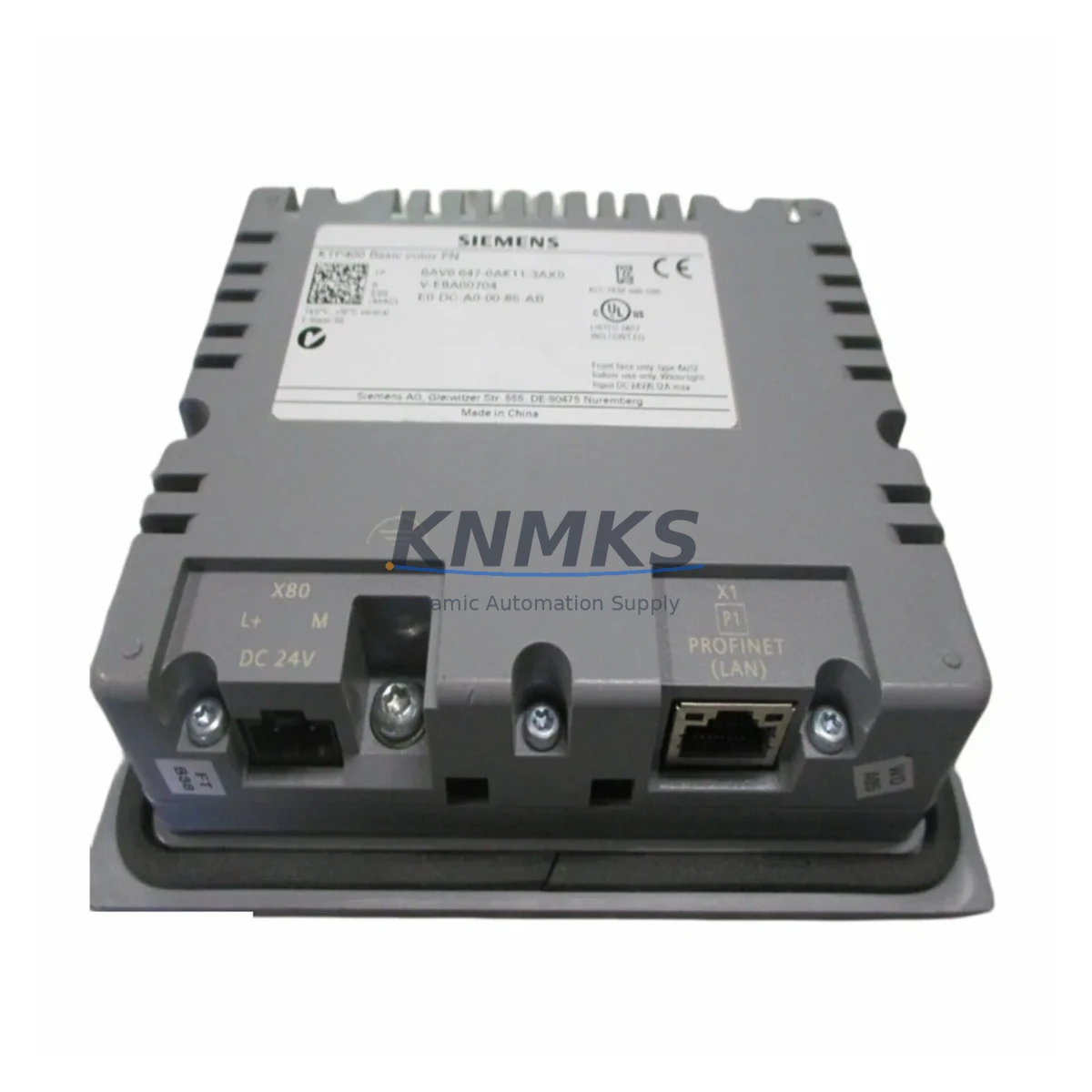

Siemens 6AV6647-0AK11-3AX0 Fail-Safe HMI for Industrial Control

Overview

Siemens 6AV6647-0AK11-3AX0 Fail-Safe HMI for Industrial Control Reliability

The Siemens 6AV6647-0AK11-3AX0 KTP400 Basic PN is a 4-inch PROFINET-based Human Machine Interface panel engineered for continuous, fail-safe operation in demanding industrial environments. Designed to integrate seamlessly into Siemens SIMATIC S7-300, S7-400, and S7-1200/1500 control architectures, this HMI panel delivers stable, real-time process visualization and operator control even under conditions of high electromagnetic interference, mechanical vibration, airborne dust, and elevated ambient temperatures. Its IP65-rated front panel provides robust ingress protection against particulate contamination and water jets, making it a dependable choice for control cabinets installed in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical lines, and port logistics systems.

In critical interlock and safety loop applications, the 6AV6647-0AK11-3AX0 plays a pivotal role in reducing unplanned downtime. Its PROFINET communication interface ensures deterministic, low-latency data exchange with the PLC layer, minimizing the risk of signal drift, communication anomalies, and operator response delays during process upsets. The panel’s EMC-compliant design suppresses conducted and radiated interference from variable frequency drives, high-current contactors, and power bus transients — common sources of control disruption in heavy-load switchgear cabinets. When paired with a Siemens SITOP PSU100S 24 V DC power supply module, the system benefits from regulated, surge-protected power delivery that further stabilizes HMI operation during grid fluctuations and inductive load switching events.

For control cabinet thermal management, the 6AV6647-0AK11-3AX0 operates reliably across an ambient temperature range of 0 °C to +50 °C, with storage tolerance extending to -20 °C / +60 °C. In high-temperature enclosures where cabinet cooling is marginal, this thermal headroom reduces the risk of display failure or communication dropout caused by overheating. Integrators frequently deploy this panel alongside Siemens SIMATIC ET 200SP distributed I/O modules to extend the control network to remote field stations, maintaining consistent operator visibility across geographically distributed process segments without introducing additional communication latency or reliability risk.

The panel’s 4-inch TFT display with 480 × 272 pixel resolution and resistive touch input provides clear, glove-friendly operator interaction in environments where personnel wear protective equipment. Configuration is performed via Siemens WinCC Basic (TIA Portal), enabling standardized screen templates, alarm management, and trend logging that support predictive maintenance workflows. In continuous manufacturing lines — where a single HMI failure can cascade into a full production stoppage — the ability to rapidly replace a faulty unit with a pre-configured 6AV6647-0AK11-3AX0 spare significantly reduces mean time to repair (MTTR). Maintaining a stocked spare of this panel in the site’s critical spare parts inventory is a recognized best practice in industrial reliability engineering.

In safety-critical applications such as emergency shutdown (ESD) panel interfaces, burner management system (BMS) operator stations, and compressor control room displays, the 6AV6647-0AK11-3AX0 provides the operator interface layer that bridges the safety PLC — such as a Siemens SIMATIC S7-300F or S7-1500F fail-safe CPU — and the field operator. Its deterministic PROFINET communication ensures that safety status, alarm acknowledgment, and interlock override commands are transmitted and confirmed within the required response time windows. When integrated with Siemens SIMATIC S7-1200 SM 1223 digital I/O expansion modules and Siemens SCALANCE X industrial Ethernet switches, the HMI forms part of a fully redundant, EMC-hardened control network capable of sustaining continuous operation through electrical storms, motor start surges, and arc flash events on adjacent switchgear.

Every unit supplied is subject to pre-shipment functional testing covering display integrity, touch calibration, PROFINET communication handshake, and power-on self-test routines. This ensures that replacement units arrive site-ready, eliminating the risk of commissioning delays caused by latent manufacturing defects. Long-term supply continuity is maintained through established procurement channels, supporting multi-year maintenance contracts and planned turnaround schedules for facilities that cannot tolerate extended lead times on critical control components.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable HMI operation in industrial control cabinets depends on a coordinated protection strategy across power, communication, and environmental layers. The 6AV6647-0AK11-3AX0 is most effective when deployed as part of a hardened cabinet architecture. A Siemens SITOP PSU100S 24 V DC power supply provides regulated, short-circuit-protected power to the HMI and associated I/O, absorbing upstream voltage transients before they reach sensitive electronics. Siemens SIMATIC ET 200SP I/O modules distributed along the PROFINET segment extend the control reach to remote field devices while maintaining network determinism. For surge and transient protection on the 24 V DC bus, Phoenix Contact TRABTECH surge protection devices are commonly installed at the cabinet entry point, clamping inductive spikes from solenoid valves and relay coils that would otherwise propagate to the HMI power rail.

Cabinet thermal management is addressed through Rittal TopTherm fan-and-filter units or Peltier cooling modules, maintaining internal temperatures within the HMI’s operating envelope even in high-ambient-temperature outdoor enclosures. On the network layer, a Siemens SCALANCE X005 or X208 industrial Ethernet switch provides managed PROFINET connectivity with port-level diagnostics, enabling rapid fault isolation when communication anomalies occur. For applications requiring safety-rated communication, integration with a Siemens SIMATIC S7-1500F fail-safe CPU over PROFIsafe ensures that the HMI operator interface remains synchronized with the safety PLC state, supporting compliant ESD and BMS interlock visualization without additional gateway hardware.

Critical Industrial Safety Applications

In petrochemical and refinery environments, the 6AV6647-0AK11-3AX0 serves as the operator interface for compressor anti-surge control panels, fired heater burner management systems, and emergency depressurization interlock stations. Its IP65 rating and EMC compliance allow installation in Zone 2 classified areas when housed in appropriately rated enclosures, providing operators with real-time process status and alarm acknowledgment capability at the field level without requiring a return to the central control room.

Power generation facilities — including gas turbine, steam turbine, and combined-cycle plants — deploy this HMI panel on turbine control panels, generator excitation control cabinets, and auxiliary systems boards. The panel’s PROFINET interface integrates directly with the plant DCS or SCADA gateway, enabling seamless data exchange with historian systems for post-event analysis and regulatory compliance reporting. In mining and mineral processing operations, where control cabinets are exposed to heavy vibration from crushing and grinding equipment, the panel’s IEC 60068-2-6 vibration compliance ensures sustained display and communication integrity through continuous mechanical stress cycles.

Water treatment and wastewater facilities rely on the 6AV6647-0AK11-3AX0 for pump station control panels, chemical dosing system interfaces, and SCADA remote terminal unit (RTU) operator stations. Its wide supply voltage tolerance (20.4–28.8 V DC) accommodates the voltage fluctuations common in facilities served by aging electrical infrastructure or solar/battery hybrid power systems. In port and maritime logistics applications, the panel is installed on ship-to-shore crane control desks and automated stacking crane operator stations, where its glove-compatible resistive touch interface and high-contrast TFT display support reliable operation in outdoor, high-ambient-light conditions.

Safety and Quality FAQ

Q: What does the support terms confirmed by quotation cover for the 6AV6647-0AK11-3AX0?
A: The support terms confirmed by quotation cover manufacturing defects, component failures, and functional non-conformance identified under normal operating conditions consistent with the published specifications. Units that fail within the confirmed support period are replaced or repaired at no additional cost, with priority processing to minimize site downtime.

Q: What pre-shipment tests are performed before dispatch?
A: Each unit undergoes a structured pre-shipment test protocol covering display pixel integrity, resistive touch calibration across the full active area, PROFINET communication handshake with a reference PLC, 24 V DC power-on self-test, and visual inspection for physical damage. Test records are retained and available upon request for quality audit purposes.

Q: Is the 6AV6647-0AK11-3AX0 compatible with TIA Portal V15 and later?
A: Yes. The panel is fully supported in WinCC Basic within TIA Portal V13 SP1 and all subsequent versions including V15, V16, V17, and V18. Existing project configurations can be migrated between TIA Portal versions using the standard project upgrade wizard without loss of screen, tag, or alarm configuration data.

Q: Can long-term supply be guaranteed for multi-year maintenance contracts?
A: Yes. Stocked inventory is maintained specifically to support multi-year spare parts agreements and planned turnaround schedules. Customers with critical spare parts programs can arrange reserved stock allocations and scheduled delivery windows to ensure availability aligns with planned maintenance outages and regulatory inspection cycles.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6AV6647-0AK11-3AX0
SIMATIC Series

Product Family

HMI & Displays

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Display range

Operator panels and touch screens

Common needs

Screen size, interface and version matching

Project support

Retrofit, spare unit and panel replacement

Inquiry Support

• Panel size and interface confirmation
• Replacement unit inquiry for discontinued HMIs
• Protective packaging for display shipment

What to Send Us

• Brand and exact model number: Siemens 6AV6647-0AK11-3AX0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
