Siemens 6AV6647-0AA11-3AX0 Maintenance-Proven Spare Part for Factory Uptime

Overview

Siemens 6AV6647-0AA11-3AX0 Maintenance-Proven Spare Part for Factory Uptime

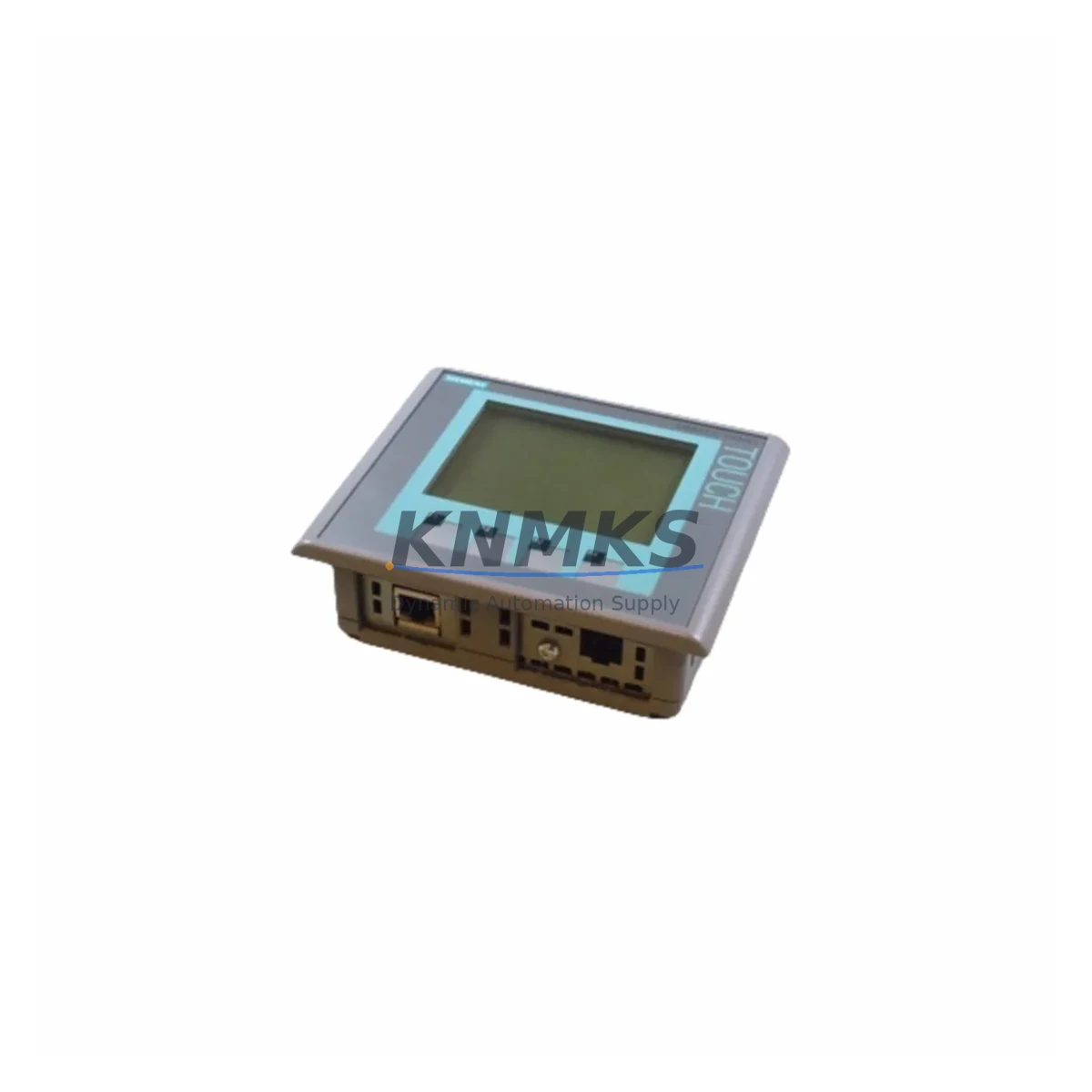

The Siemens 6AV6647-0AA11-3AX0 is a SIMATIC HMI KTP400 Basic PN panel — a 4-inch key/touch operator panel with PROFINET interface, widely deployed across discrete manufacturing, process automation, and utility control systems. As a maintenance-proven spare part, this unit supports rapid panel replacement during scheduled outages, emergency fault recovery, and long-term system extension for aging SIMATIC S7-300, S7-400, S7-1200, and S7-1500 PLC architectures. Every unit is pre-tested prior to dispatch and backed by a support terms confirmed by quotation, giving maintenance engineers and procurement teams a reliable, low-risk sourcing option for critical HMI positions.

For facilities running legacy Siemens automation infrastructure, the 6AV6647-0AA11-3AX0 represents a cost-effective alternative to full panel upgrades. Its compact form factor, integrated PROFINET connectivity, and compatibility with TIA Portal and WinCC flexible engineering environments make it a direct drop-in replacement for failed or end-of-life KTP400 units without requiring control cabinet redesign or software migration.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 6AV6647-0AA11-3AX0 in the field, a thorough cabinet inspection is essential to prevent repeat failures and ensure system stability. Maintenance engineers should begin by verifying the 24 V DC panel power supply — a degraded or undersized power supply unit (PSU) is a common root cause of HMI panel failures and must be tested before the new unit is commissioned. Check the PROFINET cable and RJ45 connector integrity; damaged shielding or loose terminations on the network cable can cause intermittent communication faults that mimic panel hardware failure.

Inspect the associated SIMATIC S7-300 or S7-1500 CPU module for active fault codes and verify that the PROFINET device name and IP address assignment in TIA Portal matches the replacement panel configuration. If the control cabinet also houses a CP 343-1 or CP 1543-1 communications processor, confirm that its firmware and network parameters are compatible with the new HMI unit. For systems using distributed I/O via ET 200SP or ET 200M, validate that the I/O configuration in the hardware catalog has not drifted from the physical installation.

During annual maintenance cycles, it is good practice to inspect the 24 V DC fuse protection on the HMI supply rail — typically a 2 A or 4 A miniature circuit breaker or fuse holder — and replace it if showing signs of thermal stress. Terminal blocks on the power and signal wiring should be re-torqued to manufacturer specification. If the cabinet includes a SITOP power supply module, verify its output voltage under load before reconnecting the replacement panel. For facilities with multiple KTP400 panels on the same PROFINET segment, also check the IE switch or managed switch port configuration to ensure no port-level errors are present that could affect the new panel’s network initialization.

Where the 6AV6647-0AA11-3AX0 is used in conjunction with a SIMATIC S7-1200 CPU 1214C or CPU 1215C, confirm that the HMI connection in TIA Portal is configured for the correct panel type and that the project download to the replacement panel is performed with the correct device configuration. Keeping a pre-loaded project backup on a USB drive in the cabinet significantly reduces recovery time during emergency replacements.

Site Replacement Workflow

The 6AV6647-0AA11-3AX0 is a direct mechanical and electrical replacement for any failed KTP400 Basic PN unit. The panel uses a standard cutout dimension (136 × 104 mm) and front-panel mounting clips, allowing swap-out without cabinet modification. Follow this sequence to minimize downtime:

Step 1 — Isolate and de-energize: Switch off the 24 V DC supply to the HMI panel at the fuse or MCB. Do not disconnect the PROFINET cable until power is removed.

Step 2 — Remove the failed unit: Release the mounting clips from the rear, disconnect the power connector and PROFINET cable, and remove the panel from the cutout.

Step 3 — Inspect the cabinet: Before installing the replacement, check the power supply output voltage, inspect the PROFINET cable for damage, and verify terminal block integrity on the 24 V DC supply rail.

Step 4 — Install the replacement panel: Insert the 6AV6647-0AA11-3AX0 into the cutout, reconnect the PROFINET cable and 24 V DC power connector, and secure the mounting clips.

Step 5 — Commission and download: Power on the panel, assign the PROFINET device name via TIA Portal or the panel’s integrated web server, and download the HMI project. Verify all screen navigation, alarm displays, and I/O tag values against the process baseline before returning the system to production.

This workflow is compatible with both hot-standby and single-panel configurations and has been validated for use with S7-300, S7-1200, and S7-1500 controller families. Typical on-site replacement time is under 45 minutes for a prepared maintenance team with a pre-loaded project backup.

Spare Parts Support FAQ

Q1: Is the 6AV6647-0AA11-3AX0 compatible with both TIA Portal and WinCC flexible projects?
Yes. The KTP400 Basic PN supports engineering via TIA Portal V13 SP1 and later, as well as WinCC flexible 2008 SP3. If your existing project was created in WinCC flexible, it can be migrated to TIA Portal using the integrated migration wizard, or the panel can be loaded directly with the WinCC flexible runtime project without migration.

Q2: What is included in the support terms confirmed by quotation and pre-shipment testing?
Every 6AV6647-0AA11-3AX0 unit is powered on and functionally tested prior to dispatch, covering display operation, PROFINET port communication, USB interface, and key/touch input response. The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of dispatch. Support requests are supported with direct technical assistance and priority replacement dispatch.

Q3: How should procurement teams manage KTP400 spare inventory for multi-site operations?
For facilities with three or more KTP400 panels in service, a minimum of one cold-standby spare per site is recommended. For critical production lines or 24/7 operations, a pre-configured hot-standby spare with a loaded project backup reduces recovery time to under one hour. Multi-site procurement agreements with long-term supply commitments are available to ensure consistent stock availability and price stability across annual maintenance cycles.

Q4: Can this panel replace older KTP400 variants or other SIMATIC Basic Panel models?
The 6AV6647-0AA11-3AX0 (KTP400 Basic PN) is the standard PROFINET variant of the KTP400 family. It is not a direct replacement for KTP400 Basic DP (PROFIBUS) variants. For cross-variant compatibility or replacement of older OP/TP series panels, a project migration and PROFINET infrastructure check is required. Contact our technical team for compatibility confirmation before ordering if your installation uses a non-PROFINET communication architecture.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6AV6647-0AA11-3AX0
SIMATIC Series

Product Family

HMI & Displays

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Display range

Operator panels and touch screens

Common needs

Screen size, interface and version matching

Project support

Retrofit, spare unit and panel replacement

Inquiry Support

• Panel size and interface confirmation
• Replacement unit inquiry for discontinued HMIs
• Protective packaging for display shipment

What to Send Us

• Brand and exact model number: Siemens 6AV6647-0AA11-3AX0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
