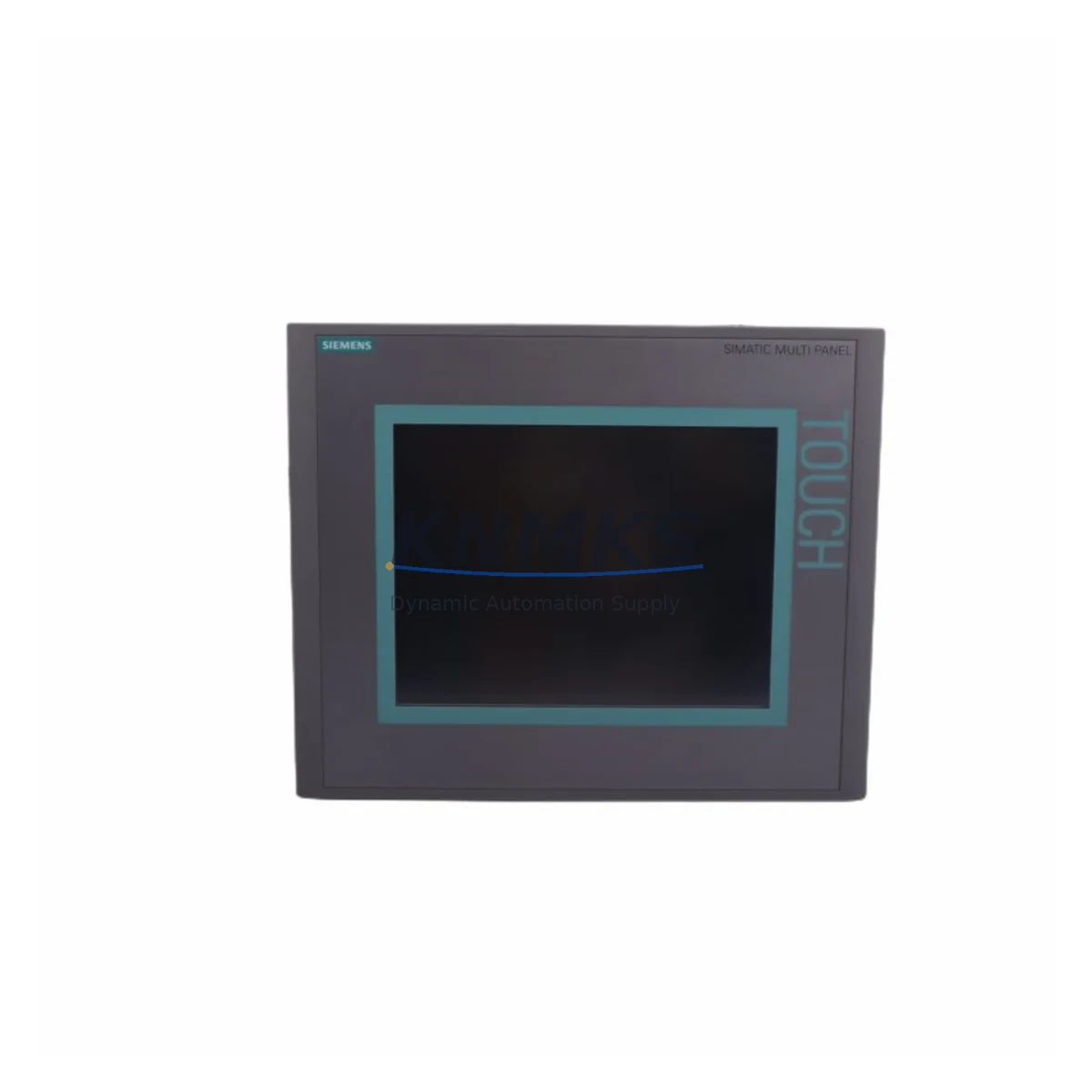

Siemens 6AV6643-0CD01-1AX1 Fail-Safe HMI Panel

Overview

Siemens 6AV6643-0CD01-1AX1 Fail-Safe HMI Panel: Fault Protection and Critical Industrial Field Reliability

The Siemens 6AV6643-0CD01-1AX1, part of the SIMATIC OP 177B series, is a ruggedized operator panel engineered for fail-safe human-machine interface operations in demanding industrial environments. Designed to sustain continuous production processes, this HMI panel delivers stable visualization and control even under conditions of high electromagnetic interference, heavy vibration, elevated ambient temperatures, and exposure to dust and moisture. Its robust construction and proven PROFIBUS/MPI communication architecture make it a trusted component in safety-critical control cabinets across process industries worldwide.

In facilities where unplanned downtime carries severe operational and safety consequences — such as petrochemical plants, power generation stations, and continuous manufacturing lines — the 6AV6643-0CD01-1AX1 provides the operator interface reliability that keeps control loops intact. Its hardened display and sealed enclosure resist particulate ingress and condensation, reducing the risk of signal drift and display failure that can compromise operator situational awareness during critical interlocking sequences. The panel’s stable PROFIBUS DP and MPI connectivity ensures that communication anomalies, bus interruptions, and surge events do not cascade into control system faults or unintended actuator responses.

Within a well-configured control cabinet, the 6AV6643-0CD01-1AX1 operates alongside complementary Siemens SIMATIC components to form a cohesive safety and control architecture. The SIMATIC S7-300 CPU series — including modules such as the CPU 315-2 DP — provides the programmable logic backbone that the OP 177B interfaces with over PROFIBUS, enabling real-time process visualization and alarm management. Power supply modules such as the Siemens PS 307 5A ensure regulated, surge-protected DC power delivery to the HMI and associated I/O racks, protecting against voltage fluctuations that could cause panel resets or data loss. For applications requiring distributed I/O in hazardous or remote field locations, the ET 200S and ET 200M remote I/O stations integrate seamlessly into the same PROFIBUS segment, extending the control reach of the OP 177B-based system without introducing additional communication latency. Where safety integrity is paramount, the SIMATIC S7-300F fail-safe CPU and F-modules enforce SIL-rated interlock logic that the operator panel monitors and acknowledges, maintaining a closed-loop safety chain from field sensor to operator display. Additionally, Siemens SITOP power supply units provide an extra layer of power conditioning, buffering short-duration supply interruptions that would otherwise disrupt HMI operation during grid instability events common in heavy industrial facilities.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the 6AV6643-0CD01-1AX1 as the primary operator interface within a SIMATIC-based control cabinet requires a layered protection strategy to ensure uninterrupted HMI availability. The panel’s 24 V DC supply should be sourced from a dedicated Siemens SITOP PSU100S or equivalent regulated power supply, which provides overvoltage clamping and short-circuit protection to prevent supply-side faults from reaching the HMI logic board. Upstream, a Siemens SIMATIC S7-300 CPU with integrated PROFIBUS DP master manages the communication bus, and proper bus termination resistors must be installed at both ends of the PROFIBUS segment to eliminate signal reflections that cause intermittent communication errors — a common root cause of spurious alarm events on operator panels.

For cabinets operating in environments with significant conducted and radiated EMI — such as those adjacent to variable frequency drives, large motor starters, or high-current bus bars — shielded PROFIBUS cables (e.g., Siemens 6XV1830-0EH10) with properly grounded shield clamps are essential to maintain signal integrity. The ET 200S distributed I/O modules, when used in the same control network, should be mounted with adequate separation from high-voltage components and equipped with surge protection on analog input channels to prevent signal drift caused by ground potential differences. Where the control system includes safety-rated interlocks, the SIMATIC S7-300F fail-safe CPU enforces the safety program independently of the standard control logic, and the OP 177B displays safety status and acknowledgment prompts to operators — making the HMI panel a functional element of the safety instrumented system’s human interface layer. Cabinet thermal management, including proper ventilation and the use of Siemens cabinet cooling units where ambient temperatures exceed 35 °C, protects both the HMI panel and associated PLC modules from thermal-induced failures that accelerate component aging and increase the risk of unplanned shutdowns.

Critical Industrial Safety Applications

The Siemens 6AV6643-0CD01-1AX1 is deployed across a broad spectrum of safety-critical industrial applications where operator interface reliability directly affects process safety and production continuity.

In petrochemical and refinery facilities, the OP 177B serves as the local operator panel for emergency shutdown (ESD) system visualization, displaying valve positions, pressure interlocks, and alarm states in real time. Its IP65-rated front panel withstands the corrosive atmospheres and hydrocarbon vapors present in these environments, while its PROFIBUS connectivity maintains communication with the safety PLC even during partial bus faults.

In power generation and substation control, the panel provides operators with direct access to generator excitation controls, transformer protection relay status, and switchgear interlock confirmations. The ability to operate reliably at elevated ambient temperatures and under strong electromagnetic fields from high-voltage equipment makes it well-suited for switchgear room installations.

In mining and mineral processing, where conveyor systems, crushers, and flotation circuits operate continuously, the 6AV6643-0CD01-1AX1 provides the local HMI for motor control centers and process interlocks. Its vibration tolerance and sealed construction protect it from the dust and mechanical shock inherent in these environments.

In water and wastewater treatment plants, the panel interfaces with PROFIBUS-connected pump controllers, flow meters, and dosing systems, enabling operators to monitor and adjust treatment processes without requiring remote SCADA access — a critical capability during network outages or cybersecurity isolation events.

In metallurgical and steel production facilities, the OP 177B withstands the high radiated heat and electromagnetic noise generated by induction furnaces and rolling mill drives, maintaining stable display and communication performance where lesser HMI panels would experience screen failures or bus dropouts.

Safety and Quality FAQ

Q1: Does the 6AV6643-0CD01-1AX1 come with a support terms confirmed by quotation?
Yes. Every unit is covered by a support terms confirmed by quotation from the date of shipment. All panels undergo pre-shipment functional testing — including display verification, communication port checks, and power supply validation — before dispatch to ensure field-ready condition upon arrival.

Q2: Is this HMI panel compatible with existing SIMATIC S7-300 and S7-400 installations?
Yes. The 6AV6643-0CD01-1AX1 communicates via PROFIBUS DP and MPI, making it directly compatible with SIMATIC S7-300 and S7-400 CPUs. Configuration is performed using WinCC flexible 2008 or STEP 7, and existing HMI projects can typically be migrated with minimal modification, reducing replacement downtime.

Q3: Can this panel be used in safety instrumented system (SIS) applications?
The OP 177B functions as the operator interface layer in SIS-adjacent architectures, displaying safety status and enabling operator acknowledgment of safety alarms. It is not itself a SIL-rated safety device, but it integrates with SIMATIC S7-300F fail-safe CPUs and F-modules that enforce SIL 1–3 safety logic, forming a complete safety HMI solution.

Q4: What is the long-term supply availability for this part?
We maintain in-stock inventory of the 6AV6643-0CD01-1AX1 to support emergency replacement and planned maintenance programs. For facilities managing legacy SIMATIC installations, we recommend establishing a consignment stock arrangement to eliminate lead-time risk during critical production periods. Contact our team for volume pricing and supply continuity agreements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6AV6643-0CD01-1AX1
SIMATIC Series

Product Family

HMI & Displays

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Display range

Operator panels and touch screens

Common needs

Screen size, interface and version matching

Project support

Retrofit, spare unit and panel replacement

Inquiry Support

• Panel size and interface confirmation
• Replacement unit inquiry for discontinued HMIs
• Protective packaging for display shipment

What to Send Us

• Brand and exact model number: Siemens 6AV6643-0CD01-1AX1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
