Siemens 6AV6643-0AA01-1AX0 Maintenance-Proven Spare Part for Factory Uptime

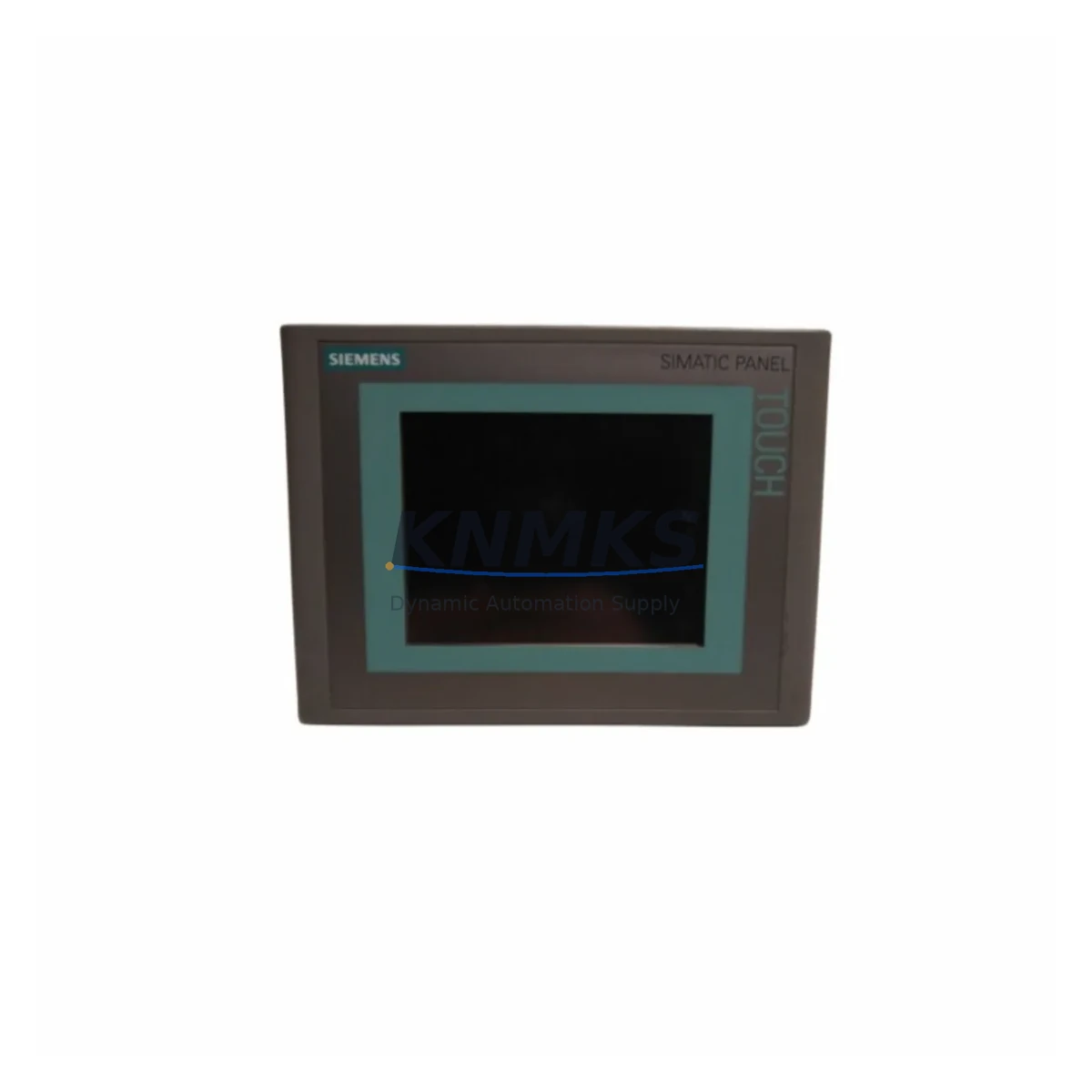

The Siemens 6AV6643-0AA01-1AX0 is the SIMATIC HMI TP277 6″ Touch Panel — a cornerstone operator interface in Siemens S7-300 and S7-400 PLC-based control architectures. For maintenance engineers managing aging automation lines, sourcing a verified, original-grade spare of this HMI is critical to minimizing unplanned downtime and sustaining production continuity. KNMKS supplies this unit as a tested, ready-to-ship spare backed by a support terms confirmed by quotation, supporting both emergency replacement and planned inventory replenishment programs.

The TP277 6″ panel operates on a 24 V DC supply and communicates natively via MPI, PROFIBUS DP, and Ethernet (depending on variant), making it directly compatible with the majority of legacy SIMATIC S7-300 and S7-400 control cabinets without hardware modification. Its 6-inch TFT touchscreen, 256-color display, and WinCC flexible runtime environment allow operators to maintain full process visibility during a swap — a key advantage when production restart speed is the priority.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 6AV6643-0AA01-1AX0 in a live control cabinet, a disciplined maintenance workflow extends beyond the HMI panel itself. Maintenance and procurement engineers should treat this replacement as an opportunity to audit the surrounding electrical environment to prevent repeat failures and reduce the risk of secondary faults.

24 V DC Power Supply: Verify the cabinet’s 24 V DC rail — typically sourced from a Siemens SITOP PSU100S or equivalent regulated power supply — is within tolerance before powering the new panel. Voltage spikes or ripple on this rail are a leading cause of premature HMI failure and display degradation.

MPI / PROFIBUS DP Cabling: Inspect the MPI or PROFIBUS DP bus cable and connectors (e.g., Siemens 6ES7972-0BA52-0XA0 bus connector) for insulation damage, loose termination resistors, and correct bus termination at both ends. A degraded bus cable can cause intermittent communication faults that mimic HMI hardware failure.

CPU and Backplane: If the TP277 was displaying communication errors prior to failure, cross-check the SIMATIC S7-300 CPU (e.g., CPU 315-2 DP or CPU 317-2 PN/DP) and the backplane bus connectors for corrosion or mechanical damage. A faulty CPU MPI port can damage a replacement HMI if not identified before installation.

I/O Modules and Signal Integrity: For lines where the HMI monitors analog or digital I/O status, verify that SM321/SM322 digital I/O modules and SM331/SM332 analog modules are functioning correctly. Signal isolation barriers or repeaters in the I/O loop should also be inspected if the process environment involves high electrical noise.

Relay Output Modules and Fusing: Check relay output modules (e.g., SM322 relay variants) and associated fuse holders in the control cabinet. A blown fuse on the HMI supply branch is often overlooked and will prevent the replacement panel from powering up, causing unnecessary diagnostic delay on the production floor.

Ethernet Switch and Network Infrastructure: For TP277 variants using Ethernet (IE) communication, inspect the industrial Ethernet switch port and patch cable connecting the HMI to the PROFINET network. A faulty switch port or damaged RJ45 connector can prevent project download and runtime startup after panel replacement.

Maintaining a minimum stock of one spare 6AV6643-0AA01-1AX0 per production line — alongside spare PROFIBUS connectors, a replacement 24 V DC PSU module, and a set of I/O module fuses — is a recognized best practice for facilities operating legacy SIMATIC S7-300 architectures beyond their original design life.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before removing the failed TP277, confirm the WinCC flexible project file is backed up on the engineering station. Note the existing MPI address or IP address configuration. Photograph the wiring and connector positions for reference.

Step 2 — Power Isolation: Isolate the 24 V DC supply to the HMI panel at the cabinet fuse or circuit breaker. Do not disconnect the PROFIBUS or MPI cable under live bus conditions — this can corrupt the bus and affect other nodes.

Step 3 — Physical Swap: Remove the panel from the cutout (standard 192 × 138 mm panel cutout for TP277 6″). Install the 6AV6643-0AA01-1AX0 replacement unit, reconnect all cables in the documented order, and secure the panel clamps evenly to maintain IP65 sealing.

Step 4 — Configuration Restore: Power up the panel and use the Siemens Transfer function via MPI or Ethernet to download the backed-up WinCC flexible project. Verify MPI address or IP settings match the original configuration before going online.

Step 5 — Functional Test: Confirm all process screens, alarm pages, and operator inputs are functioning correctly. Verify communication with the S7-300/400 CPU is stable and that no bus errors are reported in the diagnostic buffer.

This workflow supports a target replacement time of under 60 minutes for experienced maintenance teams, minimizing production line downtime and avoiding the need for extended manual operation fallback procedures.

Spare Parts Support FAQ

Q1: Is the 6AV6643-0AA01-1AX0 compatible with my existing WinCC flexible project without modification?
A: Yes — provided the replacement unit is the same hardware revision and the WinCC flexible runtime version matches. KNMKS supplies units with verified firmware compatibility. If your project was developed on WinCC flexible 2008 SP2 or later, no project modification is required for a like-for-like swap.

Q2: What testing is performed before dispatch?
A: Each 6AV6643-0AA01-1AX0 unit is powered on, display-tested, and communication-port verified before shipment. Units that do not pass functional inspection are not dispatched. A support terms confirmed by quotation cover all units against manufacturing defects and functional failure under normal operating conditions.

Q3: Can KNMKS support long-term supply for this part number?
A: Yes. KNMKS maintains ongoing sourcing channels for SIMATIC HMI TP277 series panels and can support blanket purchase orders, annual maintenance contracts, and multi-unit procurement for facilities managing multiple S7-300/400 lines. Contact [email protected] for volume pricing and lead time confirmation.

Q4: What is the recommended spare parts inventory strategy for facilities running legacy TP277 panels?
A: For facilities with 3 or more TP277 panels in service, a minimum of one cold-spare unit per site is recommended. For critical production lines with no manual fallback, a hot-spare with a pre-loaded project file is advisable. Annual inspection of PROFIBUS cabling, 24 V DC supply health, and panel sealing gaskets will extend the service life of installed units and reduce emergency replacement frequency.
