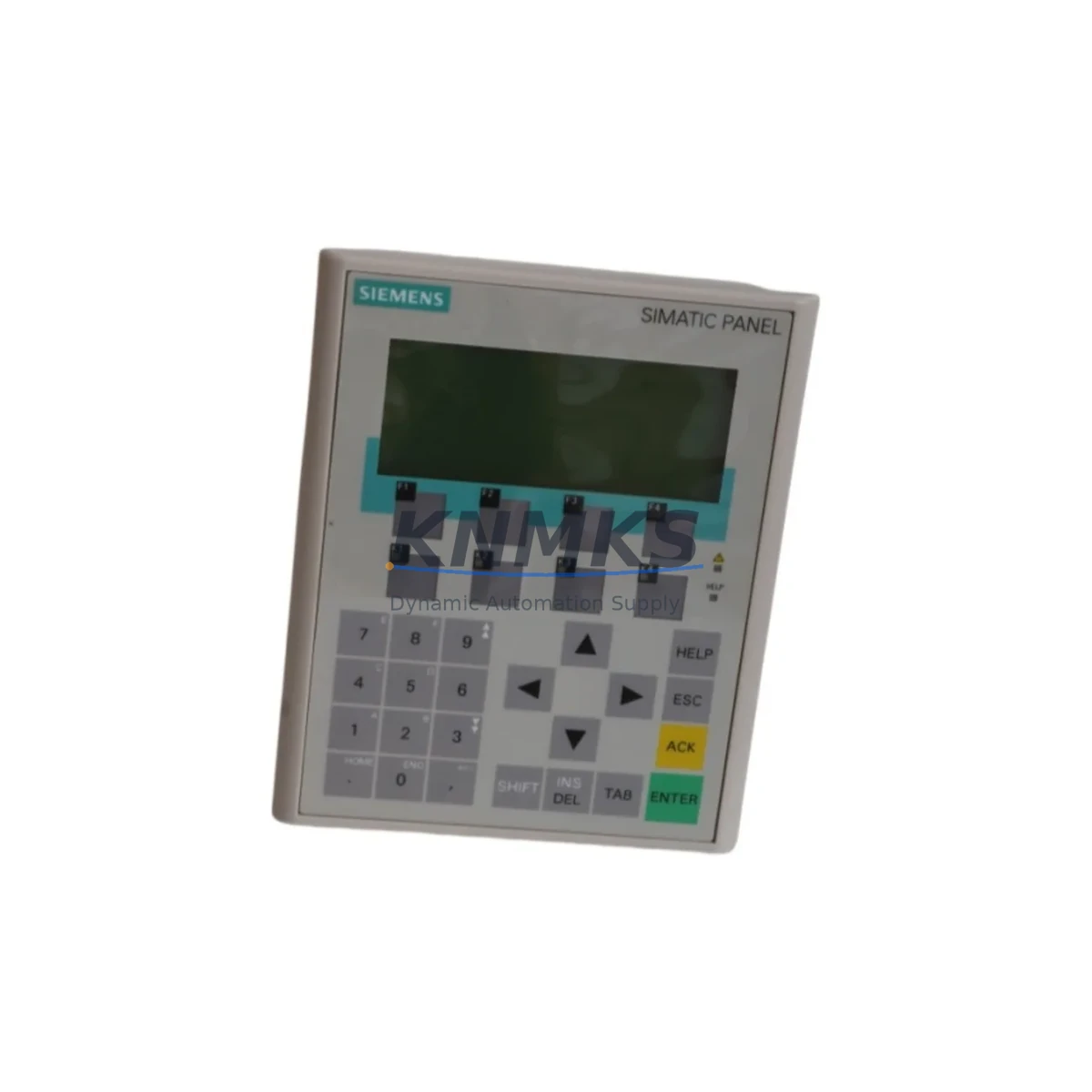

Siemens 6AV6641-0CA01-0AX1 Fail-Safe HMI Panel

Overview

Siemens 6AV6641-0CA01-0AX1 Fail-Safe HMI Panel: Fault Protection and Critical Industrial Field Reliability

The Siemens 6AV6641-0CA01-0AX1, part of the SIMATIC OP 77B series, is a rugged operator panel engineered for fail-safe human-machine interface operations in demanding industrial environments. Designed to meet the stringent requirements of continuous production lines, critical interlock systems, and heavy-duty control cabinets, this HMI panel delivers consistent, reliable performance where unplanned downtime is simply not an option. Whether deployed in high electromagnetic interference (EMI) zones, dusty and humid process areas, or high-temperature and vibration-prone installations, the 6AV6641-0CA01-0AX1 maintains stable communication and display integrity to protect both personnel and process assets.

In modern industrial automation, the operator interface is the frontline of process visibility and control. A compromised HMI can lead to missed alarms, delayed operator response, control loop interruptions, and cascading equipment failures. The Siemens 6AV6641-0CA01-0AX1 addresses these risks through its robust IP65-rated enclosure, wide operating temperature tolerance, and proven EMI shielding — ensuring that signal drift, power fluctuations, and communication anomalies do not translate into hazardous misoperations or unplanned shutdowns.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered industrial control cabinet, the Siemens 6AV6641-0CA01-0AX1 serves as the operator’s primary window into the automation system. Its MPI/PROFIBUS DP interface integrates seamlessly with Siemens SIMATIC S7-300 CPUs such as the CPU 314C-2 DP, enabling real-time process visualization and alarm acknowledgment without introducing communication latency that could delay safety responses. When paired with a Siemens SITOP PSU100S 24V DC power supply module, the panel benefits from a stable, surge-protected power source that guards against voltage spikes and brownouts — common causes of HMI lockup and display corruption in heavy industrial environments.

For cabinet-level surge and transient protection, integrating Siemens SIMATIC ET 200SP surge protection modules upstream of the HMI power input significantly reduces the risk of damage from lightning-induced surges or switching transients from large motor starters and variable frequency drives (VFDs) operating in the same electrical zone. In applications where the control cabinet is located near high-power drive systems, the EMI shielding of the 6AV6641-0CA01-0AX1 works in concert with proper cable segregation and the use of shielded PROFIBUS DP cables with Siemens bus connectors (6ES7972-0BA52-0XA0) to maintain signal integrity across long cable runs.

Where the control system architecture includes distributed I/O, the OP 77B panel can be deployed alongside Siemens SIMATIC ET 200M remote I/O stations to provide localized operator control at field junction points, reducing the need for long signal cable runs back to a central control room. This distributed approach not only improves response time but also limits the blast radius of any single point of failure. For applications requiring safety-rated interlock monitoring, the panel is commonly installed in cabinets that also house Siemens SIRIUS 3SK1 safety relay modules, providing a visual confirmation layer for safety circuit status without requiring a separate dedicated safety HMI.

Critical Industrial Safety Applications

The Siemens 6AV6641-0CA01-0AX1 has established a strong track record across a wide range of critical industrial sectors where control reliability directly impacts personnel safety and production continuity.

In petrochemical and refinery plants, the panel is deployed at local control stations for pump skids, compressor units, and heat exchanger bypass systems. Its IP65 rating and wide temperature tolerance allow it to operate reliably in outdoor or semi-enclosed process areas where exposure to hydrocarbon vapors, humidity, and temperature cycling would compromise lesser-rated equipment. Operators rely on the OP 77B’s clear text display and tactile membrane keypad to acknowledge process alarms and execute manual overrides during emergency shutdown sequences.

In power generation and substation automation, the 6AV6641-0CA01-0AX1 is used for local HMI functions on auxiliary systems including cooling water pumps, transformer cooling fans, and battery room ventilation controls. Its robust EMI resistance is particularly valuable in high-voltage switchgear environments where electromagnetic fields from bus bars and circuit breakers can induce noise into poorly shielded control equipment.

In mining and mineral processing, the panel is installed on conveyor drive control panels, crusher control stations, and slurry pump skids. The vibration and shock resistance of the SIMATIC OP 77B series ensures that the display and keypad remain fully functional even when mounted on structures subject to continuous mechanical vibration from crushers, screens, and heavy haulage equipment.

In water and wastewater treatment facilities, the 6AV6641-0CA01-0AX1 provides local operator interface for dosing pump control, aeration blower management, and UV disinfection system monitoring. The panel’s resistance to condensation and its sealed front face prevent moisture ingress in the high-humidity environments typical of pump stations and wet wells.

In metallurgical and steel production environments, the panel is used on rolling mill auxiliary control panels and furnace zone control stations, where high ambient temperatures and radiant heat require equipment rated for elevated thermal conditions. In port and marine applications, the OP 77B is found on crane control consoles and shipboard automation panels, where salt air, vibration, and power quality variations demand the highest levels of hardware robustness.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the Siemens 6AV6641-0CA01-0AX1?
The support terms confirmed by quotation cover all manufacturing defects and functional failures arising under normal operating conditions as specified in the product datasheet. This includes display failure, communication interface malfunction, keypad non-response, and power input circuit faults. Support requests are supported with replacement or repair, and our technical team provides guidance on installation verification to ensure the root cause is correctly identified before any return is processed.

Q2: What pre-shipment testing is performed on each unit?
Every 6AV6641-0CA01-0AX1 unit undergoes a full functional verification test prior to dispatch. This includes power-on self-test confirmation, display and backlight check, keypad function verification, and communication interface continuity testing on the MPI/PROFIBUS DP port. Units that do not pass all test criteria are quarantined and not shipped. A test record is maintained for traceability, and customers may request a copy of the test report upon delivery.

Q3: Is the 6AV6641-0CA01-0AX1 compatible with my existing SIMATIC S7 PLC system?
The SIMATIC OP 77B is natively compatible with SIMATIC S7-200, S7-300, and S7-400 controllers via MPI or PROFIBUS DP. Compatibility with S7-1200 and S7-1500 systems is achievable through appropriate communication adapters and WinCC flexible configuration. We recommend confirming your PLC firmware version and communication module type before installation. Our technical support team can assist with compatibility verification at no additional charge.

Q4: Can you guarantee long-term supply and replacement support for this model?
Yes. We maintain dedicated stock of the Siemens 6AV6641-0CA01-0AX1 to support both immediate replacement needs and planned maintenance schedules. For facilities operating continuous production processes where an HMI failure could trigger an unplanned shutdown, we recommend holding at least one spare unit on-site. We can support blanket purchase orders and scheduled delivery agreements to ensure your spare parts inventory remains current without tying up excessive capital. Contact our sales team at [email protected] or +86 18359268345 to discuss your supply continuity requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6AV6641-0CA01-0AX1
SIMATIC Series

Product Family

HMI & Displays

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Display range

Operator panels and touch screens

Common needs

Screen size, interface and version matching

Project support

Retrofit, spare unit and panel replacement

Inquiry Support

• Panel size and interface confirmation
• Replacement unit inquiry for discontinued HMIs
• Protective packaging for display shipment

What to Send Us

• Brand and exact model number: Siemens 6AV6641-0CA01-0AX1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
