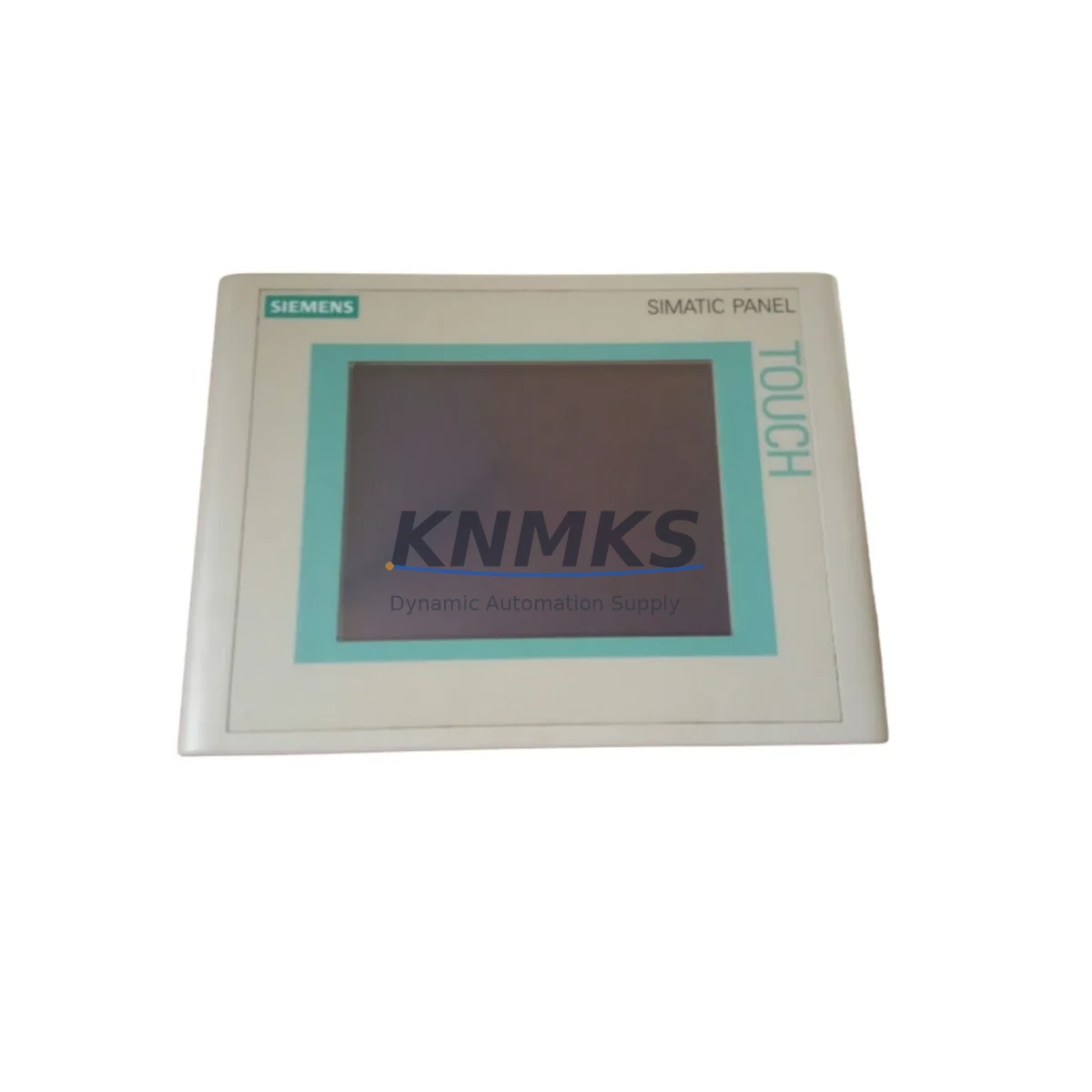

Siemens 6AV6640-0CA11-0AX1 Fail-Safe HMI for Industrial Control

Overview

Siemens 6AV6640-0CA11-0AX1 Fail-Safe HMI for Industrial Control Reliability

The Siemens 6AV6640-0CA11-0AX1 — part of the SIMATIC TP177 Micro series — is a compact, ruggedized Human-Machine Interface (HMI) touch panel engineered for continuous operation in demanding industrial environments. Designed to meet the exacting requirements of safety-critical control cabinets, this unit delivers stable, uninterrupted visualization and operator interaction even under conditions of high electromagnetic interference (EMI), voltage fluctuation, ambient vibration, elevated temperature, and exposure to dust or moisture. Its robust hardware architecture and Siemens-validated firmware make it a trusted component in fail-safe control loops across petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical lines, port logistics systems, and continuous manufacturing processes.

In critical industrial applications, an HMI panel is far more than a display device — it is the operator’s primary interface to the safety interlock system, the process control loop, and the alarm management layer. The 6AV6640-0CA11-0AX1 is built to maintain reliable communication with Siemens S7-200 PLCs and compatible SIMATIC controllers via the integrated RS-485/MPI port, ensuring that operator commands and process feedback remain synchronized even during transient power events or communication anomalies. Its sealed front panel (IP65-rated) resists ingress of fine particulates and water spray, making it suitable for deployment in field enclosures and harsh control cabinet environments where conventional panels would degrade rapidly.

Signal integrity is a persistent challenge in high-voltage switchgear rooms, variable-frequency drive (VFD) cabinets, and motor control centers (MCCs). The 6AV6640-0CA11-0AX1 incorporates EMI-hardened electronics that suppress conducted and radiated interference, preventing screen freezes, communication dropouts, and erroneous operator inputs that could trigger unplanned shutdowns or unsafe process states. When deployed alongside Siemens SIMATIC S7-200 CPU modules — such as the CPU 224XP or CPU 226 — and paired with EM 231 analog input modules for process variable monitoring, the TP177 Micro forms a tightly integrated, low-latency control and visualization node capable of sustaining safe operation through electrical disturbances that would compromise lesser-rated equipment.

Power supply stability is equally critical. In control cabinets where 24 VDC rail voltage may fluctuate due to inrush currents from solenoid valves, relay coils, or motor starters, the 6AV6640-0CA11-0AX1’s wide-range DC input tolerance ensures continuous panel operation without reset cycles or data loss. For installations requiring additional power conditioning, integration with Siemens SITOP PSU100S power supply modules provides regulated, filtered 24 VDC that further protects the HMI and connected I/O from voltage spikes and ripple. This combination is particularly valuable in offshore platforms and remote substations where utility power quality cannot be guaranteed.

Thermal management within enclosed control cabinets is a leading cause of premature component failure. The 6AV6640-0CA11-0AX1 is rated for an operating temperature range of 0 °C to +50 °C, with storage tolerance extending to -20 °C / +60 °C, enabling deployment in both climate-controlled control rooms and unventilated field enclosures in tropical or desert environments. Its fanless, convection-cooled design eliminates the mechanical wear and dust accumulation associated with active cooling, contributing to a longer mean time between failures (MTBF) and reduced preventive maintenance intervals. In high-vibration environments such as compressor skids, crusher control panels, or shipboard automation cabinets, the absence of rotating components is a significant reliability advantage.

For facilities managing aging SIMATIC S7-200 infrastructure, the 6AV6640-0CA11-0AX1 represents a validated, stock-backed spare part that extends the operational life of existing control architectures without requiring costly PLC migration or full cabinet redesign. It is fully compatible with WinCC flexible Micro engineering software, allowing rapid project transfer, screen modification, and alarm configuration without specialized tooling. Replacement units can be commissioned in minimal time, reducing mean time to repair (MTTR) and protecting production continuity during unplanned failures. KNMKS maintains verified stock of this model with pre-shipment functional testing completed on every unit prior to dispatch.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable control cabinet is a system — not a collection of individual components. The 6AV6640-0CA11-0AX1 performs at its highest reliability level when integrated within a well-engineered cabinet architecture that addresses power quality, communication integrity, and thermal stability as a unified strategy.

At the power layer, pairing the TP177 Micro with a Siemens SITOP PSU100S 24 VDC power supply ensures that the HMI and connected field devices receive clean, regulated voltage even when inductive loads on the same rail generate switching transients. For surge protection at the cabinet entry point, Siemens 5SD7 series surge protective devices (SPDs) clamp voltage spikes originating from lightning strikes or utility switching events before they can propagate to sensitive electronics.

At the control layer, the 6AV6640-0CA11-0AX1 communicates directly with Siemens S7-200 CPU 226 PLC modules, which serve as the primary logic controller for process interlocks, alarm management, and safety shutdown sequences. Analog process variables — pressure, temperature, flow — are acquired via Siemens EM 231 analog input expansion modules, feeding real-time data to the HMI for operator visualization and threshold alarming. For digital I/O expansion in high-density control cabinets, Siemens EM 223 digital I/O modules extend the S7-200’s field interface capacity without introducing additional communication latency.

In applications requiring network-level integration — such as SCADA connectivity or remote monitoring — the Siemens CP 243-1 Ethernet communication processor bridges the S7-200 network to Industrial Ethernet, enabling the TP177 Micro’s local visualization to be complemented by centralized data logging and remote alarm notification. This architecture is particularly effective in water treatment plants and power substations where distributed control nodes must report to a central DCS or SCADA platform.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In hydrocarbon processing facilities, the 6AV6640-0CA11-0AX1 serves as the local operator interface for pump control panels, compressor skid automation, and emergency shutdown (ESD) system status displays. Its IP65 front panel resists hydrocarbon vapors and cleaning agents, while its EMI hardening ensures stable operation adjacent to high-power variable-frequency drives controlling process pumps.

Power Generation and Substation Automation: In thermal power plants and grid substations, the TP177 Micro provides local HMI functionality for auxiliary systems including cooling water circuits, fuel oil handling, and transformer protection relay panels. Its wide DC input tolerance accommodates the voltage variations common in battery-backed substation DC systems.

Mining and Mineral Processing: On crusher control panels, conveyor drive cabinets, and flotation cell automation systems, the 6AV6640-0CA11-0AX1 withstands the high vibration, dust loading, and electrical noise generated by large motors and variable-speed drives. Its fanless design eliminates dust ingestion failure modes that affect conventional panel PCs in these environments.

Water and Wastewater Treatment: In pump station control panels and chemical dosing systems, the TP177 Micro provides reliable local visualization of flow rates, tank levels, and pump status. Its corrosion-resistant front bezel and sealed touch interface resist the humid, chemically aggressive atmospheres common in water treatment facilities.

Metallurgy and Steel Production: In rolling mill auxiliary control cabinets and furnace temperature management systems, the 6AV6640-0CA11-0AX1 maintains stable operation under the high ambient temperatures and intense electromagnetic fields generated by induction heating equipment and large DC drives.

Port Logistics and Shipboard Automation: On ship-to-shore crane control panels and vessel automation cabinets, the TP177 Micro’s compact form factor and vibration tolerance make it suitable for mobile and marine applications where space is constrained and mechanical shock is a routine operating condition.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the Siemens 6AV6640-0CA11-0AX1?
Every unit supplied by KNMKS carries a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Support terms support includes technical diagnosis, replacement dispatch, and return logistics coordination. The confirmed support period begins from the date of confirmed delivery.

Q2: Is pre-shipment testing performed on each unit?
Yes. Every 6AV6640-0CA11-0AX1 unit undergoes a 100% functional pre-shipment test prior to dispatch. Testing verifies display operation, touch input response, communication port integrity, and power supply performance across the rated input voltage range. A test record is available upon request for quality documentation purposes.

Q3: Is this unit compatible with existing Siemens S7-200 projects and WinCC flexible Micro configurations?
Yes. The 6AV6640-0CA11-0AX1 is a direct hardware-compatible replacement for other TP177 Micro units within the SIMATIC S7-200 ecosystem. Existing WinCC flexible Micro projects can be transferred to the replacement unit without modification, enabling rapid commissioning and minimal production downtime during a spare part replacement event.

Q4: Can long-term supply continuity be assured for multi-site or multi-year spare parts programs?
KNMKS maintains verified stock of the 6AV6640-0CA11-0AX1 and supports structured spare parts programs for facilities managing multiple S7-200-based control systems. For customers requiring guaranteed availability over 12–36 month horizons, KNMKS offers reserved stock arrangements and scheduled delivery programs to support planned maintenance shutdowns and lifecycle extension strategies.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6AV6640-0CA11-0AX1
SIMATIC Series

Product Family

HMI & Displays

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Display range

Operator panels and touch screens

Common needs

Screen size, interface and version matching

Project support

Retrofit, spare unit and panel replacement

Inquiry Support

• Panel size and interface confirmation
• Replacement unit inquiry for discontinued HMIs
• Protective packaging for display shipment

What to Send Us

• Brand and exact model number: Siemens 6AV6640-0CA11-0AX1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
