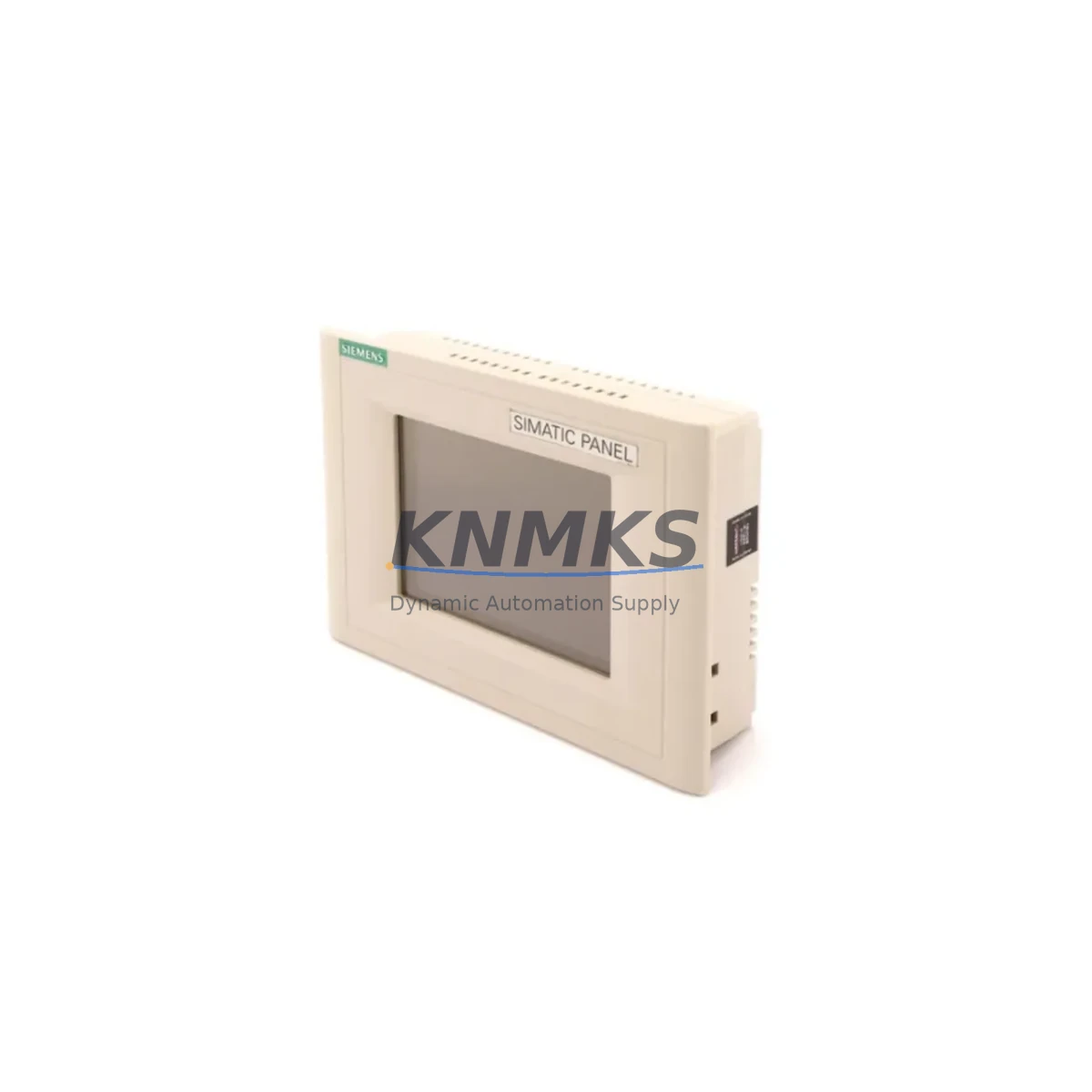

Siemens 6AV6545-0BC15-2AX0 Fail-Safe HMI Panel

Overview

Siemens 6AV6545-0BC15-2AX0 Fail-Safe HMI Panel: Fault-Protection and Critical Industrial Field Reliability

The Siemens 6AV6545-0BC15-2AX0, part of the SIMATIC OP15C series, is a ruggedized HMI operator panel engineered for continuous-process environments where control interruption is not an option. Designed to interface directly with SIMATIC S7 PLCs via MPI and PROFIBUS-DP, this panel delivers stable, real-time operator visibility and command capability in the most demanding industrial control cabinets — from petrochemical processing lines to high-voltage power distribution switchgear.

In safety-critical applications, the integrity of the human-machine interface is as important as the controller itself. Signal drift, display freeze, communication timeout, or panel lockup during a critical interlock sequence can cascade into unplanned shutdowns, equipment damage, or personnel hazard. The 6AV6545-0BC15-2AX0 addresses these risks through its hardened hardware architecture, deterministic MPI/PROFIBUS communication stack, and robust 5.7-inch STN LCD display rated for extended industrial duty cycles.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered industrial control cabinet, the HMI panel is the operator’s primary window into the control loop. The 6AV6545-0BC15-2AX0 is designed to operate reliably alongside the full SIMATIC ecosystem. When paired with a Siemens SIMATIC S7-315-2DP CPU or S7-414-2DP, the panel maintains deterministic PROFIBUS-DP polling cycles even under high bus load, reducing the risk of communication timeout that could mask a fault condition from the operator.

Power supply stability is foundational to HMI reliability. Deploying a Siemens SITOP PSU100S 24V DC power supply in the same cabinet ensures the OP15C panel receives clean, regulated 24 V DC with surge and overload protection — eliminating voltage dip-induced display resets that are a common failure mode in poorly conditioned cabinets. For cabinets in high electromagnetic interference environments such as variable frequency drive (VFD) enclosures or motor control centers, supplementing the installation with Siemens SIMATIC NET PROFIBUS connectors with integrated termination resistors (e.g., 6ES7972-0BB52-0XA0) prevents signal reflection and bus instability that can cause the HMI to lose communication with the PLC.

In safety interlock architectures, the OP15C panel is frequently deployed alongside Siemens SIRIUS 3SK safety relays to provide operator acknowledgment and reset functions for emergency stop circuits. The panel’s membrane keypad and configurable function keys allow operators to confirm interlock resets without requiring direct PLC programming access, maintaining safety loop integrity. For cabinet thermal management — critical in high-ambient or poorly ventilated enclosures — pairing the installation with a Siemens SINAMICS or SIVACON cabinet cooling unit prevents the thermal derating that can affect display longevity and backlight life in STN LCD panels.

Where redundant communication paths are required, the 6AV6545-0BC15-2AX0 can be integrated into architectures using Siemens SCALANCE X industrial Ethernet switches for supervisory SCADA connectivity, while maintaining its primary PROFIBUS-DP link to the field controller — providing operators with both local panel control and remote monitoring capability without single-point communication failure risk.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous hydrocarbon processing, the 6AV6545-0BC15-2AX0 serves as the local operator interface for compressor control panels, heat exchanger bypass stations, and emergency shutdown (ESD) acknowledgment points. Its IP65-rated front panel resists hydrocarbon vapor condensation and cleaning agent ingress, while its PROFIBUS-DP interface maintains real-time communication with the safety PLC even during high-EMI events from large motor starts.

Electric Power Generation and Distribution: Deployed in generator control panels and medium-voltage switchgear rooms, the OP15C provides operators with real-time status of protection relay outputs, breaker positions, and interlock states. Its ability to operate across a 0–50°C ambient range without active cooling makes it suitable for outdoor substation control kiosks in temperate climates.

Mining and Mineral Processing: In underground or surface mining operations, control panels face extreme vibration, dust ingress, and humidity. The 6AV6545-0BC15-2AX0’s robust membrane keypad and sealed front panel maintain operability in these conditions, supporting conveyor interlock control, crusher protection circuits, and ventilation safety systems.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities rely on continuous pump and valve control. The OP15C panel provides operators with local override and status confirmation capability at pump stations and chemical dosing skids, reducing the risk of undetected pump failures or chemical overdose events caused by SCADA communication loss.

Metallurgy and Steel Production: In rolling mill and furnace control applications, the panel withstands the high-radiant-heat and electromagnetic interference generated by induction heating systems and large DC drives, maintaining stable PROFIBUS communication and operator display integrity throughout the production cycle.

Port and Marine Automation: Crane control cabinets and ship engine room automation systems benefit from the OP15C’s compact panel-mount form factor and deterministic communication, enabling reliable load monitoring, interlock status display, and emergency stop acknowledgment in high-vibration, salt-air environments.

Safety and Quality FAQ

Q1: Does the 6AV6545-0BC15-2AX0 come with a support terms, and what does it cover?
Yes. Every unit supplied by KNMKS carries a support terms confirmed by quotation covering manufacturing defects and functional failures under normal industrial operating conditions. Each unit undergoes pre-shipment functional testing — including communication interface verification and display integrity check — before dispatch. Support terms replacement or repair support is provided directly through our sales team.

Q2: How is compatibility with existing SIMATIC S7 systems verified before shipment?
The 6AV6545-0BC15-2AX0 is factory-configured for MPI and PROFIBUS-DP communication, natively compatible with SIMATIC S7-300 and S7-400 CPUs. Our technical team can advise on ProTool or WinCC flexible project migration requirements for your specific CPU and firmware version prior to order confirmation, ensuring drop-in replacement compatibility.

Q3: Is long-term supply availability guaranteed for this panel?
KNMKS maintains dedicated inventory of SIMATIC OP15C panels including the 6AV6545-0BC15-2AX0 to support ongoing maintenance, spare parts programs, and emergency replacement requirements. We supply to customers running 12-month to 36-month spare parts programs for critical production lines, with confirmed stock levels available on request.

Q4: Can this panel be used as a direct replacement in an existing safety interlock or ESD system?
Yes, provided the replacement unit is configured with the same ProTool project file as the original installation. The 6AV6545-0BC15-2AX0 maintains the same hardware interface, communication parameters, and panel dimensions as the original OP15C series, enabling direct mechanical and electrical substitution. KNMKS recommends a bench-level communication test against the target PLC before field installation in any safety-critical interlock application.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6AV6 545-0BC15-2AX0
SIMATIC Series

Product Family

HMI & Displays

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Display range

Operator panels and touch screens

Common needs

Screen size, interface and version matching

Project support

Retrofit, spare unit and panel replacement

Inquiry Support

• Panel size and interface confirmation
• Replacement unit inquiry for discontinued HMIs
• Protective packaging for display shipment

What to Send Us

• Brand and exact model number: Siemens 6AV6 545-0BC15-2AX0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
