Siemens 6AV3627-1JK00-0AX0 Fail-Safe HMI for Industrial Control

Overview

Siemens 6AV3627-1JK00-0AX0 Fail-Safe HMI for Industrial Control Reliability

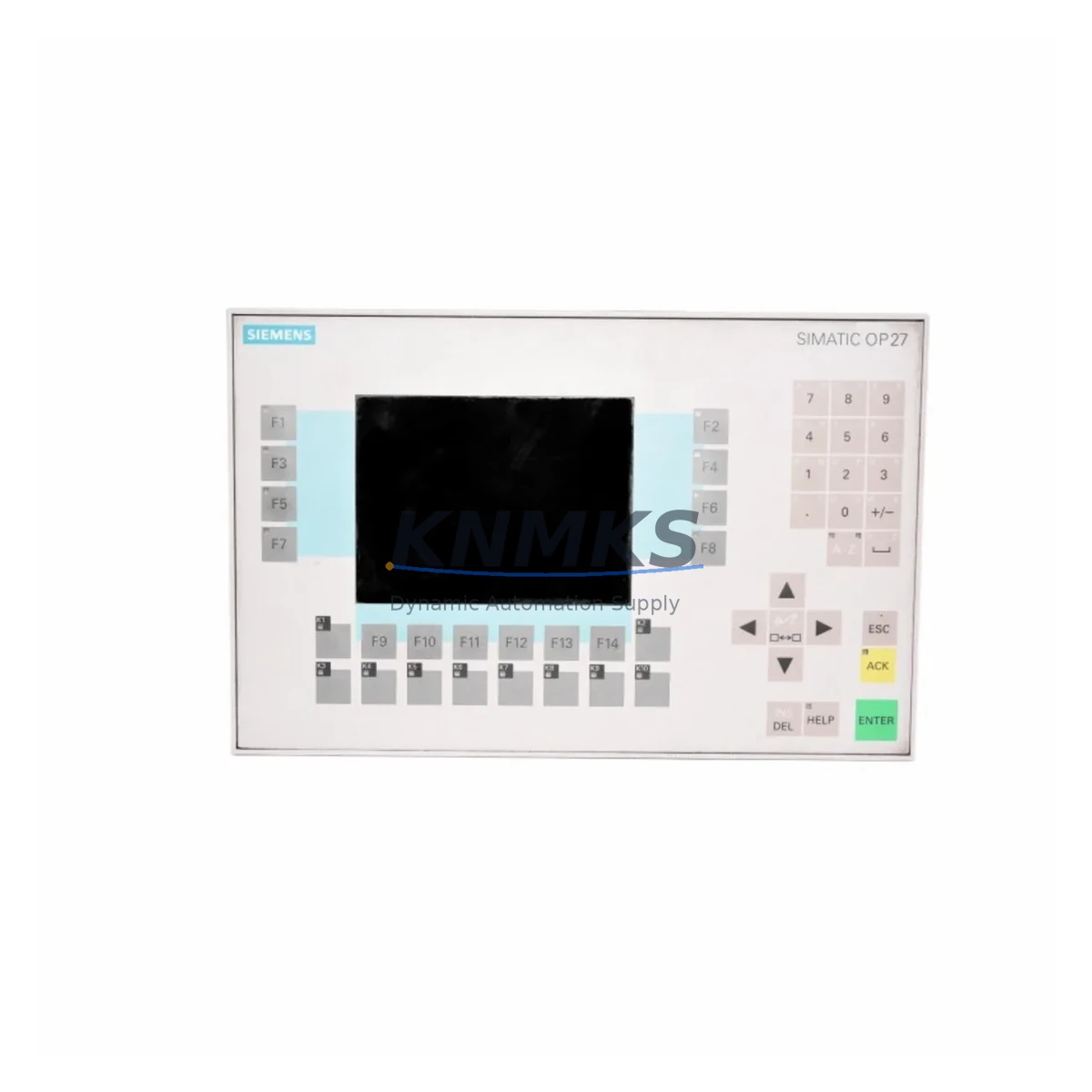

The Siemens 6AV3627-1JK00-0AX0 (OP27) is a proven operator panel engineered for demanding industrial environments where control interruption, signal drift, and unplanned downtime carry serious operational and safety consequences. Designed as part of the SIMATIC HMI family, this unit delivers robust, fail-safe human-machine interface performance across continuous production lines, critical interlock circuits, and high-load control cabinets. Whether deployed in petrochemical processing, power generation, mining extraction, water treatment, or heavy metallurgical operations, the 6AV3627-1JK00-0AX0 provides the stable, reliable operator interface that safety-critical processes demand.

Industrial sites subject to high electromagnetic interference (EMI), airborne dust, humidity fluctuations, elevated temperatures, and mechanical vibration place extreme stress on HMI hardware. The OP27 panel addresses these challenges through its IP65-rated front panel protection, wide operating temperature tolerance, and full EMC compliance — ensuring that operator commands are executed accurately even in the harshest field conditions. Signal drift and spurious actuations caused by electrical noise are suppressed by the panel’s shielded architecture, protecting the integrity of every control loop it serves.

In control cabinet installations, the 6AV3627-1JK00-0AX0 integrates seamlessly with SIMATIC S5 and S7 PLCs via MPI and PROFIBUS-DP communication interfaces. This compatibility ensures that the HMI remains a reliable node within the broader control architecture, maintaining communication stability even during power fluctuations or surge events. When paired with a Siemens 6ES7 series CPU module or a 6GK7 PROFIBUS communication processor, the system forms a tightly integrated control and monitoring backbone capable of sustaining operations through transient electrical disturbances that would compromise lesser hardware.

For cabinet-level power protection, the OP27 is frequently deployed alongside Siemens SITOP PSU100S power supply units, which provide regulated 24 VDC with built-in surge buffering and overload protection — directly reducing the risk of HMI brownout or restart during grid instability. In safety interlock circuits, the panel works in conjunction with Siemens 3SK1 safety relays and 3RK3 Modular Safety Systems to ensure that emergency stop commands and protective shutdowns are displayed and acknowledged without delay, maintaining the integrity of the safety loop from field device to operator interface.

Cabinet thermal management is another critical factor in HMI longevity. The 6AV3627-1JK00-0AX0 is rated for continuous operation within standard industrial cabinet temperature ranges, and when installed alongside properly sized Siemens SINAMICS drive units or high-current motor starters, its thermal tolerance ensures that operator visibility is maintained even as cabinet internal temperatures rise during peak load cycles. This is particularly important in metallurgical and cement production environments where ambient heat and vibration are constant operational realities.

Every unit supplied by KNMKS undergoes pre-shipment functional verification, including display integrity checks, communication port testing, and power-on self-test confirmation. This ensures that the 6AV3627-1JK00-0AX0 arrives ready for immediate installation and commissioning, minimizing field downtime during planned maintenance windows or emergency spare part replacements. Our inventory is maintained to support both scheduled MRO procurement and urgent breakdown supply requirements.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the Siemens 6AV3627-1JK00-0AX0 as the primary operator interface within a control cabinet requires a coordinated approach to power quality, communication integrity, and thermal management. A well-engineered cabinet pairs the OP27 with a Siemens SITOP PSU100S 24 VDC power supply to ensure that voltage fluctuations and momentary grid sags do not cause HMI resets or data loss during active operator sessions. For process-critical applications, adding a SITOP UPS1600 buffer module provides bridging power during brief outages, allowing the operator to complete acknowledgment sequences before a controlled shutdown.

Communication reliability between the OP27 and the host PLC — typically a Siemens S7-300 CPU 315-2 DP or equivalent — depends on proper PROFIBUS-DP cable termination, correct bus address assignment, and shielded cable routing away from high-voltage conductors. In cabinets housing Siemens SINAMICS G120 or S120 drive units, careful EMC zoning prevents drive-generated switching noise from corrupting the PROFIBUS data frame, which could otherwise cause the HMI to display stale process values or trigger nuisance communication fault alarms. Proper ferrite core installation on communication cables and grounding of cable shields at a single point are standard protective measures in these installations.

For safety interlock visibility, the OP27 is configured to display the status of Siemens 3SK1 safety relay outputs and emergency stop circuit states, giving operators immediate visual confirmation of safety system status without requiring a separate dedicated safety display. This integration reduces the risk of operators bypassing safety interlocks due to lack of feedback, a common contributing factor in industrial incidents.

Critical Industrial Safety Applications

The Siemens 6AV3627-1JK00-0AX0 is deployed across a broad spectrum of safety-critical industrial applications. In petrochemical and refinery operations, the OP27 serves as the local operator interface for compressor control panels, valve actuator stations, and emergency shutdown (ESD) system monitoring points, where IP65 protection guards against hydrocarbon vapor condensation and chemical splash. In electric power generation and substation automation, the panel provides operators with real-time visibility into protection relay status, transformer tap positions, and bus coupler states, supporting rapid fault diagnosis and restoration.

In underground and open-cut mining, the OP27’s vibration tolerance and wide temperature range make it suitable for conveyor drive control panels, ventilation fan stations, and dewatering pump control cabinets — environments where conventional HMI hardware frequently fails prematurely. Water and wastewater treatment facilities rely on the panel for dosing pump control, filtration process monitoring, and SCADA gateway operator stations, where continuous 24/7 operation and resistance to high-humidity environments are non-negotiable requirements.

In metallurgical and steel production facilities, the 6AV3627-1JK00-0AX0 is installed in rolling mill drive control cabinets and furnace temperature regulation panels, where high ambient temperatures and intense electromagnetic fields from induction heating systems demand the panel’s full EMC and thermal performance envelope. Port and bulk material handling operations use the OP27 in ship loader and stacker-reclaimer control systems, where outdoor-adjacent installations and salt-laden air require robust sealing and corrosion-resistant construction.

Safety and Quality FAQ

Q: What support terms coverage is provided with the Siemens 6AV3627-1JK00-0AX0?
A: Every unit is covered by a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. KNMKS provides direct support terms support without requiring escalation to the OEM, ensuring fast resolution for field issues.

Q: What pre-shipment testing is performed on each unit?
A: Each 6AV3627-1JK00-0AX0 undergoes a power-on functional test, display integrity verification, and communication port continuity check before dispatch. Units that do not pass all test criteria are quarantined and not shipped. Test records are available upon request for quality-critical procurement.

Q: Is the 6AV3627-1JK00-0AX0 compatible with my existing SIMATIC S7-300 or S5 system?
A: Yes. The OP27 supports MPI and PROFIBUS-DP communication protocols, making it directly compatible with SIMATIC S7-300, S7-400, and S5 series PLCs. Configuration is performed using Siemens ProTool software. Compatibility with specific CPU firmware versions should be confirmed against the Siemens product compatibility matrix for your installation.

Q: Can KNMKS support long-term or repeat supply of this part?
A: Yes. KNMKS maintains stock of the 6AV3627-1JK00-0AX0 and related SIMATIC HMI components to support both planned MRO schedules and emergency breakdown requirements. For high-volume or scheduled procurement, contact our sales team to discuss reserved stock arrangements and lead time commitments.
