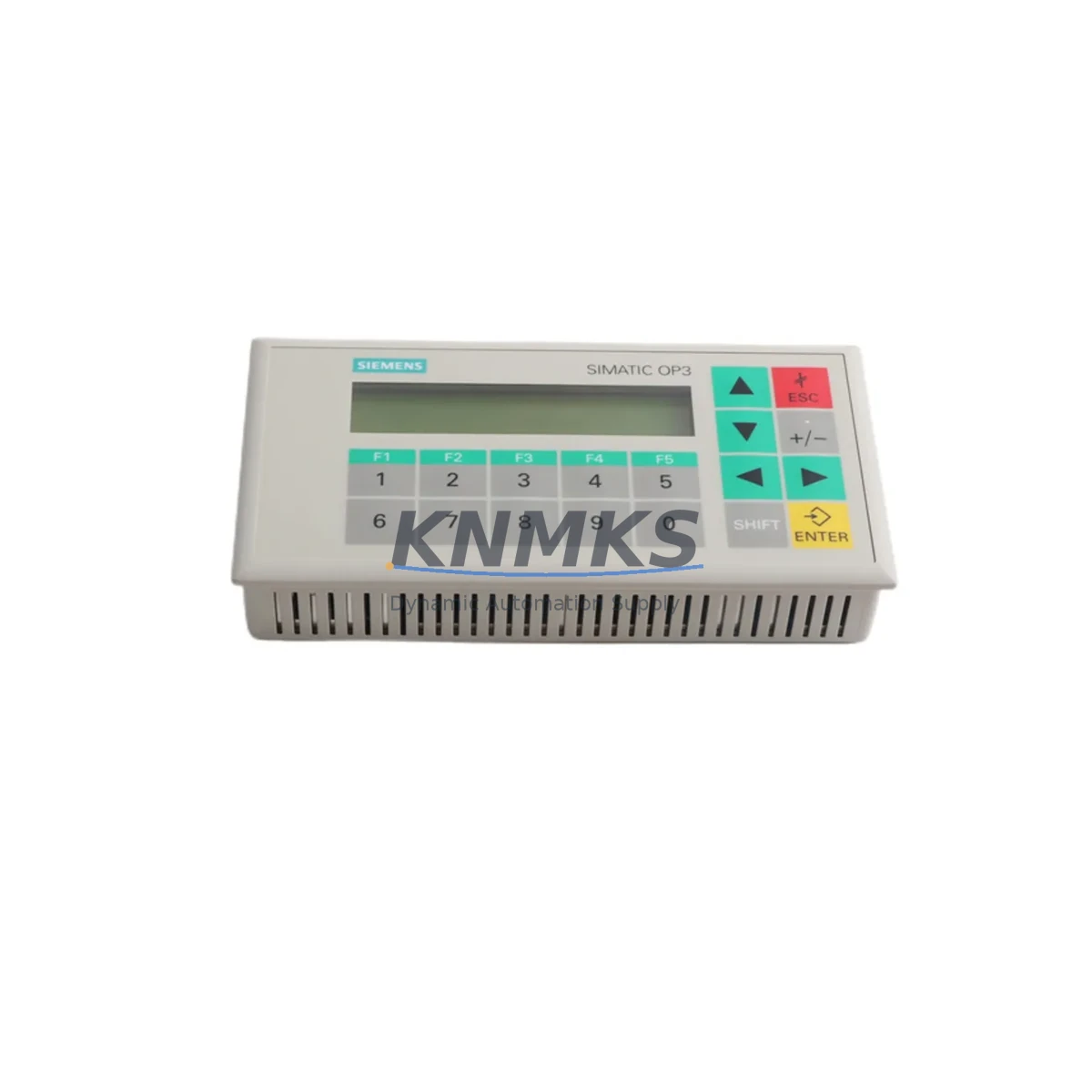

Siemens 6AV3503-1DB10 Fail-Safe HMI Panel for Industrial Control

Overview

Siemens 6AV3503-1DB10 Fail-Safe HMI Panel for Industrial Control Reliability

The Siemens 6AV3503-1DB10 is a SIMATIC OP3 operator panel engineered for demanding industrial environments where control continuity, operator safety, and fail-safe performance are non-negotiable. Designed and manufactured in Germany to Siemens’ rigorous quality standards, this HMI panel delivers dependable human-machine interface functionality across continuous production lines, critical interlock circuits, and high-load control cabinets where unplanned downtime carries severe operational and safety consequences.

In industrial facilities ranging from petrochemical plants and power generation stations to mining operations and metallurgical processing lines, the integrity of the operator interface is a frontline safety asset. The 6AV3503-1DB10 addresses this requirement directly: its ruggedized housing, sealed front panel, and stable MPI/PPI communication architecture ensure that operators retain reliable process visibility and control authority even under conditions of high electromagnetic interference, airborne dust, elevated humidity, mechanical vibration, and thermal cycling. Signal drift, communication anomalies, and spurious actuations — common failure modes in lesser HMI hardware — are systematically mitigated by the panel’s hardware design and Siemens’ proven SIMATIC firmware stack.

Within a control cabinet safety strategy, the 6AV3503-1DB10 integrates naturally alongside complementary SIMATIC components. A Siemens S7-200 CPU 224 PLC or CPU 226 serves as the logic controller, communicating with the OP3 via the PPI protocol to deliver real-time process data to the operator. Upstream power conditioning — typically provided by a Siemens SITOP PSU100S 24VDC power supply — ensures that the panel’s 24 VDC supply rail remains stable against mains voltage fluctuations and surge events that could otherwise cause display lockups or communication resets. For cabinet-level surge and transient protection, a Siemens 5SD7 series surge protection device on the incoming supply rail further shields the HMI and associated I/O modules from voltage spikes induced by nearby motor starts, arc flash events, or lightning coupling on field cable runs.

Where the control architecture extends to distributed I/O, the OP3 panel’s MPI network can coexist with Siemens ET 200M or ET 200S remote I/O stations, allowing operators to monitor field device status and acknowledge alarms without leaving the control room. In safety-instrumented system (SIS) architectures, the panel provides the operator interface layer above the safety PLC, displaying trip status, bypass conditions, and interlock states that are critical for safe plant startup and shutdown sequences. Its compact form factor — compatible with standard DIN-rail cabinet cutouts — simplifies integration into existing enclosures without requiring panel redesign.

The 6AV3503-1DB10’s resistance to electromagnetic interference is particularly valuable in environments with large variable-frequency drives, high-current bus bars, or induction furnaces generating broadband EMI. Unlike consumer-grade touchscreens or unshielded display modules, the SIMATIC OP3’s hardware filtering and grounded metal housing maintain display stability and communication integrity in these high-noise conditions, preventing the nuisance alarms and operator confusion that arise from EMI-induced display glitches or PPI communication errors.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust control cabinet built around the Siemens 6AV3503-1DB10 requires a layered protection approach. At the power entry point, a Siemens SITOP PSU100S 24V/10A regulated power supply provides a clean, stabilized DC bus that absorbs mains-side disturbances before they reach sensitive electronics. Surge protection on both the AC input and DC output rails — using devices such as the Siemens 5SD7 series SPD — clamps transient overvoltages that would otherwise propagate through the cabinet wiring and stress the OP3’s internal power circuitry.

The PPI communication cable between the OP3 and the S7-200 CPU 224XP should be routed away from high-current power conductors and shielded where cable runs exceed 3 meters, in accordance with Siemens installation guidelines. For applications requiring remote I/O expansion, Siemens EM 223 digital I/O expansion modules extend the S7-200’s I/O capacity while maintaining the same PPI network that the OP3 monitors, ensuring that all field device states remain visible at the operator interface without additional wiring complexity.

Cabinet thermal management is equally critical: the OP3’s operating temperature ceiling of 50 °C means that cabinets in high-ambient environments should incorporate Siemens SK series cabinet cooling units or filtered fan assemblies to maintain internal temperatures within specification, preventing thermal-induced display degradation or communication instability during summer peak loads or in tropical climates.

Critical Industrial Safety Applications

The Siemens 6AV3503-1DB10 is deployed across a wide range of critical industrial sectors where operator interface reliability directly affects process safety and production continuity.

In petrochemical and refinery facilities, the OP3 provides operators with real-time visibility of pump interlock states, valve positions, and emergency shutdown (ESD) system status. Its IP65-rated front panel resists hydrocarbon vapors and cleaning agents, while its stable MPI/PPI communication ensures that alarm acknowledgment and setpoint adjustments are executed without communication dropouts during high-EMI conditions caused by large motor drives and transformer switching.

In power generation and substation control applications, the panel interfaces with S7-200 PLCs managing auxiliary systems such as cooling water pumps, lube oil systems, and generator excitation controls. The OP3’s ability to display multi-line process data and accept operator inputs without a PC-based SCADA system makes it a cost-effective and reliable solution for distributed auxiliary control panels.

In mining and mineral processing environments, where dust ingress, vibration, and wide temperature swings are constant challenges, the OP3’s sealed front panel and ruggedized construction maintain display legibility and input responsiveness over extended service intervals. Conveyor interlock monitoring, crusher load display, and pump station control are typical applications where the panel’s reliability reduces the risk of unplanned stoppages caused by HMI failure.

In water and wastewater treatment plants, the 6AV3503-1DB10 supports local operator control of dosing pumps, aeration blowers, and filtration sequences, providing a reliable local interface that continues to function even when SCADA communication to the central control room is interrupted — a critical fail-safe capability for maintaining treatment process continuity.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal industrial operating conditions. If the unit fails to perform its specified functions within the confirmed support period, we provide repair, replacement, or documented resolution support at our discretion. Support requests are processed promptly with minimal administrative burden to the customer.

Q2: How is each unit tested before shipment?
Every Siemens 6AV3503-1DB10 unit undergoes a full power-on functional test prior to dispatch. This includes display verification, keypad input testing, and MPI/PPI communication port validation. Units that do not pass all test criteria are quarantined and not shipped. A test record is maintained for traceability.

Q3: Is this unit compatible with my existing S7-200 system?
Yes. The 6AV3503-1DB10 is fully compatible with the Siemens S7-200 PLC family (CPU 212, 214, 221, 222, 224, 224XP, 226) via the PPI protocol. It is also compatible with SIMATIC S7-300 systems via MPI. Configuration is performed using Siemens ProTool or WinCC flexible software. If you have specific compatibility questions for your installation, contact our technical team before ordering.

Q4: Can you guarantee long-term supply and replacement support?
Yes. We maintain dedicated stock of the 6AV3503-1DB10 and related SIMATIC OP3 series components to support ongoing maintenance, spare parts programs, and emergency replacement requirements. For customers managing aging S7-200 installations, we recommend holding at least one spare unit on-site to eliminate lead-time risk during unplanned failures. Contact us to discuss volume pricing and reserved stock arrangements for your maintenance program.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6AV3503-1DB10
SIMATIC Series

Product Family

HMI & Displays

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Display range

Operator panels and touch screens

Common needs

Screen size, interface and version matching

Project support

Retrofit, spare unit and panel replacement

Inquiry Support

• Panel size and interface confirmation
• Replacement unit inquiry for discontinued HMIs
• Protective packaging for display shipment

What to Send Us

• Brand and exact model number: Siemens 6AV3503-1DB10
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
