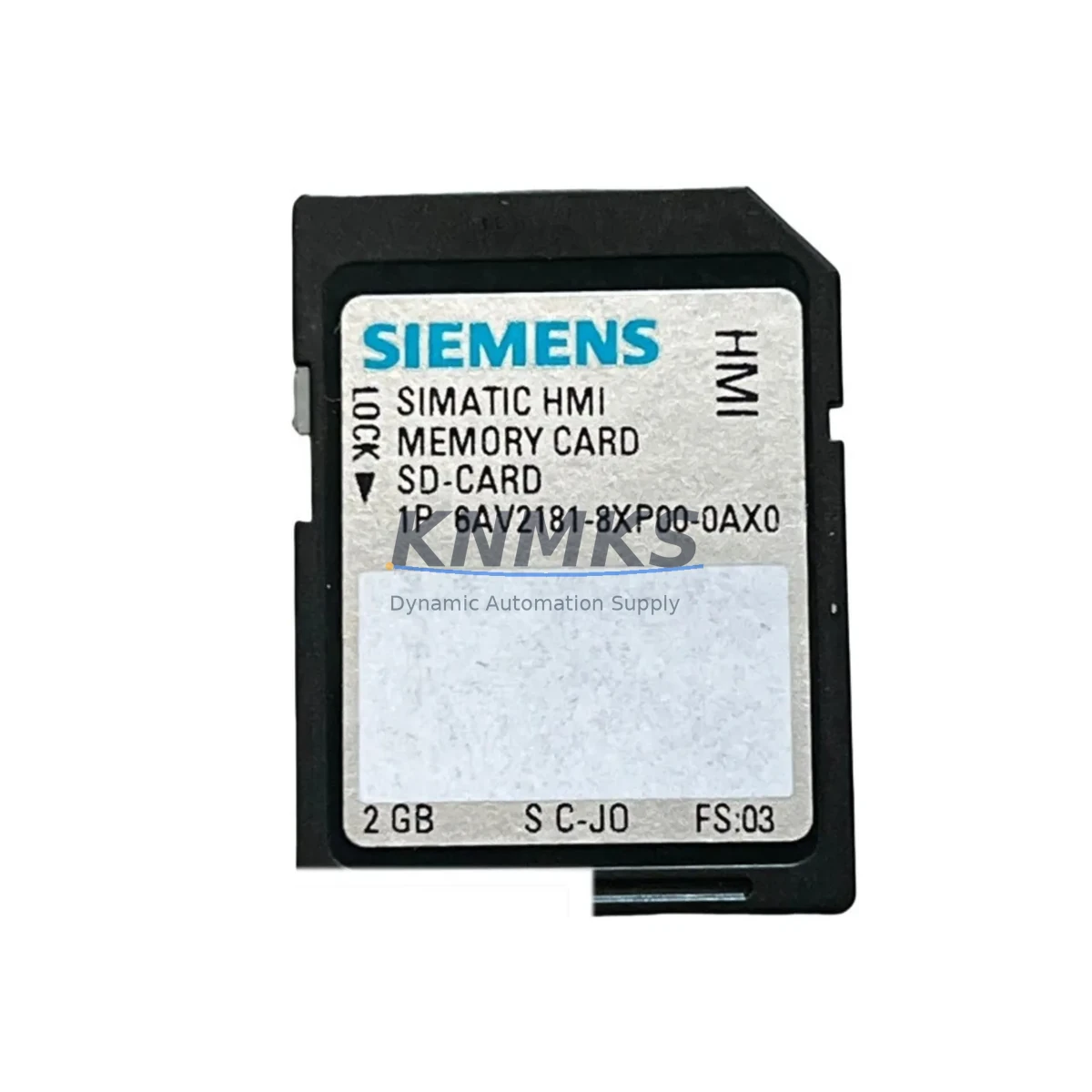

Siemens 6AV2181-8XP00-0AX0 Migration-Ready HMI SD Card

Overview

Siemens 6AV2181-8XP00-0AX0 Migration-Ready HMI SD Card: Legacy System Upgrade & Compatibility Guide

The Siemens 6AV2181-8XP00-0AX0 is a 2 GB SIMATIC HMI SD Card engineered for direct insertion into the SIMATIC Comfort Panel, TP series, and MP series operator panels. As legacy HMI platforms approach end-of-life and original Siemens SD cards become increasingly difficult to source through standard distribution channels, the 6AV2181-8XP00-0AX0 serves as the authoritative migration-ready replacement — preserving project data, recipe files, alarm logs, and firmware images without requiring panel replacement or re-engineering of the HMI application.

For maintenance engineers managing aging SCADA and DCS visualization layers, the 6AV2181-8XP00-0AX0 eliminates the risk of data loss during unplanned panel failures. The card stores WinCC Flexible and TIA Portal project archives, enabling rapid panel swap-out with zero re-commissioning of the HMI logic. This is particularly critical in process industries where the HMI panel interfaces directly with Siemens S7-300, S7-400, or S7-1500 PLCs over PROFIBUS DP or PROFINET IO — any interruption to the visualization layer can cascade into production downtime.

When planning a retrofit of an existing operator station, engineers must confirm the SD card slot format (standard SD, not microSD), the panel firmware version compatibility, and whether the existing project was compiled under WinCC Flexible 2008 SP5 or TIA Portal V13/V14/V15/V16. The 6AV2181-8XP00-0AX0 supports all current Comfort Panel firmware revisions and is pre-formatted to Siemens factory specification, eliminating field formatting errors that can corrupt project data on generic SD cards.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful HMI SD card retrofit within an existing automation system requires more than a physical card swap. Engineers must audit the full control cabinet context before proceeding. In a typical Siemens-based control architecture, the Comfort Panel running on the 6AV2181-8XP00-0AX0 SD card will be communicating with a Siemens S7-1500 CPU or a legacy S7-300 rack via PROFINET or PROFIBUS. The PLC rack may include digital and analog I/O modules such as the SM 321 or SM 331, and the communication between the HMI and PLC relies on a correctly configured network interface — either the integrated PROFINET port on the CPU or a CP 343-1 communications processor for older S7-300 systems.

Before transferring the HMI project to the new SD card, the engineer should export the current project from the existing card using TIA Portal’s Transfer function or WinCC Flexible’s Transfer wizard. The project file should be backed up to an engineering workstation and version-controlled. If the panel is a TP1200 Comfort or TP1500 Comfort, the project archive will include screen layouts, tag connections, alarm classes, recipe structures, and trend configurations — all of which must be verified intact after the card is replaced.

In retrofit scenarios involving a full panel replacement (e.g., upgrading from an MP277 to a TP1200 Comfort), the 6AV2181-8XP00-0AX0 card in the new panel must receive a freshly compiled project from TIA Portal, as WinCC Flexible projects are not directly compatible with TIA Portal Comfort Panel targets without migration. The SIMATIC WinCC Flexible Migration Tool should be used to convert legacy projects before transfer. During this process, engineers should also verify the SIMATIC NET configuration, particularly if the system uses an S7-400 with a CP 443-1 for Ethernet connectivity, as IP address assignments and subnet masks must be preserved.

For control cabinets that include a SITOP PSU300S or SITOP modular power supply feeding the panel, engineers should confirm that the 24 VDC rail remains stable during card insertion and removal — voltage dips during hot-swap attempts on older panels can trigger panel resets and corrupt the SD card file system. A SIMATIC S7-1200 acting as a local safety relay controller in the same cabinet should also be checked for any interlocks tied to the HMI panel’s operational status signal.

Downtime Control During System Migration

Minimizing downtime during an HMI SD card migration is achievable with disciplined pre-planning. The recommended approach is to prepare the replacement 6AV2181-8XP00-0AX0 card off-line: load the verified project image onto the card using a PC-based SD card writer and TIA Portal’s Memory Card function before the maintenance window begins. This eliminates the need for an engineering laptop connection at the panel during the live swap, reducing the on-site intervention to under five minutes.

During the maintenance window, the sequence should be: (1) place the PLC in STOP mode via the CPU’s mode selector or TIA Portal online function to freeze all outputs; (2) power down the HMI panel; (3) remove the old SD card and insert the pre-loaded 6AV2181-8XP00-0AX0; (4) power up the panel and allow the project to load automatically from the card; (5) verify all HMI screens, tag connections, and alarm displays before returning the PLC to RUN mode. This sequence protects the original program logic in the PLC — the S7 program in the CPU’s load memory is unaffected by the HMI card swap — and maintains field control continuity throughout the process.

For systems where the HMI panel is the primary operator interface for a continuous process (e.g., a chemical dosing skid or a conveyor control system), a shadow operator station or a temporary local control panel with manual overrides should be prepared in advance. This ensures that field operators retain control of critical outputs — valve positions, pump speeds, and interlock bypasses — during the HMI migration window, even if the panel is offline for longer than anticipated due to project transfer delays or firmware update requirements.

Retrofit Support FAQ

Q1: Is the 6AV2181-8XP00-0AX0 a direct replacement for the original Siemens HMI SD card in my Comfort Panel?
Yes. The 6AV2181-8XP00-0AX0 is the genuine Siemens SIMATIC HMI SD Card 2GB and is the correct OEM replacement for all Comfort Panel models that use a standard SD slot. No reformatting or special initialization is required — insert the card, transfer your project via TIA Portal or WinCC Flexible, and the panel will boot from the card automatically.

Q2: Can I use this card to migrate a WinCC Flexible project to a TIA Portal Comfort Panel?
The card itself is format-agnostic and will store any project compiled for a compatible panel. However, WinCC Flexible projects must be migrated using the SIMATIC WinCC Flexible Migration Tool within TIA Portal before they can be transferred to a Comfort Panel running TIA Portal firmware. The 6AV2181-8XP00-0AX0 will hold the migrated project without issue once the migration is complete.

Q3: What pre-shipment testing is performed on the 6AV2181-8XP00-0AX0?
Each unit undergoes read/write verification and format integrity checks before dispatch. Cards are tested to confirm full 2 GB capacity recognition and Siemens factory format compliance. Units that fail any test are quarantined and not shipped. All shipped units are covered by a support terms confirmed by quotation against manufacturing defects and premature read/write failure.

Q4: What is the lead time and stock availability?
The 6AV2181-8XP00-0AX0 is maintained in regional warehouse stock to support urgent maintenance requirements. Standard orders ship within 1–3 business days. For bulk procurement or blanket stock programs supporting multi-site maintenance contracts, contact our sales team to discuss allocation and priority fulfillment arrangements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6AV2181-8XP00-0AX0
SIMATIC Series

Product Family

HMI & Displays

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Display range

Operator panels and touch screens

Common needs

Screen size, interface and version matching

Project support

Retrofit, spare unit and panel replacement

Inquiry Support

• Panel size and interface confirmation
• Replacement unit inquiry for discontinued HMIs
• Protective packaging for display shipment

What to Send Us

• Brand and exact model number: Siemens 6AV2181-8XP00-0AX0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
