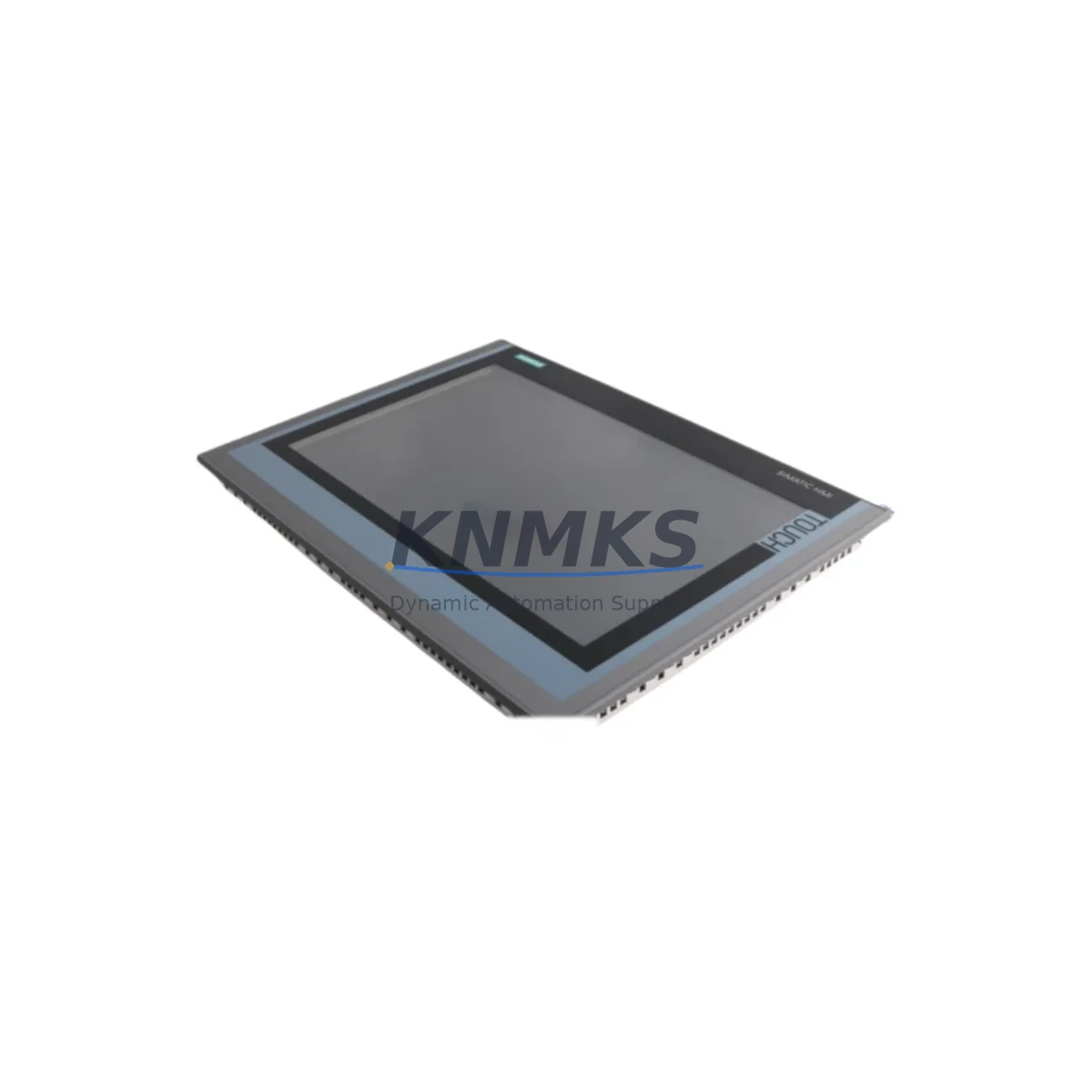

Siemens 6AV2124-0QC02-0AX1 Fail-Safe HMI Panel

Overview

Siemens 6AV2124-0QC02-0AX1 Fail-Safe HMI Panel: Fault-Tolerant Visualization for Critical Industrial Control

The Siemens 6AV2124-0QC02-0AX1 is a SIMATIC HMI TP1200 Comfort 12-inch widescreen touch panel engineered for demanding industrial environments where operator interface reliability is non-negotiable. Designed to meet the visualization and control demands of continuous production lines, critical safety interlocks, and high-availability process control architectures, this panel delivers consistent performance under conditions that would compromise lesser HMI hardware. With a robust aluminum front frame, IP65/NEMA 4 ingress protection rating, and a wide operating temperature range of 0°C to +50°C, the 6AV2124-0QC02-0AX1 is built to remain operational in dusty, humid, high-vibration, and thermally stressed control cabinet environments.

In petrochemical plants, power generation facilities, mining operations, and water treatment stations, unplanned HMI downtime can cascade into process shutdowns, safety interlock failures, and significant financial loss. The 6AV2124-0QC02-0AX1 addresses this risk through its high-brightness 12.1″ TFT display with 1280×800 resolution, ensuring clear operator visibility even in high-ambient-light conditions. Its capacitive multi-touch screen eliminates mechanical wear points common in resistive touch designs, reducing the probability of touch input failure during critical process interventions. The panel’s integrated PROFINET and MPI/PROFIBUS DP interfaces provide redundant communication pathways, minimizing the risk of communication loss between the HMI and the underlying Siemens S7-300, S7-400, or S7-1500 PLC controllers that govern process logic and safety functions.

Control cabinet thermal management is a persistent challenge in heavy industrial installations. The 6AV2124-0QC02-0AX1 operates within a sealed, fanless enclosure design that eliminates internal airflow dependency, reducing particulate ingress risk and simplifying cabinet thermal planning. When deployed alongside Siemens SITOP PSU8600 power supply modules, which provide regulated 24 VDC with integrated diagnostics and load-segment switching, the HMI panel benefits from a stable, surge-protected power environment. This combination significantly reduces the risk of display corruption, touchscreen lockup, or unexpected reboots caused by power rail fluctuations — a common failure mode in facilities with large motor drives or frequent switching loads on shared distribution panels.

In high electromagnetic interference environments — such as those adjacent to variable frequency drives, large contactors, or high-current bus bars — the 6AV2124-0QC02-0AX1’s EMC-compliant design, tested to EN 61000-6-2 industrial immunity standards, ensures that signal integrity at the operator interface is maintained. This is particularly critical in safety interlock visualization scenarios where an operator must receive accurate, real-time process status to make informed intervention decisions. The panel’s ability to maintain stable PROFINET communication under EMI conditions complements the fault-tolerant architecture of Siemens ET 200SP distributed I/O modules and F-CPU safety controllers, which together form the backbone of many SIL 2-rated safety instrumented systems in process industries.

For applications requiring integrated safety visualization, the 6AV2124-0QC02-0AX1 supports WinCC Comfort/Advanced runtime environments, enabling the development of safety-relevant screen objects, alarm management displays, and process trend visualization that align with IEC 62061 and ISO 13849 functional safety documentation requirements. In mining and metallurgical applications, where conveyor interlock status, crusher load monitoring, and emergency stop confirmation must be presented without ambiguity, the panel’s high-contrast display and configurable alarm notification system reduce operator response time and the probability of missed safety events.

Replacement and spare parts availability is a critical factor in long-term plant reliability planning. KNMKS maintains verified stock of the 6AV2124-0QC02-0AX1 with a support terms confirmed by quotation covering manufacturing defects and functional performance. Each unit undergoes pre-shipment functional testing including display uniformity verification, touch calibration confirmation, and communication interface validation. For facilities managing aging SIMATIC HMI infrastructure, the 6AV2124-0QC02-0AX1 provides a direct form-fit-function replacement for earlier TP1200 Comfort variants, supporting backward compatibility with existing WinCC project files and panel mounting cutouts. Complementary components such as the Siemens 6AV2181-8XP00-0AX0 SIMATIC HMI USB Industrial Mouse and Siemens 6GK7243-1BX30-0XE0 CP 1243-1 communication processor are also available to support complete control station upgrades without requiring full cabinet redesign.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the 6AV2124-0QC02-0AX1 as the primary operator interface within a safety-rated control cabinet requires careful integration with complementary protection and communication components. In high-availability architectures, the panel is typically paired with a Siemens SITOP PSU8600 modular power supply, which provides 24 VDC with per-channel load monitoring and selective shutdown capability — ensuring that a fault on one cabinet segment does not propagate to the HMI visualization circuit. For cabinets housing Siemens S7-1500F safety CPUs, the PROFINET connection between the 6AV2124-0QC02-0AX1 and the CPU’s integrated PN interface enables real-time safety status visualization without introducing additional communication latency that could delay operator response to safety-relevant alarms.

In installations where the control cabinet also houses Siemens ET 200SP HA distributed I/O modules for field signal acquisition, the HMI panel’s dual PROFINET ports support ring topology configurations that provide communication path redundancy — a critical feature in continuous process environments where a single cable fault must not result in operator interface blackout. For surge and transient protection on the 24 VDC supply rail feeding the panel, Siemens DEHNguard surge protection devices are commonly integrated at the cabinet entry point, protecting the HMI and co-located components such as Siemens SCALANCE X208 managed switches from voltage spikes induced by nearby switching equipment or lightning events on field cable runs. Where long-distance PROFIBUS DP communication is required in legacy hybrid architectures, Siemens DP/DP couplers and RS485 repeaters maintain signal integrity across extended cable runs, ensuring the 6AV2124-0QC02-0AX1 receives consistent process data from remote field devices.

Critical Industrial Safety Applications

The Siemens 6AV2124-0QC02-0AX1 is deployed across a broad range of critical industrial sectors where operator interface reliability directly impacts process safety and production continuity. In petrochemical and refinery environments, the panel serves as the primary local operator interface for emergency shutdown system (ESD) status visualization, displaying real-time valve position feedback, pressure interlock status, and safety instrumented function (SIF) bypass authorization screens. Its IP65-rated front panel withstands the hydrocarbon vapor, humidity, and cleaning agent exposure common in these facilities.

In power generation plants — including thermal, hydroelectric, and combined-cycle facilities — the 6AV2124-0QC02-0AX1 is used for turbine control panel visualization, generator protection relay status display, and auxiliary system monitoring. The panel’s wide operating temperature tolerance and fanless design make it suitable for installation in outdoor-rated enclosures and non-air-conditioned switchgear rooms. In underground mining operations, where dust, vibration, and humidity present constant challenges to electronic equipment reliability, the panel’s sealed construction and capacitive touch technology (which functions with gloved hands) support safe and efficient operation by personnel working in personal protective equipment.

Water and wastewater treatment facilities rely on the 6AV2124-0QC02-0AX1 for pump station control visualization, chemical dosing system monitoring, and SCADA integration at remote lift stations. In metallurgical and steel production environments, the panel is integrated into rolling mill control stations, furnace temperature management interfaces, and crane control cabinets, where its high-brightness display ensures readability in high-ambient-light conditions near furnace openings. Port and marine terminal automation systems use the panel for container crane operator interfaces and ship-to-shore communication system status displays, where reliable touch response and communication stability are essential for safe cargo handling operations.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 6AV2124-0QC02-0AX1?
The support terms confirmed by quotation cover manufacturing defects and verified functional performance failures under normal operating conditions. Each unit is pre-shipment tested for display uniformity, touch calibration accuracy, and communication interface functionality. Support requests are supported with direct technical assistance and replacement unit coordination to minimize site downtime.

Q2: How is the 6AV2124-0QC02-0AX1 tested before shipment?
Every unit undergoes a structured pre-shipment inspection protocol including power-on functional verification, display pixel and brightness uniformity check, capacitive touch response calibration confirmation, and PROFINET/MPI interface communication test. Units that do not pass all test criteria are quarantined and not dispatched, ensuring that only fully functional panels reach customer sites.

Q3: Is the 6AV2124-0QC02-0AX1 compatible with existing WinCC projects and TP1200 Comfort panel cutouts?
Yes. The 6AV2124-0QC02-0AX1 is dimensionally and functionally compatible with earlier TP1200 Comfort panel variants, supporting direct panel cutout reuse and WinCC Comfort/Advanced project file migration without requiring full project redesign. Communication interface compatibility with S7-300, S7-400, S7-1200, and S7-1500 controllers is maintained, making it a reliable drop-in replacement for aging HMI infrastructure in brownfield installations.

Q4: Can long-term supply of the 6AV2124-0QC02-0AX1 be guaranteed for multi-year maintenance programs?
KNMKS maintains verified stock of the 6AV2124-0QC02-0AX1 and actively monitors supply chain availability to support blanket-stock and scheduled replenishment programs for customers with multi-site or multi-year spare parts requirements. Customers managing critical infrastructure with long lead-time risk are encouraged to contact our team to discuss reserved stock arrangements and priority allocation agreements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6AV2124-0QC02-0AX1
SIMATIC Series

Product Family

HMI & Displays

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Display range

Operator panels and touch screens

Common needs

Screen size, interface and version matching

Project support

Retrofit, spare unit and panel replacement

Inquiry Support

• Panel size and interface confirmation
• Replacement unit inquiry for discontinued HMIs
• Protective packaging for display shipment

What to Send Us

• Brand and exact model number: Siemens 6AV2124-0QC02-0AX1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
