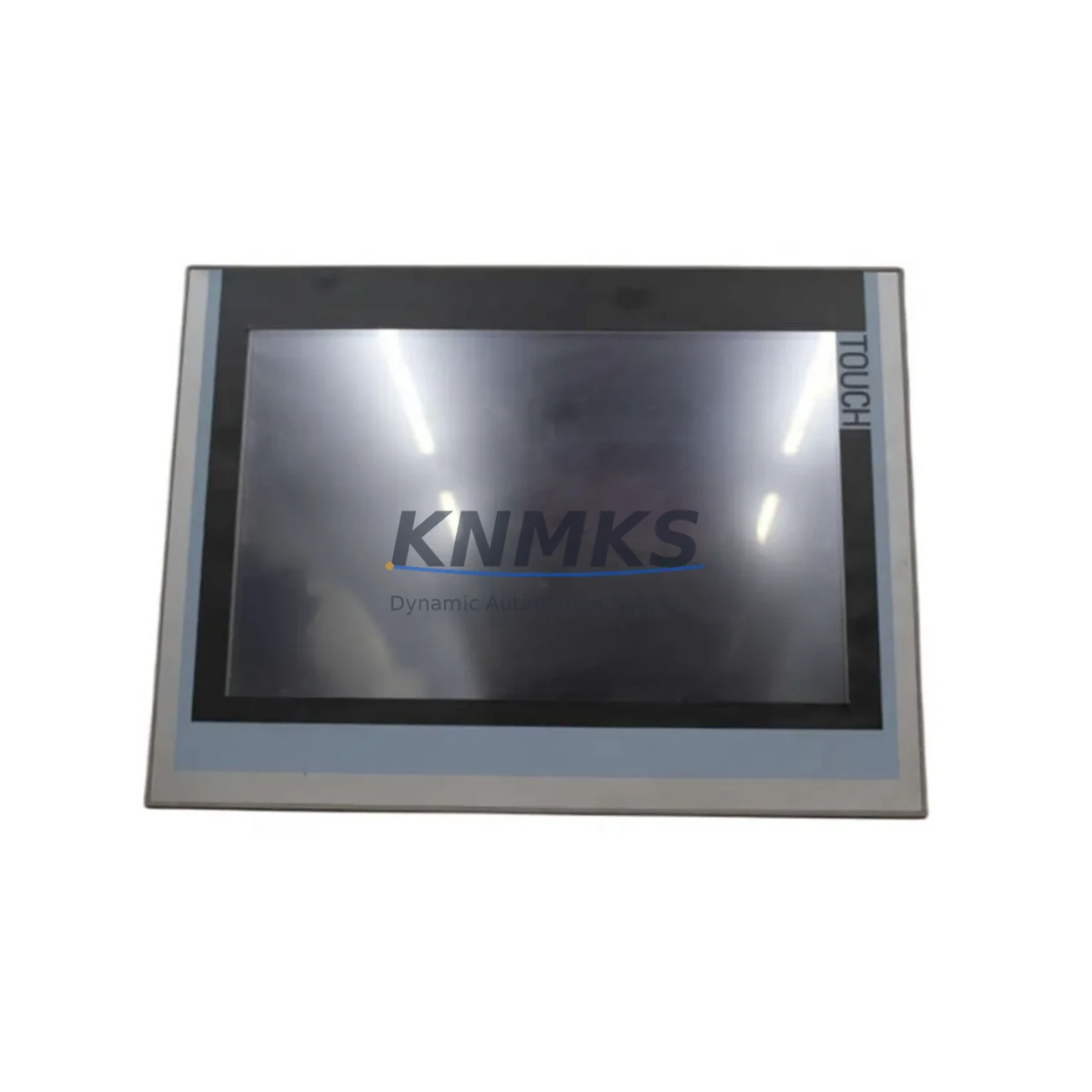

Siemens 6AV2124-0QC02-0AX0 Fail-Safe HMI Panel

Overview

Siemens 6AV2124-0QC02-0AX0 Fail-Safe HMI Panel: Fault-Tolerant Visualization for Critical Industrial Control

The Siemens 6AV2124-0QC02-0AX0 is a 12-inch widescreen SIMATIC TP1200 Comfort HMI panel engineered for continuous, fail-safe operation in demanding industrial environments. Designed to serve as the primary human-machine interface in safety-critical control architectures, this panel delivers high-resolution process visualization, robust EMI immunity, and IP65-rated ingress protection — making it a trusted component in control cabinets exposed to dust, moisture, vibration, and wide temperature fluctuations. Whether deployed in petrochemical interlock systems, power distribution substations, mining extraction lines, or water treatment SCADA networks, the 6AV2124-0QC02-0AX0 maintains stable, uninterrupted operator communication even under the most adverse field conditions.

In continuous production environments where unplanned downtime carries severe operational and financial consequences, the reliability of the HMI layer is non-negotiable. The 6AV2124-0QC02-0AX0 addresses this requirement through a hardened hardware platform with wide-range DC power input tolerance, ensuring stable display and control response despite voltage fluctuations and transient surges common in heavy industrial power systems. Its integrated surge protection and EMI shielding architecture suppress signal drift and communication anomalies that frequently compromise lesser panels in high-interference environments such as variable frequency drive cabinets, arc furnace control rooms, and port crane electrical enclosures.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered industrial control cabinet, the 6AV2124-0QC02-0AX0 operates as the visualization and operator interaction node within a layered protection architecture. It is typically paired with a Siemens SIMATIC S7-1500F or S7-300F safety PLC, which handles the fail-safe logic execution and safety-rated I/O processing. The HMI communicates over PROFINET or MPI/PROFIBUS DP, providing real-time process status, alarm acknowledgment, and parameter adjustment without interrupting the underlying safety program execution.

Power integrity for the panel is maintained through a Siemens SITOP PSU8600 or equivalent 24 V DC regulated power supply with integrated diagnostics and buffer modules, ensuring the HMI remains operational during brief mains interruptions. Upstream surge protection — such as Siemens DEHN or Phoenix Contact surge arresters rated for IEC 61643-11 — shields the panel’s power and communication ports from transient overvoltages caused by nearby switching operations or lightning-induced surges on field cable runs.

For cabinets operating in high-EMI environments, the 6AV2124-0QC02-0AX0 is installed with proper cable shielding and grounding discipline, often alongside Siemens SIMATIC ET 200SP distributed I/O modules that handle field signal conditioning and isolation. In safety interlock circuits, the panel’s alarm and acknowledgment functions are integrated with Siemens SIRIUS 3SK safety relays or equivalent safety relay modules, ensuring that operator actions at the HMI are correctly reflected in the safety loop state. Cabinet thermal management — critical for sustained HMI reliability — is addressed through Rittal or Siemens-compatible cooling units and filtered fan assemblies that maintain internal temperatures within the panel’s rated operating range.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: The 6AV2124-0QC02-0AX0 is deployed in emergency shutdown (ESD) and process safety management (PSM) control stations where operators must monitor critical process variables — pressure, temperature, flow — and acknowledge safety alarms in real time. Its IP65 rating and EMI immunity ensure reliable operation in environments with hydrocarbon vapors, high-voltage switching, and continuous vibration from rotating machinery.

Electric Power Generation & Substation Control: In power plant DCS and substation automation panels, this HMI provides operators with a clear, high-resolution interface for generator excitation control, transformer protection relay status, and bus switching sequences. Its wide-range DC power input and surge tolerance are essential in substations where power quality is inherently variable.

Mining & Mineral Processing: Underground and surface mining operations subject control equipment to extreme dust loading, mechanical shock, and humidity. The 6AV2124-0QC02-0AX0’s IP65 front protection and vibration-rated construction make it suitable for conveyor control stations, crusher interlock panels, and ventilation safety systems in these environments.

Water & Wastewater Treatment: SCADA-integrated HMI stations in water treatment facilities require continuous uptime and resistance to condensation and chemical vapors. This panel’s sealed front face and robust communication stack support reliable integration with PROFINET-based pump control, dosing system monitoring, and alarm management in both municipal and industrial water treatment plants.

Metallurgy & Steel Production: In electric arc furnace (EAF) and continuous casting control rooms, the 6AV2124-0QC02-0AX0 withstands the intense electromagnetic interference generated by high-current switching and induction heating systems, maintaining stable visualization and control response for melt shop operators.

Port & Marine Crane Systems: Shipboard and port crane electrical cabinets demand HMI panels that tolerate salt-laden air, vibration, and wide ambient temperature swings. The SIMATIC TP1200 Comfort platform’s environmental ratings and long-term Siemens spare parts availability make the 6AV2124-0QC02-0AX0 a preferred choice for crane OEMs and retrofit projects.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 6AV2124-0QC02-0AX0?
The support terms confirmed by quotation cover all manufacturing defects, component failures, and functional anomalies under normal industrial operating conditions. Each unit undergoes pre-shipment functional testing including display verification, communication port validation, and power input range testing before dispatch. Support requests are processed with direct technical support and replacement unit coordination.

Q2: Has this unit been tested before shipment?
Yes. Every 6AV2124-0QC02-0AX0 unit is subject to outgoing quality inspection (OQI) prior to shipment. Testing covers power-on functionality, touchscreen calibration, PROFINET and MPI/PROFIBUS communication interface verification, and visual inspection for physical integrity. Test records are maintained for traceability.

Q3: Is the 6AV2124-0QC02-0AX0 compatible with existing Siemens S7-300/400 PLC systems?
Yes. The panel supports MPI and PROFIBUS DP communication protocols natively, ensuring direct compatibility with legacy Siemens S7-300 and S7-400 PLC installations. It also supports PROFINET for integration with S7-1200 and S7-1500 systems, making it a migration-ready HMI choice for both brownfield and greenfield projects.

Q4: Can long-term spare parts supply be guaranteed?
We maintain dedicated stock of the 6AV2124-0QC02-0AX0 and key SIMATIC TP1200 Comfort series accessories to support long-term spare parts programs. For critical infrastructure operators requiring multi-year supply assurance, we offer reserved stock arrangements and lead-time commitments. Contact our sales team to discuss your specific spare parts planning requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6AV2124-0QC02-0AX0
SIMATIC Series

Product Family

HMI & Displays

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Display range

Operator panels and touch screens

Common needs

Screen size, interface and version matching

Project support

Retrofit, spare unit and panel replacement

Inquiry Support

• Panel size and interface confirmation
• Replacement unit inquiry for discontinued HMIs
• Protective packaging for display shipment

What to Send Us

• Brand and exact model number: Siemens 6AV2124-0QC02-0AX0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
