Siemens 6AV2124-0MC01-0AX0 Fail-Safe HMI for Industrial Control

Overview

Siemens 6AV2124-0MC01-0AX0 Fail-Safe HMI for Industrial Control

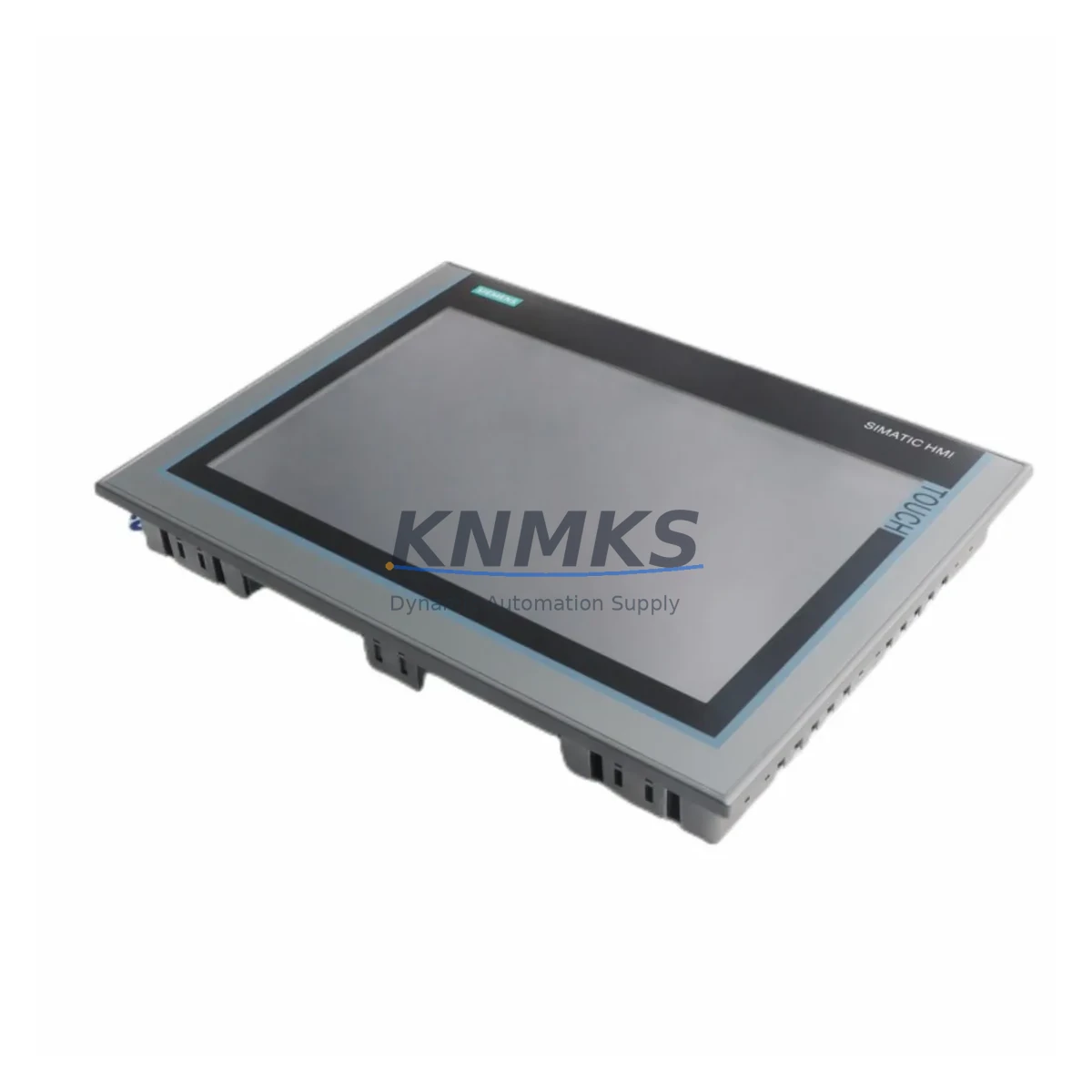

The Siemens 6AV2124-0MC01-0AX0 is a TP1200 Comfort series 12-inch widescreen HMI touch panel engineered for fail-safe operation in demanding industrial control environments. Designed to serve as the primary human-machine interface in critical process loops, this panel delivers uninterrupted visualization, operator control, and alarm management across continuous production lines, safety interlocks, and high-load control cabinets where control interruption carries significant operational and safety risk.

With its robust IP65-rated front panel, the 6AV2124-0MC01-0AX0 provides reliable protection against dust ingress and water jets — a critical requirement in petrochemical plants, water treatment facilities, metallurgical workshops, and port logistics environments where airborne particulates, humidity, and chemical exposure are constant threats. The sealed enclosure prevents contamination-driven display degradation and touch-response drift, ensuring operators receive accurate, real-time process data at all times.

The panel supports both PROFINET and MPI/PROFIBUS DP communication interfaces, enabling seamless integration with Siemens S7-300, S7-400, and S7-1500 PLC families. This dual-protocol flexibility eliminates communication bottlenecks in mixed-architecture control cabinets and reduces the risk of signal loss or protocol mismatch during system expansion or retrofit. In high electromagnetic interference (EMI) environments — such as those near variable frequency drives, large motor starters, or high-voltage switchgear — the panel’s shielded communication architecture maintains data integrity and prevents spurious alarm triggers or missed interlock signals.

Power supply stability is a foundational concern in industrial control reliability. The 6AV2124-0MC01-0AX0 operates on a 24 VDC supply and is designed to tolerate voltage fluctuations common in field power distribution systems. When paired with a Siemens SITOP PSU100S 24V stabilized power supply unit, the HMI panel maintains continuous operation through transient voltage dips and surge events, protecting both the display system and the upstream PLC communication link from power-induced faults.

In control cabinet environments subject to thermal stress, the panel’s fanless design and wide operating temperature range reduce the risk of heat-related failures. Unlike active-cooled displays, the passive thermal management of the TP1200 Comfort eliminates a common failure mode in high-ambient-temperature enclosures — particularly relevant in foundry, cement, and mining applications where cabinet internal temperatures can exceed standard ratings during peak production cycles.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable control cabinet architecture for critical industrial processes requires more than a single high-quality HMI. The 6AV2124-0MC01-0AX0 is most effective when deployed as part of a coordinated protection strategy. In S7-1500-based control systems, pairing this HMI with a Siemens CPU 1516-3 PN/DP ensures high-speed process data exchange and deterministic scan cycle performance — reducing the risk of visualization lag or missed alarm acknowledgment during rapid process upsets.

For communication backbone integrity, the Siemens SCALANCE X208 Industrial Ethernet Switch provides managed PROFINET connectivity with port-level diagnostics, enabling early detection of cable faults or network congestion before they propagate to the HMI display layer. In safety interlock circuits, the Siemens ET 200SP distributed I/O modules extend the control reach of the S7 PLC to field devices while maintaining PROFINET communication reliability across long cabinet-to-field cable runs.

Surge and transient protection is addressed by integrating Siemens DEHN or OBO Bettermann surge protection devices on the 24 VDC supply rail feeding the HMI panel — a standard practice in outdoor substations, port crane control rooms, and mining headframe installations where lightning-induced surges are a documented failure cause. The Siemens SITOP PSU100S stabilized power supply upstream of the HMI further buffers against brownout conditions that can corrupt active HMI sessions or trigger unintended alarm states.

For applications requiring safety-rated control, the Siemens SIMATIC S7-300 F-CPU or S7-1500F fail-safe CPU can be integrated with the 6AV2124-0MC01-0AX0 to provide a complete visualization and safety execution platform — meeting SIL 2/3 requirements in process safety management systems across petrochemical and power generation facilities.

Critical Industrial Safety Applications

The Siemens 6AV2124-0MC01-0AX0 is deployed across a wide range of safety-critical industrial environments:

Petrochemical & Refinery Plants: Used as the primary operator interface for reactor temperature monitoring, emergency shutdown (ESD) system visualization, and valve position feedback in continuous process units. Its IP65 rating and EMI shielding are essential in environments with high-voltage motor drives and flammable atmosphere zones adjacent to control rooms.

Electric Power Generation & Substation Control: Deployed in turbine control panels and substation SCADA interfaces where uninterrupted display operation during grid switching events is mandatory. The panel’s surge-tolerant power input and PROFINET redundancy support prevent control blackouts during fault clearance sequences.

Mining & Mineral Processing: Installed in conveyor drive control stations, crusher monitoring panels, and ventilation safety systems in underground and open-cut mining operations. The fanless design and wide temperature tolerance ensure reliable operation in dusty, high-vibration headframe and processing plant environments.

Water & Wastewater Treatment: Used for pump station control, dosing system monitoring, and SCADA visualization in municipal and industrial water treatment facilities. The IP65 front seal prevents moisture ingress in high-humidity pump rooms and outdoor kiosk installations.

Metallurgy & Steel Production: Integrated into rolling mill control desks, furnace temperature management systems, and ladle crane operator stations where high ambient temperatures, vibration, and electromagnetic noise from induction heating equipment demand robust HMI hardware.

Port & Marine Logistics: Deployed in ship-to-shore crane control cabinets and port terminal automation systems where salt air, humidity, and mechanical vibration from crane operations require sealed, vibration-resistant HMI panels with reliable PROFINET communication to PLC systems.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 6AV2124-0MC01-0AX0?
The support terms confirmed by quotation cover all hardware defects and functional failures under normal operating conditions, including display, touch interface, communication ports, and power input circuitry. Support requests are supported with direct replacement or repair, with documented RMA procedures available upon request.

Q2: What pre-shipment testing is performed before dispatch?
Every unit undergoes a full power-on functional test, touch calibration verification, and PROFINET/MPI communication port check before shipment. Test records are available upon request for quality-critical procurement processes.

Q3: Is the 6AV2124-0MC01-0AX0 compatible with existing S7-300 and S7-400 PLC systems?
Yes. The panel supports MPI and PROFIBUS DP protocols natively, enabling direct integration with S7-300 and S7-400 CPUs without gateway hardware. PROFINET connectivity also supports S7-1500 and ET 200SP systems, making it suitable for both legacy retrofit and new installation projects.

Q4: Can long-term supply and replacement support be guaranteed for this model?
Stock availability is maintained for this SKU to support planned maintenance, emergency replacement, and MRO procurement programs. Lead times and available quantities can be confirmed at the time of inquiry. For critical production environments, advance stock reservation is recommended to eliminate unplanned downtime risk from component unavailability.
