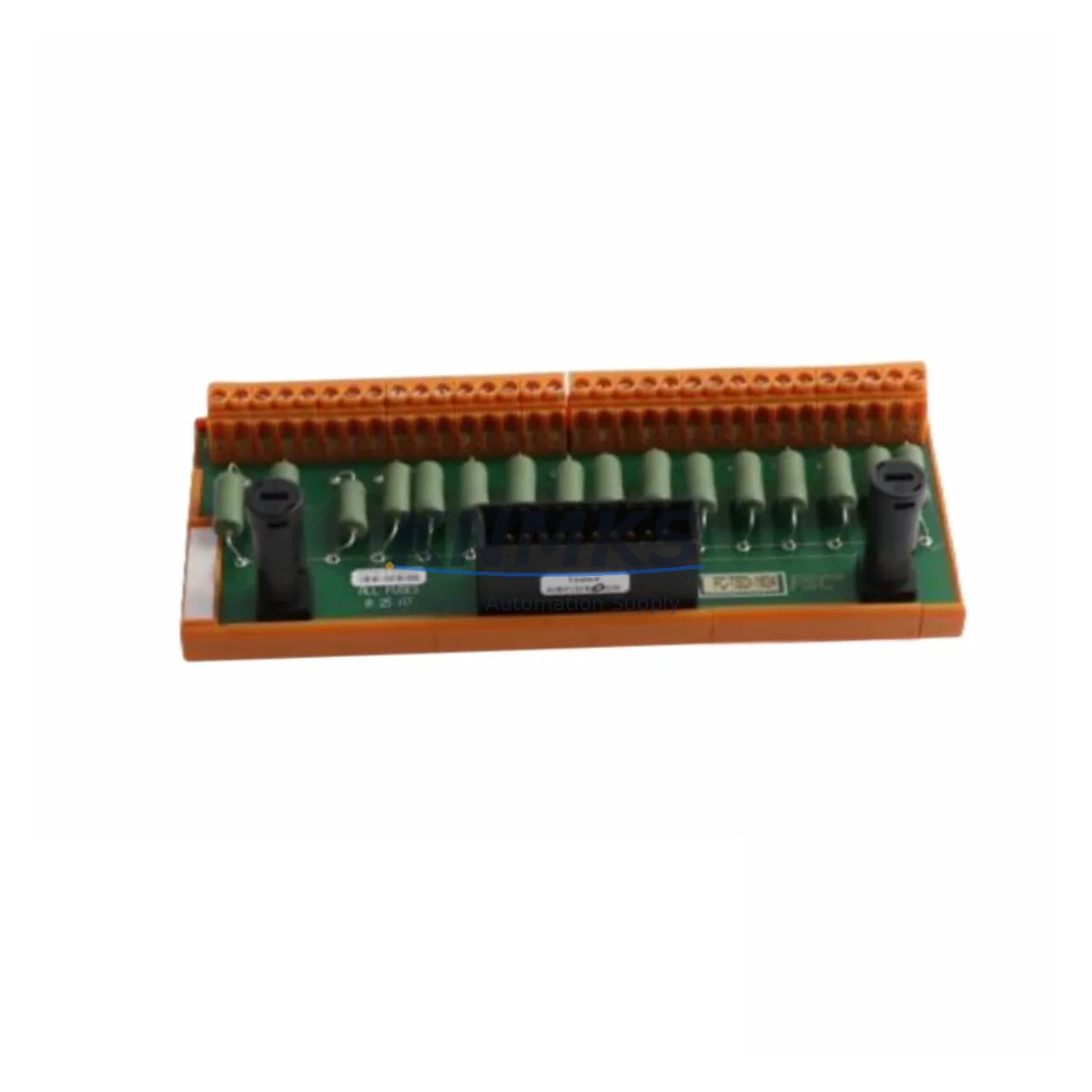

Honeywell X22206604 Migration-Ready Analog Input Module

Overview

Honeywell X22206604 Migration-Ready Analog Input Module: Legacy DCS Migration and Compatible Upgrade

The Honeywell X22206604 is a migration-ready analog input module engineered for HC900 Hybrid Controller series installations facing end-of-life transitions, legacy control system upgrades, and spare part lifecycle extension programs. As process plants accelerate the retirement of aging DCS platforms, the X22206604 provides a verified drop-in replacement path that preserves existing field wiring, terminal block assignments, and backplane slot addressing — dramatically reducing retrofit engineering hours and unplanned downtime risk.

Designed for direct installation into HC900 rack assemblies, this module supports up to 16 analog input channels with configurable signal ranges covering 4–20 mA, 0–10 V, thermocouple, and RTD inputs. Its firmware is fully compatible with HC900 Controller firmware revisions currently in active support, and the module communicates natively over the HC900 backplane bus without requiring protocol bridge adapters or gateway devices. For sites migrating from earlier HC900 hardware revisions, engineers should verify the rack backplane revision and controller firmware version prior to installation to confirm slot addressing compatibility and I/O map alignment.

Field teams replacing legacy analog input cards should confirm terminal wiring polarity, shield grounding continuity, and channel-to-tag mapping against the existing loop drawings before powering the replacement module. The X22206604 retains the same physical terminal block pitch as predecessor modules in the HC900 analog I/O family, allowing direct re-termination without rewiring the marshalling cabinet. Where signal isolators are installed upstream of the module — particularly on long cable runs or in high-noise environments — isolation barrier ratings should be verified against the module’s input impedance specifications to avoid signal attenuation errors post-retrofit.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful HC900 analog input retrofit requires coordinated planning across multiple system layers. Before scheduling the physical module swap, the engineering team should audit the HC900 Controller — typically an HC900 C50 or C70 controller unit — to confirm available rack slots, current I/O load, and power supply headroom. The HC900 Power Supply module feeding the rack must be verified to support the combined current draw of all installed I/O modules after the replacement card is seated; undersized power supplies are a common cause of intermittent faults following retrofit work.

For sites running Modbus RTU communications to upstream SCADA or historian systems, the X22206604’s Modbus register map should be cross-referenced against the existing polling configuration to confirm that register addresses for each analog channel remain consistent. Where HART-enabled field instruments are connected, the module’s HART pass-through capability allows continued use of handheld communicators for valve positioner and transmitter diagnostics without additional wiring changes.

Control cabinet space planning should account for the HC900 Rack — whether a 4-slot, 8-slot, or 12-slot chassis — and confirm that adjacent modules such as HC900 Digital Output modules or HC900 Communication modules are not physically obstructed during the swap procedure. In multi-rack configurations connected via HC900 Rack Communication cables, the replacement module’s slot address must be re-confirmed in the HC900 Designer configuration software to prevent I/O address conflicts that would corrupt the running control strategy. Signal isolators installed between field junction boxes and the module terminals should be tested for loop continuity after re-termination, particularly on thermocouple and RTD channels where cold junction compensation accuracy is critical to process control performance.

Where the existing installation includes an HC900 Ethernet Communication module for OPC-DA or OPC-UA connectivity to the plant DCS historian, no changes to the communication module configuration are required following the analog input card replacement, provided the controller tag database is not modified during the retrofit. HMI screens built on the existing tag structure will continue to display correctly after the swap, though a full HMI faceplate validation walkthrough is recommended as part of the post-commissioning checklist.

Downtime Control During System Migration

Minimizing process downtime during an HC900 analog input module replacement requires a structured hot-swap or planned-outage approach depending on the criticality of the loops served by the module. For non-critical monitoring loops, the X22206604 can be replaced during a brief planned outage window with the controller placed in manual mode, preserving the last known output states across all connected final control elements. For critical control loops — particularly those governing temperature, pressure, or flow in continuous process units — a pre-staged replacement module should be bench-tested and firmware-verified before the maintenance window begins.

Prior to removal of the legacy module, the site engineer should capture a full export of the HC900 Designer project file, including the current I/O configuration, tag database, and control strategy, and store it on an offline backup medium. This protects the original program logic against accidental overwrite during the firmware download process that may be required if the replacement module ships with a different firmware revision than the installed controller expects.

Field commissioning after module installation should follow a structured loop check sequence: power-on self-test confirmation, channel-by-channel signal injection using a calibrated loop calibrator, comparison of displayed process values against reference instruments, and sign-off on the loop check sheet before returning the controller to automatic mode. HART device descriptors for connected smart transmitters should be re-read from the field after module replacement to confirm that the HART communication link has been re-established correctly. Total planned outage time for a single-module swap on a well-prepared site is typically 2–4 hours, including loop checks and documentation.

Retrofit Support FAQ

Q1: Is the Honeywell X22206604 a direct drop-in replacement for the legacy HC900 analog input module?
Yes. The X22206604 is designed as a form-fit-function replacement for the HC900 analog input family. It uses the same backplane connector, terminal block pitch, and slot addressing scheme as the predecessor module. Engineers should verify the controller firmware revision and backplane hardware revision prior to installation to confirm full compatibility with the installed HC900 system revision.

Q2: What commissioning steps are required after installing the X22206604?
After seating the module in the rack, perform a controller power cycle or hot-insertion recognition sequence as supported by the installed firmware. Confirm module recognition in HC900 Designer, validate channel signal ranges against the existing I/O configuration, perform a loop check on all 16 channels using a calibrated signal source, and re-read HART device descriptors for any HART-enabled field instruments. Document all loop check results before returning the system to automatic control.

Q3: Does KNMKS provide pre-shipment testing for the X22206604?
Yes. All X22206604 modules supplied by KNMKS undergo pre-shipment functional testing covering power-on self-test, channel signal integrity verification, and backplane communication confirmation. Each unit ships with a test report and is covered by a support terms confirmed by quotation from the date of shipment. In-stock units are available for same-week dispatch to minimize lead time impact on planned maintenance windows.

Q4: What is the support terms and return policy for the X22206604?
KNMKS provides a support terms confirmed by quotation on all X22206604 modules covering manufacturing defects and functional failures under normal operating conditions. Support requests are supported by our technical team with RMA processing and replacement dispatch. For urgent retrofit projects, advance replacement units can be arranged subject to stock availability. Contact our sales team for lead time confirmation and bulk order pricing.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

X22206604

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Honeywell X22206604
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
