Honeywell 05701-A-0327 Maintenance-Proven Spare Part for Factory Uptime

Overview

Honeywell 05701-A-0327 Maintenance-Proven Spare Part for Factory Uptime

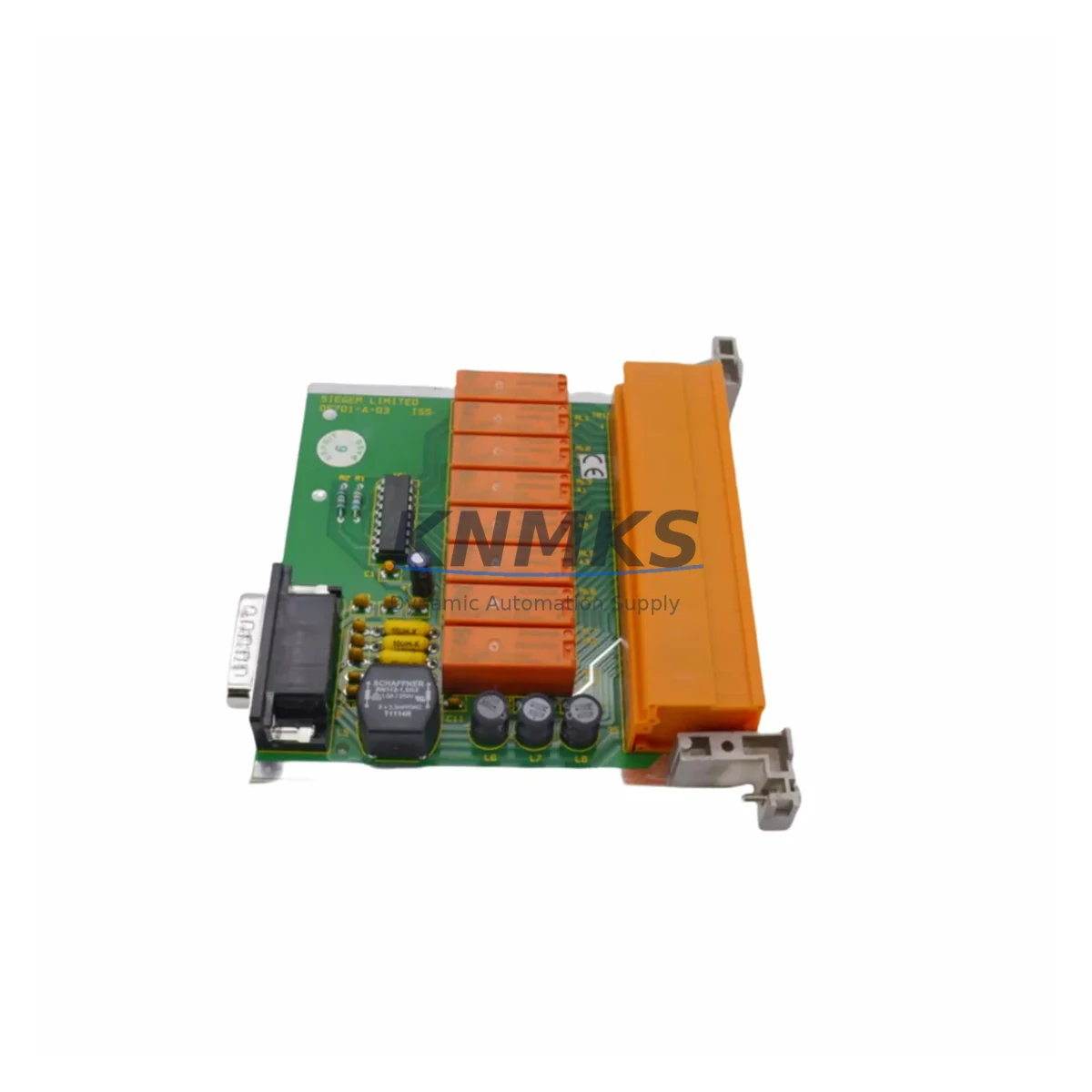

The Honeywell 05701-A-0327 is an original relay output module designed for the TDC-3000 Distributed Control System — one of the most widely deployed process automation platforms in refining, petrochemical, and power generation facilities worldwide. As legacy TDC-3000 installations continue to operate well beyond their original design life, maintaining a verified stock of original spare parts such as the 05701-A-0327 is a critical element of any plant reliability and maintenance strategy.

This module provides relay-based discrete output capability within the TDC-3000 High-Performance Process Manager (HPPM) and Process Manager (PM) subsystems. It interfaces directly with field devices including solenoid valves, motor starters, alarm annunciators, and interlock circuits. When a relay output channel fails — whether due to contact wear, coil degradation, or surge damage — the 05701-A-0327 enables a direct board-level replacement without requiring system reconfiguration or software changes, provided the replacement unit is sourced from the original manufacturer’s specification.

Each unit supplied by KNMKS is pre-tested against Honeywell TDC-3000 electrical specifications, visually inspected for component integrity, and shipped with a support terms confirmed by quotation. Multi-region stock availability supports both emergency callout replacements and scheduled annual turnaround outages.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a relay output failure is traced to the 05701-A-0327 module, experienced maintenance engineers know that the fault rarely exists in isolation. A thorough site inspection should extend to the surrounding electrical environment to prevent repeat failures and ensure the replacement module operates within its rated parameters from day one.

Begin by verifying the 24 VDC field power supply feeding the relay output circuits. A degraded or undersized power supply — such as the Honeywell 621-0020 or equivalent TDC-3000 power supply module — can cause relay contact chatter, premature coil wear, and intermittent output faults that are often misdiagnosed as module failures. Confirm supply voltage is within ±5% of nominal under full load.

Inspect the TDC-3000 I/O Link cable and termination blocks connecting the relay output module to the field junction box. Corroded terminals, loose ferrules, or damaged shielding on the I/O cable can introduce noise that triggers false relay operations or causes diagnostic alarms. Replace any suspect terminal blocks or cable assemblies as part of the same maintenance window.

Check the associated Honeywell 05701-A-0140 Digital Input Module or equivalent feedback input card if the relay output is part of a closed-loop interlock or permissive circuit. A failed digital input module will prevent the control system from confirming relay state, leading to spurious alarms even after the output module is replaced.

Review the TDC-3000 backplane and card cage for signs of oxidation on the edge connector contacts. Backplane connector degradation is a common root cause of intermittent module faults in aging TDC-3000 installations. Clean contacts with approved contact cleaner and inspect for bent or recessed pins before inserting the replacement 05701-A-0327.

For plants running TDC-3000 alongside a Honeywell Experion PKS migration gateway, verify that the relay output point assignments are correctly mapped in the Experion configuration before returning the loop to automatic. Misconfigured point mapping after a module swap is a leading cause of post-maintenance process trips.

Finally, inspect the fuse protection on each relay output channel. Blown fuses on individual output channels are often the first indicator of a field wiring short that caused the original module failure. Replacing the module without clearing the field fault will result in immediate repeat failure. Verify fuse continuity on all 16 channels before commissioning the replacement unit.

Site Replacement Workflow

Step 1 — Isolate and document: Place the affected Process Manager or HPPM node in manual mode via the TDC-3000 operator console. Document all relay output states for the affected module using the system historian or a manual checklist before de-energizing the card cage slot.

Step 2 — Safe removal: With the card cage powered (hot-swap capable on supported TDC-3000 configurations) or following site lockout/tagout procedure, extract the failed 05701-A-0327 by releasing the module latch and sliding the card out along the guide rails. Avoid touching the edge connector.

Step 3 — Inspect and clean: Inspect the card cage slot and backplane connector for contamination or damage. Clean with dry compressed air and approved contact cleaner. Verify that the replacement 05701-A-0327 matches the revision level required by your TDC-3000 software version.

Step 4 — Insert and verify: Seat the replacement module firmly until the latch engages. Restore power to the slot and observe the module status LED. A solid green LED indicates successful initialization. Confirm all 16 relay output points are recognized by the TDC-3000 system display.

Step 5 — Functional test: Force each relay output channel from the operator console and verify field device response (valve actuation, motor start, alarm activation). Confirm feedback signals are received on the associated digital input module before returning the loop to automatic control.

Step 6 — Return to service: Remove manual overrides, return the PM/HPPM node to automatic, and update the maintenance log with the replacement date, module serial number, and post-replacement test results. Schedule the next inspection interval per your plant’s preventive maintenance program.

Spare Parts Support FAQ

Q1: Is the 05701-A-0327 a new original part or a refurbished unit?
All units supplied by KNMKS are sourced as original Honeywell manufactured components. Each unit undergoes pre-shipment functional and electrical testing. A support terms confirmed by quotation is provided from the date of dispatch. Refurbished or third-party remanufactured units are not supplied.

Q2: How do I confirm compatibility with my specific TDC-3000 configuration?
The 05701-A-0327 is compatible with TDC-3000 HPPM and PM card cages that accept standard relay output modules. Compatibility depends on your backplane revision and TDC-3000 software release. Provide your system configuration details to [email protected] and our technical team will confirm compatibility before shipment.

Q3: What is the lead time and can you support emergency callout requirements?
KNMKS maintains multi-region stock of the 05701-A-0327 to support both planned annual turnaround outages and unplanned emergency replacements. Standard lead time is 3–5 business days for international express delivery. Emergency same-day dispatch is available subject to stock confirmation. Contact +86 18359268345 for urgent requirements.

Q4: Can KNMKS support long-term supply agreements for TDC-3000 spare parts?
Yes. KNMKS offers long-term supply agreements for plants operating legacy TDC-3000 systems through extended service life. Framework agreements covering the 05701-A-0327 and associated TDC-3000 modules — including power supplies, I/O modules, and communication cards — are available with fixed pricing, reserved stock allocation, and priority dispatch. Contact [email protected] to discuss your plant’s requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

05701-A-0327
Assorted Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Honeywell 05701-A-0327
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
