Honeywell 05704-A-0146 Maintenance-Proven Spare Part for Factory Uptime

Overview

Honeywell 05704-A-0146 Maintenance-Proven Spare Part for Factory Uptime

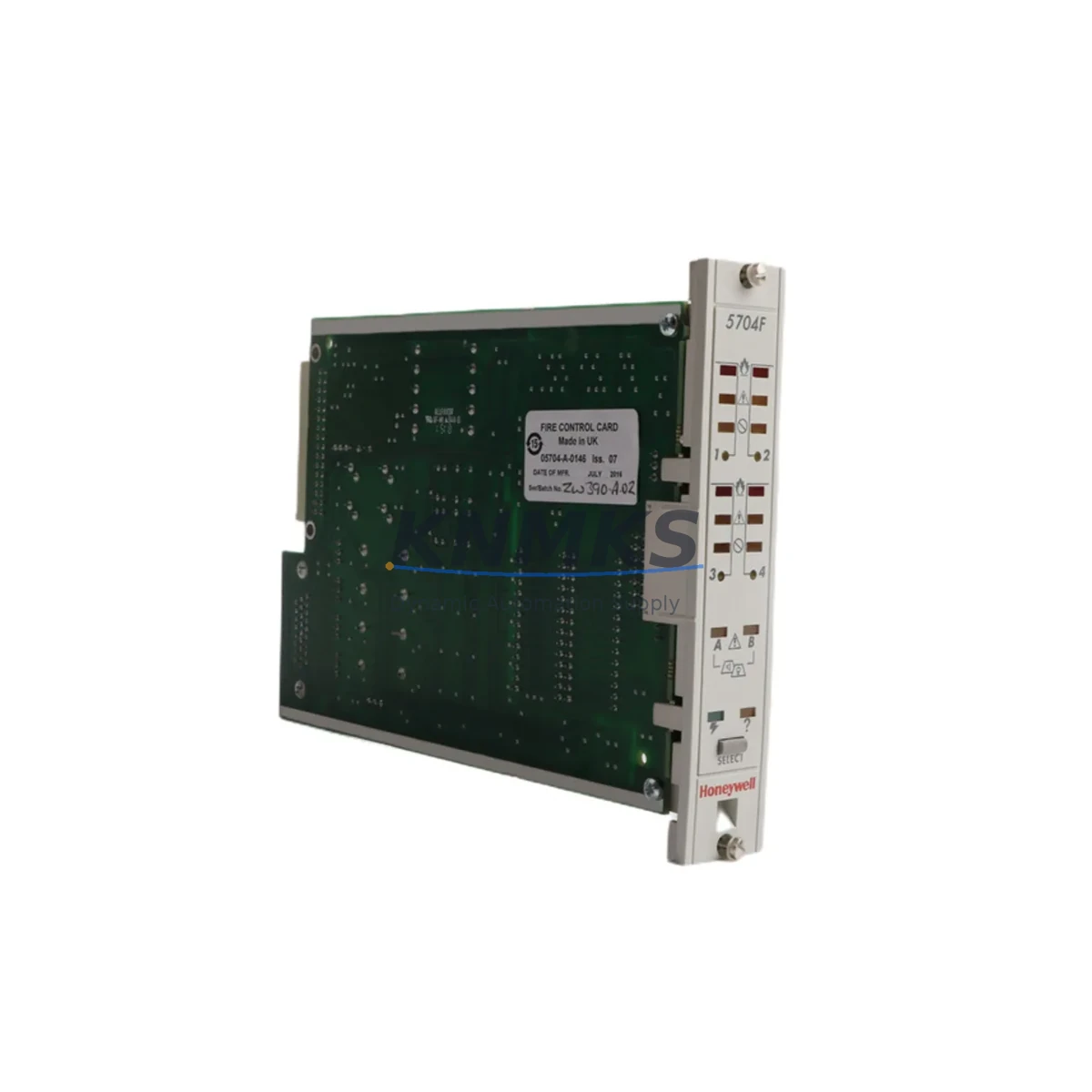

The Honeywell 05704-A-0146 is an original fire control module designed for continuous-duty safety and process control applications within the Honeywell 05704 Series platform. For maintenance engineers managing aging fire suppression, safety interlock, or industrial control systems, sourcing a verified spare of this module is a critical step in any planned or emergency maintenance strategy. This listing provides a factory-tested, original-specification 05704-A-0146 module backed by a support terms confirmed by quotation and supported by a long-term supply commitment — ensuring your facility can restore operations quickly and maintain system integrity without compromise.

Industrial facilities running Honeywell 05704 Series control panels depend on the reliable operation of every module in the cabinet. The 05704-A-0146 fire control module plays a central role in signal processing, alarm logic, and safety output coordination. When this module fails or degrades, the consequences extend beyond a single point of failure — they can trigger system-wide shutdowns, false alarms, or loss of safety coverage. Keeping a verified spare on the shelf is not optional for high-availability environments; it is standard practice for any maintenance team responsible for uptime and regulatory compliance.

This module is sourced, inspected, and tested prior to shipment. Each unit undergoes functional verification to confirm it meets original Honeywell specifications before leaving our facility. Shipment is supported with full documentation, and our team can assist with compatibility confirmation for your specific panel revision and firmware version.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 05704-A-0146 fire control module is flagged for replacement during a scheduled inspection or emergency fault response, experienced maintenance engineers know that the module itself is rarely the only component that requires attention. A thorough site assessment should accompany any module swap to prevent repeat failures and ensure the restored system performs reliably through the next maintenance cycle.

Begin by inspecting the 05704 Series backplane for signs of corrosion, bent connector pins, or thermal stress — a degraded backplane can cause intermittent faults that mimic module failure and will shorten the life of a newly installed spare. Check the 24 VDC power supply module feeding the control cabinet; voltage ripple or under-voltage conditions are a leading cause of premature module failure in fire and safety systems. If the power supply is original to the installation and has not been serviced in over five years, consider scheduling it for replacement alongside the 05704-A-0146.

Inspect all field wiring terminals and terminal blocks connected to the module’s I/O circuits. Loose terminations, oxidized contacts, or undersized conductors can introduce signal errors that are misdiagnosed as module faults. Verify that signal isolators on any 4–20 mA or discrete input circuits are functioning within specification — degraded isolators can inject noise into the control module and trigger nuisance alarms or output lockouts.

For panels that include communication modules interfacing the 05704 Series to a supervisory SCADA or DCS network, confirm that the communication link is stable and that the replacement module’s firmware revision is compatible with the network protocol in use. In systems where a Honeywell HMI or operator panel is connected to the 05704 Series chassis, verify that alarm display mapping and acknowledgment logic are intact after the module swap.

Do not overlook fuse and circuit protection components within the cabinet. A blown or weakened fuse on the module’s supply circuit may have contributed to the original failure. Replace any suspect fuses with correctly rated components and document the change in the maintenance log. Finally, if the installation includes relay output modules or interposing relays driven by the 05704-A-0146, test each relay for proper pull-in, drop-out, and contact resistance before returning the system to service.

Maintaining a structured spare parts inventory that includes the 05704-A-0146 alongside its associated power, communication, and I/O components is the most effective strategy for minimizing mean time to repair (MTTR) and protecting production continuity.

Site Replacement Workflow

Step 1 — Isolate and document. Before removing the 05704-A-0146, record the current alarm status, I/O mapping, and any active fault codes displayed on the panel or HMI. Photograph the wiring and terminal assignments for reference during reinstallation.

Step 2 — De-energize safely. Follow your site’s lockout/tagout (LOTO) procedure. Confirm that the 24 VDC supply to the module slot is isolated before removing the module from the backplane.

Step 3 — Remove and inspect. Extract the 05704-A-0146 from its slot. Inspect the backplane connector and the module’s edge connector for damage. If the backplane shows signs of arcing or contamination, clean or replace before installing the spare.

Step 4 — Install the replacement. Seat the new 05704-A-0146 firmly into the backplane slot. Reconnect all field wiring terminals according to your documented reference. Verify that all terminal screws are torqued to specification.

Step 5 — Re-energize and verify. Restore power and observe the module’s status indicators. Confirm that the panel clears all installation faults and that I/O signals are reading correctly. Perform a functional test of all alarm outputs and safety interlocks before returning the system to automatic mode.

Step 6 — Update records. Log the replacement in your CMMS or maintenance record system. Note the serial number of the removed module and the installed spare, the date of replacement, and any observations made during the swap. This documentation supports support requests and future maintenance planning.

This workflow is applicable whether you are replacing a failed module on an emergency basis or performing a proactive swap during a planned shutdown. The 05704-A-0146 is a direct drop-in replacement for the original module position — no panel reconfiguration or firmware update is required in standard 05704 Series installations.

Spare Parts Support FAQ

Q1: Is the 05704-A-0146 compatible with all revisions of the Honeywell 05704 Series panel?
The 05704-A-0146 is designed for use within the Honeywell 05704 Series platform. Compatibility across specific panel revisions depends on the chassis hardware revision and installed firmware. We recommend providing your panel’s model number and revision level when placing an order so our technical team can confirm compatibility before shipment.

Q2: How is the module tested before shipment?
Each 05704-A-0146 unit is functionally tested prior to shipment to verify that it meets original Honeywell electrical and operational specifications. Test results are available upon request. The module ships with a support terms confirmed by quotation covering defects in materials and workmanship under normal operating conditions.

Q3: Can you support long-term or repeat procurement of this module?
Yes. We maintain ongoing inventory of the 05704-A-0146 and can support blanket purchase orders, scheduled releases, and emergency spot purchases. For facilities managing multiple 05704 Series panels or planning a multi-year maintenance program, we recommend establishing a standing supply agreement to ensure availability and price stability.

Q4: What should I do if the replacement module does not resolve the original fault?
If installing a new 05704-A-0146 does not clear the fault condition, the root cause is likely in an associated component — the backplane, power supply, field wiring, or a connected I/O or communication module. Our technical support team can assist with fault isolation guidance. Do not return the module without first performing a systematic check of all connected components as described in the Maintenance Planning section above.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345
