Honeywell 10006/2/1 Migration-Ready DBM for TDC 3000

Overview

Honeywell 10006/2/1 Migration-Ready DBM for TDC 3000 Legacy Control Systems

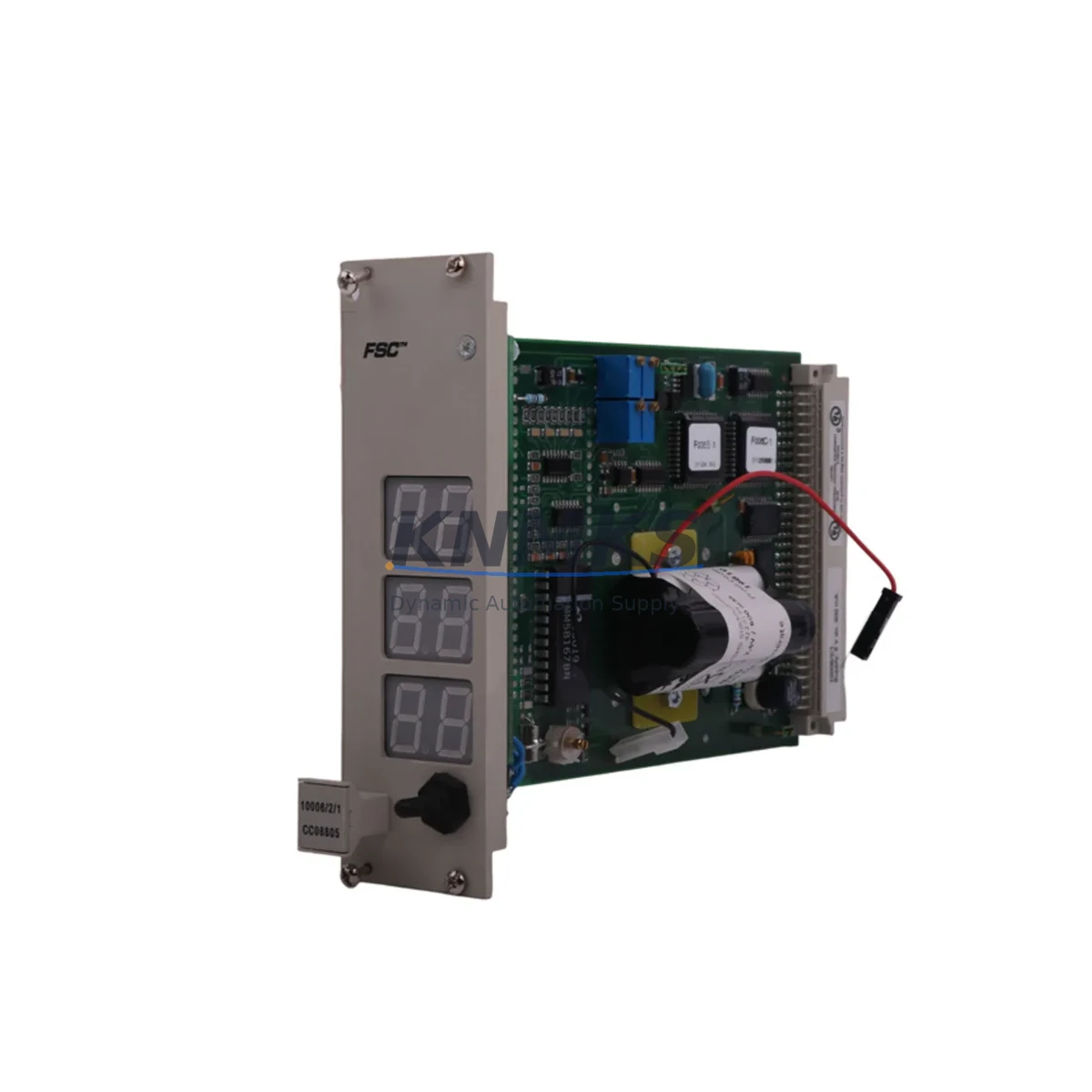

The Honeywell 10006/2/1 is a Data Backup Module (DBM) designed for the TDC 3000 Distributed Control System platform — one of the most widely deployed process control architectures in refining, petrochemical, and continuous manufacturing industries. As TDC 3000 systems approach end-of-life and original spare parts become increasingly scarce, the 10006/2/1 DBM has become a critical component in legacy system maintenance, control cabinet restoration, and phased migration projects.

Whether your facility is executing a full DCS migration to a modern platform or extending the operational life of an existing TDC 3000 installation, sourcing a verified, tested 10006/2/1 is often the difference between a controlled transition and unplanned downtime. KNMKS maintains ready inventory of this module, with each unit subject to pre-shipment functional testing, compatibility verification, and backed by a support terms confirmed by quotation.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Retrofitting a TDC 3000 installation requires careful coordination across multiple hardware layers. The 10006/2/1 DBM does not operate in isolation — its successful replacement depends on the health and compatibility of surrounding modules within the same card cage and control cabinet.

Before scheduling a DBM swap, engineers should audit the card cage power supply module to confirm it can sustain the load after the new module is inserted. In many aging TDC 3000 cabinets, the power module has been operating at or near capacity for years, and adding a replacement DBM without verifying headroom can trigger nuisance trips or supply instability. If the power module is marginal, replacing it concurrently — or staging the DBM replacement after a power module upgrade — is strongly recommended.

The Local Control Network (LCN) interface module within the same cabinet should also be inspected. The DBM communicates over the LCN, and any degradation in the LCN interface card or its associated coaxial cabling can cause the replacement DBM to fail to register on the network, even if the module itself is fully functional. Verifying LCN signal integrity before and after the swap reduces diagnostic ambiguity during commissioning.

For sites running Universal Control Network (UCN) segments connected to Field Control Processors (FCPs) or Advanced Process Managers (APMs), the DBM replacement should be coordinated with a review of the UCN node table. If the original DBM held a specific node address, the replacement unit must be configured to match — or the UCN segment must be updated to reflect the new address, with corresponding changes in the HMI display configuration and alarm management system.

In control cabinets where the TDC 3000 coexists with newer I/O marshalling panels or hybrid DCS architectures, the physical installation space must be confirmed. The 10006/2/1 occupies a standard TDC 3000 card slot, but adjacent modules — including I/O Link modules and Data Hiway Gateway modules — must remain undisturbed during the swap to avoid inadvertent communication interruptions on other process loops.

Sites planning a phased migration from TDC 3000 to a modern DCS platform (such as Honeywell Experion PKS) should treat the 10006/2/1 replacement as a bridge measure. Maintaining a functional DBM ensures that the existing control database and backup data remain accessible throughout the migration window, reducing the risk of configuration loss during the cutover phase. Having a tested spare DBM on-site before beginning any migration activity is considered best practice in long-duration retrofit projects.

Downtime Control During System Migration

Minimizing downtime during a DBM replacement in a live TDC 3000 environment requires a structured pre-work checklist and a clearly defined rollback plan. The following approach has been validated across multiple refinery and chemical plant retrofit projects:

Pre-replacement preparation: Export and archive the current control database backup stored on the existing DBM before removal. Confirm that a secondary backup exists on the system historian or an offline storage medium. This step protects the original program logic, loop configurations, and tuning parameters in the event that the replacement module requires re-initialization.

Slot identification and labeling: Photograph the existing module’s slot position, terminal connections, and any visible configuration switches before extraction. TDC 3000 card cages do not always have clear physical labeling, and incorrect re-insertion of the replacement module into an adjacent slot can cause immediate network faults.

Hot-swap vs. cold replacement: Determine whether the site’s TDC 3000 configuration supports hot-swap of the DBM slot. In many configurations, the DBM can be replaced while the system remains in control, provided the LCN remains stable and no active backup operation is in progress. If hot-swap is not supported or the LCN is marginal, schedule the replacement during a planned maintenance window with process units in a safe hold state.

Post-installation verification: After inserting the 10006/2/1, confirm LCN node registration, verify that the module appears correctly in the system status display, and initiate a manual backup cycle to confirm that the new DBM is writing data correctly. Check HMI alarm displays for any new faults related to the DBM or LCN segment before returning the system to automatic control.

By following this sequence, most experienced DCS engineers can complete a DBM replacement with less than 30 minutes of active intervention, keeping process impact to a minimum and maintaining control system continuity throughout the retrofit.

Retrofit Support FAQ

Q1: Is the Honeywell 10006/2/1 a direct replacement for all DBM variants used in TDC 3000 systems?
The 10006/2/1 is the standard DBM part number for TDC 3000 card cage installations. However, TDC 3000 systems were deployed across a wide range of configurations over many years. Before ordering, confirm the existing module’s part number and revision level from the cabinet documentation or the physical module label. KNMKS can assist with compatibility verification based on your system’s configuration details.

Q2: What pre-shipment testing does KNMKS perform on the 10006/2/1?
Each unit undergoes functional power-on testing and basic communication verification before shipment. Modules are inspected for physical damage, connector integrity, and component condition. Units that do not pass testing are not shipped. The support terms confirmed by quotation cover functional failure under normal operating conditions from the date of shipment.

Q3: Can the 10006/2/1 be used during a phased migration from TDC 3000 to Experion PKS?
Yes. The DBM plays a key role in maintaining control database integrity during phased migrations. Keeping a functional DBM operational throughout the migration window ensures that the existing TDC 3000 configuration remains backed up and recoverable until the final cutover to the new platform is complete. This reduces the risk of configuration loss during extended migration projects.

Q4: What is the typical lead time and do you maintain stock?
KNMKS maintains ready inventory of the Honeywell 10006/2/1. Standard orders ship within 1–3 business days. For urgent plant maintenance or emergency breakdown situations, contact our sales team directly to confirm current stock availability and expedited shipping options.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345
