Honeywell 05701-A-0285 Migration-Ready DCS Module for Legacy Control Systems

Overview

Honeywell 05701-A-0285 Migration-Ready DCS Module for Legacy Control Systems

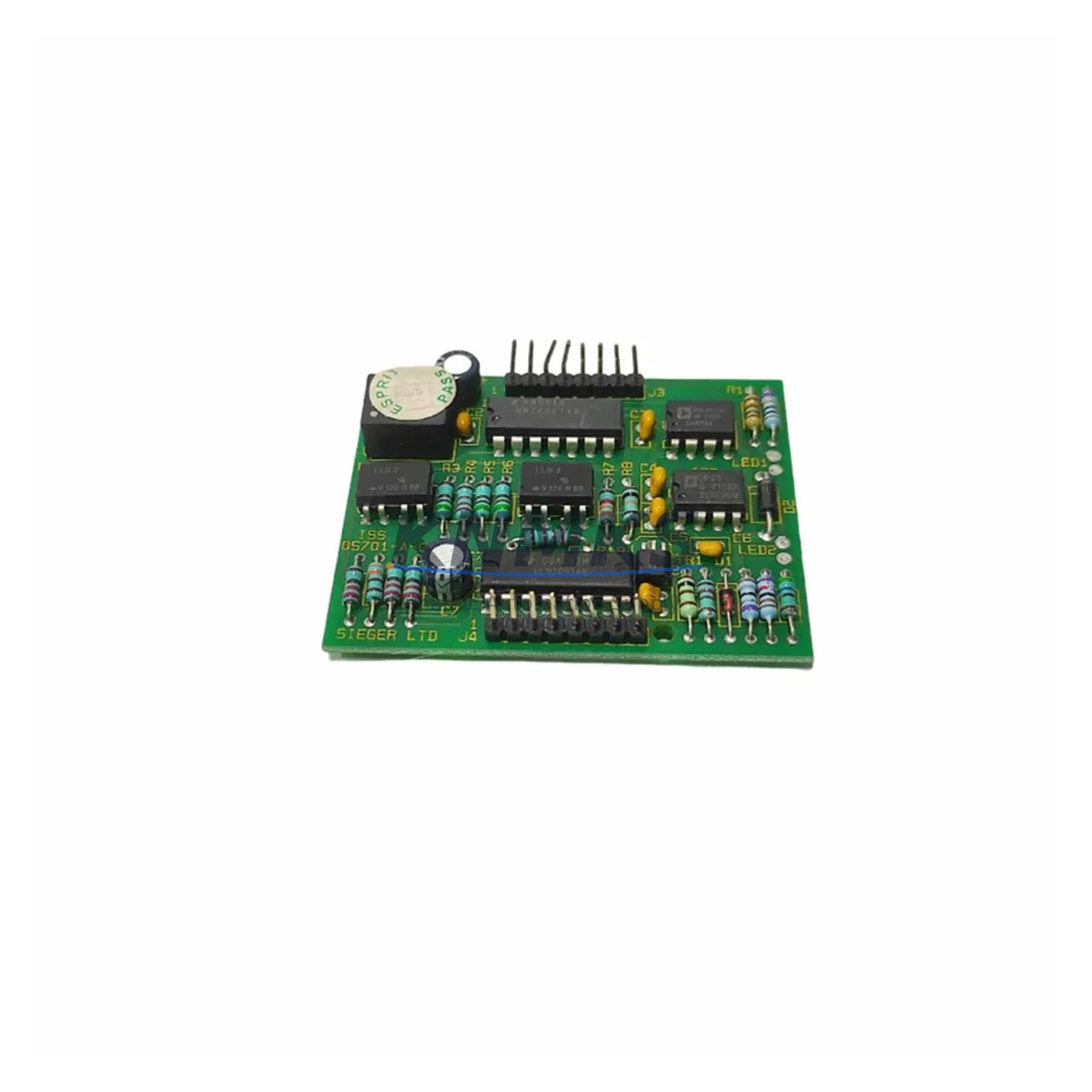

The Honeywell 05701-A-0285 is a migration-ready DCS control module engineered for direct replacement and retrofit integration within Honeywell TDC 3000 distributed control system architectures. As TDC 3000 platforms approach end-of-support milestones, engineering teams managing refinery, petrochemical, and power generation assets face increasing pressure to source verified replacement modules that preserve existing wiring infrastructure, backplane compatibility, and control logic continuity. The 05701-A-0285 addresses this challenge by offering a pre-tested, drop-in compatible solution that eliminates the need for full panel redesign or PLC migration during scheduled outages or emergency replacements.

This module is fully compatible with the TDC 3000 Universal Control Network (UCN) backplane architecture. Before installation, engineers should confirm the module address assignment within the Highway Gateway (HG) configuration, verify that the existing termination assembly wiring matches the 05701-A-0285 terminal layout, and review the firmware revision level against the site’s current LCN (Local Control Network) software version. Power supply capacity at the card cage level — typically the Honeywell PM-series power module — must be validated to ensure the replacement module’s draw does not exceed available headroom, particularly in high-density I/O cabinets.

For sites running Honeywell’s Application Module (AM) or History Module (HM) alongside the 05701-A-0285, communication link integrity across the UCN should be verified post-installation using the System Status Display before returning the loop to automatic control. HMI graphic screens referencing the replaced module’s tag database entries should be audited to confirm that point names, engineering unit ranges, and alarm limits remain correctly mapped after the swap.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 05701-A-0285 into an operating TDC 3000 system requires a structured pre-outage checklist. Begin by documenting the existing module’s slot position, card cage number, and UCN node address. Pull the current control strategy from the Engineering Workstation (EWS) and archive a backup of all regulatory control blocks, sequence logic, and calculated point definitions associated with the module being replaced.

In parallel, verify the health of adjacent infrastructure. The Honeywell Power Module (PM) supplying the affected card cage should be load-tested to confirm it can sustain the replacement module’s power draw without voltage sag. If the site is also upgrading I/O density, this is an appropriate time to evaluate the Honeywell FTA (Field Termination Assembly) wiring harness for insulation integrity and correct shielding continuity — particularly for thermocouple and RTD inputs where signal accuracy is critical.

For sites that have already migrated portions of their TDC 3000 to Honeywell Experion PKS, the 05701-A-0285 can continue to serve as a UCN-resident control module while the migration progresses in phases. The Honeywell C300 Controller, commonly deployed in Experion PKS environments, operates on a separate FOUNDATION Fieldbus or HART infrastructure, so no direct protocol conflict exists during a phased cutover. However, the Highway Gateway module must be confirmed as operational to maintain UCN-to-LCN data exchange during the transition window.

If the retrofit scope includes expanding analog I/O capacity, the Honeywell Analog Input Module (AIM) and Analog Output Module (AOM) within the same card cage should be inspected for contact wear and calibration drift. Signal isolators installed between field devices and the termination assembly should also be verified for correct range and output impedance before the replacement module is energized.

Downtime Control During System Migration

Minimizing unplanned downtime during a TDC 3000 module replacement requires a disciplined sequence of pre-outage, outage, and post-outage activities. Before the maintenance window opens, confirm that all control loops associated with the 05701-A-0285 have been transferred to manual mode at the operator console and that field operators are stationed at critical control valves. This prevents process upsets if the module replacement takes longer than the planned window.

During the physical swap, avoid disturbing adjacent modules in the card cage. The UCN backplane is sensitive to mechanical shock, and inadvertent displacement of neighboring modules — such as the Honeywell Data Hiway Interface (DHI) or a co-resident Logic Manager module — can introduce additional faults that extend the outage. Use ESD-compliant handling procedures throughout.

After seating the 05701-A-0285, allow the module to complete its self-diagnostic cycle before attempting to load the control strategy. Monitor the System Status Display for UCN communication acknowledgment and confirm that the module’s LED indicators reflect a healthy state. Reload the archived control strategy from the EWS, verify all point values against pre-outage baseline readings, and return loops to automatic control incrementally — starting with the lowest-criticality loops first. Document the firmware version of the installed module and update the site’s spare parts register accordingly.

Retrofit Support FAQ

Q1: Is the 05701-A-0285 a direct replacement for the original Honeywell TDC 3000 module of the same part number?
Yes. The 05701-A-0285 is a verified drop-in replacement for the original Honeywell part. It uses the same backplane connector, card cage slot dimensions, and UCN communication interface. No hardware modification to the existing cabinet is required.

Q2: What pre-shipment testing is performed on each unit?
Every 05701-A-0285 unit undergoes full functional testing prior to dispatch, including power-on self-test verification, communication interface check, and I/O channel validation. A test report is available upon request. All units ship with a support terms confirmed by quotation covering manufacturing defects and functional failures.

Q3: How do I confirm firmware compatibility before installation?
Request the firmware revision label from the shipment documentation and cross-reference it against your site’s LCN software version using the Honeywell TDC 3000 compatibility matrix. If your site runs an older LCN revision, contact our technical team before installation — we can advise on any known firmware interaction issues and, where applicable, supply units with a specific firmware baseline.

Q4: What is the lead time and stock availability for emergency orders?
The 05701-A-0285 is held in multi-region stock to support both emergency replacements and scheduled outage planning. Standard dispatch is within 1–3 business days for in-stock units. For critical plant shutdowns requiring same-day or next-day dispatch, contact [email protected] or call +86 18359268345 to confirm real-time availability and expedited shipping options.
