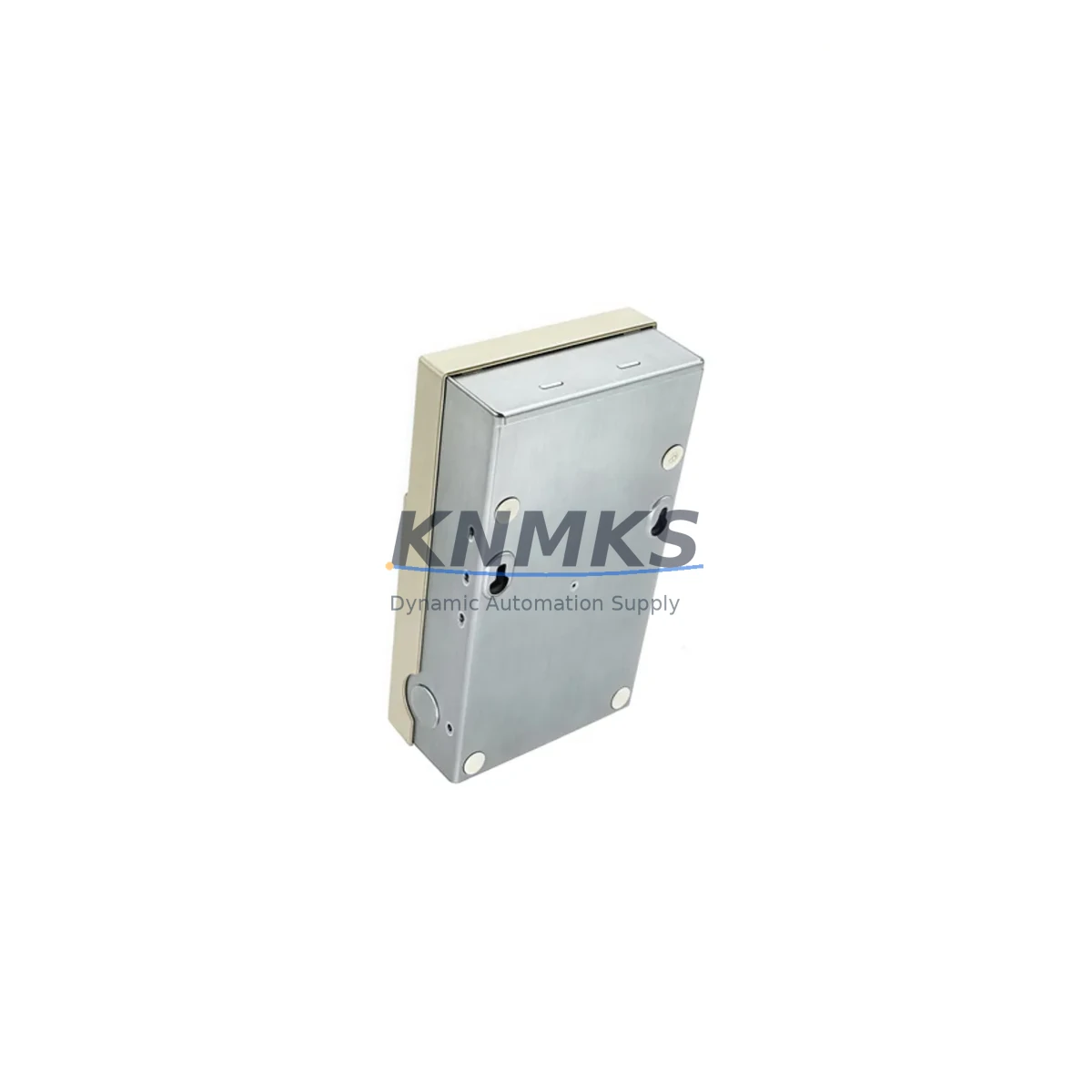

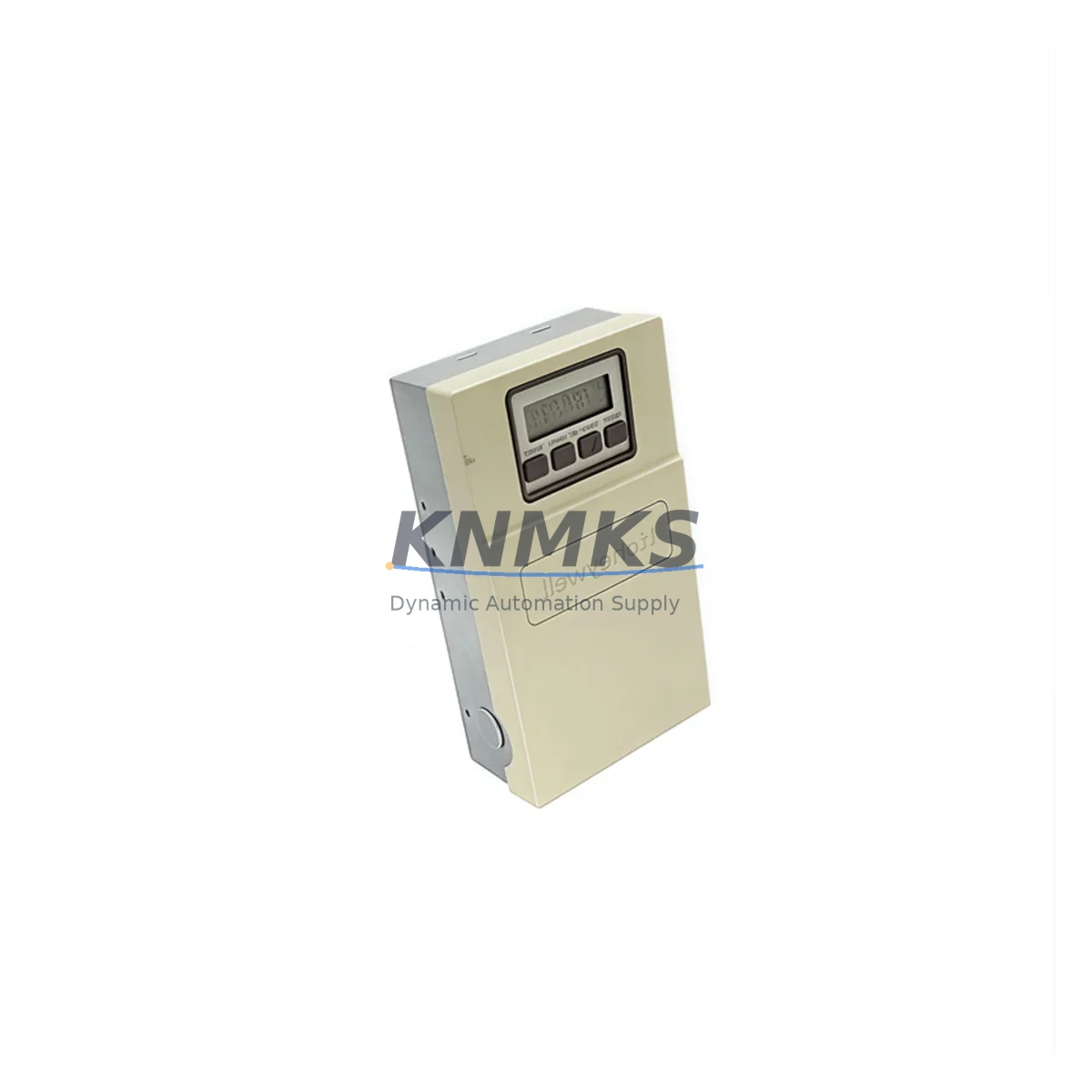

Honeywell T775E1056 Maintenance-Proven Spare Part for Factory Uptime

Overview

Honeywell T775E1056 Maintenance-Proven Spare Part for Factory Uptime

The Honeywell T775E1056 is a field-proven electronic temperature controller from the T775 Series, widely deployed across HVAC systems, industrial process loops, and building automation panels. For maintenance engineers managing aging control cabinets or executing planned annual overhauls, having a verified, tested replacement unit of the T775E1056 on the shelf is a direct investment in production continuity. KNMKS supplies this part as an original spare, fully inspected and dispatched with a support terms confirmed by quotation, ensuring your facility avoids unplanned downtime caused by controller failure.

The T775 Series is a staple in temperature regulation applications where reliable setpoint control, multi-stage output switching, and robust enclosure ratings are required. The T775E1056 variant supports dual-stage heating/cooling outputs, making it a critical node in systems where precise thermal management directly impacts product quality or process safety. When this controller fails or degrades, the downstream effects — sensor misreads, output relay chatter, or complete loop dropout — can cascade quickly into line stoppages.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a T775E1056 is flagged during a control cabinet inspection or routine point check, experienced maintenance engineers know that replacing the controller alone is rarely sufficient for a durable repair. The surrounding electrical circuit must be evaluated in parallel to prevent repeat failures and ensure the replacement unit operates within its rated parameters from day one.

Start with the 24 VAC or 120/240 VAC power supply feeding the controller. Voltage sags, harmonic distortion, or loose terminal connections at the power input are common root causes of premature controller failure. Verify supply voltage at the controller terminals under load conditions. If the panel uses a dedicated control power transformer or a DIN-rail mounted switching power supply, inspect for signs of overheating, output voltage drift, or capacitor bulge.

Next, inspect the sensor wiring and NTC thermistor connected to the T775E1056 input terminals. Corroded terminals, pinched cables, or a degraded remote sensor element will cause erratic setpoint behavior even after the controller is replaced. If the sensor has been in service for more than five years in a humid or chemically aggressive environment, replace it alongside the T775E1056 as a preventive measure.

The output relay contacts of the T775E1056 drive downstream loads — typically contactors, solenoid valves, or fan motor starters. Inspect the load-side wiring for signs of arcing, insulation breakdown, or contact welding on the downstream contactor or relay module. A failed contactor that caused the original controller to fail through back-EMF or voltage spike must be replaced before the new T775E1056 is energized.

For panels that integrate the T775E1056 alongside other Honeywell T775 Series controllers — such as the T775B2032 for single-stage applications or the T775R2009 for remote reset configurations — verify that shared sensor buses or common power rails are not introducing cross-interference. In multi-zone systems, a failed controller in one zone can mask sensor faults in adjacent zones.

If the control cabinet also houses Honeywell R8239 or R8285 relay modules, inspect their coil voltage and contact ratings against the T775E1056 output specifications. Mismatched relay coil impedance is a frequent source of output relay stress on temperature controllers. Additionally, check any fuse holders or circuit breakers protecting the controller circuit — a nuisance trip history on the upstream fuse is a strong indicator of an intermittent short or ground fault that must be resolved before commissioning the replacement unit.

For facilities running the T775E1056 in a BAS (Building Automation System) environment, confirm that any signal isolators or analog input cards receiving the controller’s status output are functioning correctly. A failed isolator can corrupt the feedback loop and trigger false alarms at the supervisory level, complicating fault diagnosis.

Site Replacement Workflow

Step 1 — Isolation and Lockout: De-energize the control panel and apply LOTO (Lockout/Tagout) per site safety procedures. Confirm zero voltage at the T775E1056 supply terminals with a calibrated multimeter before proceeding.

Step 2 — Document Existing Wiring: Photograph or sketch the terminal wiring of the existing T775E1056 before removal. Note sensor terminal polarity, output relay assignments (Stage 1 / Stage 2), and any jumper or DIP switch settings for setpoint range or differential configuration.

Step 3 — Remove and Inspect: Remove the failed unit and inspect the mounting panel for heat discoloration, moisture ingress, or mechanical damage. Clean the panel interior before installing the replacement.

Step 4 — Configure the Replacement Unit: Set the T775E1056 setpoint, differential, and output stage assignments to match the documented configuration of the removed unit. Verify DIP switch positions for sensor type and temperature scale (°F / °C) before wiring.

Step 5 — Wire and Torque: Reconnect all terminals per the original wiring documentation. Torque terminal screws to the manufacturer’s specification to prevent loose connections that cause intermittent faults. Verify sensor continuity with an ohmmeter before energizing.

Step 6 — Power-Up and Functional Test: Re-energize the panel and verify that the T775E1056 reads the correct process temperature, activates Stage 1 and Stage 2 outputs at the correct setpoints, and that downstream loads respond as expected. Log the replacement in the site maintenance record.

Step 7 — Update Spare Parts Inventory: Record the replacement in your CMMS and reorder a replacement T775E1056 to restore your on-hand spare buffer. KNMKS maintains long-term stock of T775 Series components to support ongoing procurement needs.

Spare Parts Support FAQ

Q1: Is the T775E1056 supplied by KNMKS a new original part or a refurbished unit?
All T775E1056 units supplied by KNMKS are new original spare parts sourced through authorized industrial distribution channels. Each unit undergoes functional testing before dispatch and is covered by a support terms confirmed by quotation from the date of shipment. Refurbished or remanufactured units are not offered under this listing.

Q2: How do I confirm compatibility between the T775E1056 and my existing T775 Series installation?
Compatibility is confirmed by matching the supply voltage (120 VAC or 240 VAC), sensor input type (NTC thermistor), output stage count (dual-stage), and enclosure mounting format. If your existing installation uses a T775B, T775R, or T775M variant, contact KNMKS sales with your panel wiring diagram and we will confirm direct replaceability before shipment.

Q3: What is the lead time and how is the T775E1056 tested before shipping?
In-stock units ship within 1–3 business days. Each T775E1056 is bench-tested for power-up, sensor input response, setpoint accuracy, and output relay actuation before packaging. A test report is available upon request for critical infrastructure procurement. Express shipping options are available for emergency downtime recovery situations.

Q4: Can KNMKS support long-term or blanket purchase orders for the T775E1056?
Yes. KNMKS supports long-term supply agreements, blanket POs, and annual maintenance contract procurement for the T775E1056 and the broader T775 Series. For facilities managing multiple temperature control zones or operating under a planned maintenance schedule, we recommend establishing a standing order to ensure buffer stock availability. Contact admin@knmks.com or call +86 18359268345 to discuss volume pricing and supply continuity arrangements.
