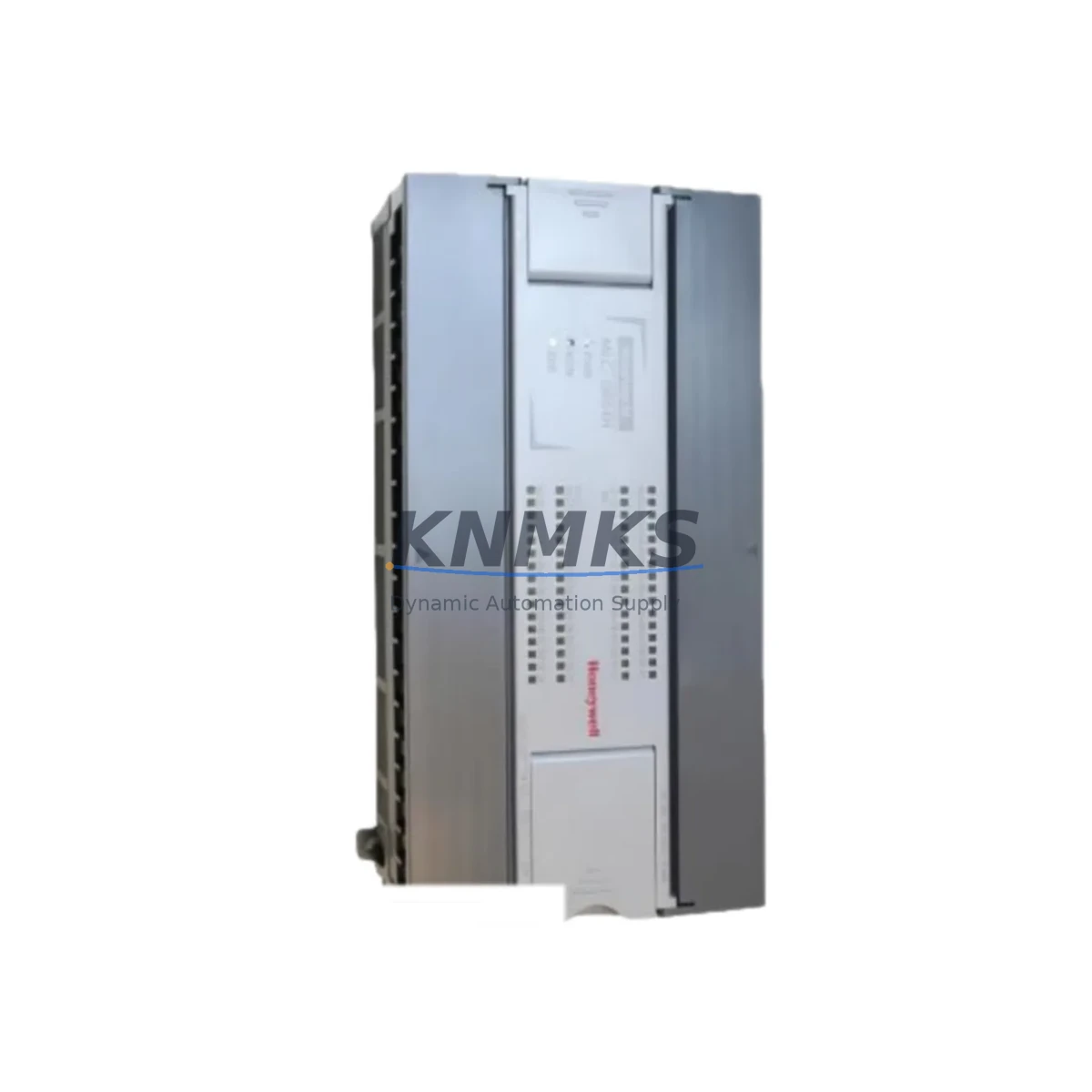

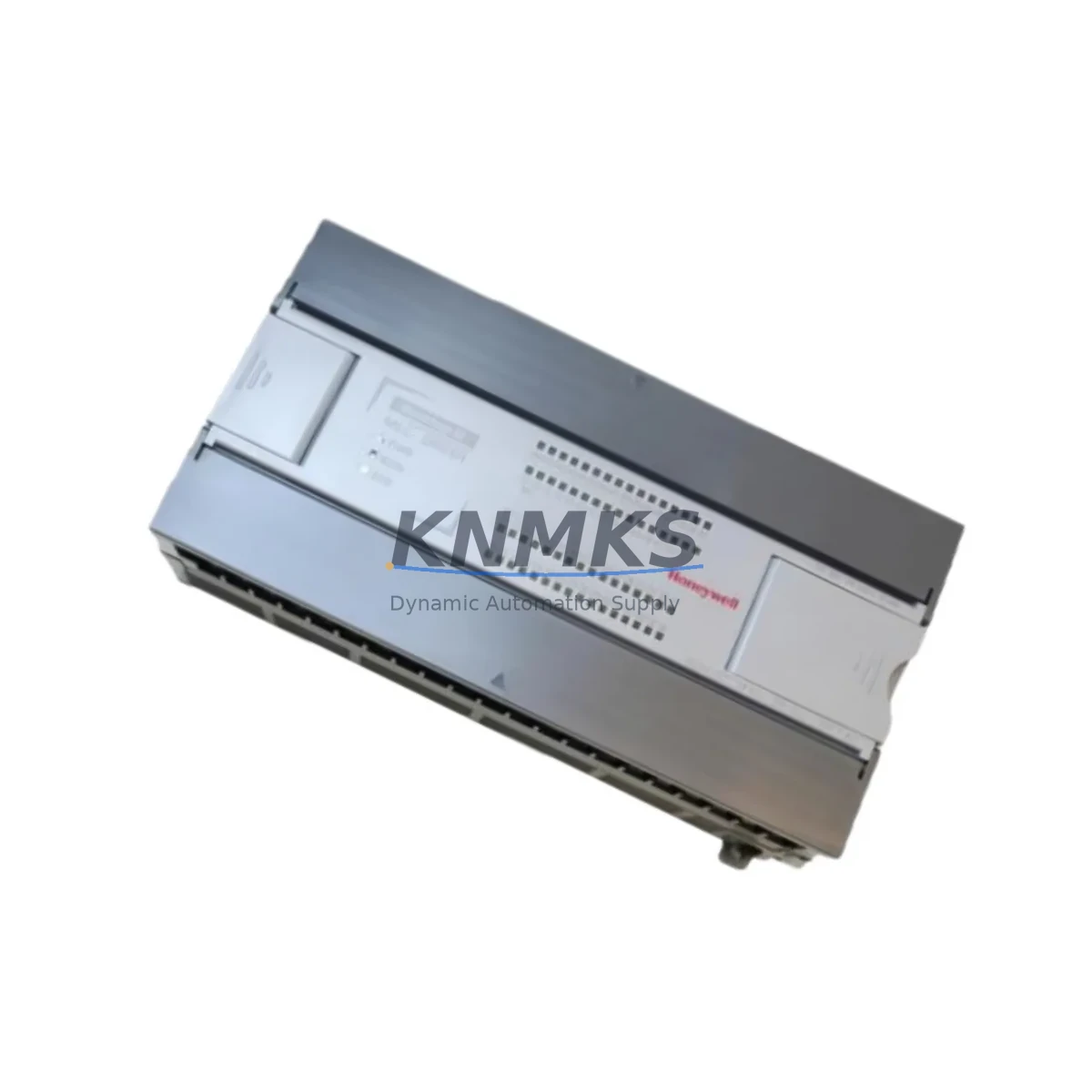

Honeywell MLC-DR32H Migration-Ready Relay DO Module

Overview

Honeywell MLC-DR32H Migration-Ready Relay DO Module: Legacy Control System Retrofit & Upgrade

The Honeywell MLC-DR32H is a 32-channel Relay Digital Output Module engineered for the Honeywell MLC Series distributed control platform. As legacy MLC-based control systems approach end-of-life and original spare parts become increasingly scarce, the MLC-DR32H serves as a verified, migration-ready replacement that preserves existing wiring infrastructure, backplane addressing, and control logic — minimizing retrofit risk and unplanned downtime across energy, petrochemical, manufacturing, and infrastructure automation environments.

KNMKS maintains in-stock inventory of the MLC-DR32H with full pre-shipment functional testing, support terms confirmed by quotation coverage, and dedicated retrofit support for system integrators and maintenance engineers managing aging DCS and PLC architectures.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the MLC-DR32H into a legacy control system requires a structured pre-retrofit assessment. Before scheduling a maintenance window, engineers should audit the existing MLC rack configuration to confirm available slot positions, backplane bus loading, and the current state of the MLC Series rack and backplane assembly. Overcrowded racks or degraded backplane connectors are a common source of intermittent faults after module replacement and must be addressed before the new DO module is seated.

Power budget verification is a critical step that is frequently overlooked. The MLC-PS Series power supply module feeding the rack must have sufficient headroom to support the MLC-DR32H relay outputs under full load. Relay output modules draw higher inrush current than transistor-type DO modules, and an undersized PSU will cause nuisance trips or controller faults during commissioning. Calculate the total rack current draw including all installed I/O modules before proceeding.

Field wiring termination should be documented and photographed before any module is removed. The MLC-DR32H uses a screw-terminal wiring block that is mechanically compatible with the legacy module footprint, allowing existing cable looms to be reconnected without re-labeling in most installations. However, engineers should cross-reference the original I/O schedule against the replacement module’s terminal assignment diagram to confirm pin-for-pin correspondence, particularly where the legacy module may have used a non-standard wiring convention.

For systems that include MLC Series analog input or analog output modules in the same rack, confirm that the backplane communication sequence is not disrupted by the module swap. Some MLC controller firmware versions require an I/O configuration download after any module change, even if the replacement module occupies the same slot address. This download should be prepared and validated in the offline project file before the maintenance window begins.

Where the control system interfaces with an MLC-compatible HMI station — whether a legacy panel PC running the original SCADA graphics or a modernized HMI running updated visualization software — verify that the DO channel tag assignments in the HMI database match the replacement module’s channel map. Mismatched tag-to-channel bindings are a common commissioning error that can cause incorrect output activation during post-retrofit functional testing.

Systems that use MLC Series communication modules for Modbus RTU, PROFIBUS, or proprietary DCS network integration should be assessed for protocol gateway compatibility. If the MLC-DR32H is being installed as part of a broader migration from a legacy DCS to a modern PLC platform, a signal isolator or protocol converter module may be required to bridge the legacy field wiring to the new controller’s I/O bus. This is particularly relevant in petrochemical and power generation applications where IS (intrinsically safe) barriers and galvanic isolators are part of the certified installation.

Finally, confirm that the programming cable and engineering workstation used for the MLC controller are available on-site during the retrofit. Re-downloading the I/O configuration or performing a forced output test requires a live connection to the controller, and delays caused by missing programming tools are a preventable source of extended downtime.

Downtime Control During System Migration

Minimizing production interruption during a relay DO module replacement requires disciplined pre-planning and a clear rollback procedure. The recommended approach is to complete all preparatory work — firmware verification, I/O configuration backup, wiring documentation, and spare module pre-testing — before the maintenance window is opened. A pre-tested MLC-DR32H that has been bench-verified against the target rack configuration can be installed and commissioned in under 30 minutes in most applications.

Before powering down the rack, export and archive the current controller program, I/O configuration table, and HMI tag database. This backup serves as the rollback baseline if the replacement module introduces unexpected behavior. Store the backup on a local engineering workstation and a secondary offline medium — do not rely solely on the controller’s internal memory.

During the module swap, maintain field wiring continuity where process safety permits by using temporary jumper connections or a portable I/O bypass panel. For critical output channels controlling safety-rated actuators, coordinate with the process safety team to confirm that the relevant interlocks are in a safe state before the module is removed. Never bypass a safety interlock without a formal permit-to-work.

After the MLC-DR32H is seated and the rack is powered, perform a systematic forced output test on each of the 32 channels before returning the system to automatic control. Verify that each relay energizes and de-energizes correctly, that the corresponding field device responds as expected, and that the HMI status indication updates correctly. Document the test results and retain them as part of the maintenance record.

If the replacement module does not initialize correctly on first power-up, do not attempt repeated power cycles without first checking the backplane seating, module address configuration, and controller firmware compatibility. A structured fault-finding approach — starting with the simplest mechanical causes before moving to firmware or configuration issues — will resolve the majority of commissioning problems without requiring additional downtime.

Retrofit Support FAQ

Q1: Is the MLC-DR32H a direct drop-in replacement for the original Honeywell MLC relay DO module?
A: Yes. The MLC-DR32H is designed as a form-fit-function replacement for the original MLC Series relay digital output module. It occupies the same backplane slot, uses the same terminal wiring block, and is recognized by the MLC controller without firmware modification in the majority of installations. Customers should verify the controller firmware revision and hardware revision of the replacement module before installation to confirm full compatibility.

Q2: Does KNMKS perform pre-shipment functional testing on the MLC-DR32H?
A: Yes. Every MLC-DR32H unit shipped by KNMKS undergoes 100% functional output testing prior to dispatch. A test report is available on request. Units are shipped in anti-static packaging with protective end caps to prevent transit damage. The support terms confirmed by quotation cover manufacturing defects and includes DOA (dead on arrival) replacement within 30 days of receipt.

Q3: What should I check if the MLC-DR32H does not communicate with the controller after installation?
A: First, confirm that the module is fully seated in the backplane slot and that the module address (DIP switch or slot-based) matches the original configuration. Next, verify that the MLC controller firmware supports the hardware revision of the replacement module — this information is available in the MLC Series release notes. If the controller requires an I/O configuration download after a module change, perform this step using the engineering workstation before cycling power. If the issue persists, contact KNMKS technical support with the controller firmware version and module hardware revision for further diagnosis.

Q4: Can the MLC-DR32H be used in a migration from the legacy MLC platform to a modern PLC or DCS?
A: Yes. The MLC-DR32H is commonly used as an interim replacement to extend the operational life of an existing MLC-based system while a full platform migration is planned and budgeted. It allows the existing field wiring, control logic, and HMI configuration to remain unchanged during the transition period. For customers planning a full migration to a modern controller platform, KNMKS can advise on compatible I/O modules, communication gateways, and signal isolators that support a phased migration approach with minimal production disruption.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

MLC-DR32H

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Honeywell MLC-DR32H
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
