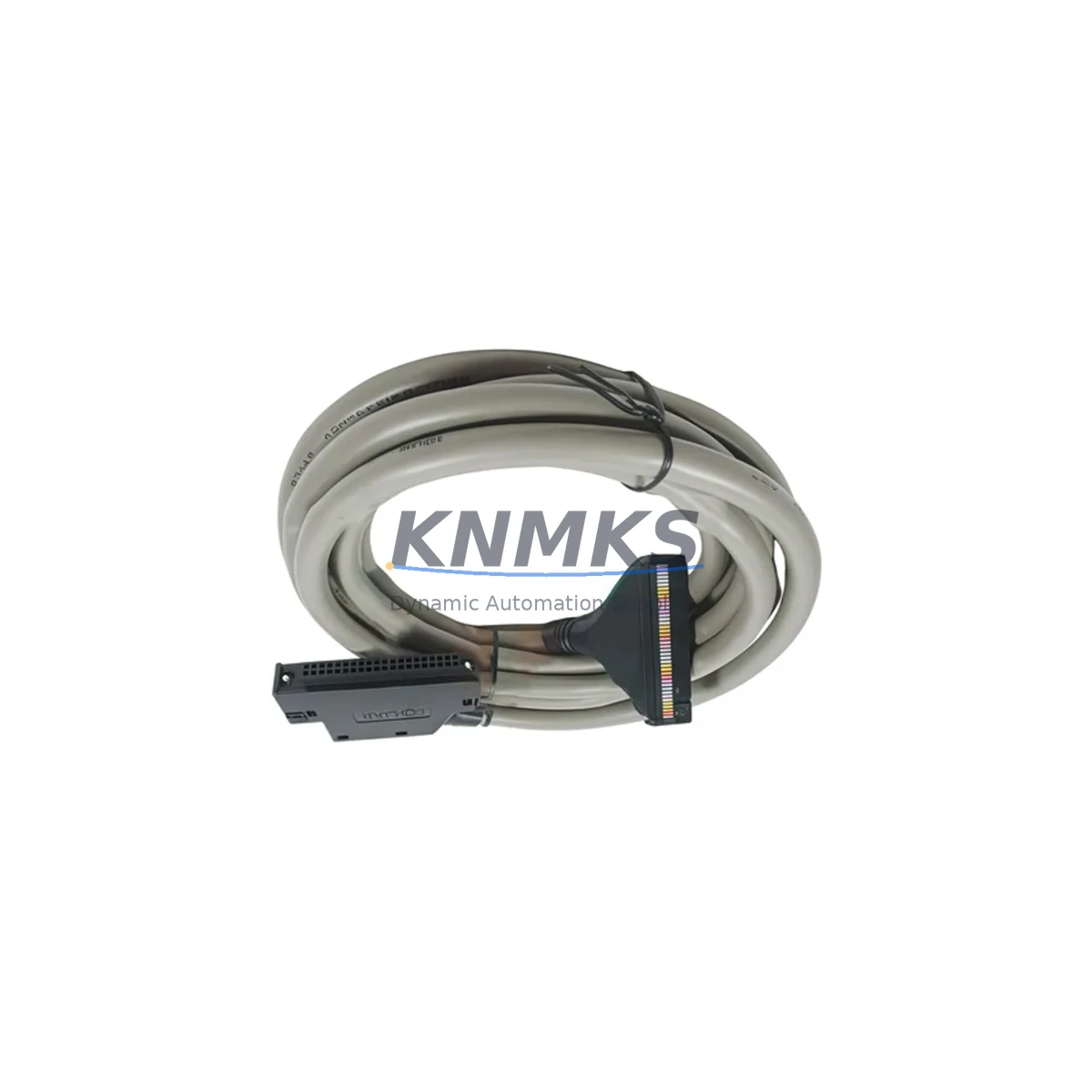

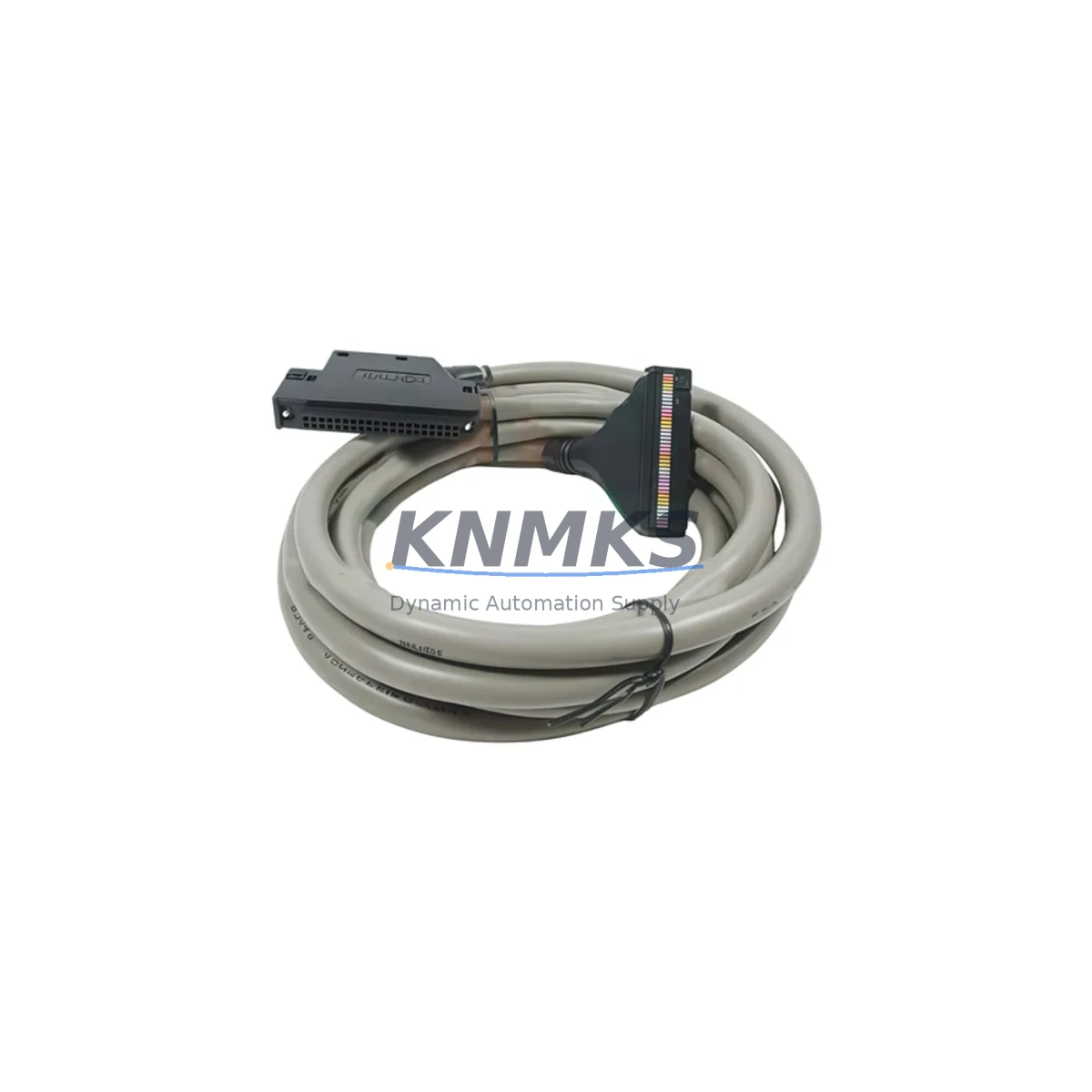

The Honeywell C40HF-30PB-1 is a 30-pin I/O field termination cable engineered for the HC900 Hybrid Controller platform — one of Honeywell’s most widely deployed process automation and DCS architectures in refining, chemical, power generation, and discrete manufacturing environments. For maintenance engineers managing aging HC900 systems, keeping a verified spare of the C40HF-30PB-1 on the shelf is not optional; it is a fundamental element of any credible uptime strategy.

This cable serves as the critical physical interface between HC900 I/O modules and field instrumentation. Signal integrity across this connection directly determines the reliability of analog inputs, digital outputs, and process control loops. A degraded or failed C40HF-30PB-1 can manifest as erratic PV readings, spurious alarms, loss of control output, or complete I/O channel failure — all of which translate to unplanned downtime and production loss. Stocking an original replacement eliminates the diagnostic ambiguity that comes with using non-OEM alternatives.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a C40HF-30PB-1 is flagged during routine control cabinet inspection or fails during a fault isolation exercise, the replacement scope should never be limited to the cable alone. Experienced maintenance engineers treat this event as a trigger for a broader system health check across the associated I/O rack and control loop.

Begin by verifying the HC900 I/O module seated at the corresponding slot — typically an analog input module such as the HC900 AI or a digital output module — for signs of connector wear, oxidation on the backplane pins, or firmware version mismatches that may have contributed to the cable failure. Inspect the HC900 Controller Module (C30, C50, or C70) for active diagnostics or communication faults that may indicate a deeper system issue beyond the termination cable.

Check the HC900 Power Supply Module output voltage under load. Voltage sag or ripple on the 24 VDC rail can accelerate connector degradation and cause intermittent signal loss that is often misdiagnosed as a cable fault. If the power supply is original and has been in service for more than five years, include it in the next planned replacement cycle.

Inspect all terminal blocks and marshalling wiring connected to the field side of the C40HF-30PB-1. Loose terminations, corroded conductors, or undersized wire gauges are common root causes of recurring cable failures. While the cabinet is open, verify the condition of signal isolators or barriers protecting intrinsically safe field devices — these components are frequently overlooked during routine maintenance but are critical for signal quality and personnel safety.

For systems with HC900 Communication Modules (Ethernet, Modbus, or PROFIBUS variants), confirm that the module firmware is current and that the network topology has not introduced latency or packet loss that could affect closed-loop control performance. Finally, check any fuses or circuit protection devices on the I/O power distribution rail; a nuisance blow on a field power fuse can produce symptoms identical to a failed termination cable and should be ruled out before committing to a cable replacement.

Site Replacement Workflow

Replacing the C40HF-30PB-1 on an active HC900 system requires a structured approach to minimize loop disruption and ensure a clean return to service. Before disconnecting the existing cable, document the current I/O channel assignments and verify that the affected control loops are either in manual mode or have been handed off to a backup control strategy. This is especially important in continuous process environments where a sudden loss of a PV signal can trigger a process upset or safety interlock.

Disconnect the field-side wiring from the terminal block carefully, labeling each conductor if the existing labeling is worn or absent. Remove the 30-pin connector from the I/O module by releasing the locking mechanism — do not apply lateral force, as this is a common cause of backplane pin damage that can render the I/O module itself unserviceable. Install the new C40HF-30PB-1, verify the connector is fully seated and locked, and reconnect field wiring in sequence.

After installation, perform a channel-by-channel signal verification using the HC900 Configuration Studio or the operator station HMI before returning loops to automatic. Compare live PV readings against field instrument local indicators to confirm signal accuracy. Document the replacement in the site maintenance management system with the date, technician ID, and the old cable’s condition notes. This record supports future root cause analysis and helps justify spare parts inventory levels to procurement management.

For sites managing multiple HC900 racks or running legacy HC900 configurations that are no longer supported under active Honeywell service agreements, maintaining a minimum of two C40HF-30PB-1 units per rack in the local spare parts store is a widely accepted best practice. This buffer supports both emergency replacement and planned annual maintenance without creating procurement urgency during a production outage.

Spare Parts Support FAQ

Q1: Is the C40HF-30PB-1 compatible with all HC900 I/O module variants?
The C40HF-30PB-1 is designed for HC900 I/O modules that use the 30-pin field termination interface. Compatibility should be confirmed against the specific I/O module part number and the HC900 system documentation for your installation. If you are unsure, provide your I/O module part number and we will confirm compatibility before shipment.

Q2: What does the support terms confirmed by quotation cover?
All C40HF-30PB-1 units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. Each unit is tested before dispatch. Support requests are supported with replacement or refund, subject to inspection of the returned part.

Q3: Can you support long-term or blanket purchase orders for this part?
Yes. KNMKS maintains stock of the C40HF-30PB-1 and can support scheduled delivery programs, blanket orders, and annual maintenance contracts. Long-term supply agreements are available for customers managing multiple HC900 installations or operating under a planned obsolescence replacement program.

Q4: How do I verify the part is genuine before installation?
Each unit supplied by KNMKS is sourced from authorized channels and includes original manufacturer labeling and part markings. We recommend visual inspection of the part number, connector pin count, and cable jacket markings against the Honeywell HC900 spare parts documentation before installation. If any discrepancy is found, contact us before proceeding.
