Honeywell 900RSM-0101 Maintenance-Proven Spare Part for Factory Uptime

Overview

Honeywell 900RSM-0101 Maintenance-Proven Spare Part for Factory Uptime

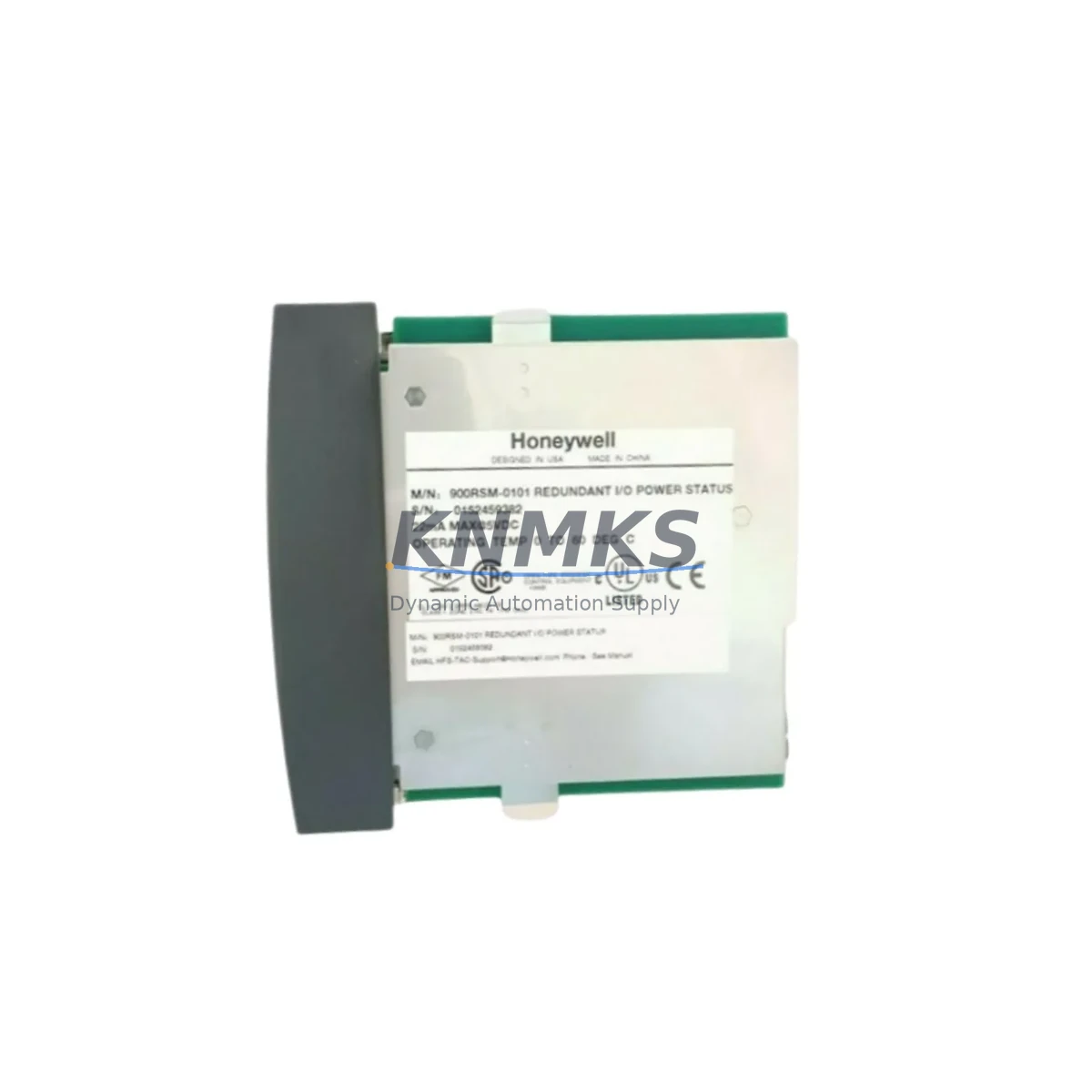

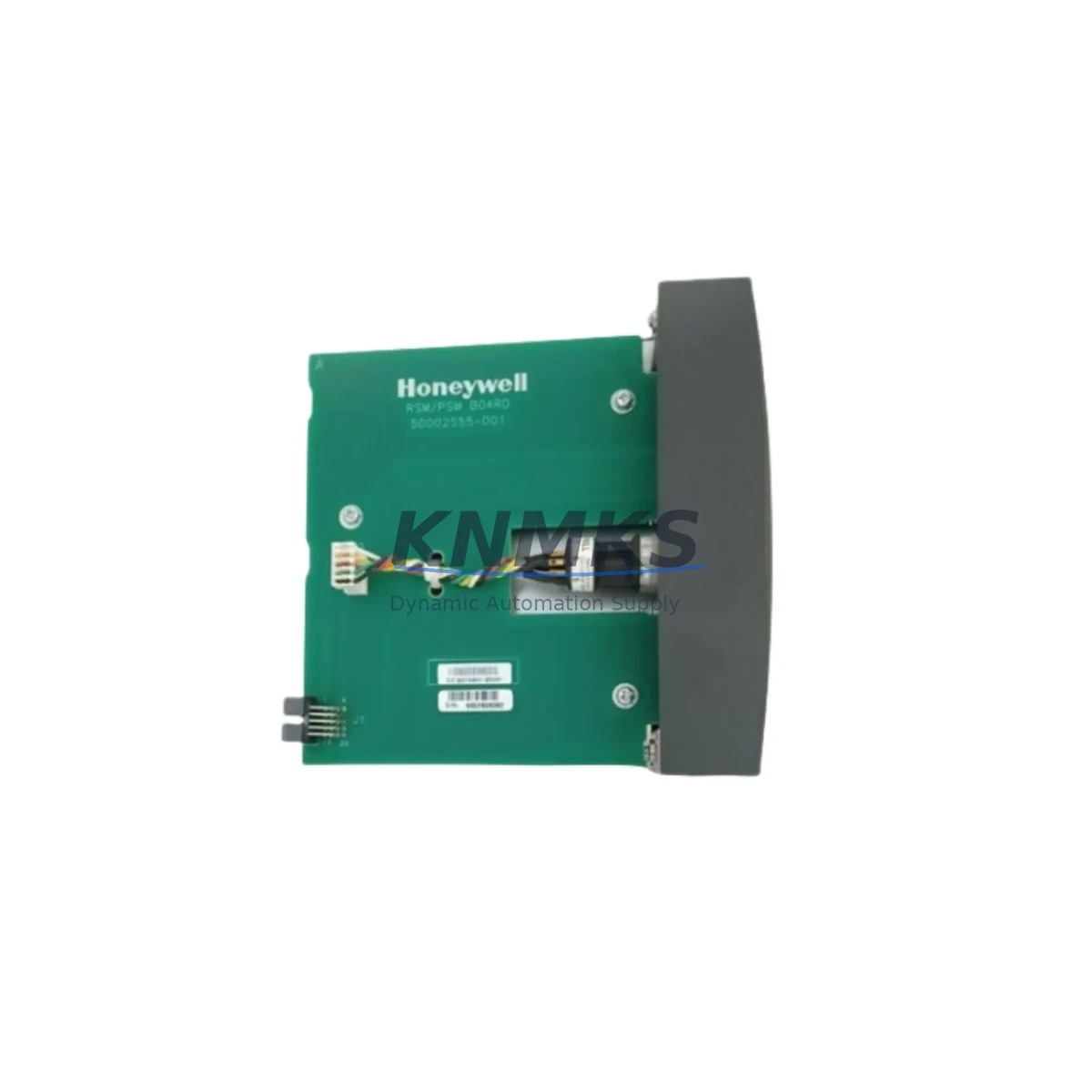

The Honeywell 900RSM-0101 is the original Redundant Switch Module for the HC900 Hybrid Controller platform — a critical spare for process plants, chemical facilities, oil & gas installations, and any continuous-operation environment where DCS redundancy is non-negotiable. Maintaining a verified stock of the 900RSM-0101 is a foundational element of any serious spare parts strategy for HC900-based control systems.

When a redundancy switch module degrades or fails, the entire fault-tolerant architecture of the HC900 system is compromised. The primary and secondary controller paths can no longer perform seamless bumpless transfer, exposing the process to unplanned downtime. Fast replacement with a pre-tested, original 900RSM-0101 is the only reliable path to restoring full redundancy and protecting production continuity.

Every 900RSM-0101 unit shipped from KNMKS is subject to pre-shipment functional verification, ensuring the module performs to Honeywell factory specifications before it leaves our facility. A support terms confirmed by quotation is included as standard, covering both parts and workmanship — giving maintenance engineers and procurement teams the confidence to stock this module as a long-term spare.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 900RSM-0101 in a live HC900 system is not an isolated task — it is an opportunity to audit the entire redundancy architecture and adjacent components. Maintenance engineers should treat a redundancy module replacement as a trigger for a broader control cabinet inspection.

Begin by verifying the HC900 CPU modules on both the primary and secondary racks. The 900C52 and 900C53 controller modules must be confirmed at compatible firmware revisions before the new 900RSM-0101 is commissioned. A firmware mismatch between the redundancy switch module and the CPU modules is a common source of post-replacement faults that can be avoided with a pre-work checklist.

Inspect the HC900 backplane and rack assembly for signs of corrosion, loose connectors, or mechanical damage. The redundancy switch module interfaces directly with the backplane bus, and any degraded connector contact will undermine the reliability of the new module. While the cabinet is open, check the 900P01 or equivalent HC900 power supply module for output voltage stability — an aging or undersized power supply is a leading cause of intermittent redundancy faults that are often misdiagnosed as module failures.

Review the I/O modules connected to the HC900 system. Analog input modules such as the 900G32 and digital output modules in the same rack should be inspected for error flags, loose field wiring terminations, and terminal block integrity. A redundancy switchover event can expose latent wiring issues that were previously masked by the primary controller path.

For systems with Ethernet-based supervisory connectivity, verify the HC900 Ethernet communication module and associated network switches are operating correctly. Communication module faults can interfere with redundancy status reporting to the SCADA or DCS historian, creating false alarms during and after the 900RSM-0101 replacement.

Finally, confirm that signal isolators and surge protection devices on critical analog loops are within specification. These components protect both the I/O modules and the field instruments, and their condition directly affects the quality of process data available to the HC900 controller during and after a redundancy switchover.

Site Replacement Workflow

The 900RSM-0101 is a direct replacement for any failed or degraded Honeywell HC900 Redundant Switch Module. No hardware modification or custom configuration is required for like-for-like substitution within a compatible HC900 rack.

Step 1 — Pre-work verification: Confirm the system is in a safe state for maintenance. Identify which controller (primary or secondary) is currently active. Document the current redundancy status via the HC900 configuration software or operator station.

Step 2 — Module removal: With the system in a controlled state, remove the failed 900RSM-0101 from its backplane slot. Inspect the slot connector for damage or contamination before installing the replacement.

Step 3 — Installation: Seat the new 900RSM-0101 firmly into the backplane slot. Secure all retention hardware. Do not apply power until the module is fully seated.

Step 4 — Power-up and verification: Restore power and observe the module status LEDs. Use HC900 configuration software to confirm redundancy link establishment and bumpless transfer capability between primary and secondary controllers.

Step 5 — Documentation: Record the replacement in the site maintenance log, including the new module serial number, installation date, and post-replacement test results. Update the spare parts inventory to trigger reorder of a replacement 900RSM-0101 for future stock.

This workflow minimizes downtime, preserves system compatibility, and ensures the HC900 redundancy architecture is fully restored before the maintenance window closes.

Spare Parts Support FAQ

Q1: Is the 900RSM-0101 available for long-term supply?
Yes. KNMKS maintains stock of the Honeywell 900RSM-0101 and supports long-term supply agreements for customers managing HC900 systems through extended lifecycle phases. Contact our team to discuss multi-unit procurement and scheduled delivery arrangements.

Q2: What pre-shipment testing is performed on the 900RSM-0101?
Every unit undergoes functional verification prior to dispatch. Testing confirms module power-up, backplane interface integrity, and redundancy link signaling to Honeywell factory specifications. A test report is available upon request.

Q3: How do I confirm compatibility with my HC900 system revision?
Provide your HC900 system firmware version and rack configuration details to our technical team. We will confirm compatibility before shipment. The 900RSM-0101 is compatible with standard HC900 redundant configurations using 900C52 or 900C53 CPU modules.

Q4: What does the support terms confirmed by quotation cover?
The support terms covers manufacturing defects and functional failures under normal operating conditions for 12 months from the date of shipment. It includes replacement or repair at no additional cost. Support requests are processed directly through KNMKS with priority turnaround to minimize your downtime exposure.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

900RSM-0101

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Honeywell 900RSM-0101
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
