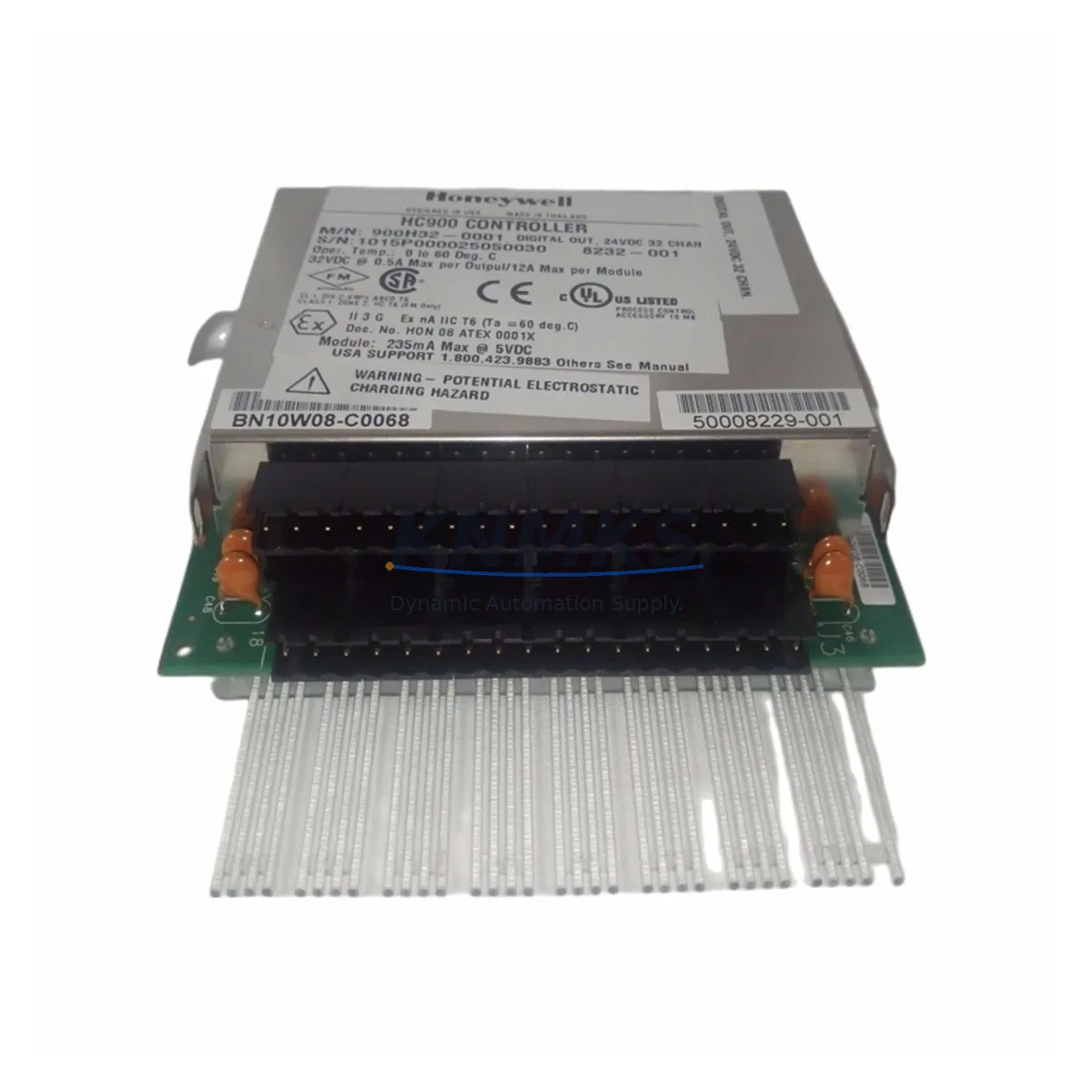

The Honeywell 900H32-0302 is a 32-channel Solid State Relay (SSR) Digital Output Module designed for the HC900 Hybrid Controller platform. As a critical field-replaceable unit in process automation and hybrid control architectures, this module governs discrete output switching for actuators, solenoid valves, motor starters, and alarm annunciators across continuous manufacturing, chemical processing, oil & gas, and utilities applications. Maintaining a verified spare of the 900H32-0302 in your site inventory is a proven strategy to minimize Mean Time to Repair (MTTR) during unplanned outages and to sustain production continuity through scheduled annual shutdowns.

Each unit supplied by KNMKS is sourced from authorized channels, subjected to pre-shipment functional verification, and backed by a support terms confirmed by quotation. Our long-term supply commitment ensures that maintenance engineers and procurement teams can plan multi-year spare parts strategies without exposure to end-of-life sourcing risk.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 900H32-0302 Digital Output Module is flagged during a control cabinet inspection or fails during a process upset, the replacement workflow extends beyond the module itself. Maintenance engineers should treat the event as a trigger for a broader cabinet health review to prevent cascading failures and reduce the probability of repeat downtime.

Begin by verifying the HC900 backplane integrity — the 900RK08-0100 or 900RK16-0100 I/O rack should be inspected for bent connector pins, oxidation on the backplane bus, and secure DIN rail mounting. A damaged backplane can cause intermittent output faults that are misdiagnosed as module failures. Next, confirm that the HC900 C50 or C70 Controller module (e.g., 900C50-0143-00) firmware is current and that the I/O configuration database correctly maps the 32 output channels to the replacement module slot address.

On the power distribution side, inspect the 24 V DC auxiliary power supply feeding the HC900 rack — typically a 900P01-0001 or equivalent DIN-rail power supply. Verify output voltage under load, check for ripple, and confirm that fuse protection on each output circuit is intact. SSR-driven outputs are sensitive to inrush current from inductive loads; review the fuse ratings on terminal blocks connected to solenoid valves or motor contactors and replace any that show signs of thermal stress.

For field wiring, inspect the 900TBK-0001 terminal block assemblies or equivalent marshalling panels connected to the module’s output channels. Loose terminations and corroded screw terminals are a leading cause of intermittent output faults in high-vibration or high-humidity environments. Torque all terminals to specification and apply conformal coating where moisture ingress is a risk.

If the HC900 system includes communication modules such as the 900CS-0001 Ethernet Communication Module or a Modbus RTU interface card, verify that the module replacement does not disrupt the I/O map visible to the SCADA or DCS host. Re-download the HC900 configuration using Honeywell’s HC Designer software and perform a live I/O checkout before returning the loop to automatic control. For systems integrated with a Honeywell HMI station running Experion or a third-party SCADA, confirm that all 32 output tags are correctly mapped and that alarm setpoints are restored.

Annual maintenance schedules should include a spare parts audit: one 900H32-0302 module per HC900 rack is a widely adopted minimum stock level for sites with 24/7 production requirements. Sites running legacy HC900 systems beyond the original design life should consider holding two units to account for the reduced availability of new-production stock.

Site Replacement Workflow

Step 1 — Preparation: Download the current HC900 configuration file from the controller using HC Designer before any hardware change. Confirm the slot address of the failed 900H32-0302 module and note the output channel assignments. Notify the control room operator and place the affected loops in manual mode.

Step 2 — Safe Isolation: De-energize the output field circuits at the marshalling panel or terminal block. Do not rely solely on the software output inhibit — physically isolate field power to the 32 output channels. Verify isolation with a multimeter before proceeding.

Step 3 — Module Removal: The 900H32-0302 is designed for hot-swap removal on the HC900 backplane. Grasp the module handle, release the locking tab, and slide the module straight out. Avoid rocking the module, which can damage backplane connector pins.

Step 4 — Replacement Installation: Slide the new 900H32-0302 into the same slot until the locking tab engages. The HC900 controller will automatically recognize the module and restore the I/O map without a controller restart in most firmware versions. Confirm module status LED is green.

Step 5 — Verification: Re-energize field circuits and perform a channel-by-channel output checkout. Force each of the 32 outputs from the HC Designer diagnostic screen and verify field device response. Restore loops to automatic mode only after all channels are confirmed operational.

Step 6 — Documentation: Record the replacement in the site maintenance log, update the spare parts inventory, and order a replacement spare to restore minimum stock levels. Retain the failed module for root cause analysis before disposal.

This workflow is compatible with HC900 systems running firmware 2.x through 4.x and applies equally to C30, C50, C70, and C75 controller variants. No re-configuration of the HC900 database is required when replacing a module of the same part number in the same slot.

Spare Parts Support FAQ

Q1: Is the 900H32-0302 still in production, and can KNMKS guarantee long-term supply?
Honeywell has transitioned the HC900 platform to a mature product lifecycle stage. KNMKS maintains a dedicated inventory of 900H32-0302 modules sourced from authorized surplus and new-production channels. We offer long-term supply agreements for sites requiring multi-year procurement planning, ensuring you are not exposed to last-time-buy risk or grey-market sourcing.

Q2: How is compatibility with my specific HC900 system verified before shipment?
Each 900H32-0302 unit is tested on an HC900 I/O rack prior to shipment. We verify module recognition, channel output switching, and backplane communication. Compatibility is confirmed for all HC900 rack variants (900RK08, 900RK16) and controller models (C30, C50, C70, C75). If your system runs a specific firmware version, provide it at order time and we will confirm compatibility.

Q3: What does the support terms confirmed by quotation cover, and what is the return process?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions as defined in the HC900 I/O Module Installation Guide. It does not cover damage from incorrect installation, overvoltage, or environmental conditions outside the module’s rated range. To initiate a support terms claim, contact admin@knmks.com with the order number and a description of the fault. KNMKS will arrange return shipping and provide a replacement or refund within the agreed service window.

Q4: Can the 900H32-0302 replace older HC900 digital output modules with different part number suffixes?
Honeywell uses suffix codes to indicate hardware revision levels. The -0302 suffix designates the current production revision of the 32-channel SSR Digital Output Module. In most cases, it is backward compatible with earlier suffix variants installed in the same slot, as the HC900 controller identifies the module by its base part number and channel type. However, KNMKS recommends confirming compatibility with your HC900 system documentation or contacting our technical team before substituting across suffix revisions in safety-critical applications.
