Overview

Honeywell 900G32-0001 Maintenance-Proven Spare Part for Factory Uptime

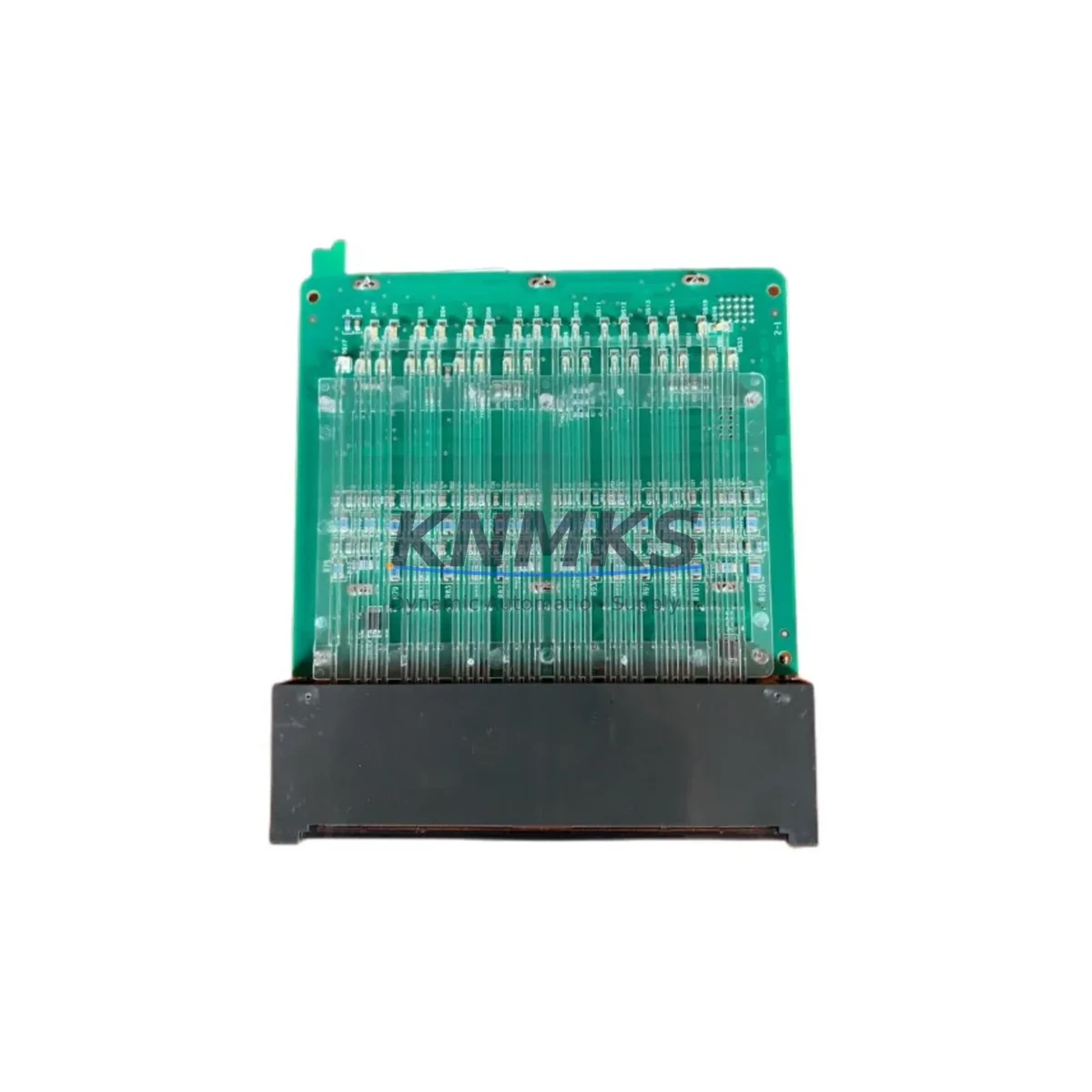

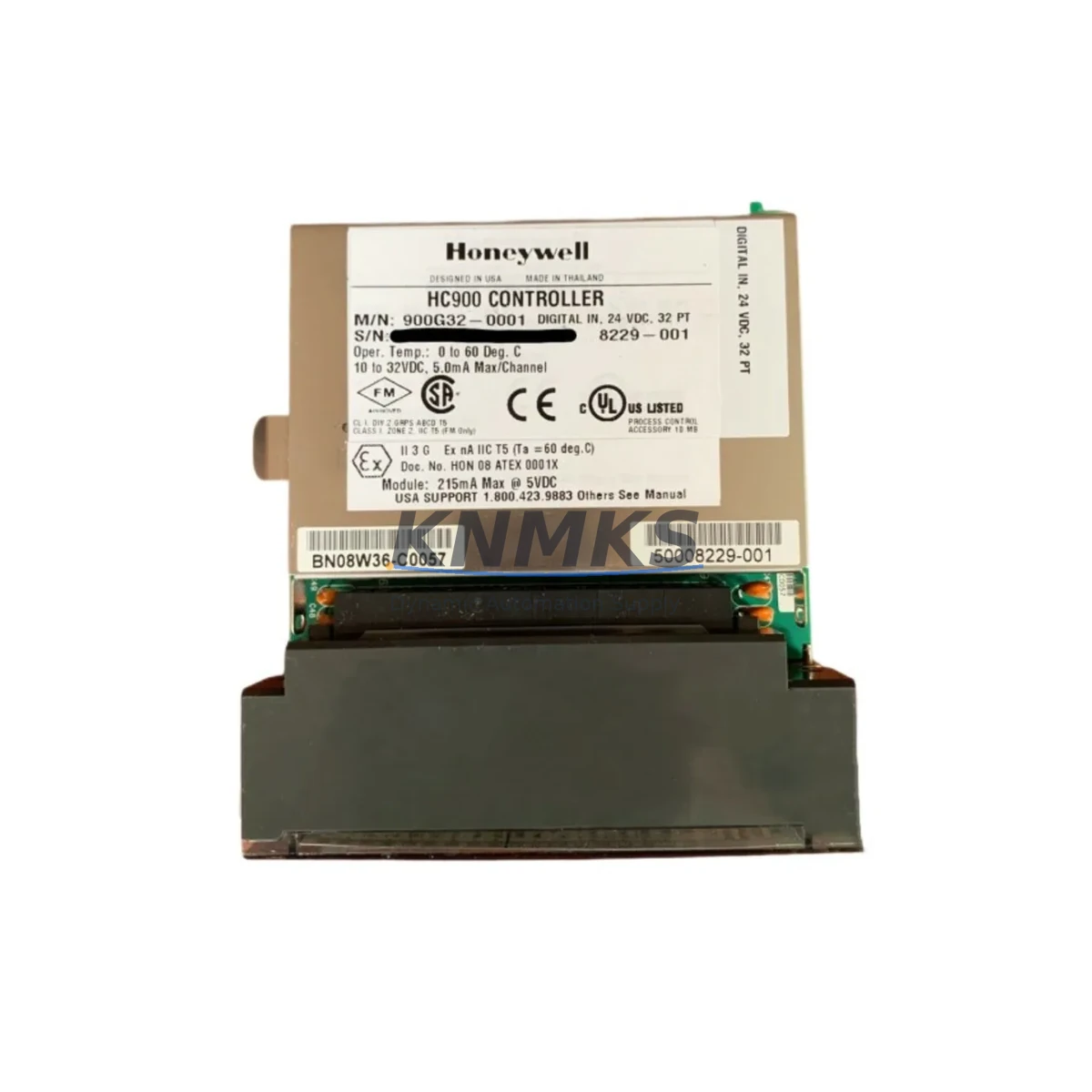

The Honeywell 900G32-0001 is a 32-channel digital input module engineered for the HC900 Hybrid Controller platform. Designed for continuous-process and batch-automation environments, this module serves as a critical interface between field-level discrete signals and the HC900 controller rack — covering applications in refining, chemical processing, power generation, and advanced manufacturing. Maintaining a verified stock of the 900G32-0001 is a foundational element of any credible spare-parts strategy for HC900-based control systems.

At KNMKS, every 900G32-0001 unit is sourced from authorized supply channels, individually inspected, and function-tested prior to dispatch. Each module ships with a support terms confirmed by quotation covering manufacturing defects and operational failures under normal service conditions. Our inventory is maintained to support both emergency breakdown orders and planned annual-overhaul procurement cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 900G32-0001 digital input module is flagged during routine control-cabinet inspection or fails during a fault-isolation sequence, experienced maintenance engineers know that the module itself is rarely the only component requiring attention. A disciplined site assessment should extend to the surrounding system architecture before the replacement unit is commissioned.

Begin with the HC900 rack power supply (such as the 900P01-0001 or 900P02-0001 series). A degraded rack PSU can cause intermittent DI channel faults that mimic module failure; verifying output voltage stability under load is a mandatory pre-check. Next, inspect the HC900 backplane and rack chassis — connector pin wear, oxidation on the backplane edge connectors, and physical slot damage are common root causes of recurring module errors in aging installations.

Field wiring terminations at the HC900 terminal I/O assemblies and associated marshalling panels should be torque-checked and visually inspected for insulation breakdown, particularly in high-vibration or high-humidity environments. Where discrete inputs are sourced from relay output cards — for example, Honeywell 900G16-0001 digital output modules driving interlock feedback loops — the relay contacts and coil integrity should be verified simultaneously to avoid repeat faults after the DI module is replaced.

For installations where the HC900 communicates upstream via Modbus TCP, PROFIBUS, or OPC, confirm that the HC900 communication module (900CS-0001 or equivalent) is operating without error flags, as communication faults can mask or misattribute DI channel alarms in the historian and SCADA layer. If the site uses signal isolators or signal conditioners between field transmitters and the DI module inputs, these should be bench-tested as part of the corrective maintenance cycle — degraded isolation barriers are a frequent but overlooked contributor to channel noise and false-trip events.

Finally, review the HC900 C70 or C75 controller CPU module firmware revision. Honeywell has released firmware updates that affect DI module scan rates and diagnostic reporting; ensuring the CPU and I/O module firmware are at compatible revisions prevents post-replacement configuration issues and supports long-term system stability.

Procuring a minimum of one cold-standby 900G32-0001 per HC900 rack is the industry-standard recommendation for process plants operating under IEC 61511 functional-safety frameworks or equivalent site reliability targets.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the 900G32-0001 part number against the rack slot label and the HC900 configuration database. Cross-reference the module’s channel assignment map in the HC900 Designer configuration tool to document all 32 input tag assignments before removal.

Step 2 — Safe Isolation: Place the HC900 controller in the appropriate maintenance mode per site safety procedures. De-energize field circuits connected to the module’s terminal block. Do not remove the module under live rack power unless the HC900 rack supports hot-swap for this module type — verify this in the HC900 Hardware Installation Guide before proceeding.

Step 3 — Module Removal and Inspection: Extract the 900G32-0001 from its rack slot. Inspect the backplane connector for bent pins or contamination. Retain the failed module for failure-mode analysis and support terms claim processing if applicable.

Step 4 — Replacement Installation: Insert the new 900G32-0001 into the designated rack slot. Reconnect field wiring to the terminal block, verifying wire labeling against the as-built drawings. Restore rack power and confirm the HC900 controller recognizes the module without fault codes.

Step 5 — Functional Verification: Force-test a representative sample of DI channels from the field side to confirm correct signal reception and tag mapping in the HC900 configuration. Clear any latched alarms and document the replacement in the site maintenance management system (CMMS).

This workflow is applicable to legacy HC900 C30 and C50 installations being upgraded to C70 or C75 controllers, where the 900G32-0001 module remains fully backward-compatible, eliminating the need for I/O rewiring during controller-tier upgrades.

Spare Parts Support FAQ

Q1: Is the 900G32-0001 compatible with all HC900 controller variants?
Yes. The 900G32-0001 is designed for use across the HC900 platform, including C30, C50, C70, and C75 controller configurations. It installs into any standard HC900 I/O expansion rack slot. Always verify the rack firmware revision is compatible with the module hardware revision per the Honeywell HC900 compatibility matrix before installation.

Q2: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or use outside the module’s rated environmental specifications. Support requests are processed with return-material authorization (RMA) and include replacement or documented resolution support at KNMKS’s discretion.

Q3: How is the module tested before shipment?
Each 900G32-0001 unit undergoes visual inspection, connector integrity check, and functional power-on testing prior to dispatch. Units that do not pass inspection are quarantined and not offered for sale. Test records are retained and can be provided upon request for quality-audit purposes.

Q4: Can KNMKS support long-term or blanket-order procurement for the 900G32-0001?
Yes. KNMKS supports scheduled delivery agreements, blanket purchase orders, and annual maintenance contract supply arrangements for the 900G32-0001 and related HC900 spare parts. Contact our technical sales team to discuss volume pricing, reserved inventory allocation, and lead-time commitments aligned to your plant’s planned maintenance calendar.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

900G32-0001

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Honeywell 900G32-0001
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
