Honeywell 900C52-0244-00 Spare Part for Factory Uptime

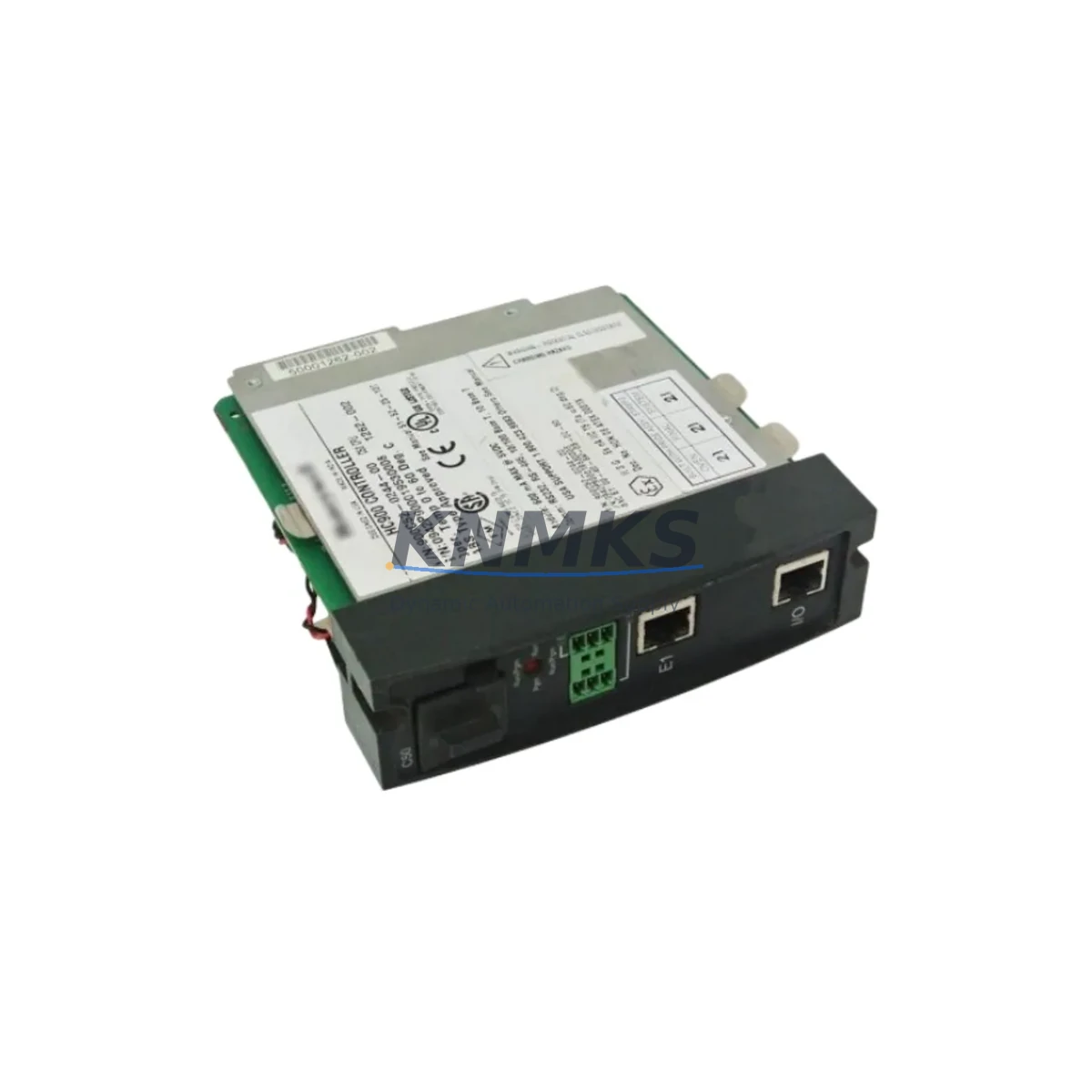

The Honeywell 900C52-0244-00 is a CPU module designed for the HC900 Hybrid Controller series — a widely deployed process control platform across petrochemical, power generation, water treatment, and industrial manufacturing facilities. As a maintenance-proven spare part, the 900C52-0244-00 plays a central role in sustaining continuous plant operations, enabling rapid fault recovery, and reducing unplanned downtime during both scheduled turnarounds and emergency replacement scenarios.

For maintenance engineers managing aging HC900 systems, holding a validated 900C52-0244-00 in the spare parts inventory is a critical risk mitigation strategy. CPU module failures in process control environments can cascade into full production shutdowns within minutes. Having a pre-tested, shelf-ready replacement eliminates the lead time risk associated with emergency procurement and ensures that site restoration can begin immediately upon fault isolation.

Each unit supplied by KNMKS undergoes pre-shipment functional verification to confirm firmware compatibility, communication integrity, and I/O bus readiness before dispatch. Units are shipped with a support terms confirmed by quotation covering manufacturing defects and operational failures under normal industrial service conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 900C52-0244-00 CPU module in an HC900 system, a thorough site inspection of the surrounding control cabinet components is essential to prevent repeat failures and ensure full system restoration. Maintenance engineers should begin by verifying the HC900 rack power supply module — typically the 900P01-0001 or equivalent 24 VDC supply — as power irregularities are a leading cause of CPU module degradation in long-running installations.

The HC900 I/O modules connected to the same chassis, such as analog input modules (900G32-0001) and digital output modules (900B08-0001), should be inspected for loose terminal connections, moisture ingress, and signal drift before the replacement CPU is commissioned. A faulty I/O module can generate erroneous fault codes that may be misdiagnosed as a CPU failure, so cross-verification is strongly recommended.

Communication infrastructure also warrants attention: the Ethernet switch or hub serving the HC900 network segment should be checked for port errors and link stability. If the HC900 system is configured in a redundant CPU architecture, the secondary CPU module (900C52-0244-00 or compatible redundancy partner) must be inspected to confirm it is synchronized and ready for automatic failover.

Terminal blocks and field wiring connected to the I/O bus should be torque-checked and inspected for corrosion, particularly in humid or chemically aggressive environments. Signal isolators installed between field transmitters and HC900 analog inputs should be verified for calibration drift. Additionally, any 24 VDC fuse protection modules or circuit breakers in the power distribution rail should be tested and replaced if showing signs of thermal stress.

For sites running HC Designer software, a configuration backup should be confirmed before the swap, and the replacement CPU should be loaded with the current project file to minimize commissioning time. Procurement engineers sourcing the 900C52-0244-00 as a long-term spare should also consider stocking the HC900 chassis backplane and communication interface modules to cover multi-component failure scenarios during extended plant turnarounds.

Site Replacement Workflow

Step 1 — Fault Isolation: Use HC Designer diagnostics or the HC900 operator interface to confirm the CPU module as the fault source. Document the active fault codes and system status before powering down.

Step 2 — Safe Shutdown: Follow site lockout/tagout (LOTO) procedures. Power down the HC900 rack via the main power supply disconnect. Confirm zero-energy state before handling the CPU module.

Step 3 — Configuration Backup: If the CPU is still partially functional, export the current HC Designer project file to a secure location. Confirm the backup is complete and readable before proceeding.

Step 4 — Module Removal: Release the CPU module locking tabs and slide the 900C52-0244-00 out of the chassis slot. Inspect the backplane connector for bent pins or contamination.

Step 5 — Replacement Installation: Insert the replacement 900C52-0244-00 into the chassis slot and secure the locking tabs. Restore power and allow the module to complete its self-diagnostic boot sequence.

Step 6 — Configuration Restore: Download the saved HC Designer project file to the replacement CPU. Verify I/O mapping, communication parameters, and control loop configurations match the pre-failure baseline.

Step 7 — Functional Verification: Confirm all I/O channels are reading correctly, communication links are established, and the system is operating within normal parameters before returning the process to automatic control.

This workflow is compatible with both single-CPU and redundant-CPU HC900 configurations and supports migration from older HC900 firmware revisions to current supported versions without requiring hardware changes.

Spare Parts Support FAQ

Q1: Is the 900C52-0244-00 compatible with all HC900 chassis sizes?
Yes. The 900C52-0244-00 CPU module is designed for use across the HC900 4-slot, 8-slot, and 12-slot rack configurations. Compatibility is maintained across standard and redundancy-capable chassis variants. Always confirm the firmware revision of the replacement unit matches or exceeds the version required by your HC Designer project file.

Q2: What is the support terms coverage and what does it include?
All 900C52-0244-00 units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects and operational failures under normal industrial service conditions. Units that fail within the confirmed support period are eligible for replacement or repair at no additional cost. The support terms does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling.

Q3: How do you verify the unit before shipment?
Each 900C52-0244-00 undergoes a pre-shipment functional test that includes power-on self-diagnostic verification, communication port integrity check, and I/O bus readiness confirmation. Test records are available upon request for quality-critical procurement processes. Units that do not pass all test criteria are not dispatched.

Q4: Can KNMKS support long-term or recurring supply of the 900C52-0244-00?
Yes. KNMKS maintains stock of the 900C52-0244-00 and related HC900 spare parts to support both emergency replacement and planned annual maintenance procurement. For facilities managing multi-site HC900 deployments or planning 12–36 month spare parts strategies, KNMKS can provide volume pricing and reserved stock arrangements. Contact admin@knmks.com or +86 18359268345 to discuss your supply requirements.
