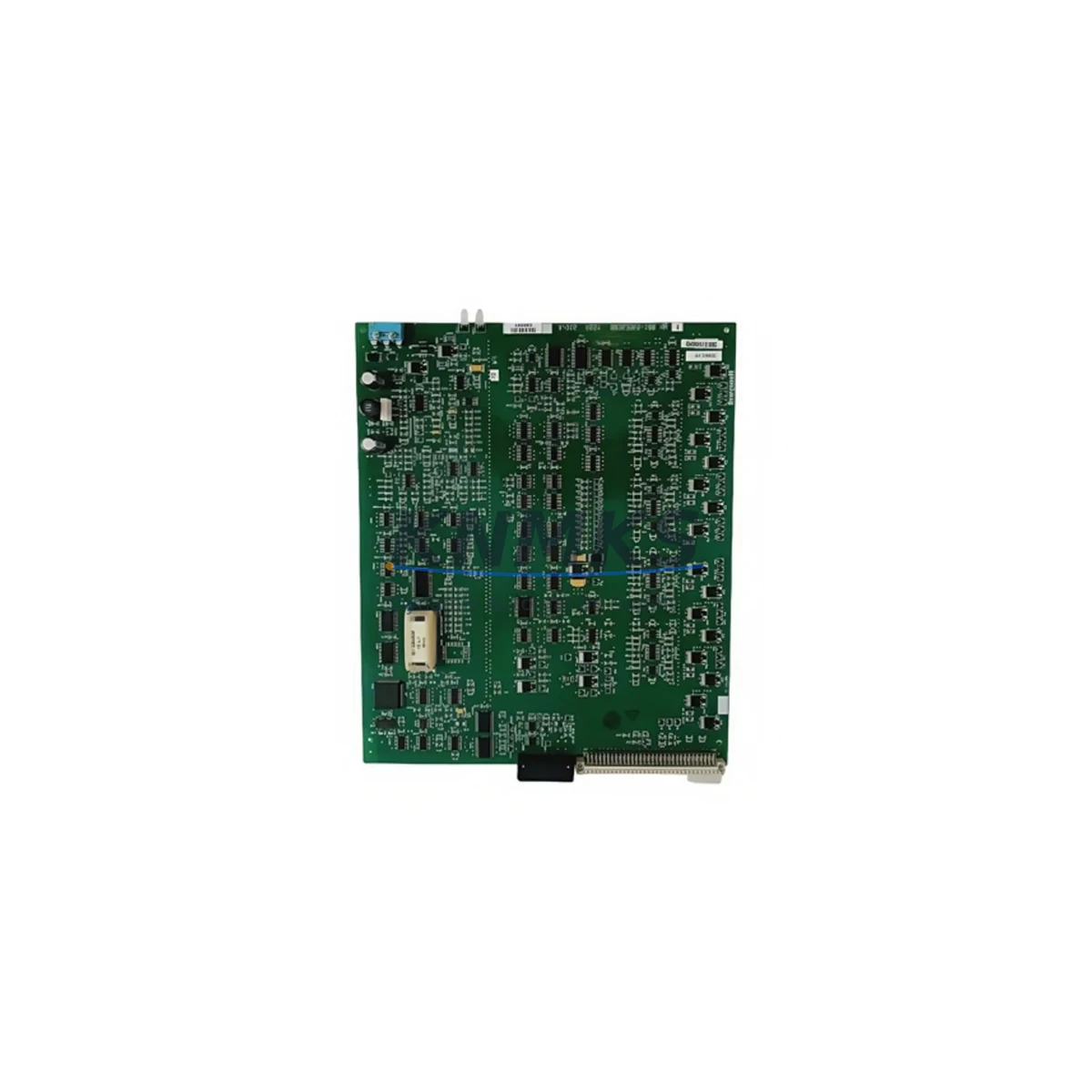

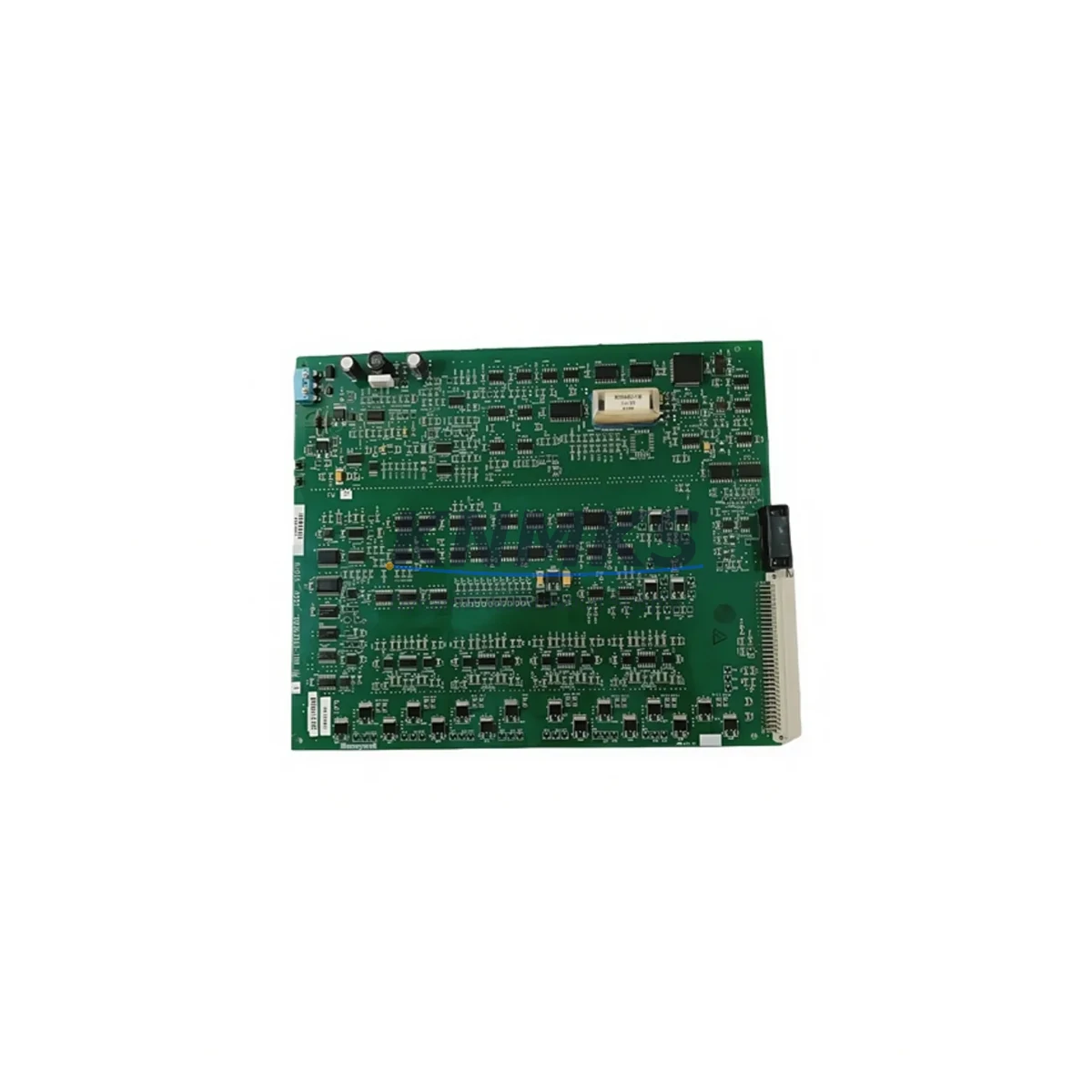

Honeywell 80363969-100 Migration-Ready Analog Output Module

Overview

Honeywell 80363969-100 Migration-Ready Analog Output Module: Legacy System Migration and Compatible Upgrade

The Honeywell 80363969-100 is a retrofit-ready analog output module engineered for seamless integration into existing TDC 3000 and High-Performance Process Manager (HPM) control architectures. As distributed control systems age and original spare parts reach end-of-life, the 80363969-100 provides a verified drop-in replacement path that preserves existing wiring infrastructure, backplane slot assignments, and process control logic without requiring a full system overhaul. For facilities managing legacy Honeywell TDC 3000 platforms, this module represents a cost-effective strategy to extend operational life while maintaining process continuity and regulatory compliance.

Before committing to a replacement, engineers should confirm several critical parameters: the module’s power draw against the available capacity of the existing Honeywell Power Supply Module in the cabinet, terminal block wiring compatibility with the existing field termination assemblies, backplane interface alignment with the HPM card cage slot, and the module address configuration within the Universal Control Network (UCN) or Local Control Network (LCN) topology. Firmware version compatibility between the 80363969-100 and the resident HPM firmware release must also be validated to prevent initialization faults during commissioning. HMI screen tag assignments referencing the original module’s channel outputs should be reviewed in the operator console prior to cutover to avoid alarm flooding during the transition window.

Program logic compatibility is a key concern during any analog output module swap. Control strategies built in the Honeywell Control Language (CL) or Function Block environment that reference specific module I/O addresses must be audited before the replacement module is brought online. In many retrofit scenarios, the 80363969-100 can be substituted without modifying the underlying control strategy, provided the slot address and channel configuration are preserved. This significantly reduces engineering hours and minimizes the risk of introducing logic errors during the migration.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the Honeywell 80363969-100 into an operational TDC 3000 environment requires a structured pre-installation review. The HPM card cage must be inspected for available slot positions and backplane integrity before the replacement module is staged. In systems where multiple analog output channels are being upgraded simultaneously, it is common to also address adjacent modules in the same cage — including Honeywell Analog Input Modules and Digital Output Modules — to standardize the hardware revision level across the control node and reduce future maintenance complexity.

Power budget analysis is essential when adding or replacing modules in a populated HPM cabinet. The existing Honeywell Power Supply Module must have sufficient headroom to support the 80363969-100 alongside other active modules. In aging systems, it is advisable to test the power supply under load before the cutover date to identify any latent capacity issues that could cause instability after the new module is inserted.

Communication continuity is another critical planning element. The 80363969-100 operates within the UCN/LCN architecture, and any changes to module addressing must be reflected in the network configuration database before the module is brought online. In systems that also incorporate Honeywell Data Hiway Gateways or third-party Modbus interface modules for supervisory SCADA connectivity, the gateway configuration should be reviewed to confirm that the analog output channel data is correctly mapped to the upstream historian or DCS console. Where serial communication links connect the HPM to remote I/O panels or marshalling cabinets, the signal routing through any installed signal isolators or barriers should be verified to ensure loop integrity is maintained after the module swap.

For facilities that have extended their TDC 3000 architecture with Honeywell Series C I/O or ControlNet-compatible expansion racks, the 80363969-100 retrofit should be coordinated with a review of the overall I/O expansion strategy to confirm that the analog output channel count remains aligned with the current process requirements. Programming cables used for HPM configuration and diagnostics — such as the Honeywell Engineer’s Keyboard or PC-based configuration tools — should be available on-site during commissioning to support real-time parameter verification and loop tuning.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any live process environment. For the 80363969-100 replacement, the recommended approach is to pre-configure and bench-test the replacement module before the scheduled maintenance window. This includes verifying the output signal range (typically 4–20 mA), confirming the module address settings, and performing a functional loop test against a calibrated current meter before the module is transported to the field.

During the cutover, the existing module should be removed only after the process loop has been placed in manual control at the operator console. This prevents the control system from issuing uncontrolled output commands during the hardware transition. Once the 80363969-100 is seated in the backplane and powered, the module should be brought online in a controlled sequence: first confirming communication acknowledgment on the UCN/LCN, then verifying the output channel status in the HPM diagnostic display, and finally transferring the loop back to automatic control only after the output signal has been confirmed stable at the expected setpoint.

Original control logic and function block configurations should be backed up to a secure engineering workstation before any hardware changes are made. This ensures that if an unexpected compatibility issue arises during commissioning, the system can be restored to its previous state without data loss. Maintaining a documented record of the pre-retrofit module configuration — including channel assignments, scaling parameters, and alarm limits — provides a reliable reference baseline for the post-retrofit verification checklist and supports future audit requirements.

Retrofit Support FAQ

Q: Is the Honeywell 80363969-100 a direct replacement for the original discontinued unit?
A: Yes. The 80363969-100 is supplied as a like-for-like replacement for the original Honeywell OEM part. It is compatible with the HPM card cage backplane and existing FTA wiring, and does not require mechanical modification to the control cabinet. Customers should confirm the firmware revision of their HPM host before installation to ensure full compatibility.

Q: What commissioning steps are required after installing the 80363969-100?
A: After seating the module in the backplane, verify UCN/LCN communication acknowledgment in the HPM diagnostic interface. Perform a 4–20 mA loop calibration on each active output channel, confirm alarm setpoints in the operator console, and validate HMI tag assignments before returning the loop to automatic control. A full loop test against the field device is recommended before sign-off.

Q: How should terminal wiring be handled during the module swap?
A: All field wiring connected to the existing FTA should be labeled and photographed before disconnection. The 80363969-100 uses the same terminal interface as the original module, so rewiring is not required in a standard like-for-like replacement. Verify wire labeling against the as-built drawings before reconnection to prevent cross-wiring errors.

Q: What support terms and supply assurance does KNMKS provide for the 80363969-100?
A: All units are supplied with a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. Each module undergoes functional testing prior to shipment. KNMKS maintains inventory stock of the 80363969-100 to support urgent replacement requirements, with expedited shipping available for critical process applications. Contact our team to confirm current stock availability and lead time.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

80363969-100

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Honeywell 80363969-100
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
