Honeywell 621-9934C Maintenance-Proven Spare Part for Factory Uptime

Overview

Honeywell 621-9934C Maintenance-Proven Spare Part for Factory Uptime

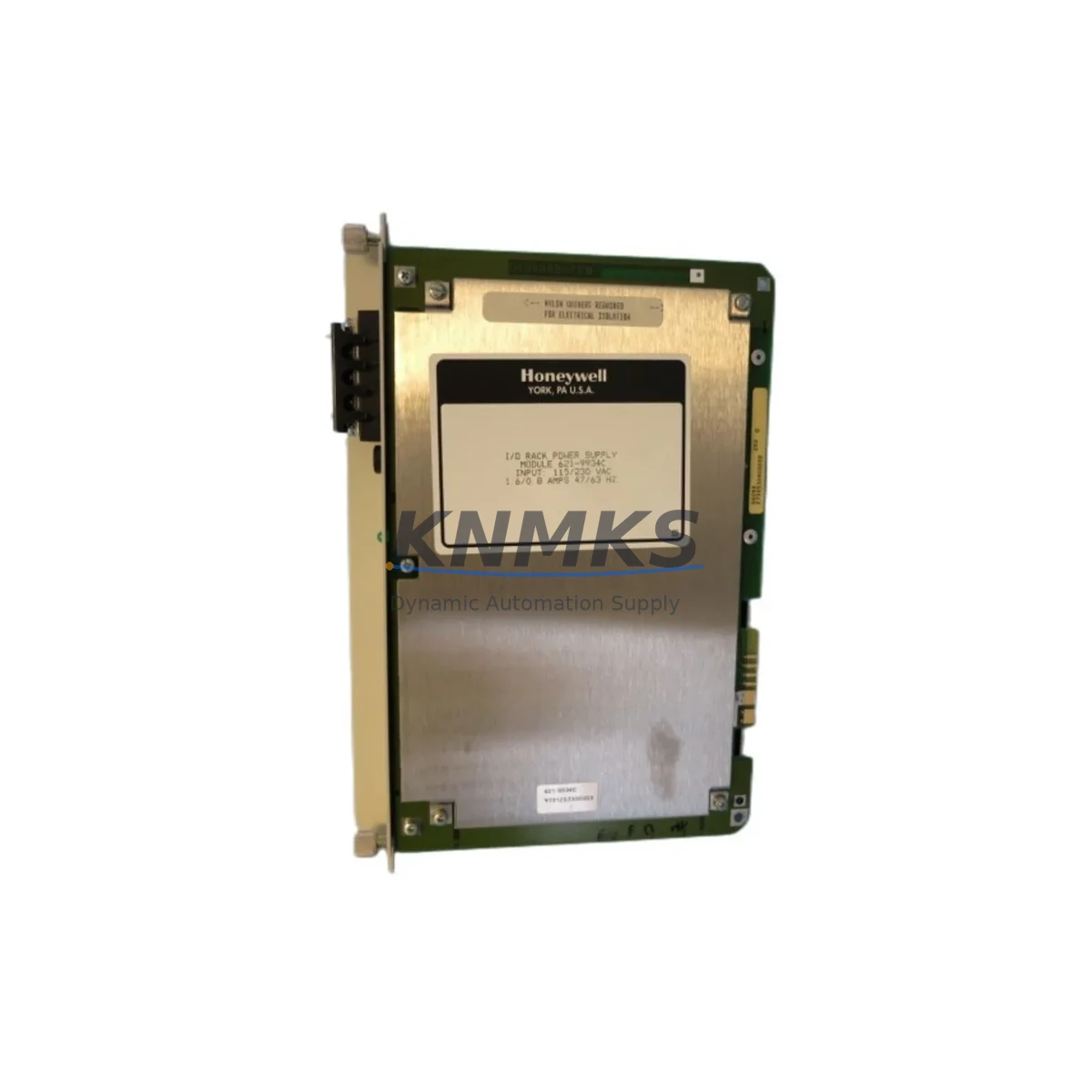

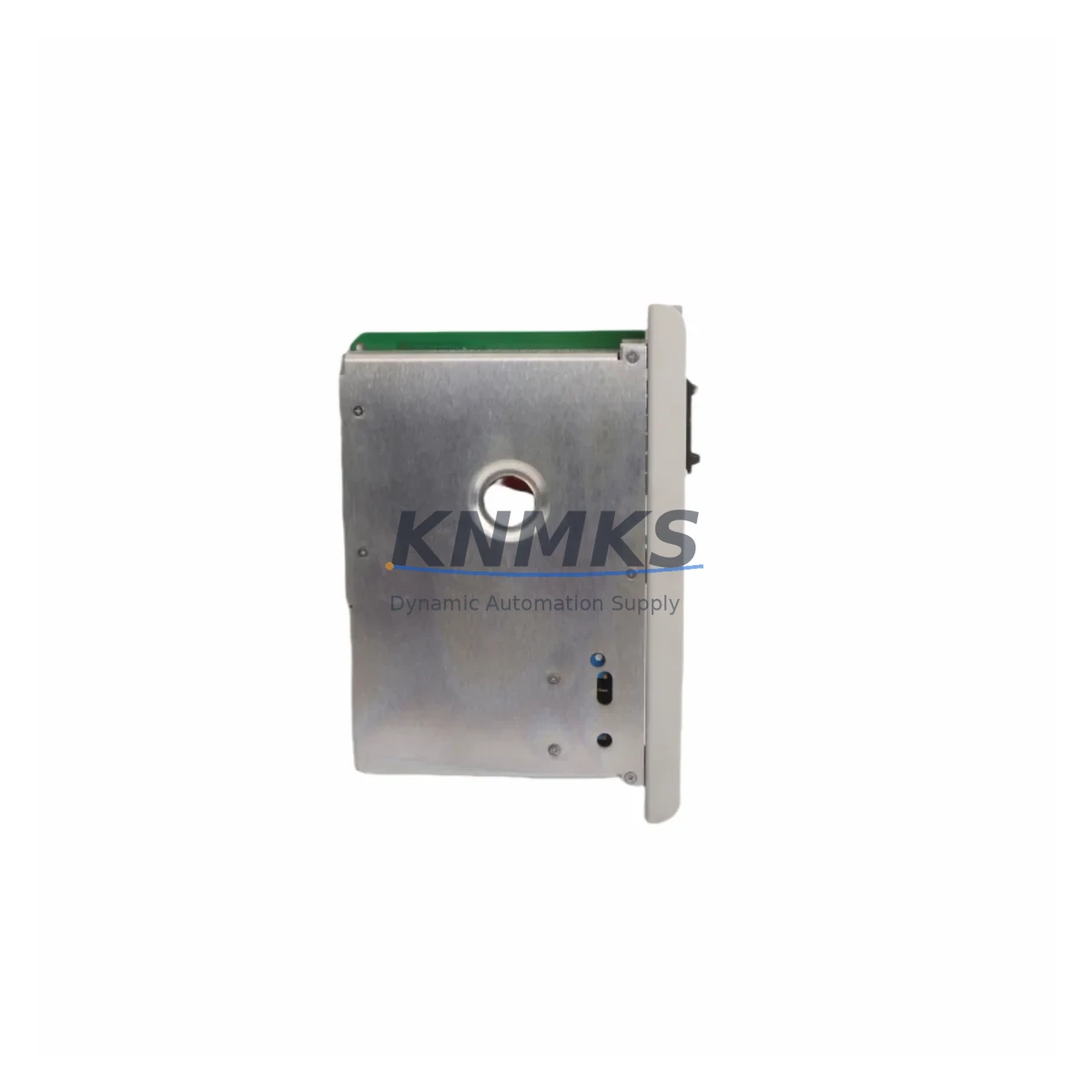

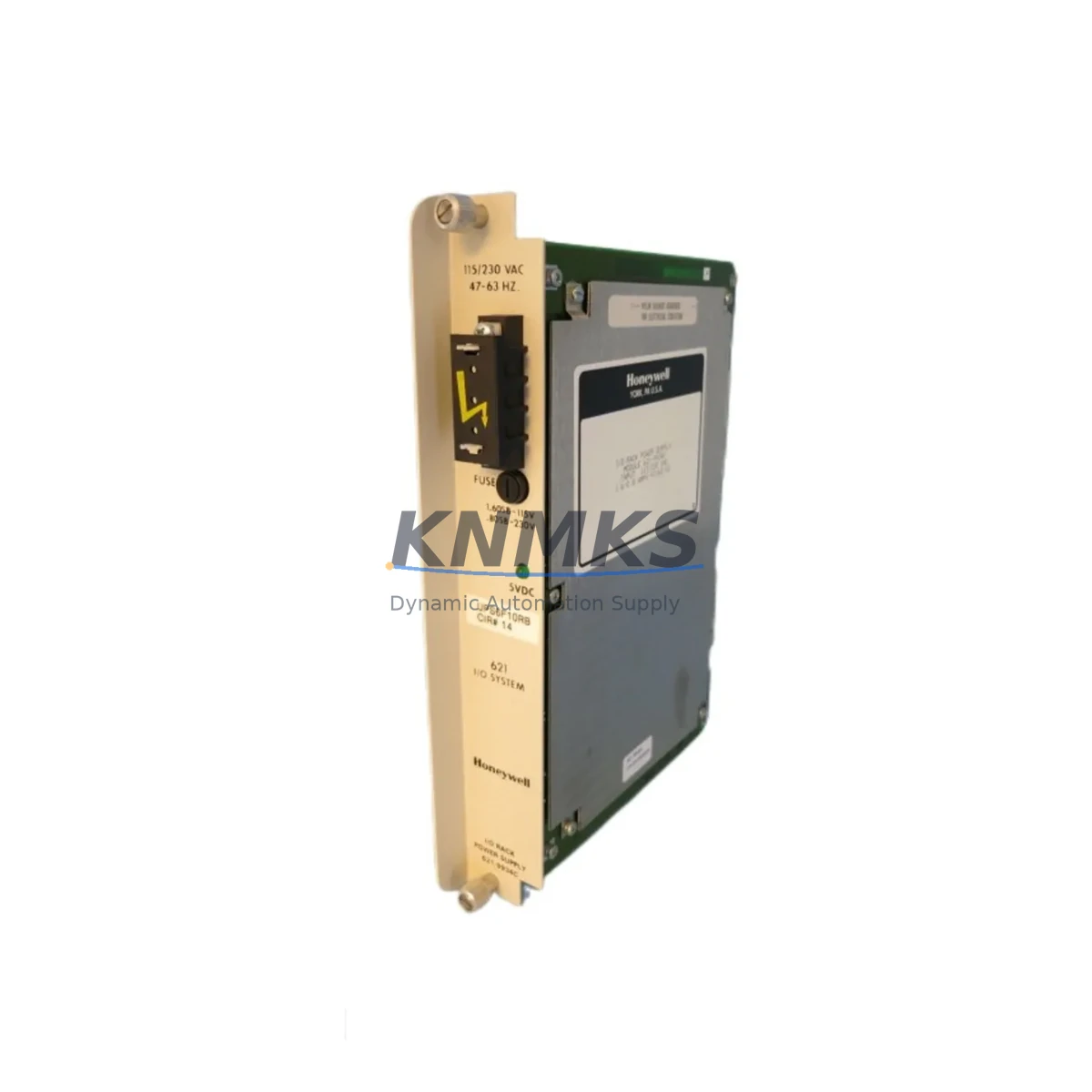

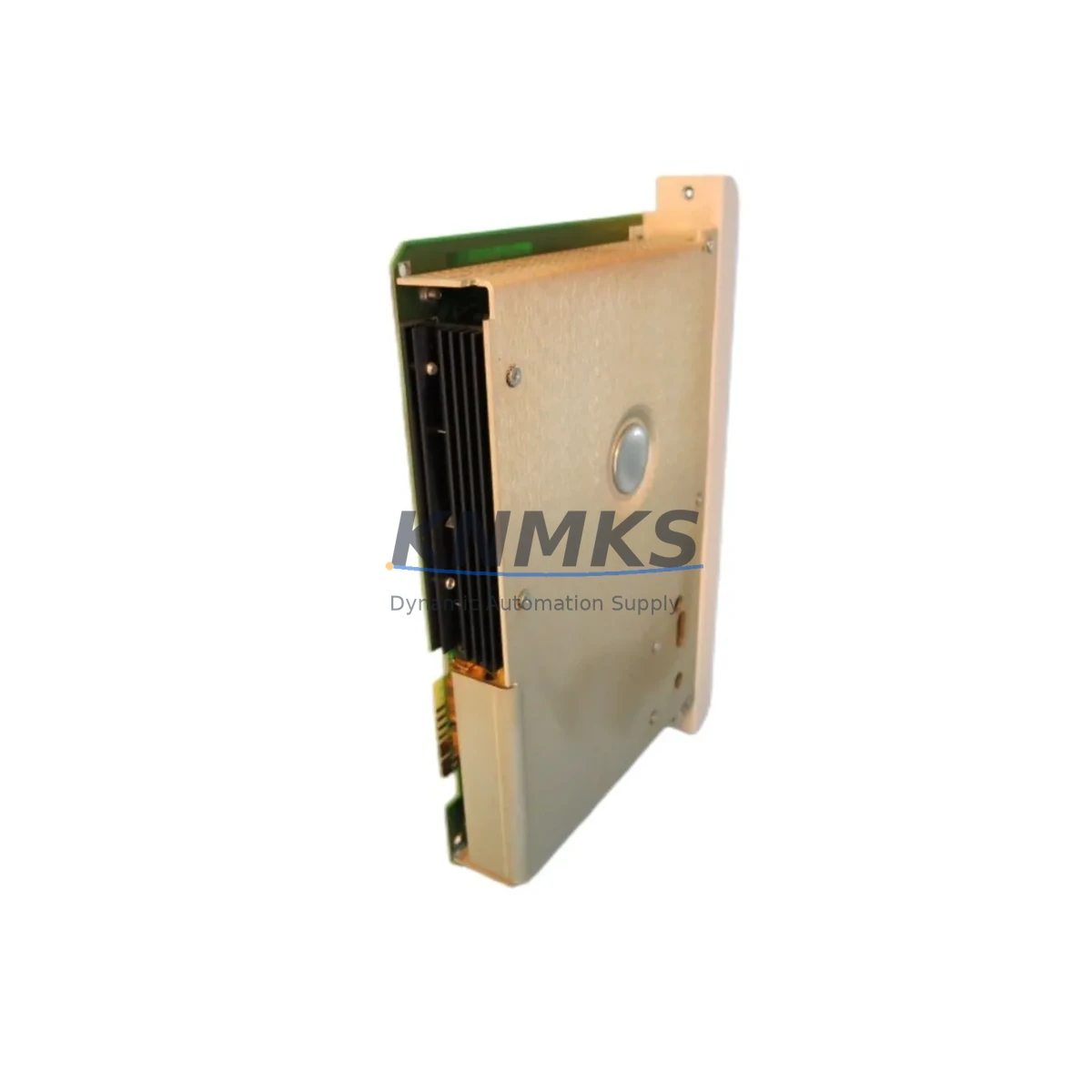

The Honeywell 621-9934C is a factory-original power supply module designed for the Honeywell Series 620 programmable logic controller platform — one of the most widely deployed process automation architectures in continuous manufacturing, chemical processing, and utility control environments. For maintenance engineers managing aging DCS/PLC infrastructure, the 621-9934C represents a critical line-replaceable unit (LRU) that directly governs the operational continuity of the entire control rack. A failed or degraded power supply is among the most common root causes of unplanned shutdowns in legacy automation systems, making verified spare availability a non-negotiable element of any serious maintenance strategy.

At KNMKS, every 621-9934C unit is sourced from authorized channels, individually inspected, and subjected to functional load testing prior to shipment. Each unit ships with a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. Our global logistics network supports urgent dispatch for emergency breakdown scenarios, with same-day processing available for in-stock units.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 621-9934C power supply is flagged during routine control cabinet inspection or fails under load, the replacement workflow should extend beyond the module itself. Experienced maintenance engineers treat a power supply failure as a system-level event, not an isolated component fault. Before returning the Series 620 rack to service, the following associated components should be inspected or replaced as part of the same maintenance window:

The 621-9934 (earlier revision) and 621-9934B are functionally equivalent predecessors to the 621-9934C and may be present in mixed-revision racks — verify the installed revision against your BOM before ordering. The 620-0086 backplane and its connector pins should be inspected for oxidation or heat stress, as a degraded backplane can cause recurring power supply failures. The 621-6550 I/O module and adjacent analog input cards should be checked for voltage rail sensitivity issues that may have been masked by the failing PSU. If the rack includes a 621-9937 communications module, verify that the serial link to the host DCS or SCADA system re-establishes cleanly after power restoration — communication timeouts are common after PSU swaps in Series 620 systems.

On the incoming power side, inspect the 24 VDC auxiliary supply feeding field instruments and relay coils in the same cabinet. A shared power rail fault can stress the 621-9934C and shorten its service life. Check the terminal block wiring for loose connections, particularly on the AC input side — vibration-induced loosening is a documented failure mode in heavy industrial environments. Replace any panel-mount fuses (typically 6.3A or 10A slow-blow, depending on cabinet configuration) as a precautionary measure during the same outage window. If the cabinet includes a signal isolator or barrier module on hazardous-area I/O loops, verify isolation integrity after power restoration using a loop calibrator.

For facilities running extended annual shutdowns, the 621-9934C should be included in the annual overhaul spare parts kit alongside the rack’s I/O modules and communication cards. Holding a minimum of one cold-standby unit per Series 620 rack is the recommended inventory posture for plants with no on-site Honeywell service contract.

Site Replacement Workflow

Step 1 — Isolation: Coordinate with the control room operator to place the affected Series 620 loop in manual mode. Document all active I/O states and alarm conditions before de-energizing the rack.

Step 2 — De-energize and verify: Isolate the AC supply to the cabinet using the upstream isolator or MCB. Confirm zero voltage at the PSU input terminals using a calibrated multimeter before proceeding.

Step 3 — Module extraction: The 621-9934C is a slide-in module secured by a front-panel locking lever. Release the lever, slide the module out, and inspect the backplane connector for damage or contamination before inserting the replacement unit.

Step 4 — Replacement and verification: Insert the new 621-9934C, secure the locking lever, and restore AC power. Verify that the rack’s status LEDs indicate normal operation and that all I/O modules re-initialize correctly. Check the DC bus voltage at the backplane test points if accessible.

Step 5 — System restoration: Confirm communications with the host system, verify all I/O readings against known-good values, and return the loop to automatic mode. Document the replacement in the site maintenance log with the new unit’s serial number and test report.

This workflow minimizes total downtime to under 30 minutes for a prepared maintenance team with the spare unit on-site, compared to 4–72 hours waiting for emergency procurement.

Spare Parts Support FAQ

Q1: Is the 621-9934C a direct drop-in replacement for the 621-9934 and 621-9934B?
Yes. The C revision is backward-compatible with earlier Series 620 rack configurations. No firmware changes or jumper modifications are required. Verify the input voltage selector switch position (120V vs. 240V) matches your site supply before energizing.

Q2: How do you verify compatibility with my specific Series 620 rack configuration?
Provide your rack model number (e.g., 620-0086 or 620-0088) and chassis revision when placing your order. Our technical team will cross-reference against the Honeywell Series 620 hardware compatibility matrix and confirm fit before shipment.

Q3: What does the support terms confirmed by quotation cover, and what is the claims process?
The support terms covers functional failure under normal operating conditions, including output voltage out-of-spec and module non-initialization. To initiate a claim, contact admin@knmks.com with your order number and a brief fault description. Replacement units are dispatched within 3 business days of claim approval.

Q4: Can you support long-term supply for a multi-site maintenance program?
Yes. KNMKS maintains standing inventory of Series 620 spare parts and can support blanket purchase orders, consignment stock arrangements, and annual supply agreements for facilities managing multiple Series 620 installations. Contact our procurement team to discuss volume pricing and guaranteed lead times.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

621-9934C

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Honeywell 621-9934C
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
