Honeywell 51198685-100 SPS5710-2-LF Maintenance-Proven Spare Part

Overview

Honeywell 51198685-100 SPS5710-2-LF Maintenance-Proven Spare Part for Factory Uptime

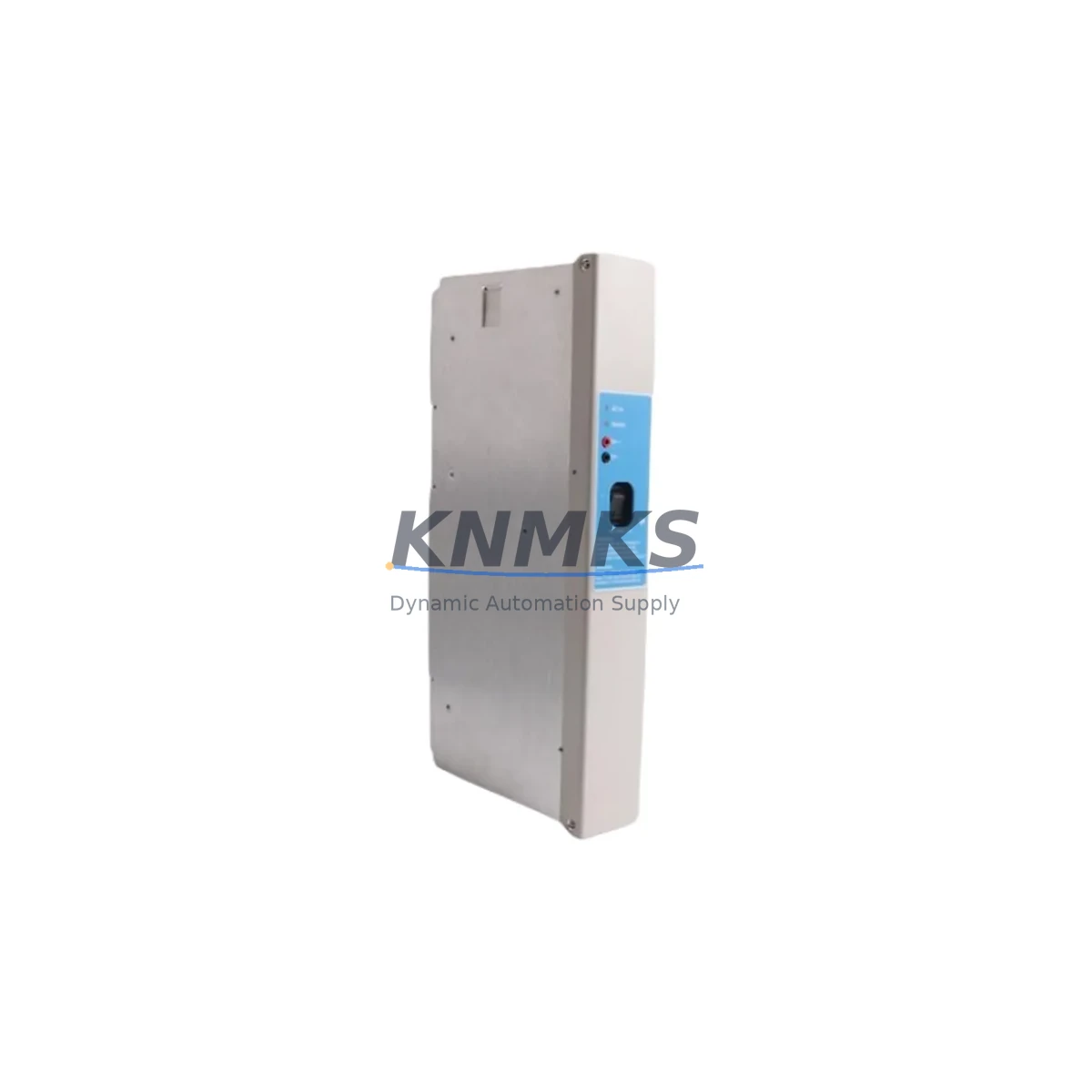

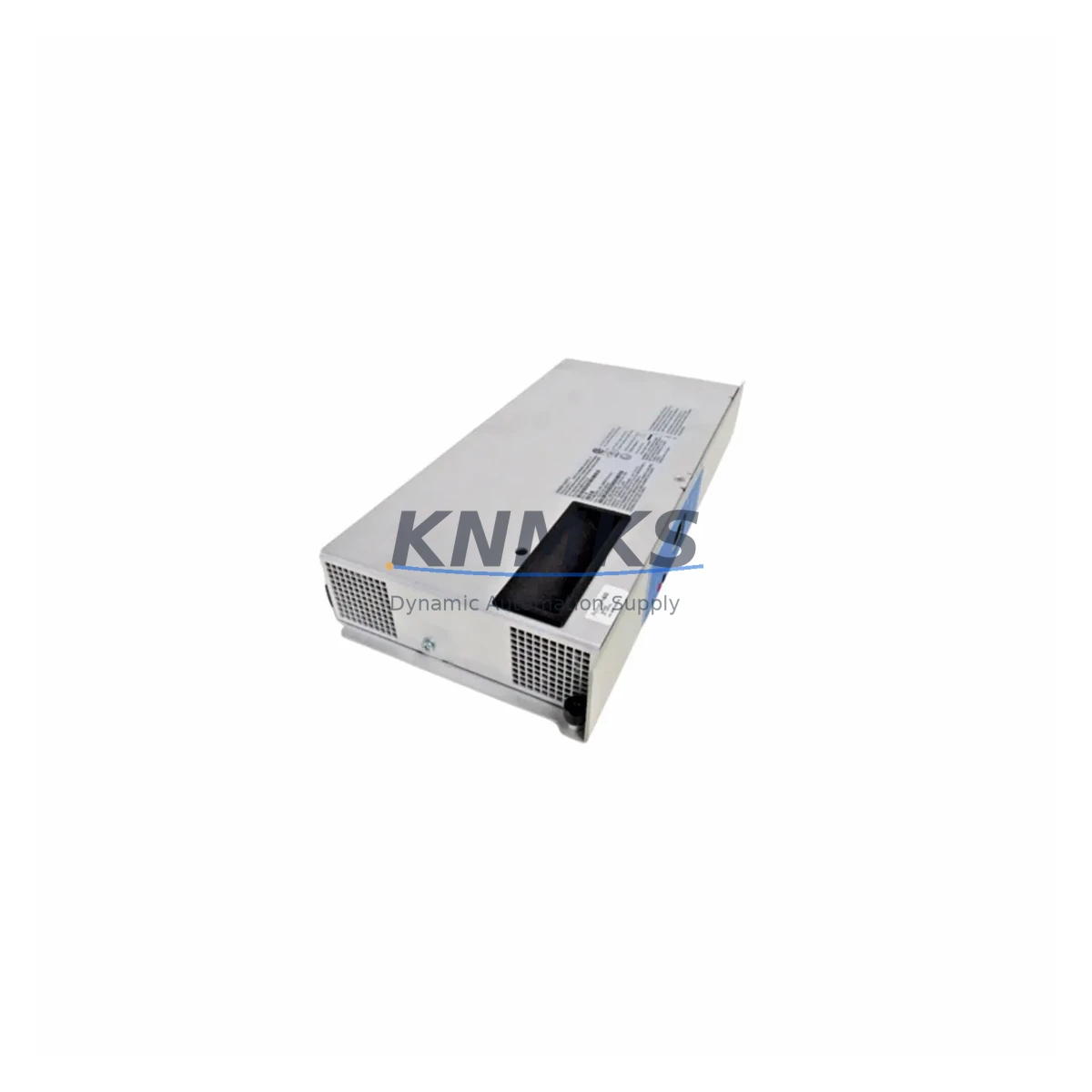

The Honeywell 51198685-100 SPS5710-2-LF is a redundant power supply module engineered for continuous operation within Honeywell TotalPlant Solution (TPS) DCS control cabinets. As a critical infrastructure component, this module provides stable, conditioned DC power to I/O cards, communication modules, and processor boards across the TPS platform. For maintenance engineers managing aging DCS installations, securing a verified spare of the SPS5710-2-LF is a foundational step in any proactive uptime strategy.

In process industries — including refining, petrochemical, pulp and paper, and power generation — the TPS DCS platform remains widely deployed across facilities with 15–30 year operational horizons. The 51198685-100 SPS5710-2-LF supports redundant power architectures, meaning a single module failure does not immediately cause a process shutdown. However, a degraded or failed redundant supply leaves the system exposed to a single point of failure. Immediate replacement is the correct maintenance response, and having a pre-tested spare on-site eliminates the critical window of vulnerability.

Each unit supplied by KNMKS is sourced from verified industrial channels, subjected to pre-shipment functional testing, and backed by a support terms confirmed by quotation. Global dispatch is available for emergency replacement scenarios, supporting facilities across Asia-Pacific, the Middle East, Europe, and the Americas.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing or inspecting the Honeywell 51198685-100 SPS5710-2-LF, a thorough maintenance engineer will not stop at the power supply module itself. The TPS DCS power architecture is tightly integrated with the surrounding cabinet infrastructure, and a power-related fault often reveals stress on adjacent components.

Begin by inspecting the power distribution bus and cabinet backplane for signs of thermal stress, connector oxidation, or micro-arcing — conditions that accelerate power supply degradation. The TPS I/O link cables and FTA (Field Termination Assembly) wiring should be checked for insulation integrity, especially in high-vibration or high-humidity environments. A degraded power supply can cause intermittent faults on Honeywell TPS I/O cards (such as the 51304485-150 or similar analog/digital I/O modules), so verifying I/O card health after a power event is standard practice.

The TPS communication modules and data highway interface cards are sensitive to power quality; if the SPS5710-2-LF has been operating in a degraded state, inspect these modules for firmware integrity and communication error logs. Similarly, relay output modules and discrete I/O termination assemblies connected downstream should be verified for correct switching behavior after power restoration.

For facilities running extended TPS installations, the Honeywell UCN (Universal Control Network) interface modules and associated coaxial trunk cabling should be included in the post-replacement inspection checklist. Power transients during a supply failure can introduce latent faults in network interface hardware. Finally, confirm that the UPS (Uninterruptible Power Supply) feeding the TPS cabinet is within its service life and that its battery backup capacity remains adequate for a controlled shutdown scenario.

Maintaining a cabinet-level spare kit — including at least one SPS5710-2-LF, one spare I/O card per critical loop type, and a set of FTA fuses and terminal block spares — is the recommended inventory posture for any facility where TPS DCS uptime is mission-critical.

Site Replacement Workflow

Step 1 — Confirm Redundancy Status: Before removal, verify via the Honeywell Station or GUS operator console that the redundant power supply alarm is active and that the remaining supply is carrying full load. Do not proceed if both supplies show fault conditions without first engaging your site emergency procedure.

Step 2 — Verify Spare Compatibility: Confirm the replacement unit part number (51198685-100) and model designation (SPS5710-2-LF) match the installed unit. Check the cabinet label and TPS hardware configuration documentation. Do not substitute with non-LF variants without engineering review, as the LF designation indicates lead-free compliance relevant to certain regulatory environments.

Step 3 — Hot-Swap Procedure: The SPS5710-2-LF is designed for hot-swap replacement within the TPS power shelf. Slide the failed module out carefully, ensuring the adjacent supply remains stable. Insert the replacement unit and confirm the redundancy status indicator returns to normal within the operator console within 30–60 seconds of seating.

Step 4 — Post-Replacement Verification: Monitor output voltage stability for a minimum of 15 minutes. Review DCS alarm logs for any residual I/O faults triggered during the power event. Confirm all field devices on affected I/O cards are reporting correctly. Document the replacement in your site maintenance management system (CMMS) with the new unit serial number and support terms start date.

Step 5 — Replenish Spare Inventory: Immediately initiate a procurement order for a replacement spare to restore your on-site buffer. For facilities with multiple TPS cabinets, a minimum of two SPS5710-2-LF units availability confirmed by RFQ is the recommended posture to cover simultaneous or rapid-succession failures.

Spare Parts Support FAQ

Q1: Is the Honeywell 51198685-100 SPS5710-2-LF still available as a new original spare?
Yes. KNMKS maintains stock of original and migration-ready Honeywell TPS power supply modules including the 51198685-100 SPS5710-2-LF. Each unit is sourced from verified industrial supply channels and is not refurbished or reconditioned unless explicitly stated. Contact our team to confirm current stock availability and lead time for your region.

Q2: What is the support terms coverage and what does pre-shipment testing include?
All units are covered by a support terms confirmed by quotation from the date of shipment. Pre-shipment testing includes functional output verification under load conditions, visual inspection for physical damage, and connector integrity checks. A test report can be provided upon request for quality-critical procurement processes.

Q3: Can the SPS5710-2-LF be used as a direct replacement for earlier TPS power supply variants?
The SPS5710-2-LF is the lead-free (-LF) revision of the SPS5710-2 series. In most TPS cabinet configurations, it is a direct mechanical and electrical replacement. However, facilities subject to specific regulatory or environmental compliance requirements should verify the LF designation is acceptable under their site standards. Our technical team can assist with compatibility confirmation prior to order.

Q4: How does KNMKS support long-term supply for legacy TPS DCS installations?
KNMKS specializes in long-cycle supply for legacy DCS and PLC platforms, including Honeywell TPS, TDC 3000, and Experion migration-era hardware. We maintain multi-region stock and can support annual blanket orders, consignment arrangements, and emergency dispatch for unplanned outages. Our goal is to ensure your TPS installation remains operational for its full intended service life without forced migration driven by parts unavailability.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

51198685-100 SPS5710-2-LF

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Honeywell 51198685-100 SPS5710-2-LF
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
