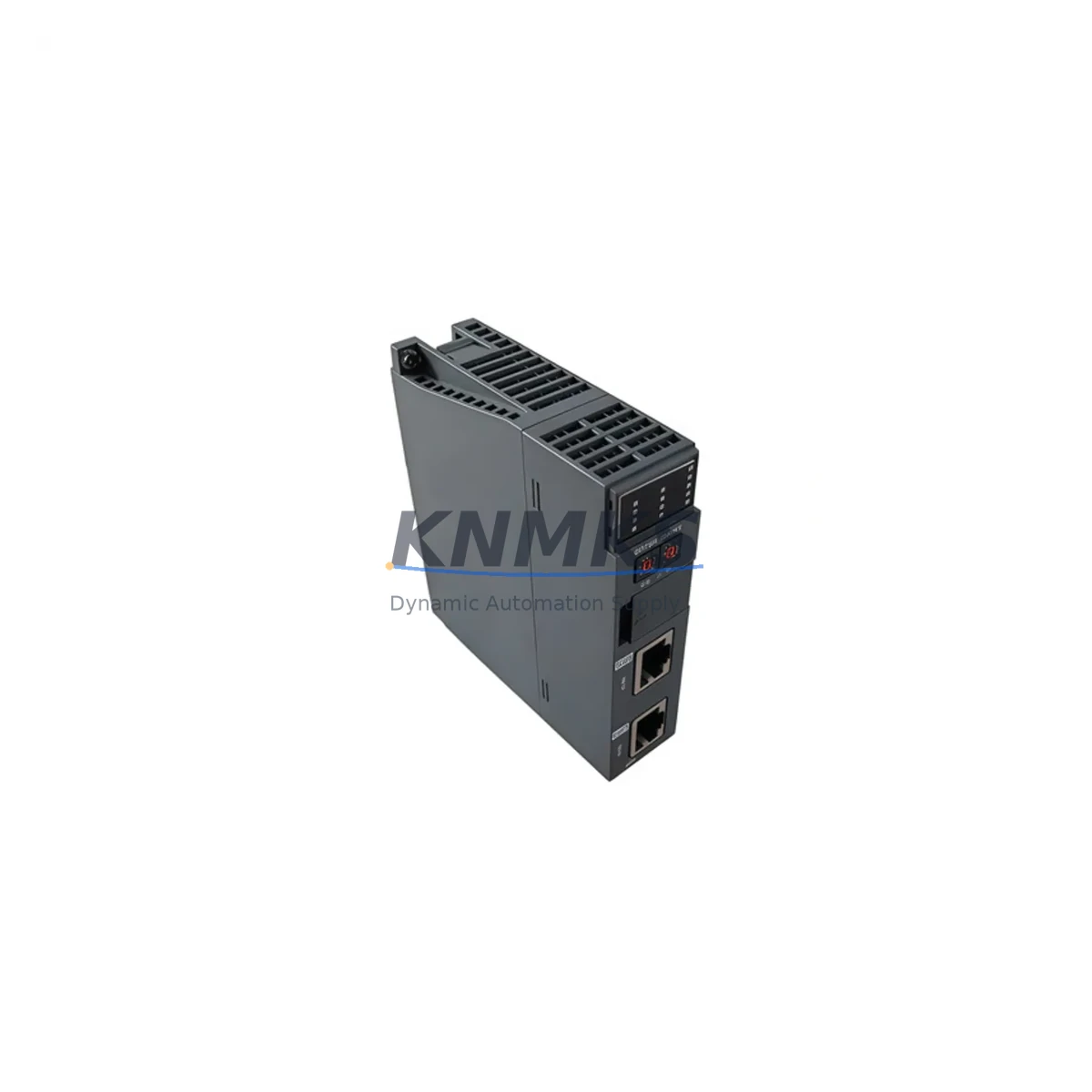

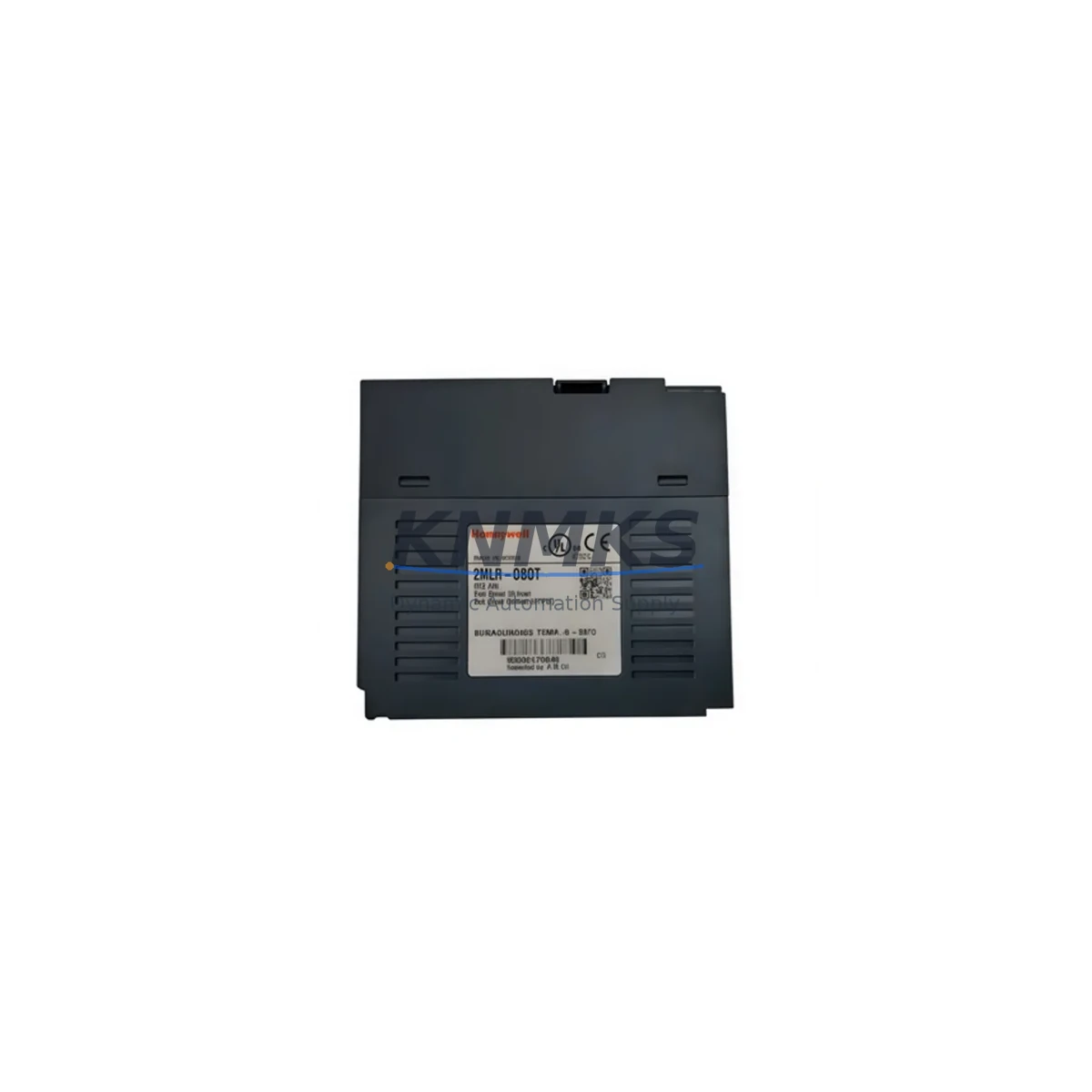

Honeywell 2MLR-DBDT-CC Fail-Safe Expansion Driver Module

Overview

Honeywell 2MLR-DBDT-CC Fail-Safe Expansion Driver Module: Fault Protection for Critical Industrial Control Reliability

The Honeywell 2MLR-DBDT-CC is a safety relay expansion driver module engineered for mission-critical industrial control environments where unplanned downtime, control loop interruption, or output misoperation carries serious operational and safety consequences. Designed to integrate seamlessly into Honeywell’s safety relay architecture, this module extends output drive capacity while maintaining the fail-safe logic integrity demanded by continuous production, critical interlock systems, and hazardous-area control cabinets.

In industries where a single relay failure can cascade into process shutdown, equipment damage, or personnel risk, the 2MLR-DBDT-CC delivers the deterministic switching behavior and robust fault tolerance that safety engineers depend on. Its dual-channel driver topology ensures that any internal fault condition defaults to a de-energized, safe state — a fundamental requirement for SIL-rated safety loops and emergency shutdown (ESD) systems.

Whether deployed in a petrochemical interlock panel, a power plant protection circuit, or a heavy-load motor control cabinet, this module is built to perform reliably under the electrical and environmental stresses that characterize real industrial sites: high electromagnetic interference from variable frequency drives and large contactors, voltage transients from inductive load switching, ambient temperature extremes, vibration, and condensation-prone enclosures.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 2MLR-DBDT-CC is most effective when integrated as part of a layered control cabinet protection strategy. In a well-designed safety cabinet, the expansion driver module works in coordination with the base safety relay — such as the Honeywell 2MLR-DBDT master relay unit — to extend the number of safe output channels without compromising the integrity of the safety loop. This is particularly important in applications requiring multiple actuator outputs from a single safety function, such as dual-valve ESD systems or multi-motor interlock circuits.

Power supply stability is a prerequisite for reliable relay operation. Pairing the 2MLR-DBDT-CC with a Honeywell or equivalent 24 VDC DIN rail power supply with active power factor correction and output hold-up time ensures that brief grid disturbances or upstream switching events do not cause nuisance trips or unsafe relay state transitions. In high-demand environments, a redundant power supply configuration with automatic switchover further eliminates single points of failure in the power distribution architecture.

Signal integrity upstream of the safety relay is equally critical. Honeywell XNX or similar transmitter interfaces feeding into the safety loop must maintain clean, drift-free 4–20 mA or discrete signals. Signal conditioners and galvanic isolators — such as those from the Honeywell SPS series — prevent ground loop interference and protect the relay input stage from common-mode voltage spikes originating in field instrumentation.

For cabinets operating in high-EMI zones near large motors, welding equipment, or high-frequency inverters, surge protection devices (SPDs) installed at the cabinet entry point and on individual I/O lines are essential companions to the 2MLR-DBDT-CC. These devices clamp transient overvoltages before they can reach the relay module’s sensitive driver circuitry. Similarly, Honeywell or third-party DIN rail terminal blocks with integrated surge suppression provide point-of-use protection for each field wiring connection.

Cabinet thermal management must not be overlooked. Excessive heat accelerates relay contact wear and can cause driver circuit drift. Pairing the 2MLR-DBDT-CC installation with a properly sized cabinet cooling unit or thermostat-controlled fan assembly maintains the internal ambient within the module’s rated operating range, preserving long-term switching reliability and reducing the frequency of unplanned maintenance interventions.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In hydrocarbon processing facilities, the 2MLR-DBDT-CC is deployed in emergency shutdown (ESD) panels controlling isolation valves, blowdown systems, and compressor trip circuits. Its fail-safe de-energize-to-trip architecture aligns with IEC 61511 functional safety requirements for process safety instrumented systems (SIS). The module’s resistance to the high EMI generated by large motor control centers (MCCs) and variable speed drives ensures that safety relay outputs remain stable and do not produce spurious trips during normal plant operation.

Electric Power Generation and Transmission: Turbine protection systems, generator excitation control, and high-voltage switchgear interlock circuits demand relay modules that maintain output state integrity during grid disturbances, including voltage sags, frequency excursions, and switching transients. The 2MLR-DBDT-CC’s surge-protected driver outputs and deterministic fail-safe behavior make it a reliable choice for these high-consequence protection applications.

Mining and Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust ingress, and wide temperature swings. The 2MLR-DBDT-CC’s industrial-grade construction and DIN rail mounting allow it to be installed in ruggedized enclosures controlling conveyor belt safety systems, hoist interlock circuits, and ventilation fan trip relays — all applications where a relay failure could result in equipment damage or personnel injury.

Water and Wastewater Treatment: Pump station control panels, chemical dosing interlock systems, and overflow protection circuits in water treatment facilities benefit from the module’s resistance to the high humidity and condensation common in these environments. Its stable switching behavior under varying load conditions ensures that pump protection relays and valve actuator circuits operate predictably across the full range of process conditions.

Metallurgy and Steel Production: Electric arc furnace (EAF) control systems, rolling mill interlock circuits, and ladle transfer crane safety systems operate in environments with extreme electromagnetic interference from high-current bus bars and arc discharge. The 2MLR-DBDT-CC’s EMI-hardened design maintains reliable output switching even in these electrically hostile conditions.

Port, Marine, and Offshore Applications: Cargo handling crane control systems, ship engine room safety panels, and offshore platform ESD systems require relay modules certified for marine-grade environments. The 2MLR-DBDT-CC’s robust construction and wide operating temperature range support deployment in these demanding applications, where saltwater corrosion, vibration, and power quality issues are constant challenges.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the Honeywell 2MLR-DBDT-CC?
All units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Support requests are supported with direct technical assistance and replacement unit dispatch to minimize site downtime.

Q2: What pre-shipment testing is performed on each unit?
Every 2MLR-DBDT-CC undergoes a full functional inspection prior to dispatch, including output channel switching verification, supply voltage tolerance testing, and visual inspection for physical integrity. Units that do not pass inspection are not shipped. Test records are available upon request for quality-critical procurement processes.

Q3: Is the 2MLR-DBDT-CC compatible with existing Honeywell 2MLR safety relay installations?
Yes. The 2MLR-DBDT-CC is designed as a direct expansion module for the Honeywell 2MLR safety relay series. It is compatible with existing 2MLR base units and does not require firmware updates or special configuration tools for integration. Compatibility with specific system revisions can be confirmed by contacting our technical team before ordering.

Q4: Can long-term supply commitments be arranged for maintenance and spare parts programs?
Yes. KNMKS supports long-term supply agreements for critical spare parts programs, including the 2MLR-DBDT-CC. We maintain dedicated stock for key industrial clients and can provide scheduled delivery commitments aligned with planned maintenance windows, turnaround schedules, and annual shutdown programs. Contact our sales team to discuss volume pricing and supply continuity arrangements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

2MLR-DBDT-CC

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Honeywell 2MLR-DBDT-CC
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
